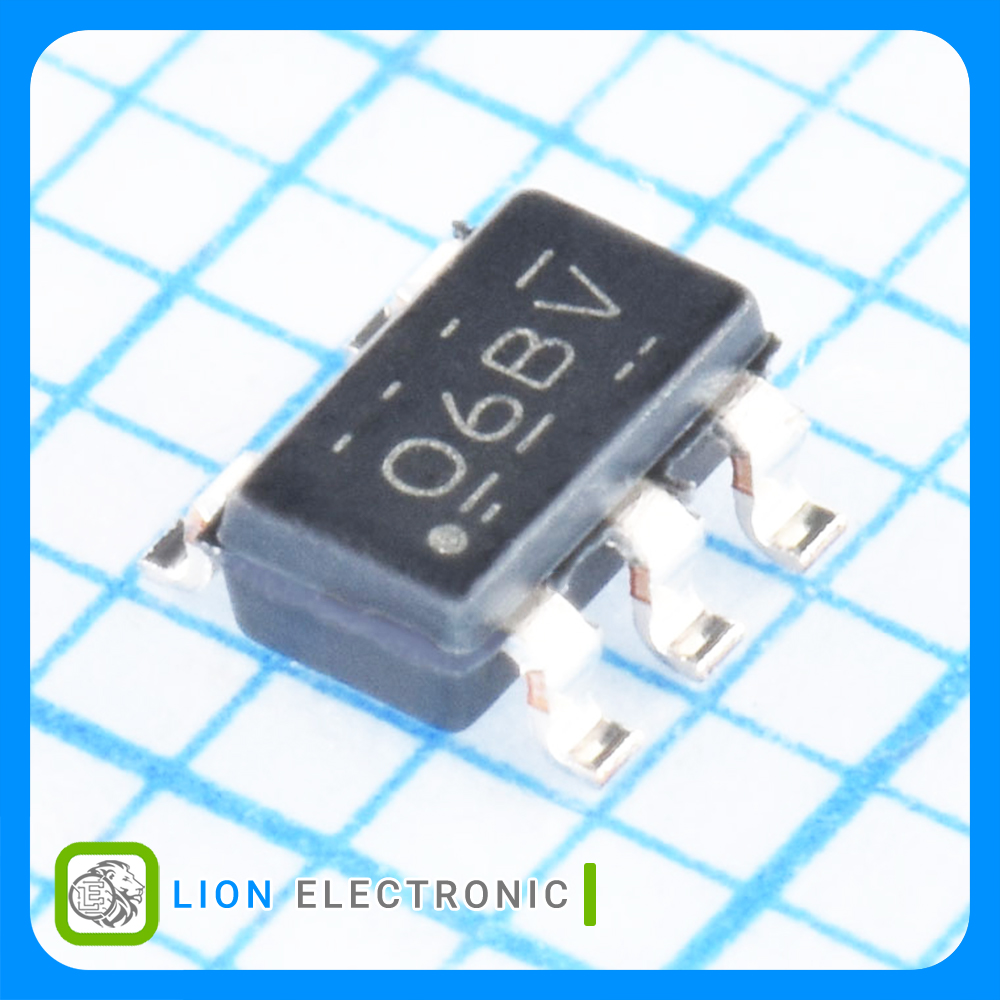

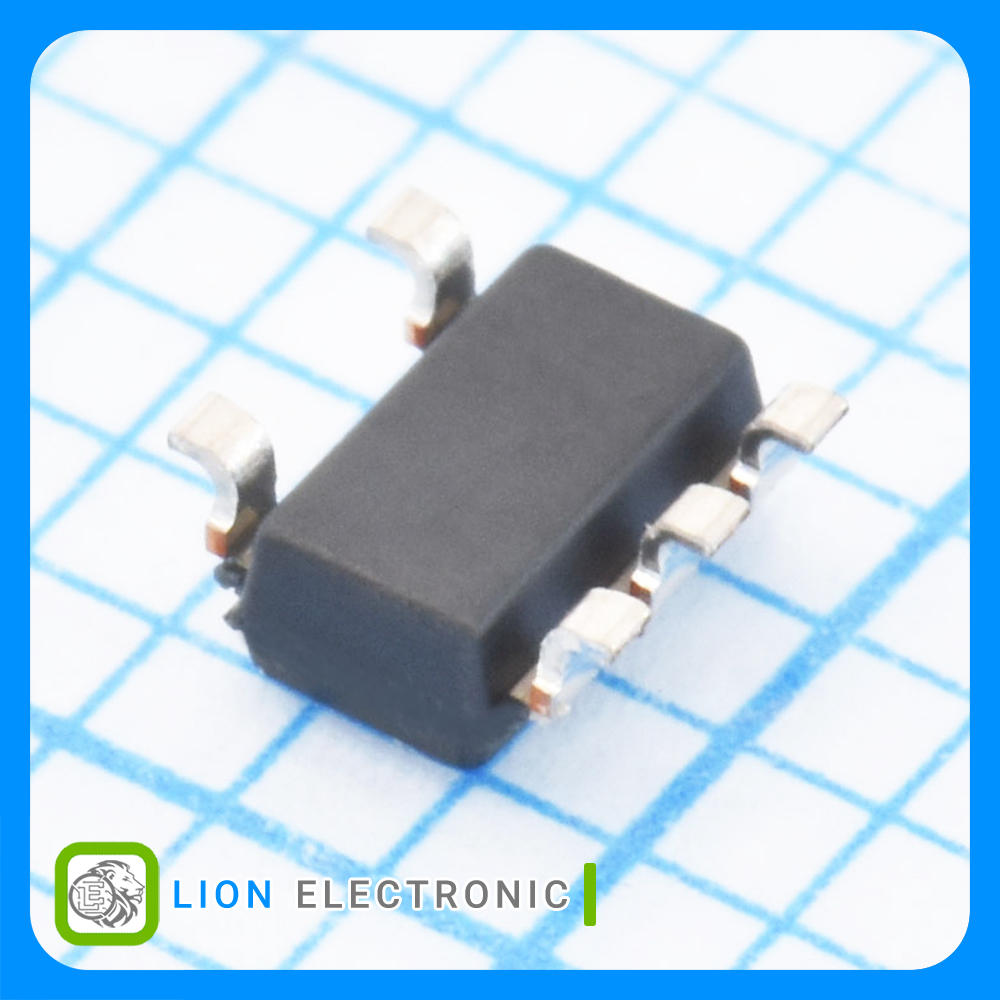

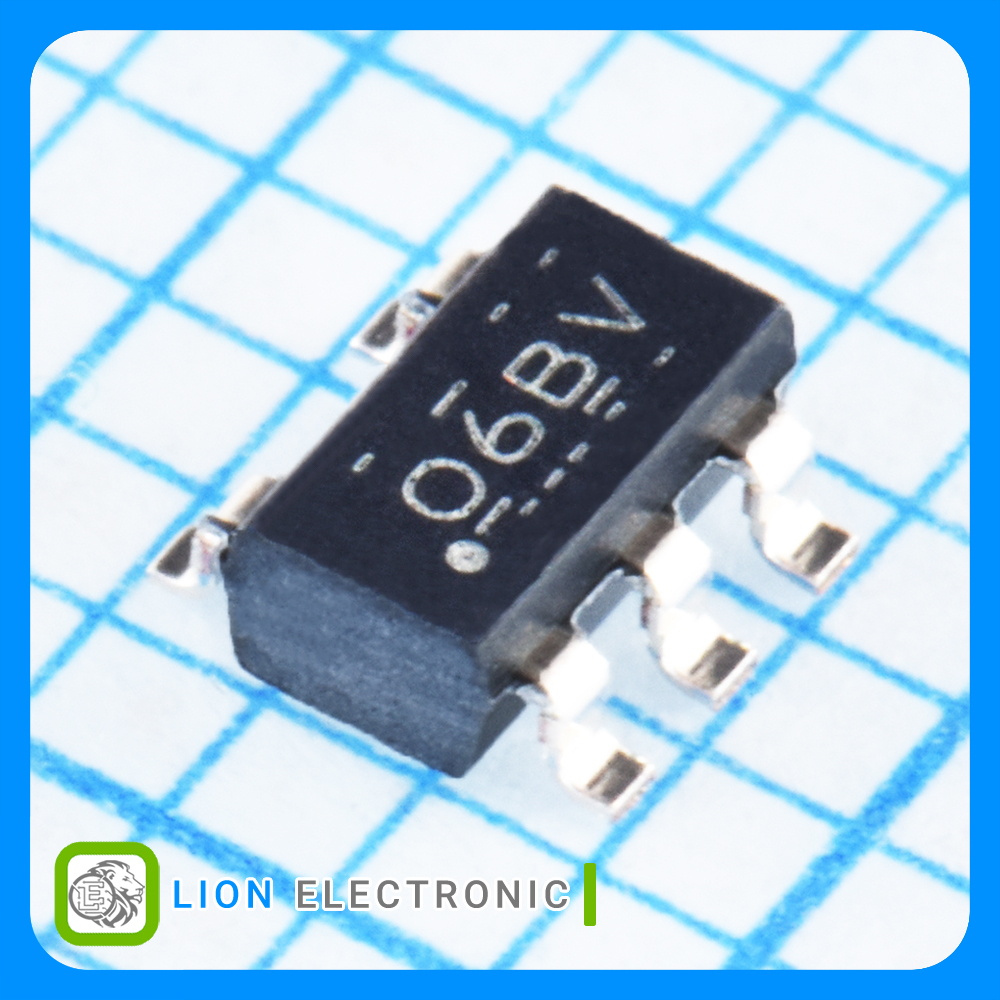

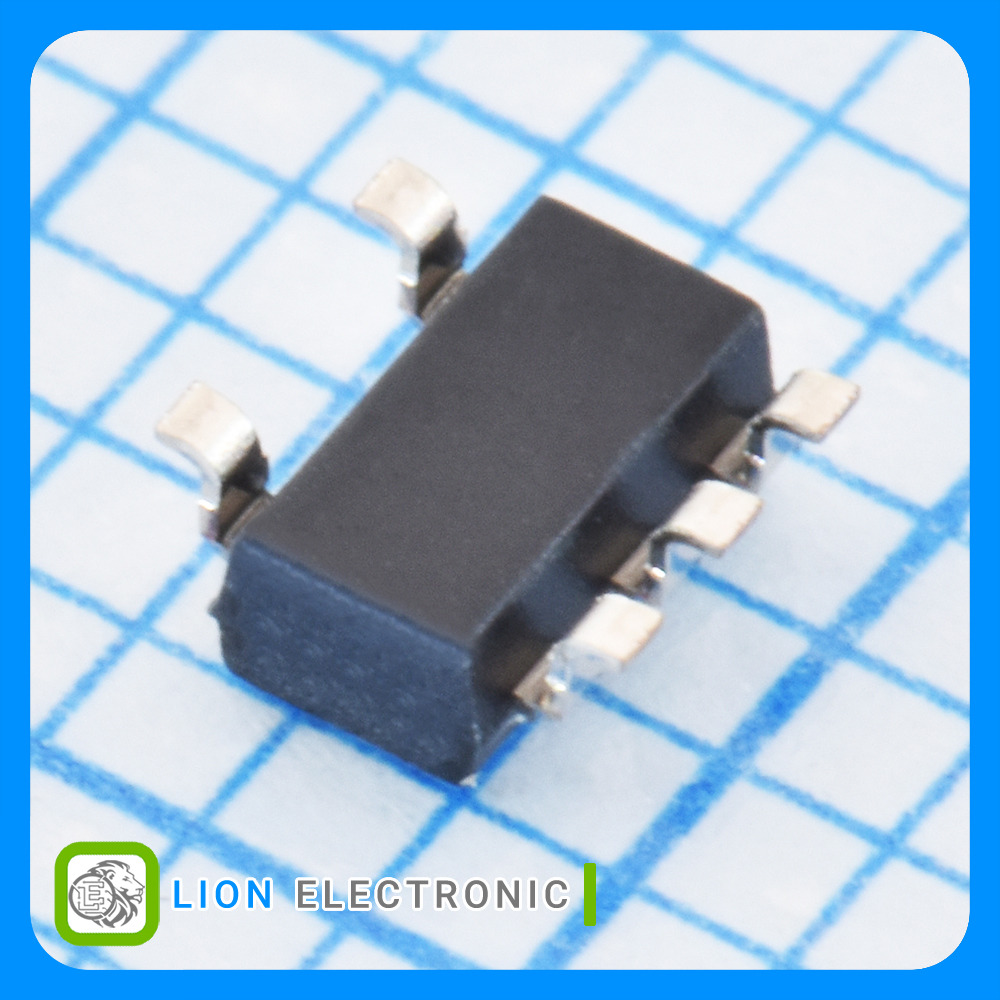

OPA607IDBVR
OPA607IDBVR
Part Number
2722
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ CMOS با 1 کانال 50 مگاهرتز با توان مصرفی پایین و خروجی ریل تو ریل با پکیج SOT-23-5
Operational Amplifier 1-Channel, 50MHz, Low-Power, Rail-to-Rail Output CMOS with SOT-23-5 Package
معرفی
آپامپ CMOS با 1 کانال 50 مگاهرتز با توان مصرفی پایین و خروجی ریل تو ریل با پکیج SOT-23-5
Operational Amplifier 1-Channel, 50MHz, Low-Power, Rail-to-Rail Output CMOS with SOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 20mA
- SR - Slew Rate: 24V/us
- GBP - Gain Bandwidth Product: 50MHz
- CMRR - Common Mode Rejection Ratio: 100dB
- Ib - Input Bias Current: 10pA
- Vos - Input Offset Voltage: 120uV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.2V
- Operating Supply Current: 900uA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ OPA607IDBVR
آپ امپ OPA607IDBVR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
10pA
Ib - Input Bias Current
20mA
Output Current per Channel
+125C
Maximum Operating Temperature
120uV
Vos - Input Offset Voltage
5.5V
Supply Voltage - Max
2.2V
Supply Voltage - Min
100dB
CMRR - Common Mode Rejection Ratio
24V/us
SR - Slew Rate
50MHz
GBP - Gain Bandwidth Product
900uA
Operating Supply Current
SOT-23-5
Package-Case
