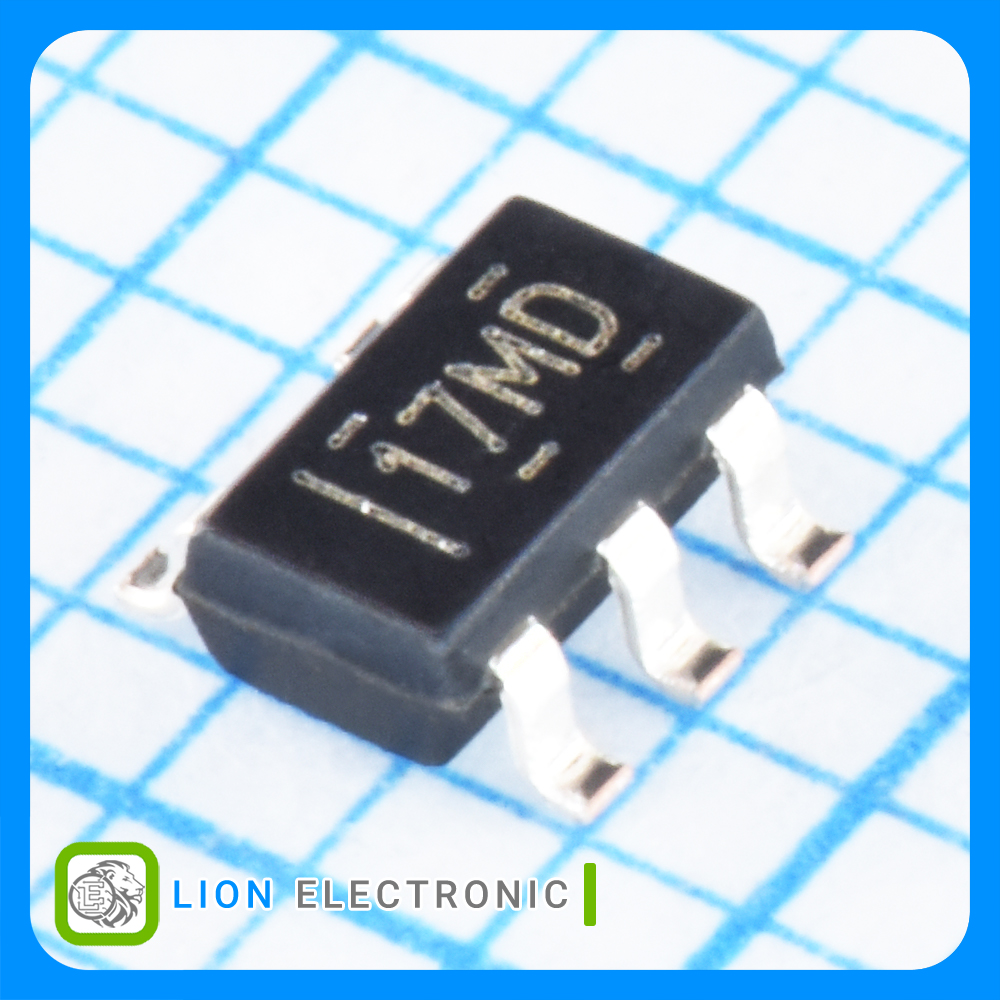

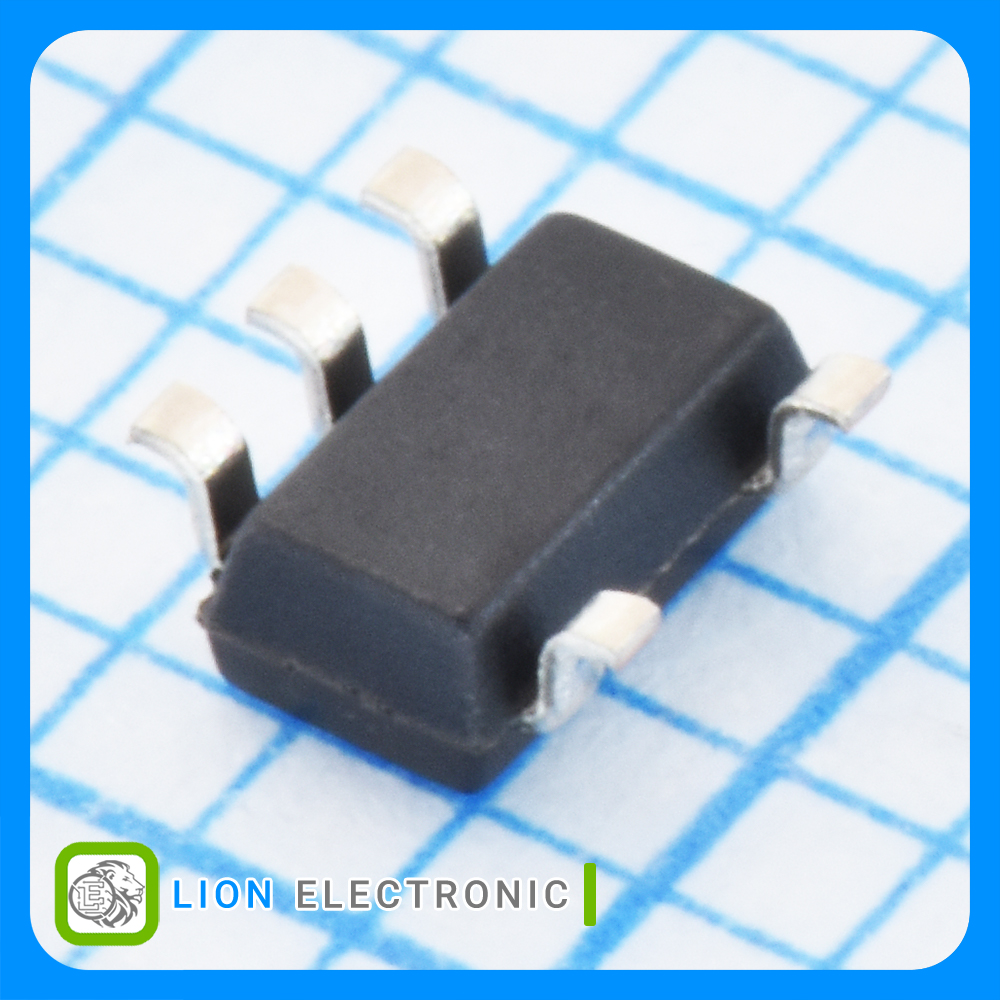

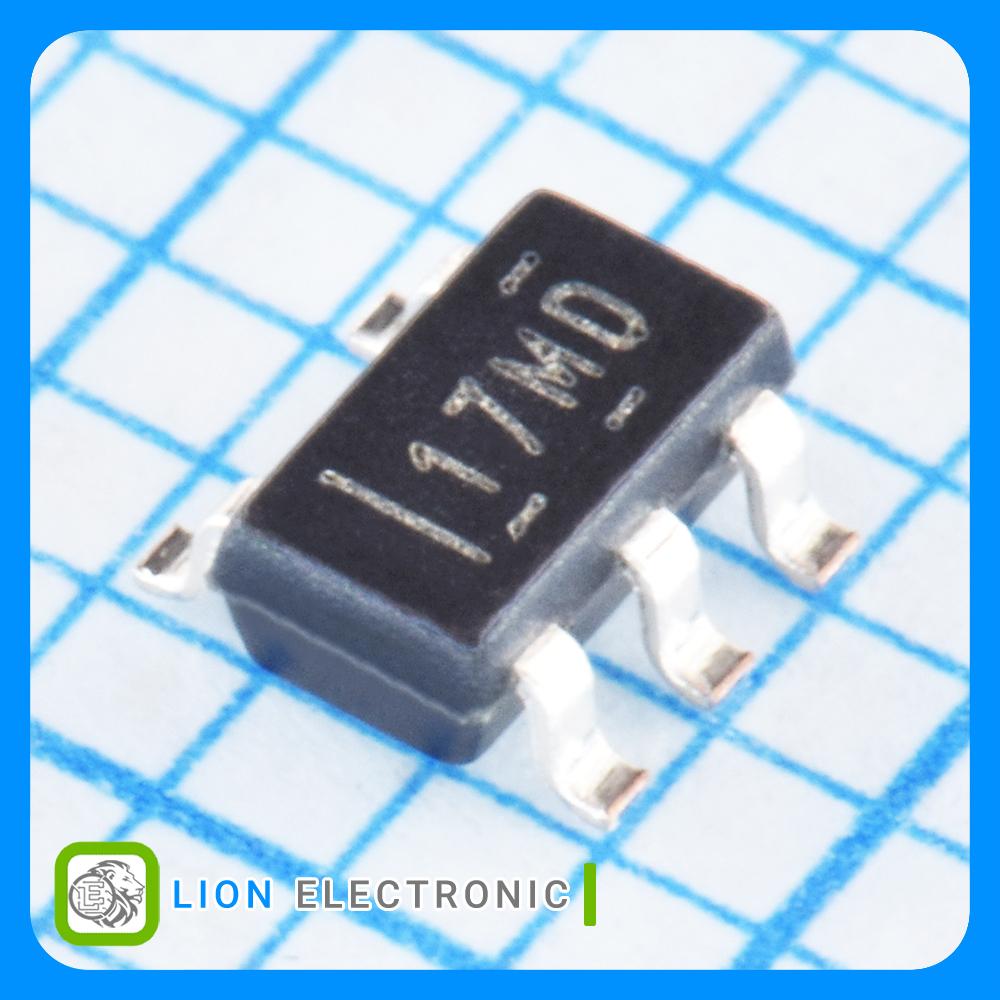

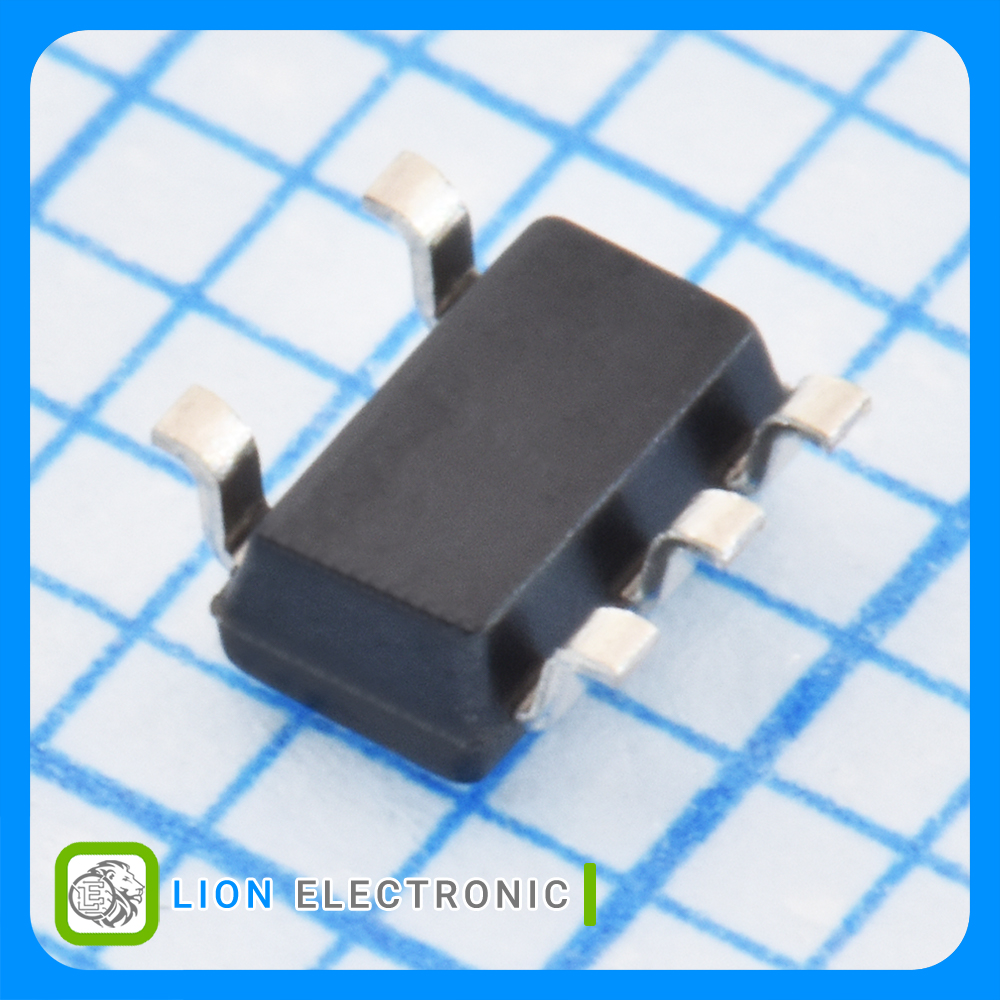

TLV3541IDBVR
TLV3541IDBVR
Part Number
2723
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله با پهنای باند 200 مگاهرتز، ریل تو ریل ورودی و خروجی، CMOS با پکیج TSOT-23-5
Operational Amplifier 1-Channel, 200MHz, Rail to Rail I/O, CMOS with TSOT-23-5 Package
معرفی
آپامپ 1 کاناله با پهنای باند 200 مگاهرتز، ریل تو ریل ورودی و خروجی، CMOS با پکیج TSOT-23-5
Operational Amplifier 1-Channel, 200MHz, Rail to Rail I/O, CMOS with TSOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 100mA
- SR - Slew Rate: 150V/us
- GBP - Gain Bandwidth Product: 100MHz
- CMRR - Common Mode Rejection Ratio: 80dB
- Ib - Input Bias Current: 3pA
- Vos - Input Offset Voltage: 2mV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.5V
- Operating Supply Current: 5.2mA
- Mounting Style: SMD/SMT
- Package/Case: TSOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ TLV3541IDBVR

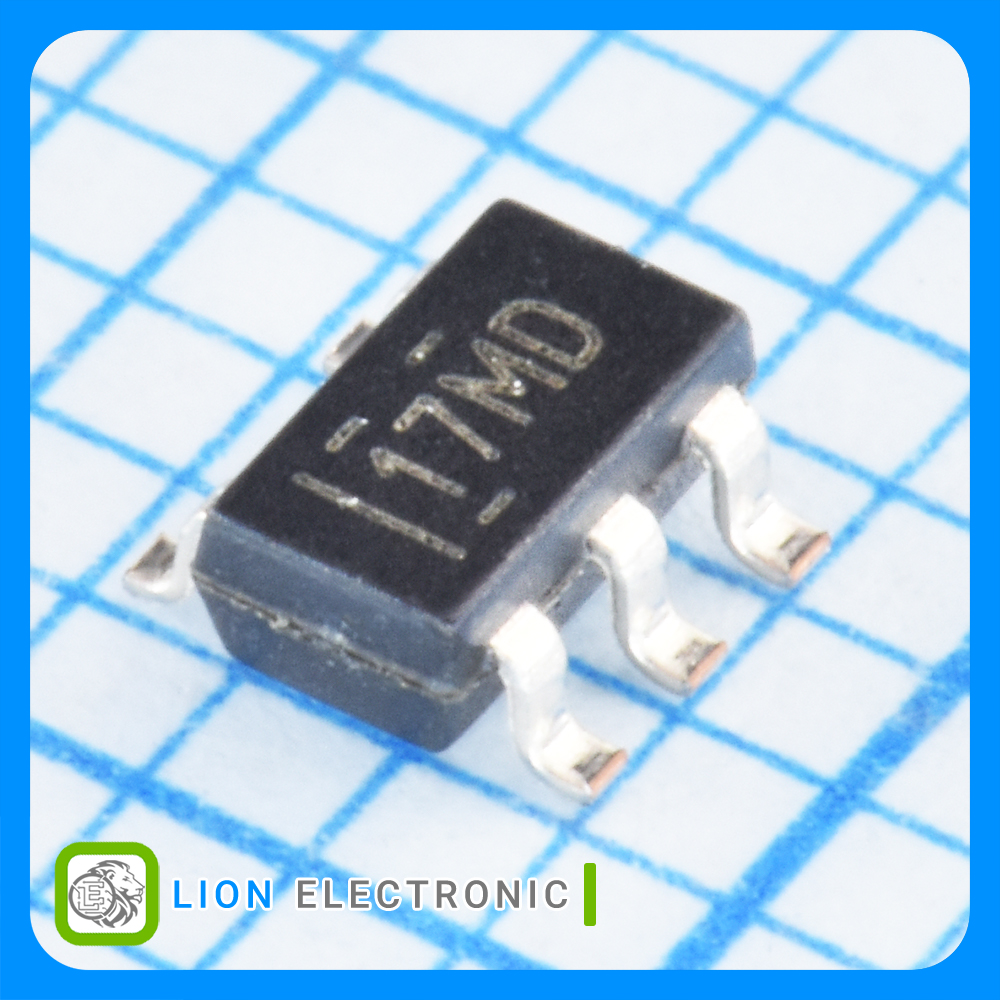

آپ امپ TLV3541IDBVR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
3pA
Ib - Input Bias Current
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
80dB
CMRR - Common Mode Rejection Ratio
2.5V
Supply Voltage - Min
100mA
Output Current per Channel
2mV
Vos - Input Offset Voltage
150V/us
SR - Slew Rate
100MHz
GBP - Gain Bandwidth Product
5.2mA
Operating Supply Current
SOT-23-5
Package-Case
