SG Micro
معرفی

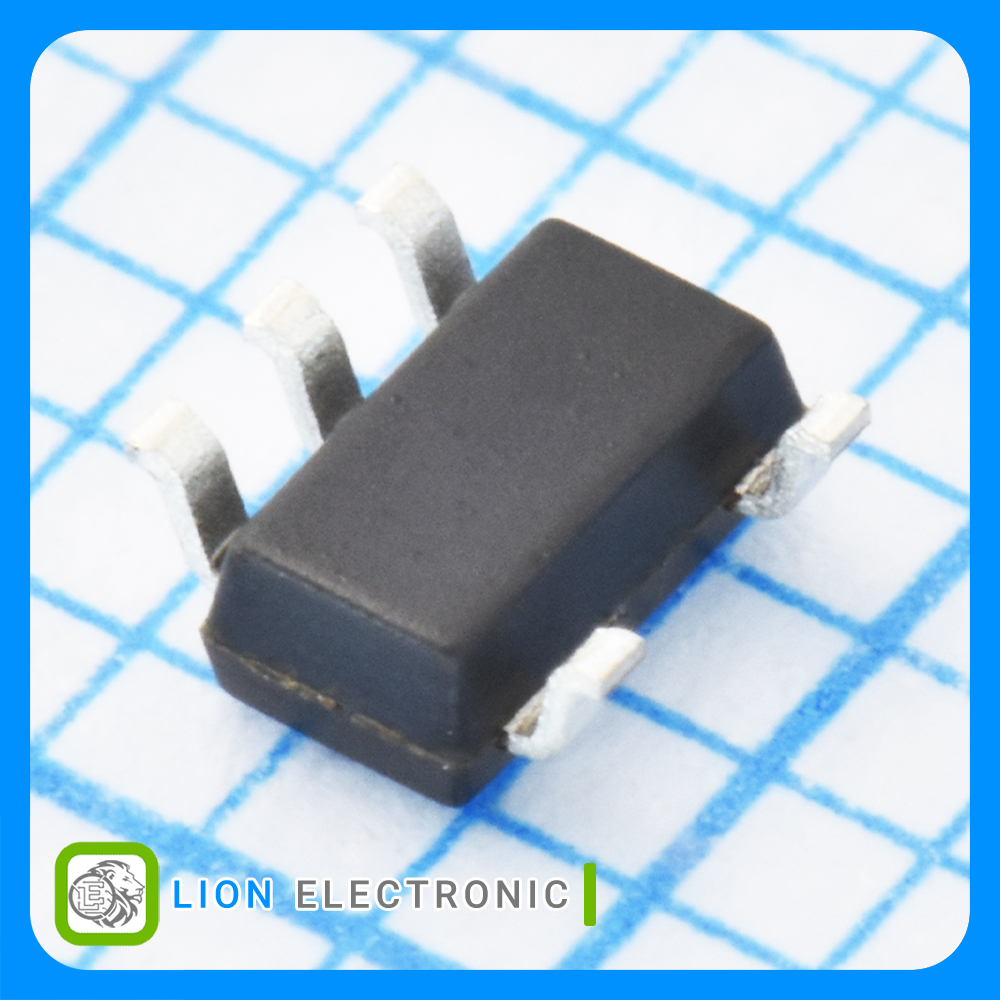

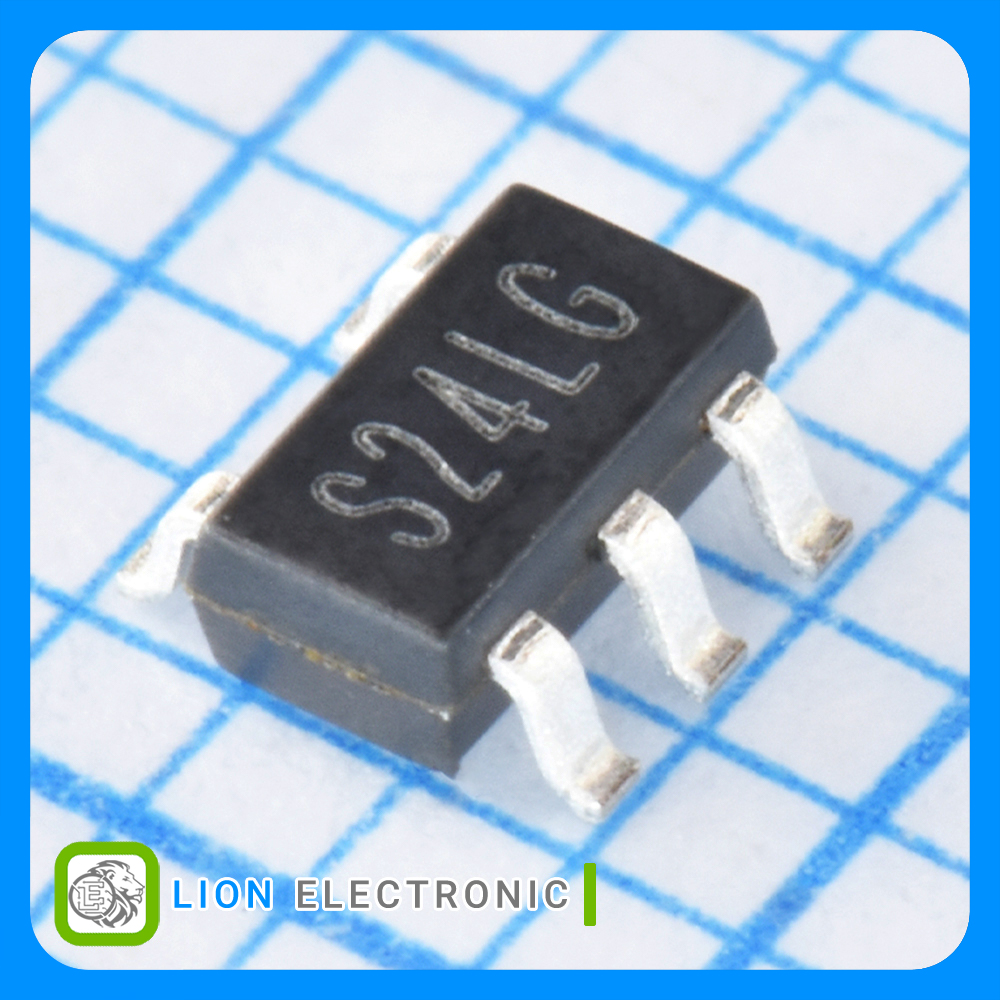

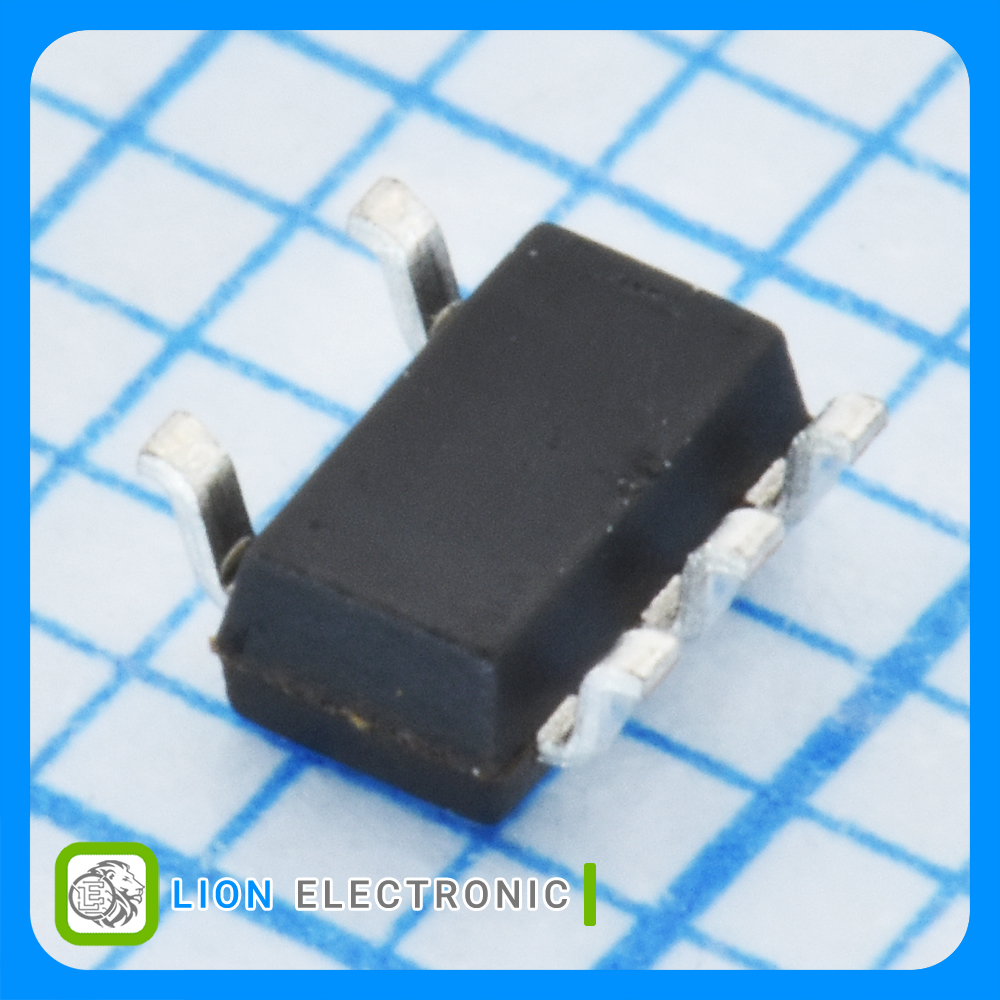

آپامپ 1 کاناله با پهنای باند 14.5 کیلوهرتز و پکیج SOT-23-5
Operational Amplifier 1-Channel, 14.5KHz with SOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 24mA
- SR - Slew Rate: 3.3V/ms
- GBP - Gain Bandwidth Product: 14.5KHz
- CMRR - Common Mode Rejection Ratio: 78dB
- Ib - Input Bias Current: 1pA
- Vos - Input Offset Voltage: 400uV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 1.4V
- Operating Supply Current: 710nA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات آپ امپ SGM8041YN5G

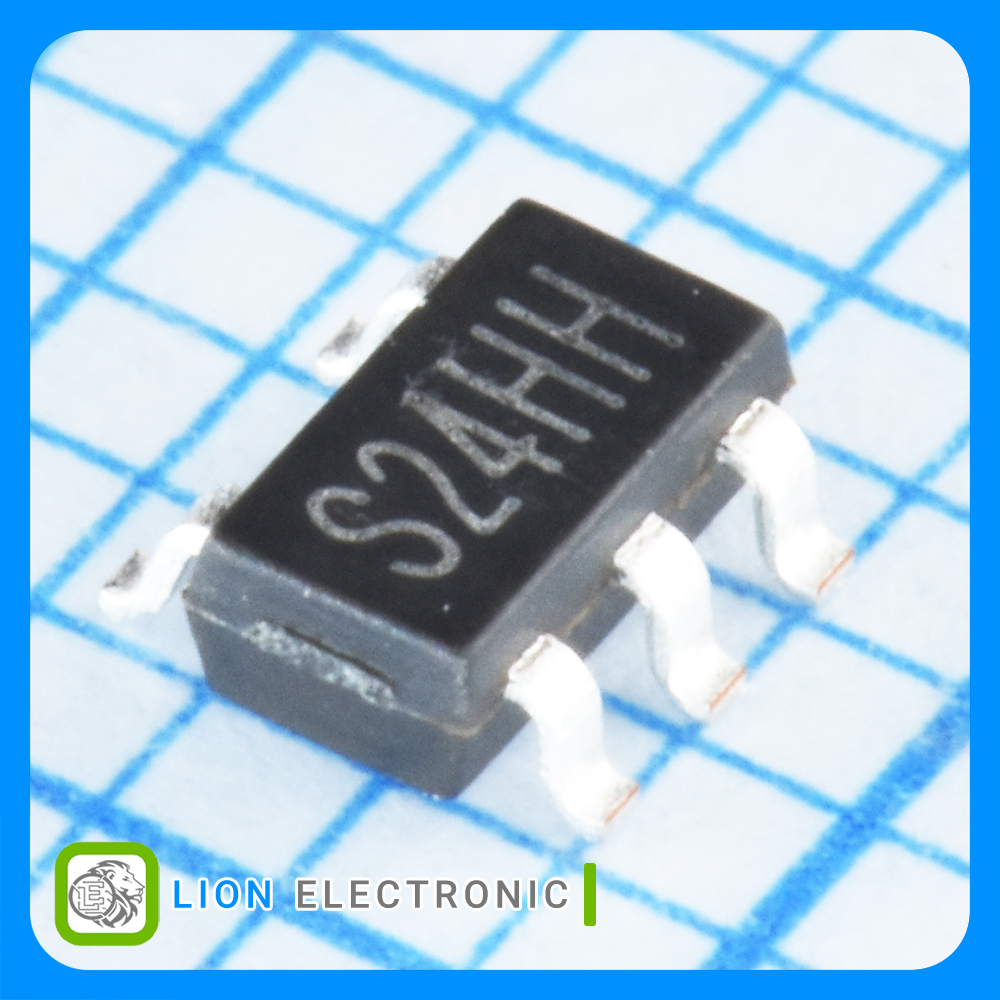

آپ امپ SGM8041YN5G
Part Number
3.3V/ms
SR - Slew Rate
1
Number of Channels
14.5KHz
GBP - Gain Bandwidth Product
Reel
Packaging
1pA
Ib - Input Bias Current
710nA
Operating Supply Current
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
1.4V
Supply Voltage - Min
24mA
Output Current per Channel
5.5V
Supply Voltage - Max
78dB
CMRR - Common Mode Rejection Ratio
400uV
Vos - Input Offset Voltage
SOT-23-5
Package-Case
