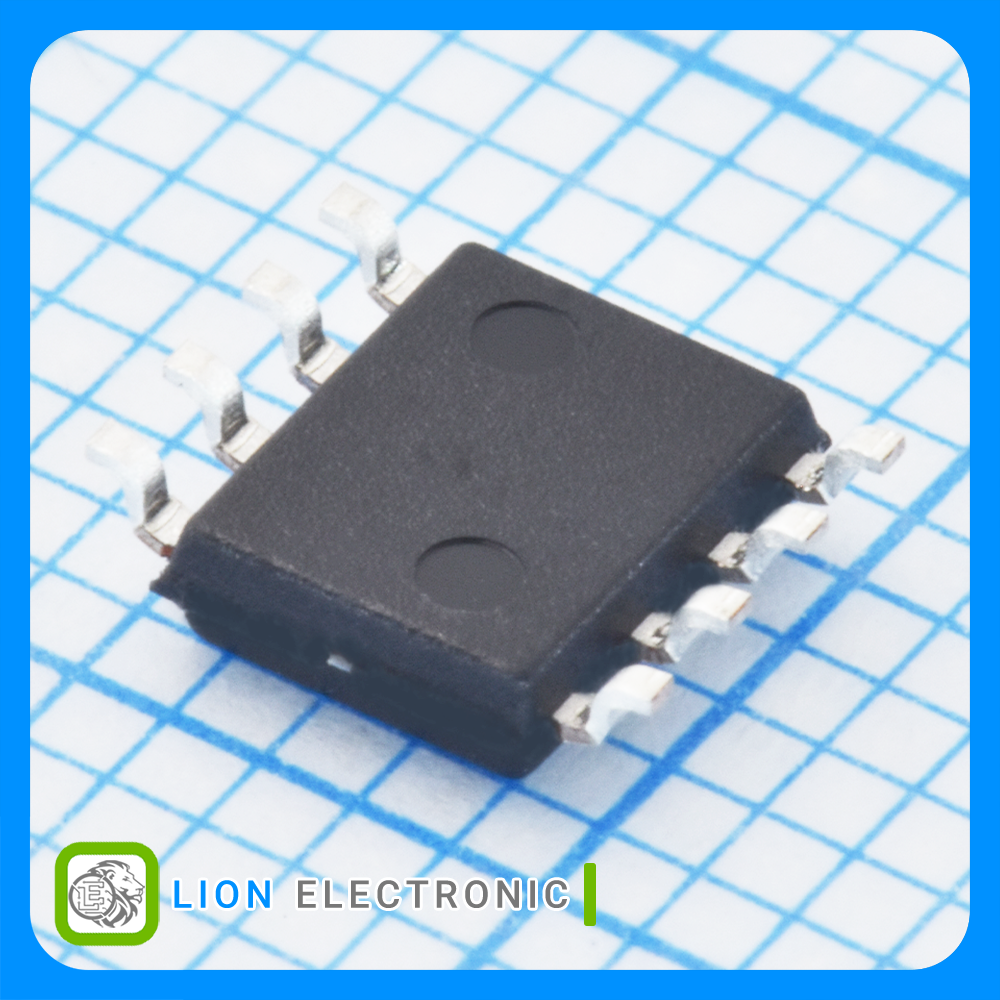

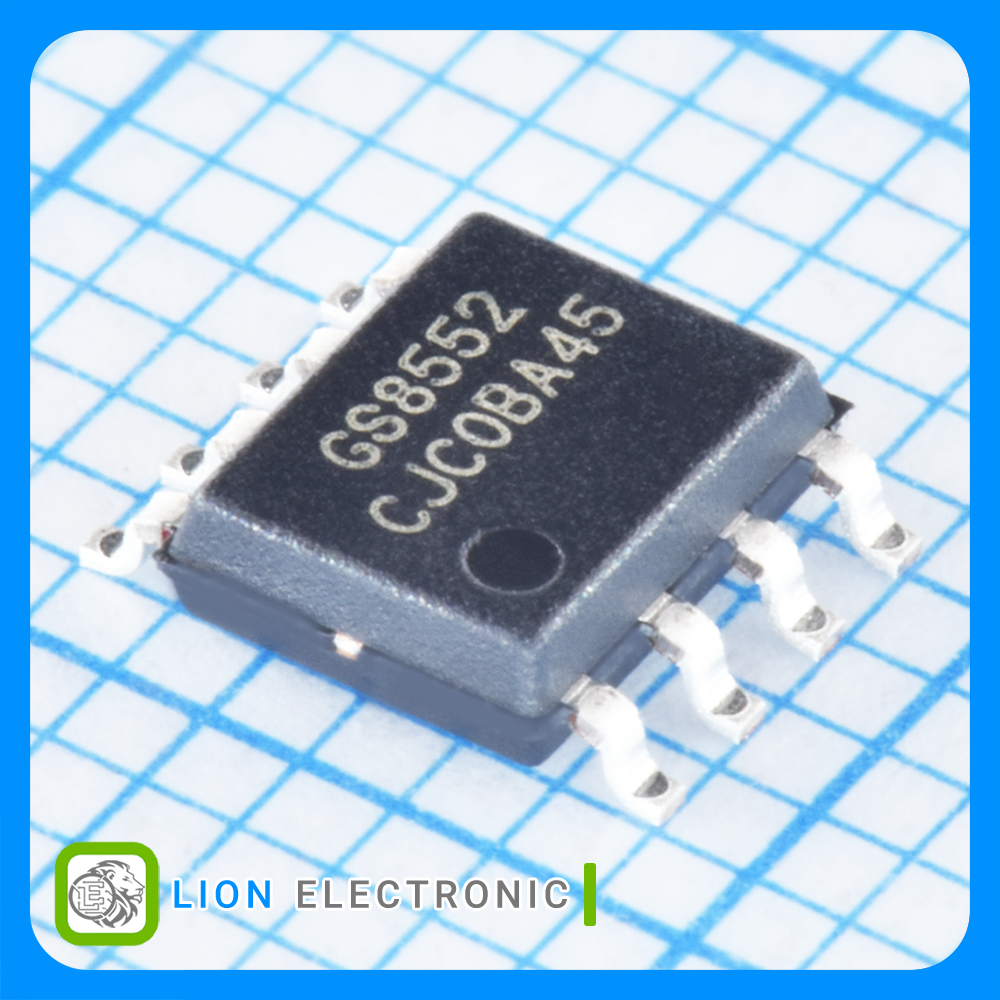

GS8552-SR
GS8552-SR
Part Number
2732
Lion Part
Datasheet
GainSil Manufacture
آپامپ 2 کاناله دریفت صفر و ورودی و خروجی ریل-تو-ریل CMOS دارای فیلتر RF با پهنای باند 1.8 مگاهرتز و پکیج SOIC-8
Operational Amplifier 2-Channel, 1.8MHz Zero-Drift CMOS Rail-to-Rail I/O Op-amp with RF Filter with SOIC-8 Package
معرفی
آپامپ 2 کاناله دریفت صفر و ورودی و خروجی ریل-تو-ریل CMOS دارای فیلتر RF با پهنای باند 1.8 مگاهرتز و پکیج SOIC-8
Operational Amplifier 2-Channel, 1.8MHz Zero-Drift CMOS Rail-to-Rail I/O Op-amp with RF Filter with SOIC-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 65mA
- SR - Slew Rate: 950mV/us
- GBP - Gain Bandwidth Product: 1.8MHz
- CMRR - Common Mode Rejection Ratio: 110dB
- Ib - Input Bias Current: 20pA
- Vos - Input Offset Voltage: 1uV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 1.8V
- Operating Supply Current: 180uA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -45C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ GS8552-SR

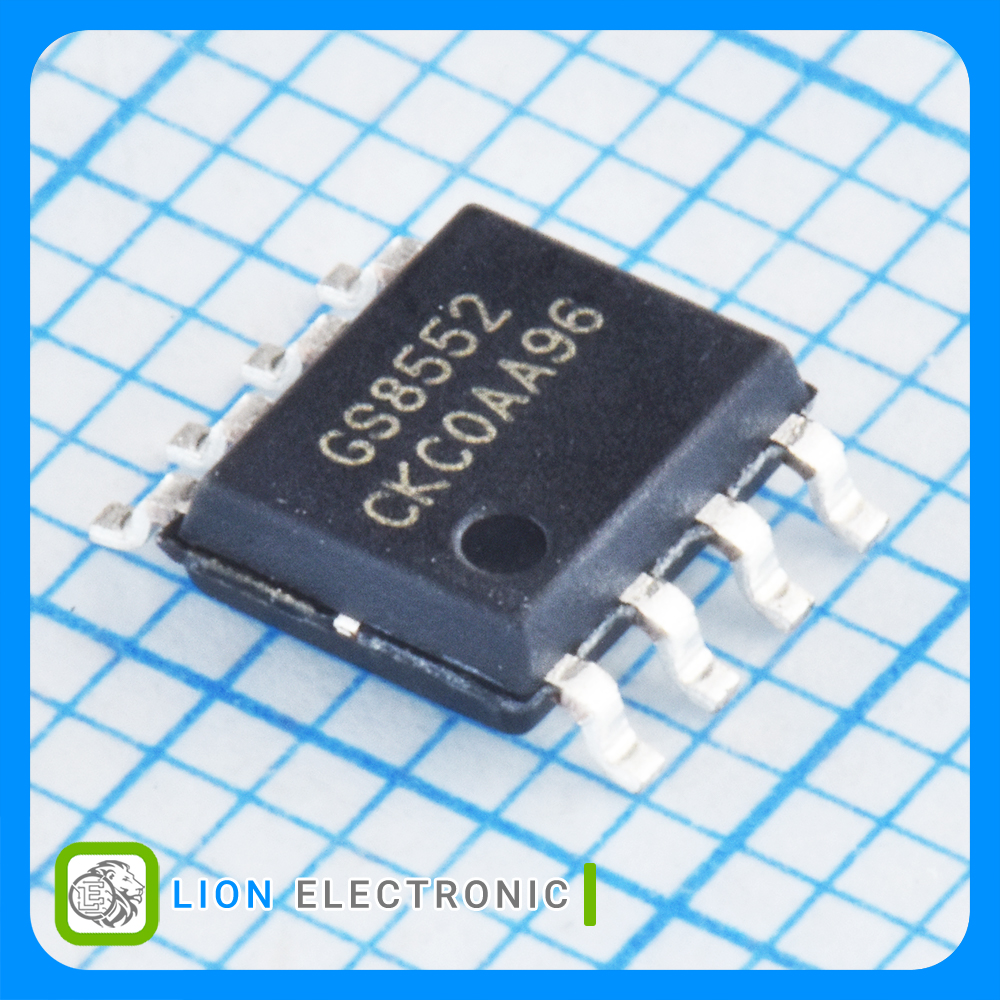

آپ امپ GS8552-SR
Part Number
2
Number of Channels
1uV
Vos - Input Offset Voltage
-45C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
20pA
Ib - Input Bias Current
950mV/us
SR - Slew Rate
+125C
Maximum Operating Temperature
1.8V
Supply Voltage - Min
5.5V
Supply Voltage - Max
1.8MHz
GBP - Gain Bandwidth Product
65mA
Output Current per Channel
110dB
CMRR - Common Mode Rejection Ratio
180uA
Operating Supply Current
SOIC-8
Package-Case
