OMRON
معرفی

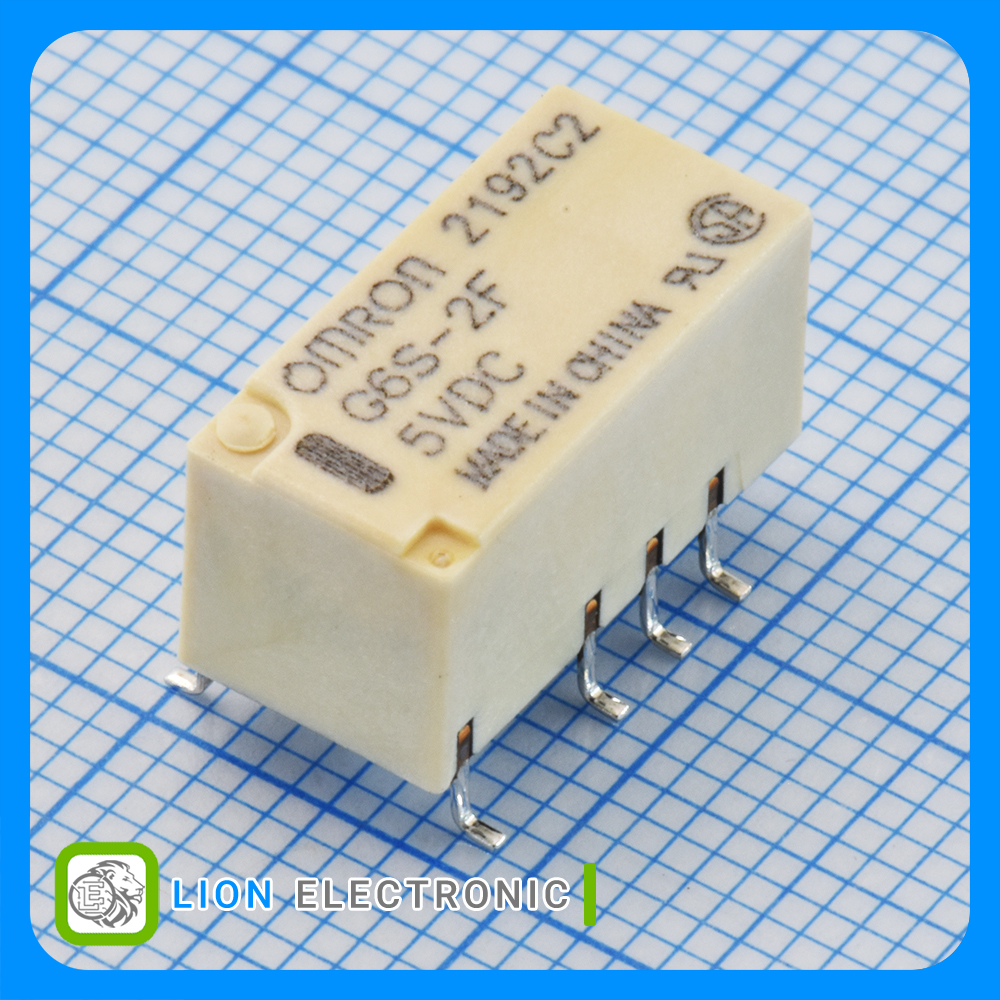

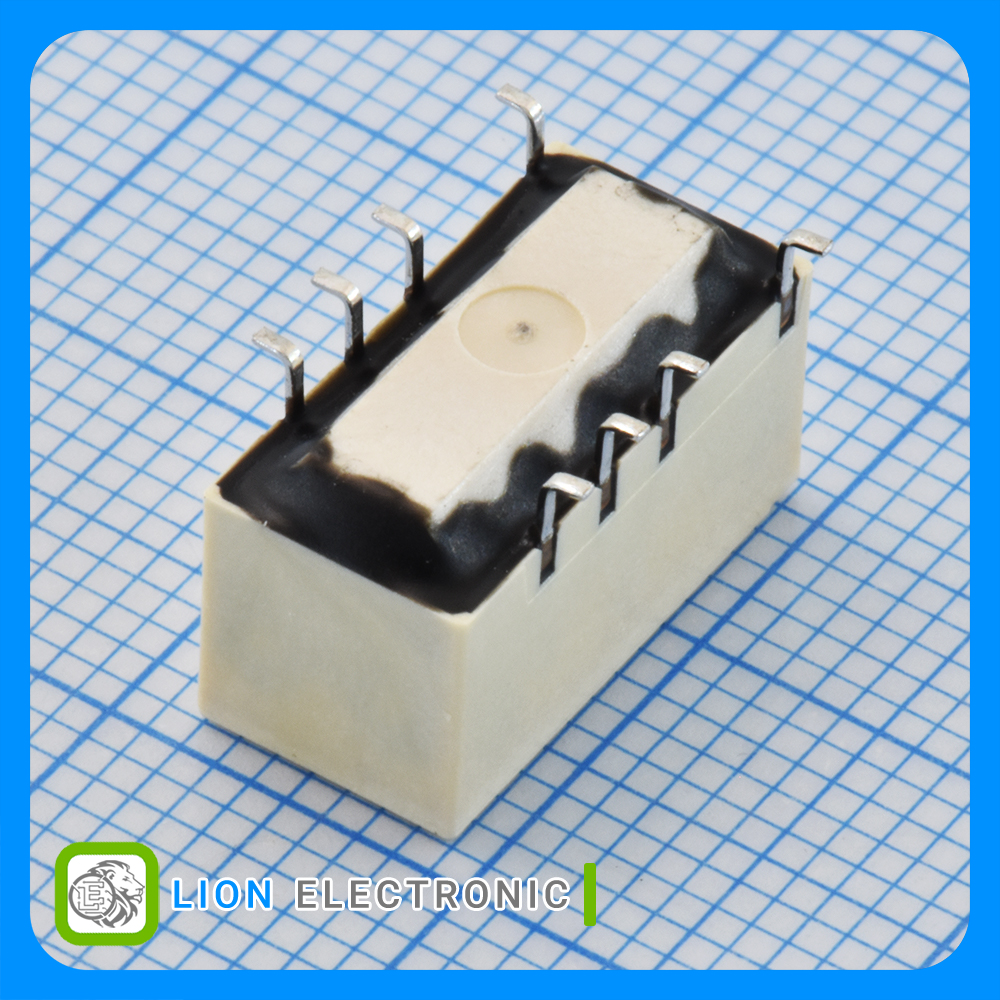

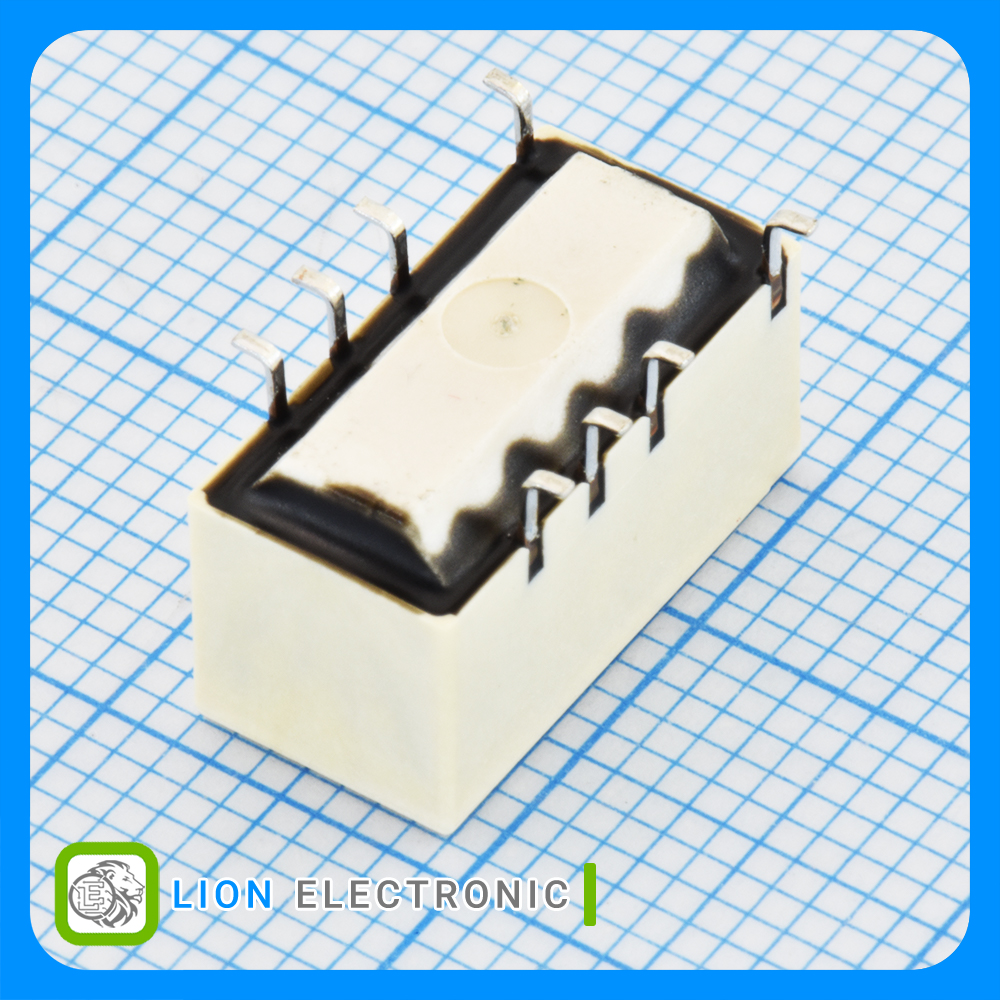

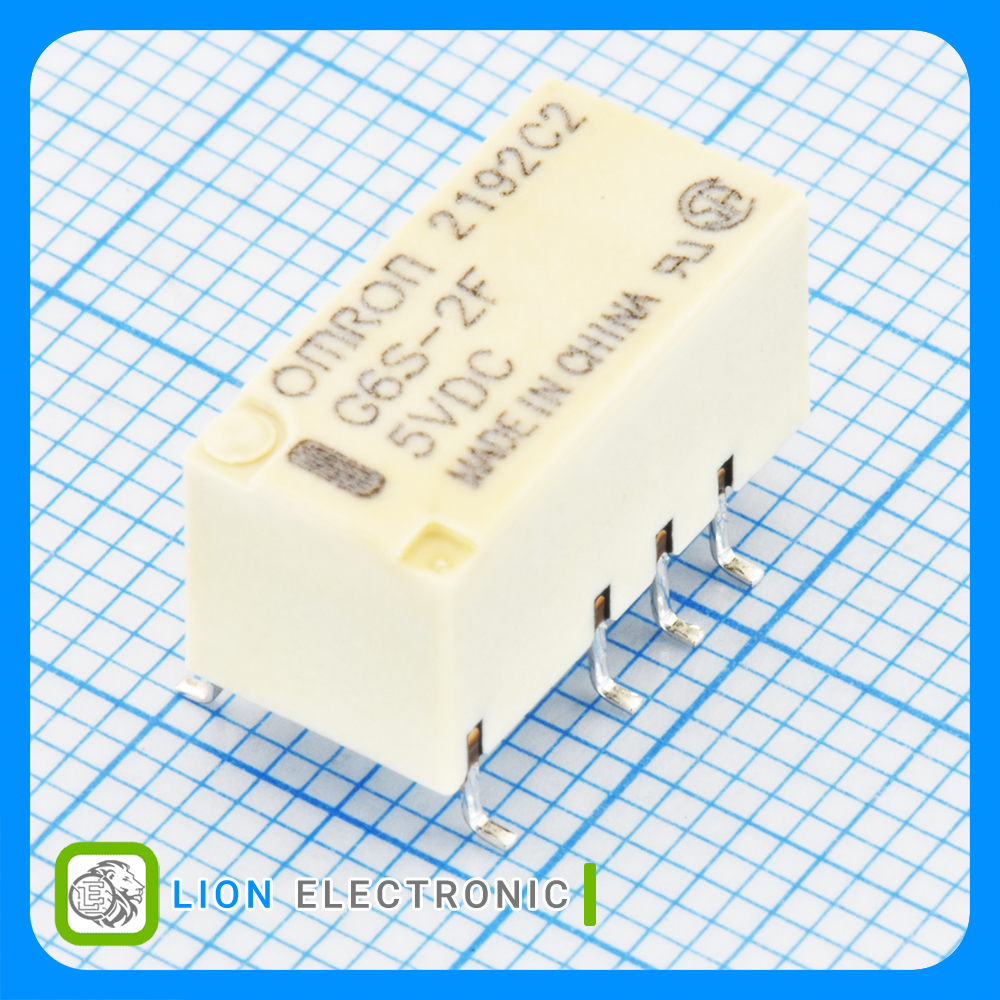

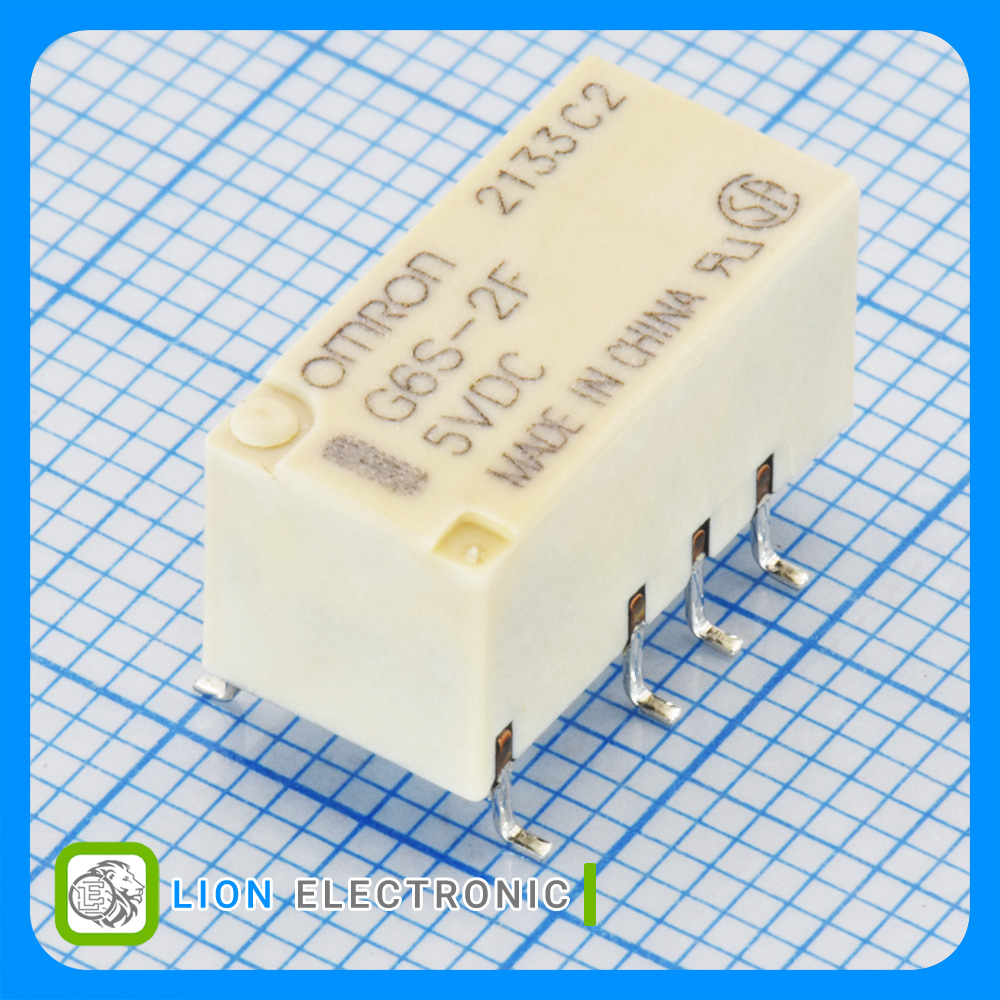

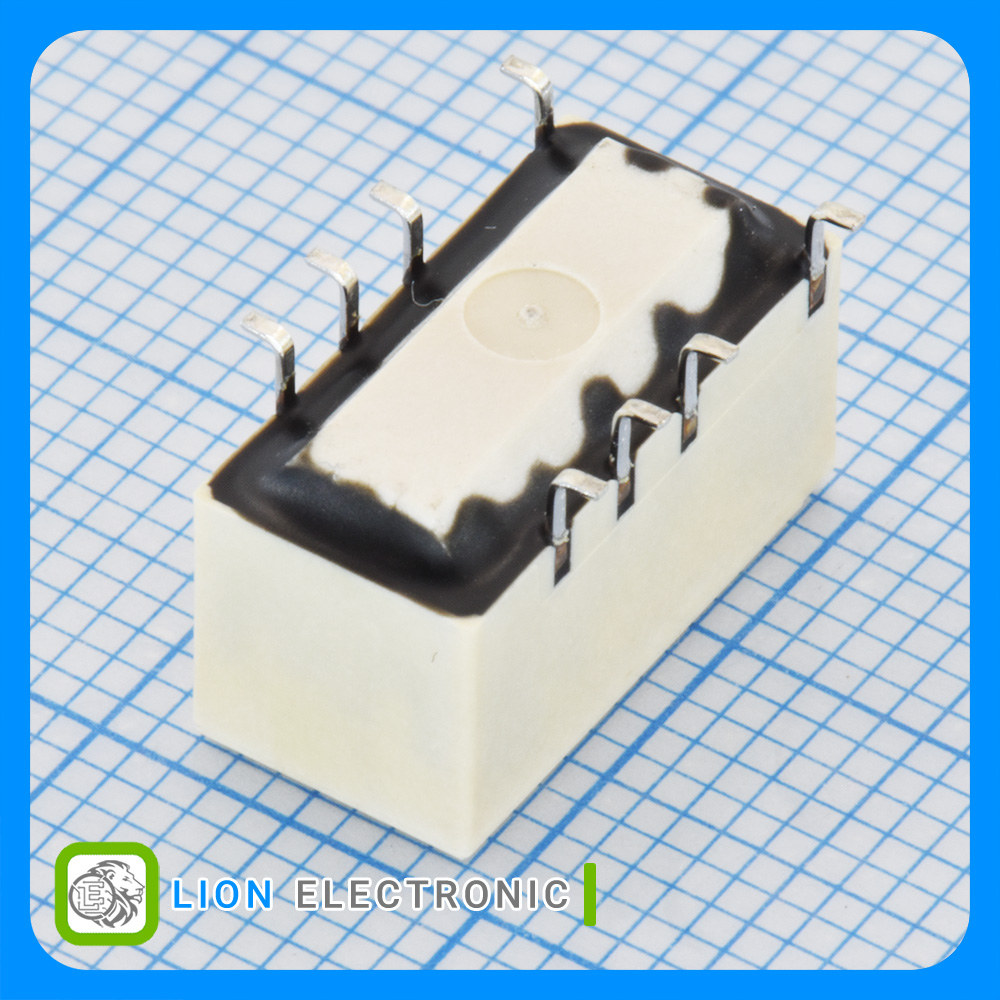

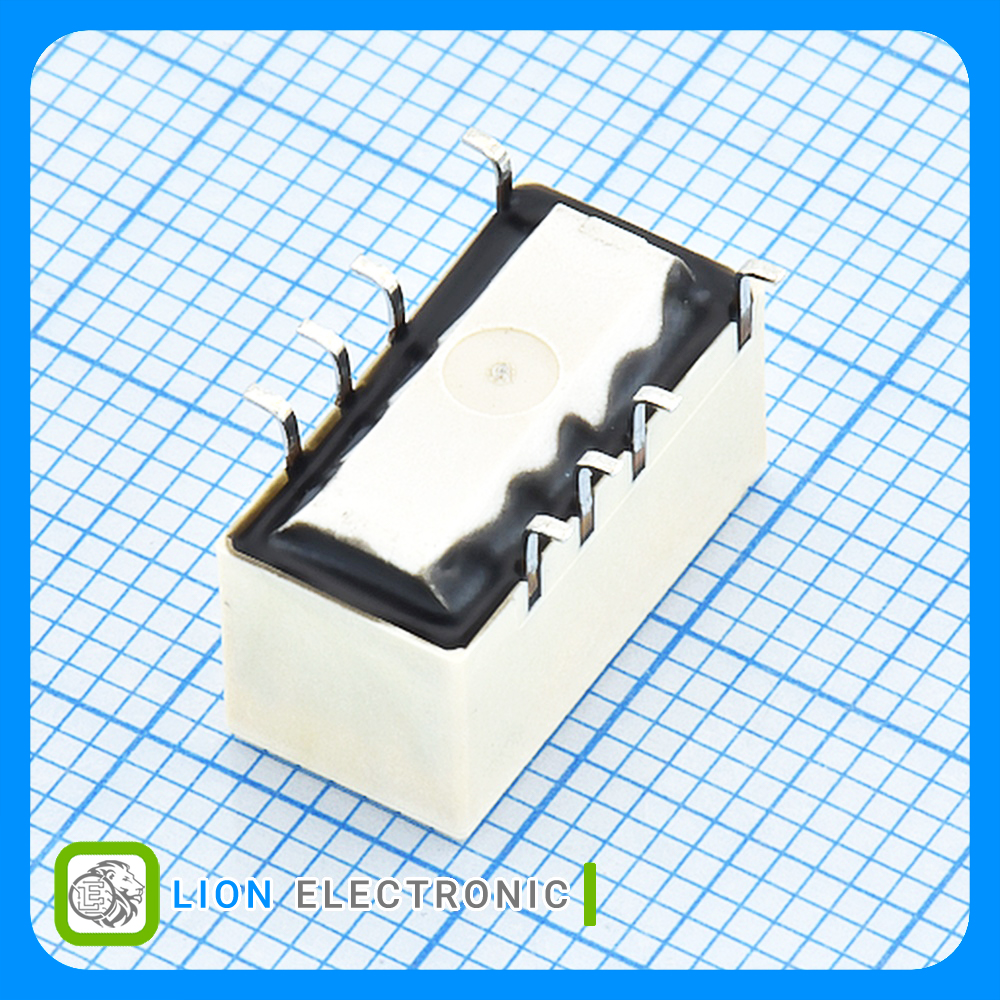

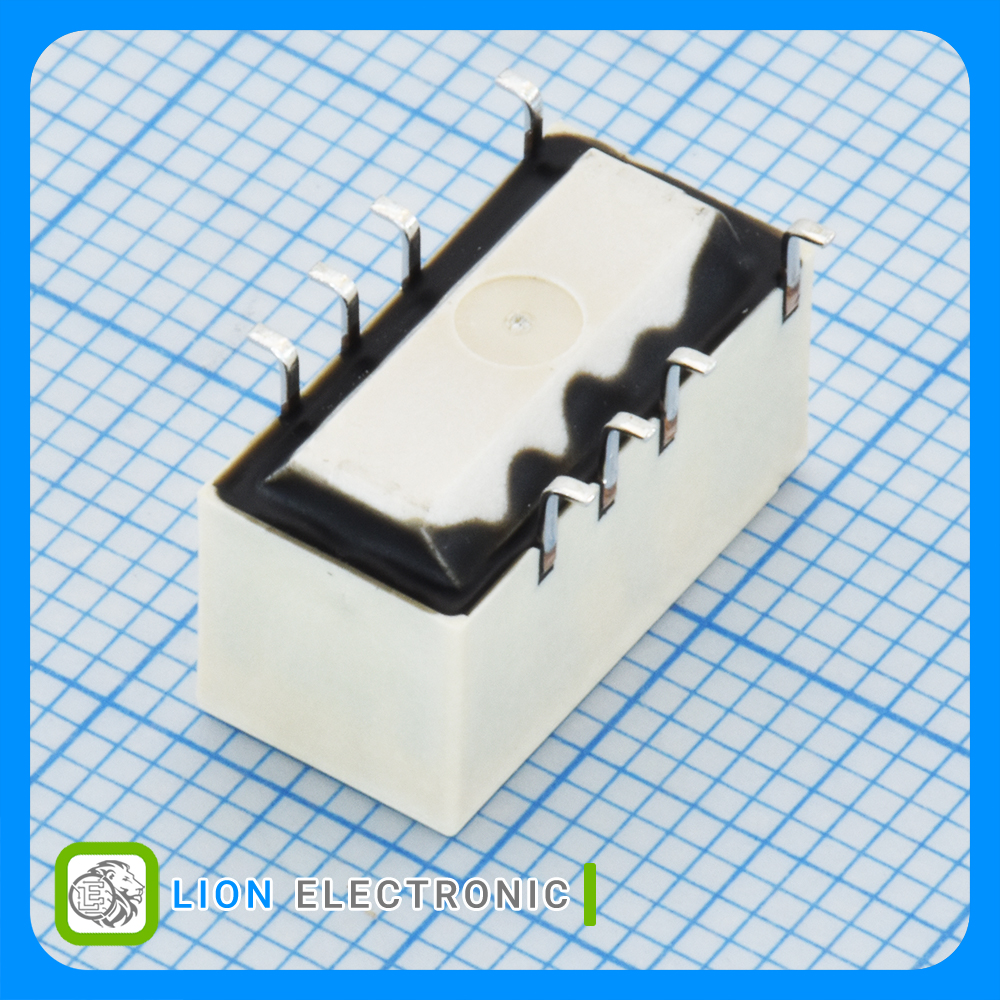

رله 2 Form C (DPDT-NO, NC) از نوع غیر-لچینگ ولتاژ کویل 5 ولت جریان کنتاکت 2 آمپر با نصب سطحی
General Purpose Relay 2 Form C (DPDT-NO, NC), Non-Latching, 5VDC with 2A Contact Current, SMD
Specifications
- Relay Contact Form: 2 Form C (DPDT-NO, NC)
- Coil Voltage: 5VDC
- Contact Current Rating: 2A
- Coil Resistance: 178Ω
- Coil Current: 28.1mA
- Power Consumption: 140mW
- Height: 9.4mm
- Length: 15mm
- Width: 7.5mm
- Coil Type: Non-Latching
- Mounting Style: SMD/SMT
- Packaging: Tube
- Max Switching Voltage: 250VAC 220VDC
مشخصات رله G6S-2F-5VDC

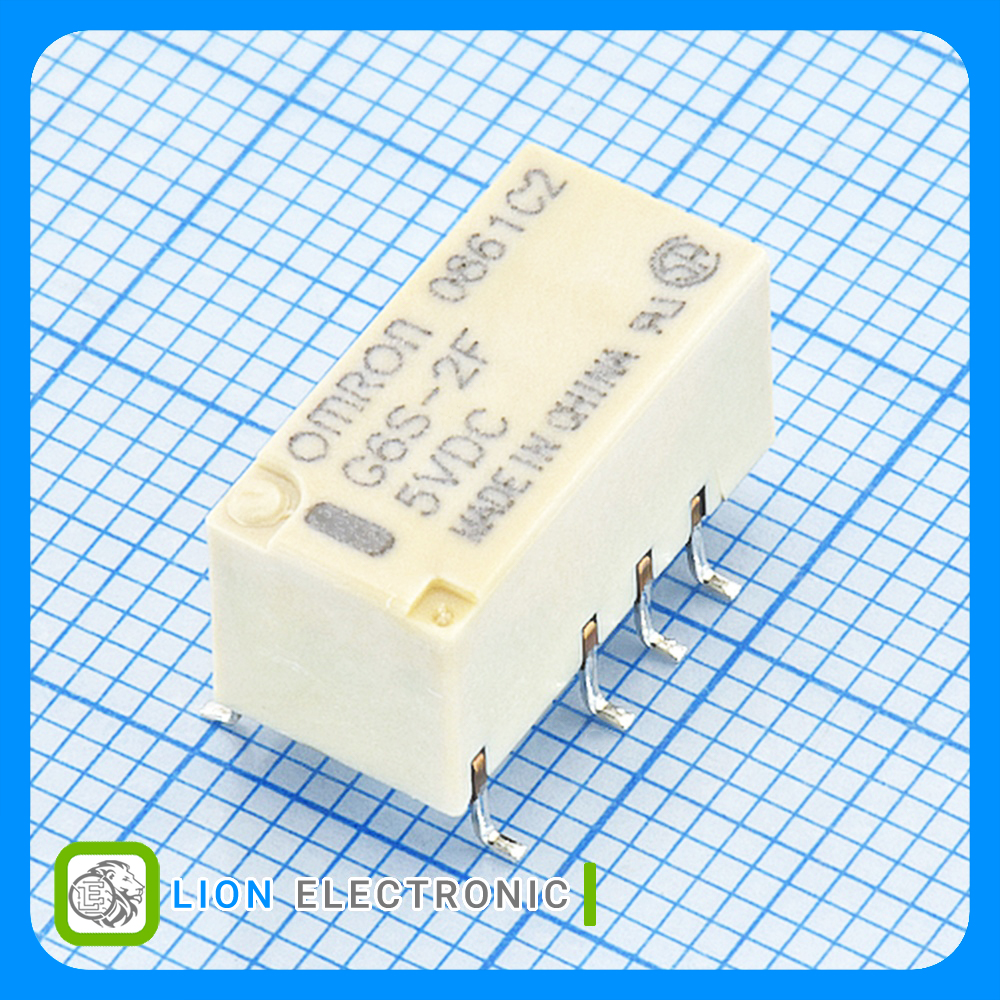

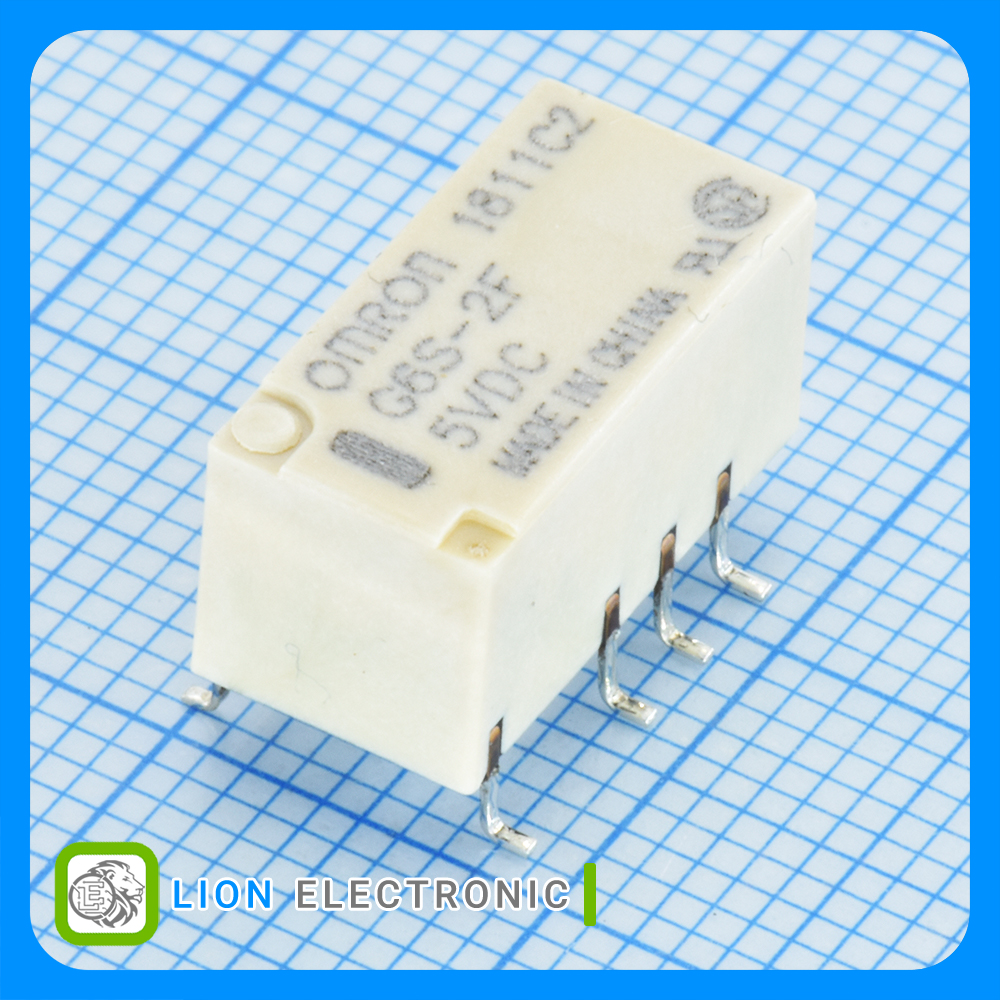

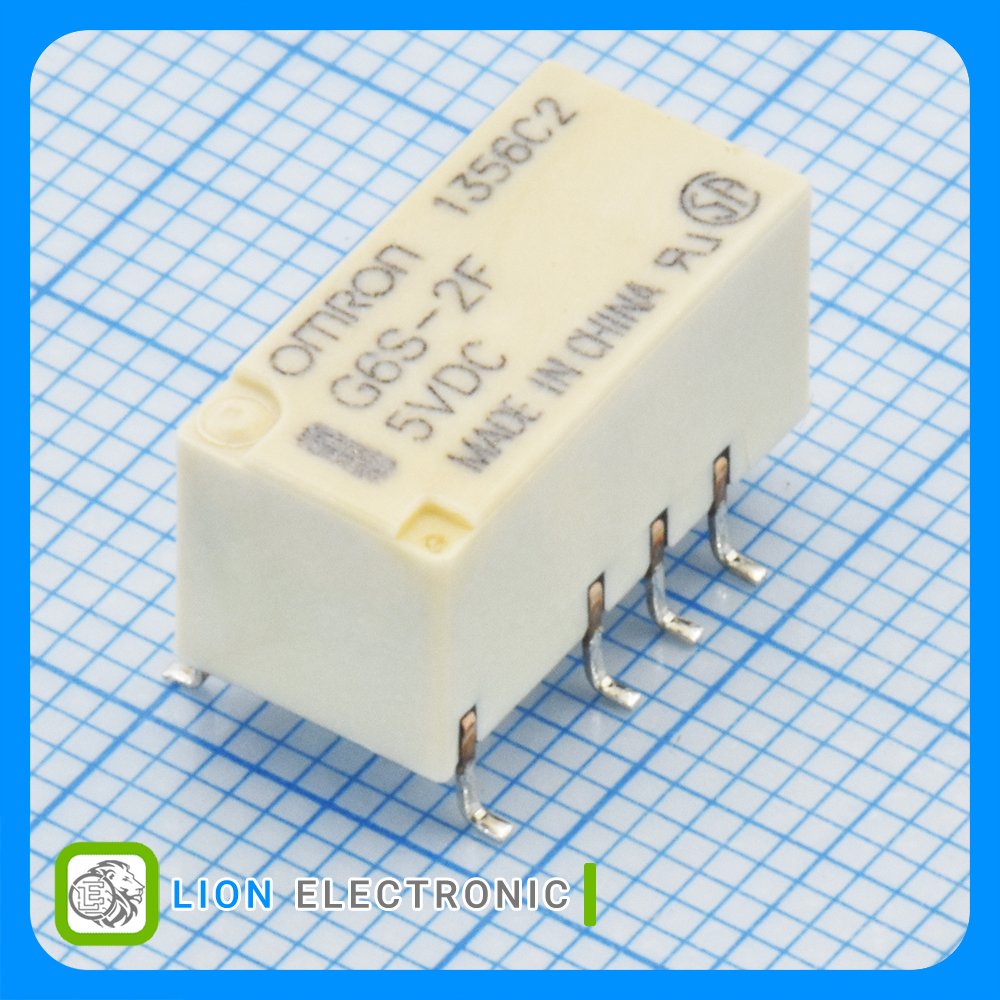

رله G6S-2F-5VDC
Part Number
Non-Latching
Coil Type
140mW
Power Consumption
2A
Contact Current Rating
5VDC
Coil Voltage
2 Form C (DPDT-NO, NC)
Relay Contact Form
250VAC 220VDC
Max Switching Voltage
N/A
insulation class
178Ω
Coil Resistance
28.1mA
Coil Current
Tube
Packaging
SMD/SMT
Mounting Style
7.5mm
Width
15mm
Length
9.4mm
Height
