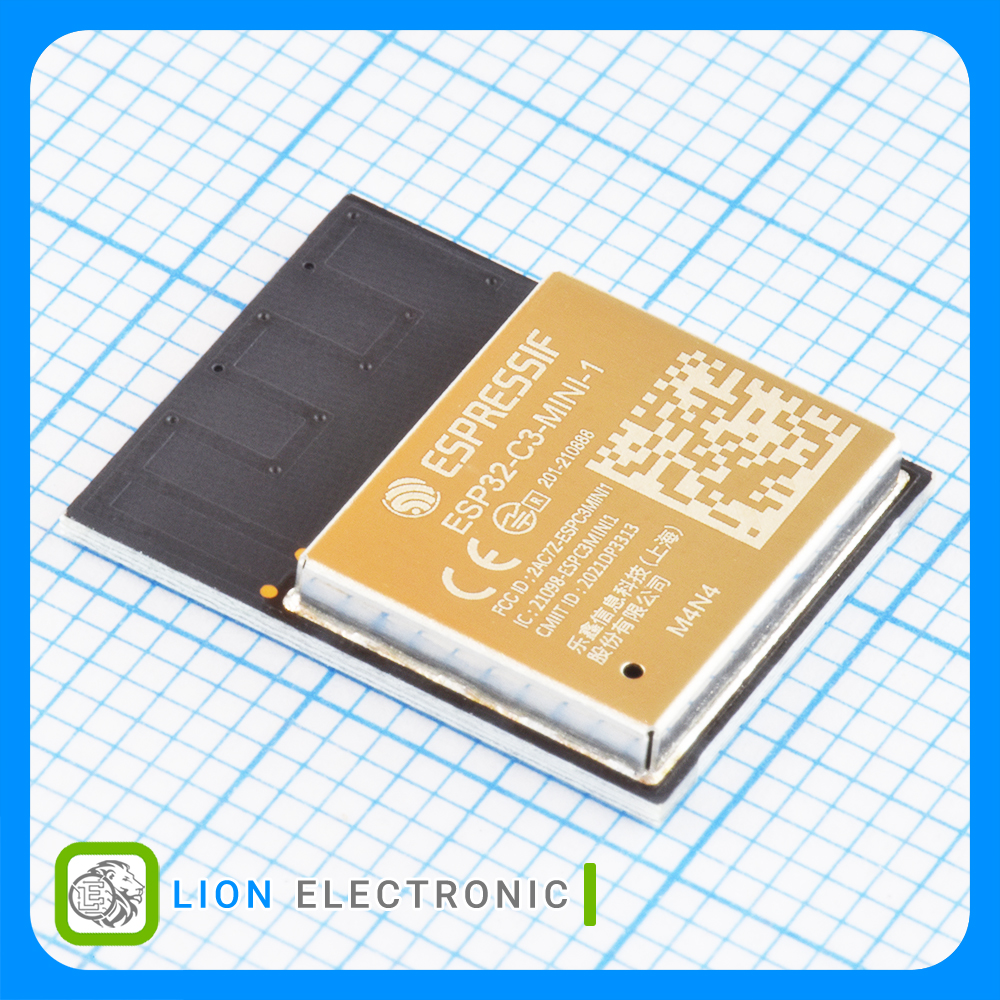

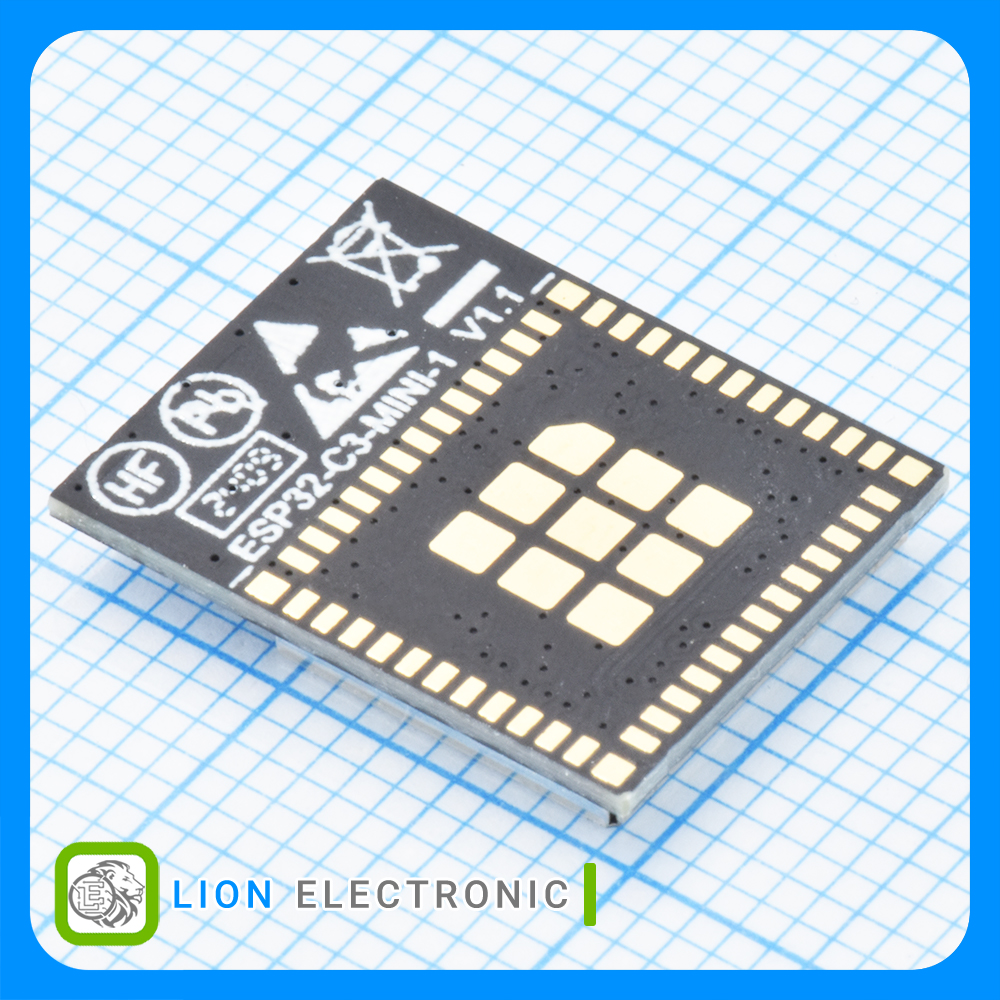

ماژول وای فای و بلوتوث ESP32-C3-MINI-1-N4

Part Number
ESP32-C3-MINI-1-N4
Lion Part
2761
Manufacturer
Description

RISC­-V Single ­core Microprocessor

Small­ Sized 2.4GHz Wi­Fi (802.11 b/g/n) and Bluetooth 5 Module

4MB Quad SPI Flash

On­board PCB Antenna

15GPIOs

موجودی محصول
182
Full Reel: 650

در صورت کمبود موجودی محصول می توانید آنرا به لیست استعلام اضافه نمایید تا توسط کارشناسان واحد سفارشات خارجی بررسی شده و نتیجه به شما اطلاع داده شود

قیمت محصول
تعداد قیمت
1 1,934,337 ریال
10 1,805,381 ریال
100 1,740,903 ریال
معرفی

CPU and On­Chip Memory
ESP32-C3FH4 or ESP32-C3FN4 embedded, 32-bit RISC-V single-core processor, up to 160MHz
384 KB ROM
400 KB SRAM (16 KB for cache)
8 KB SRAM in RTC
4 MB flash in chip package

Wi­Fi
IEEE 802.11 b/g/n-compliant
Center frequency range of operating channel: 2412 ~ 2484 MHz
Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band
1T1R mode with data rate up to 150 Mbps
Wi-Fi Multimedia (WMM)
TX/RX A-MPDU, TX/RX A-MSDU
Immediate Block ACK
Fragmentation and defragmentation
Transmit opportunity (TXOP)
Automatic Beacon monitoring (hardware TSF)
4 × virtual Wi-Fi interfaces
Simultaneous support for Infrastructure BSS in Station mode, SoftAP mode, Station + SoftAP mode, and promiscuous mode
802.11mc FTM

Bluetooth®
Bluetooth LE: Bluetooth 5, Bluetooth mesh
Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
Advertising extensions
Multiple advertisement sets
Channel selection algorithm #2
Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

Peripherals
GPIO, SPI, UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), USB Serial/JTAG controller, temperature sensor, SAR ADC, general-purpose timers, watchdog timers

Integrated Components on Module
40 MHz crystal oscillator

Antenna Options
On-board PCB antenna (ESP32-C3-MINI-1)

Operating Conditions
Operating voltage/Power supply: 3.0 ~ 3.6 V
Operating ambient temperature: 40 ~ 85 °C

مشخصات ماژول وای فای و بلوتوث ESP32-C3-MINI-1-N4

  • Part Number
    ماژول وای فای و بلوتوث ESP32-C3-MINI-1-N4
  • Packaging
    Reel
  • Minimum Operating Temperature
    -40C
  • Antenna Connector Type
    PCB
  • Number of I-Os
    15
  • Maximum Operating Temperature
    +85C
  • Dimensions
    13.2mm x 16.6mm
  • Supply Current Receiving
    82mA, 84mA
  • Supply Current Transmitting
    290mA, 295mA, 350mA
  • Frequency
    160MHz
  • Output Power
    17dBm, 17.5dBm, 18dBm, 18.5dBm, 19dBm, 20.5dBm
  • Operating Supply Voltage
    3 - 3.6V
  • Product
    Wi-Fi & Bluetooth (LE) & MCU Module
  • Interface Type
    درج شده در توضیحات محصول
