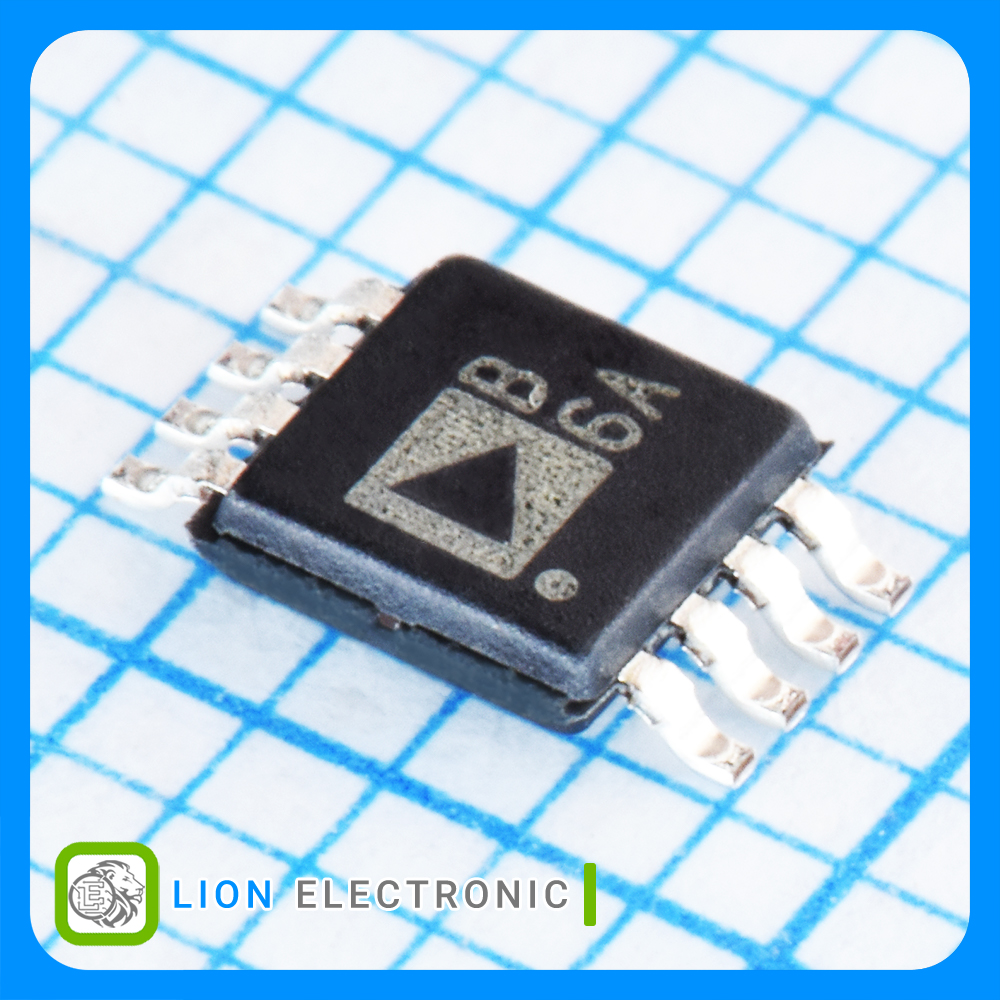

AD8606ARMZ
AD8606ARMZ
Part Number
2778
Lion Part
Datasheet
Analog Devices Manufacture
آپامپ 2 کاناله ریل تو ریل ورودی/خروجی دقت بالا و نویز کم با پهنای باند 10 مگاهرتز و پکیج MSOP-8
Precision, Low Noise, CMOS, Rail-to-Rail Input/Output Operational Amplifier 2-Channel, 10MHz with MSOP-8 Package
معرفی
آپامپ 2 کاناله ریل تو ریل ورودی/خروجی دقت بالا و نویز کم با پهنای باند 10 مگاهرتز و پکیج MSOP-8
Precision, Low Noise, CMOS, Rail-to-Rail Input/Output Operational Amplifier 2-Channel, 10MHz with MSOP-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 80mA
- SR - Slew Rate: 5V/us
- GBP - Gain Bandwidth Product: 10MHz
- CMRR - Common Mode Rejection Ratio: 100dB
- Ib - Input Bias Current: 250pA
- Vos - Input Offset Voltage: 20uV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 1mA
- Mounting Style: SMD/SMT
- Package/Case: MSOP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ AD8606ARMZ

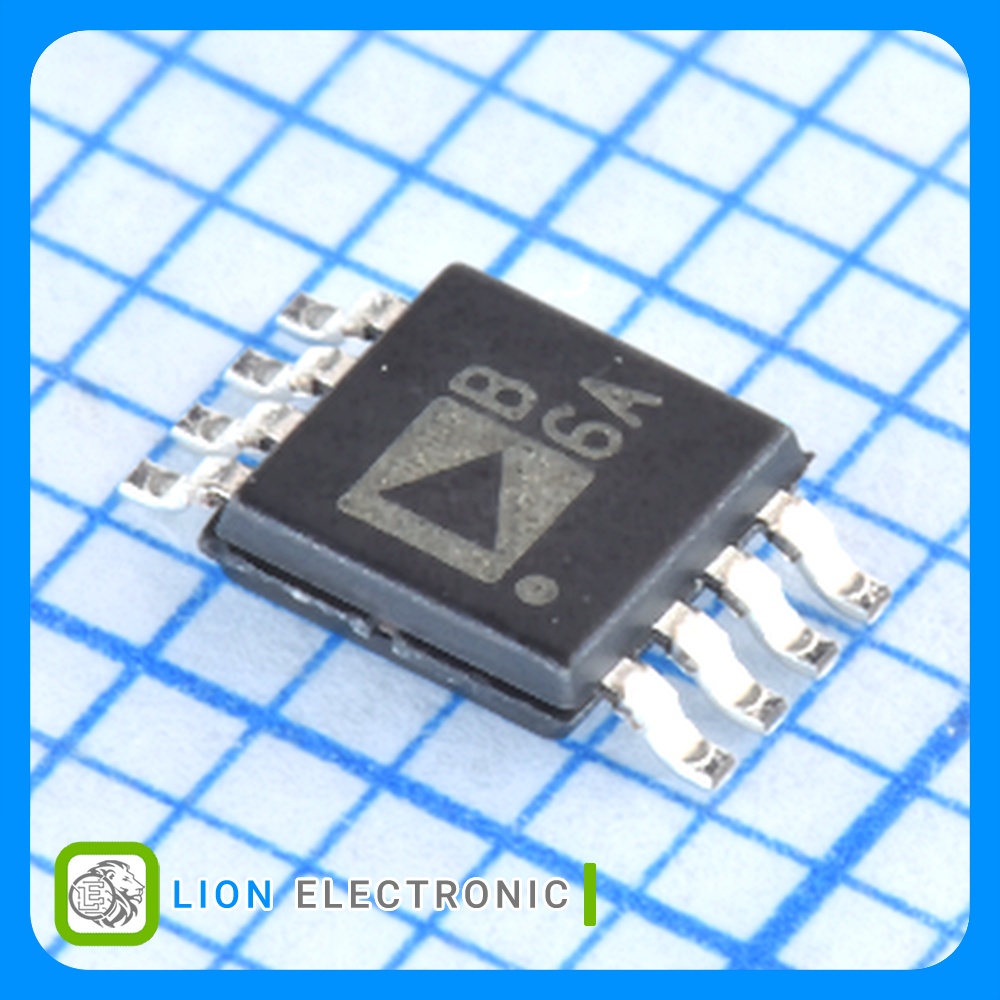

آپ امپ AD8606ARMZ
Part Number
No Shutdown
Shutdown
2
Number of Channels
Reel
Packaging
8nV/sqrt Hz
en - Input Voltage Noise Density
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
20uV
Vos - Input Offset Voltage
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
250pA
Ib - Input Bias Current
5V/us
SR - Slew Rate
80mA
Output Current per Channel
2.7V
Supply Voltage - Min
100dB
CMRR - Common Mode Rejection Ratio
10MHz
GBP - Gain Bandwidth Product
1mA
Operating Supply Current
MSOP-8
Package-Case
