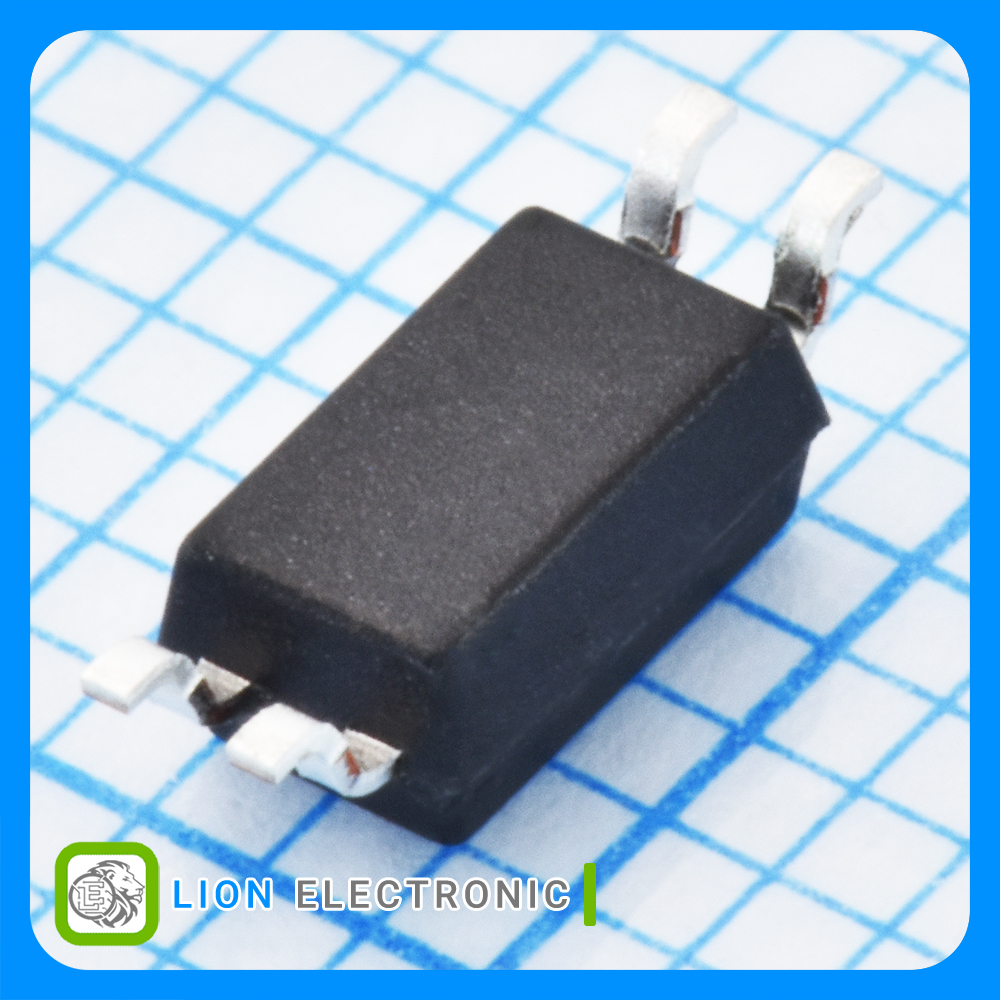

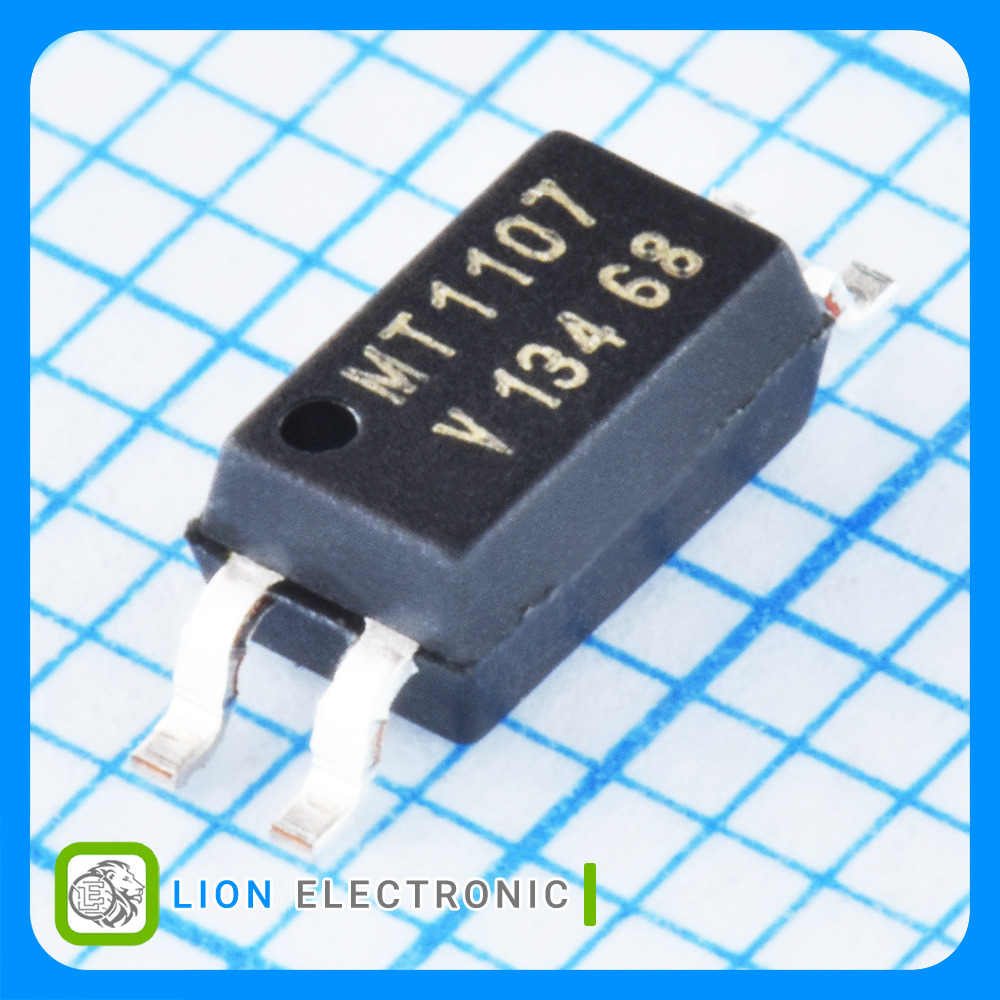

TCMT1107
TCMT1107
Part Number
2800
Lion Part
Datasheet
Vishay Semiconductors Manufacture
اپتوکوپلر خروجی NPN فتوترانزیستور 1 کاناله 70 ولت ایزولاسیون 3.75 کیلوولت RMS با پکیج SSOP-4
NPN Phototransistor Output Optocoupler 1 Channel, 70V, 3750Vrms Isolation, Half Pitch Mini-Flat Package with SSOP-4 Package
معرفی
اپتوکوپلر خروجی NPN فتوترانزیستور 1 کاناله 70 ولت ایزولاسیون 3.75 کیلوولت RMS با پکیج SSOP-4
NPN Phototransistor Output Optocoupler 1 Channel, 70V, 3750Vrms Isolation, Half Pitch Mini-Flat Package with SSOP-4 Package
Specifications
- Output Type: NPN Phototransistor
- Number of Channels: 1
- Input Type: DC
- Vf - Forward Voltage: 1.6V
- Maximum CTR: 160%
- If - Forward Current: 60mA
- Pd - Power Dissipation: 250mW
- Collector - Emitter Voltage VCEO Max: 70V
- Isolation Voltage: 3.75kVrms
- Mounting Style: SMD/SMT
- Package/Case: SSOP-4
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +100C
- Packaging: Reel
مشخصات اپتوکوپلر TCMT1107
اپتوکوپلر TCMT1107
Part Number
1
Number of Channels
DC
Input Type
160%
Maximum CTR
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
3.75kVrms
Isolation Voltage
+100C
Maximum Operating Temperature
60mA
If - Forward Current
250mW
Pd - Power Dissipation
NPN Phototransistor
Output Type
70V
Collector - Emitter Voltage VCEO Max
1.6V
Vf - Forward Voltage
Transistor Output Optocouplers
Product Type
SSOP-4
Package-Case
