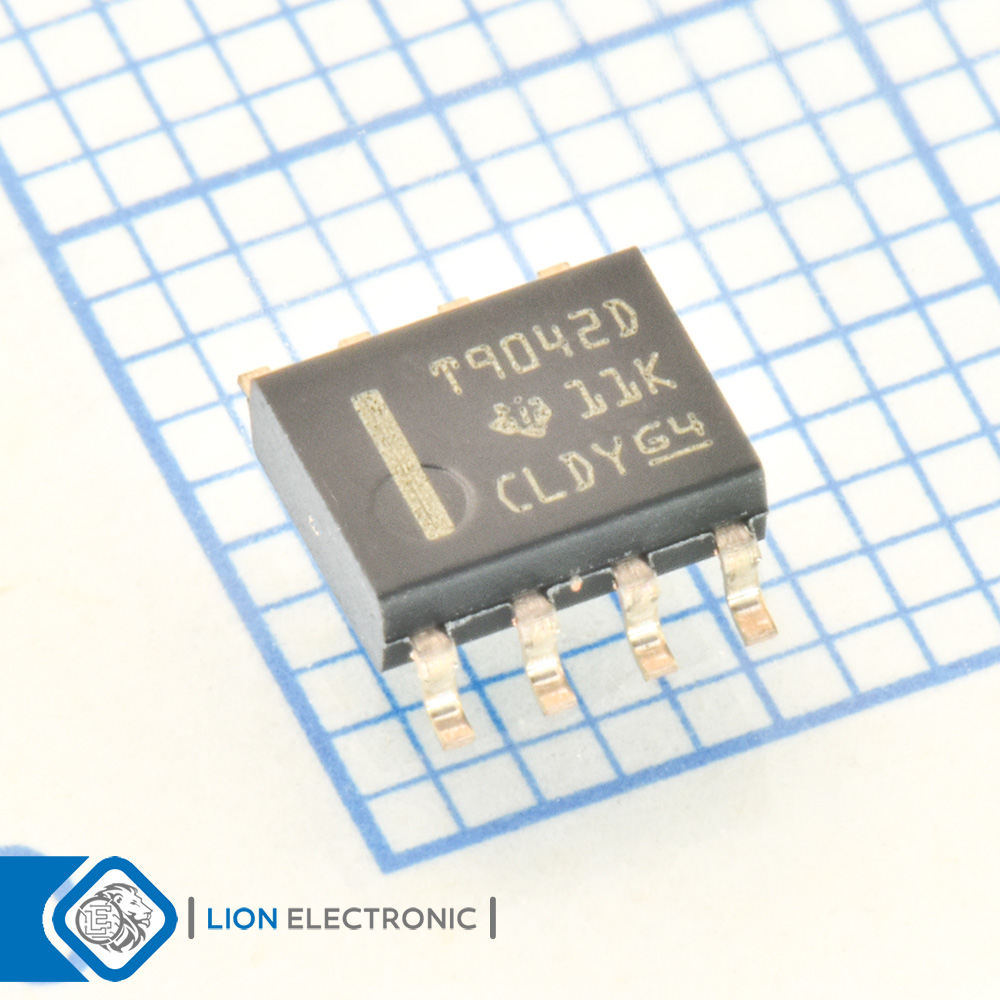

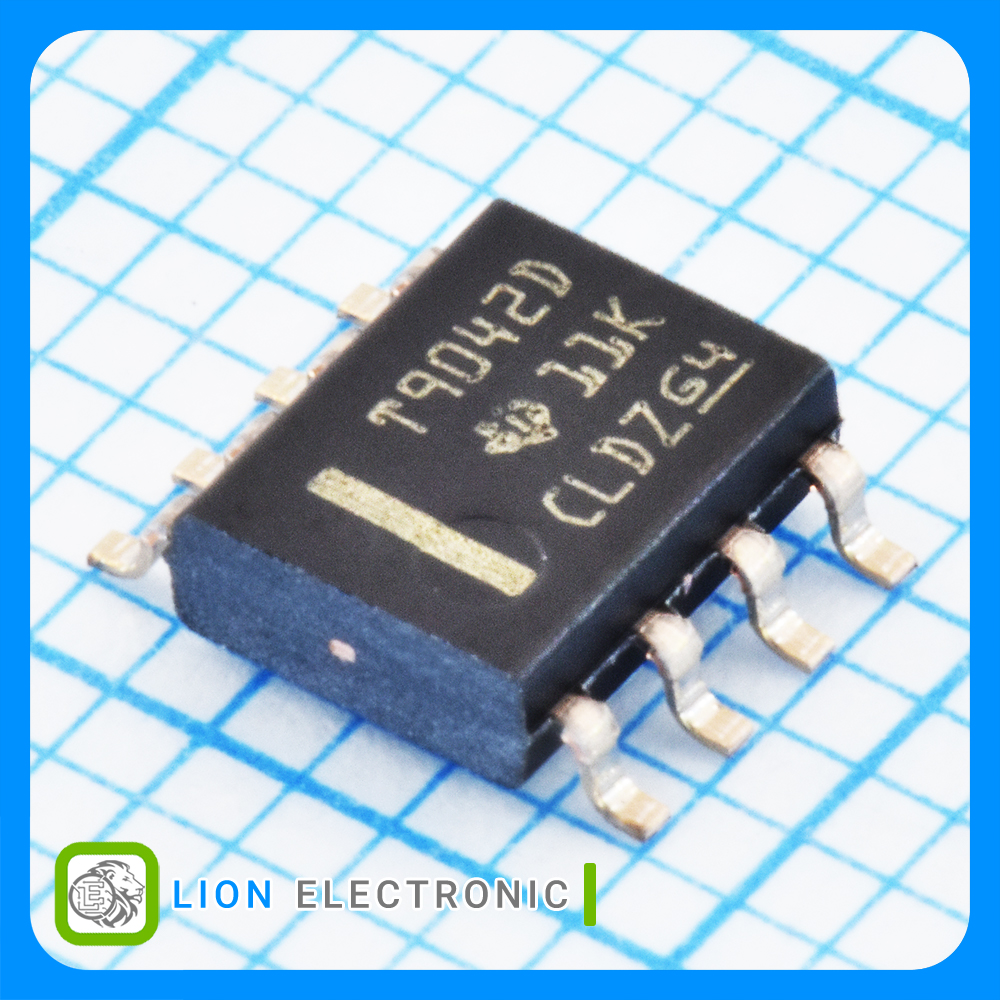

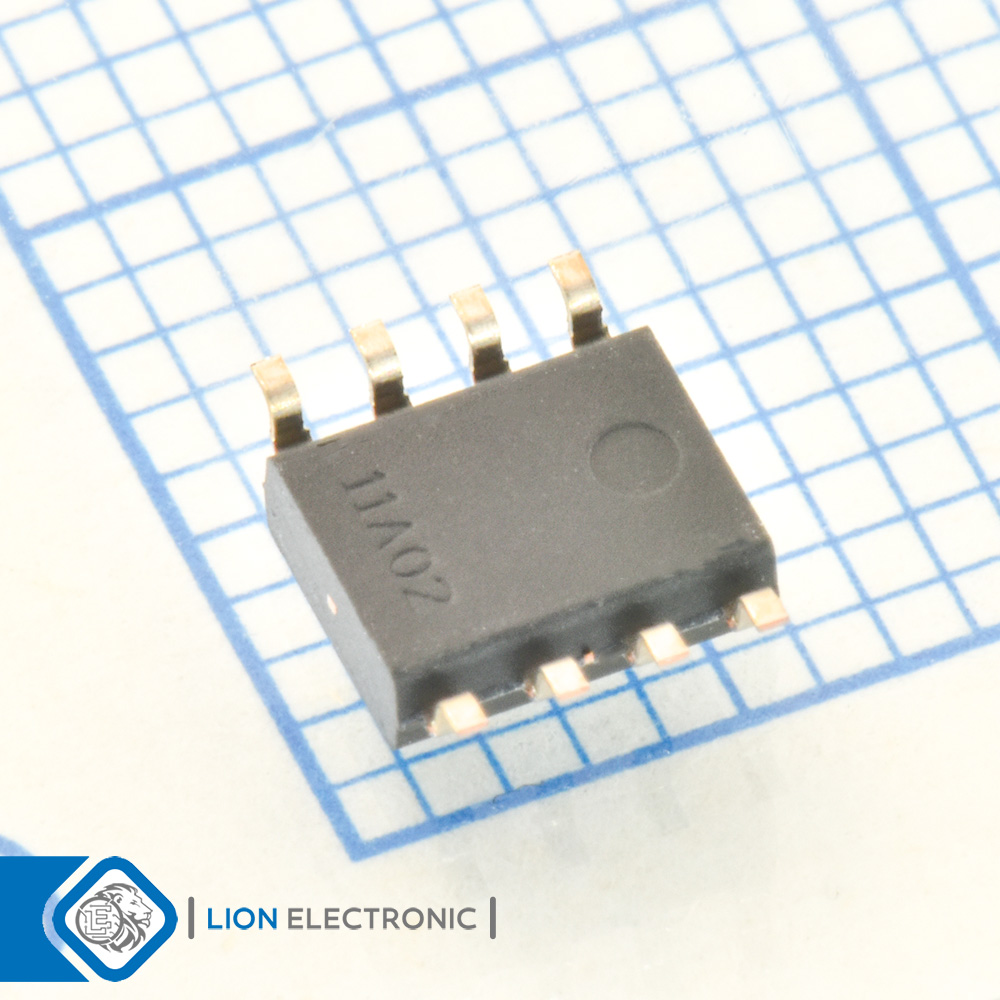

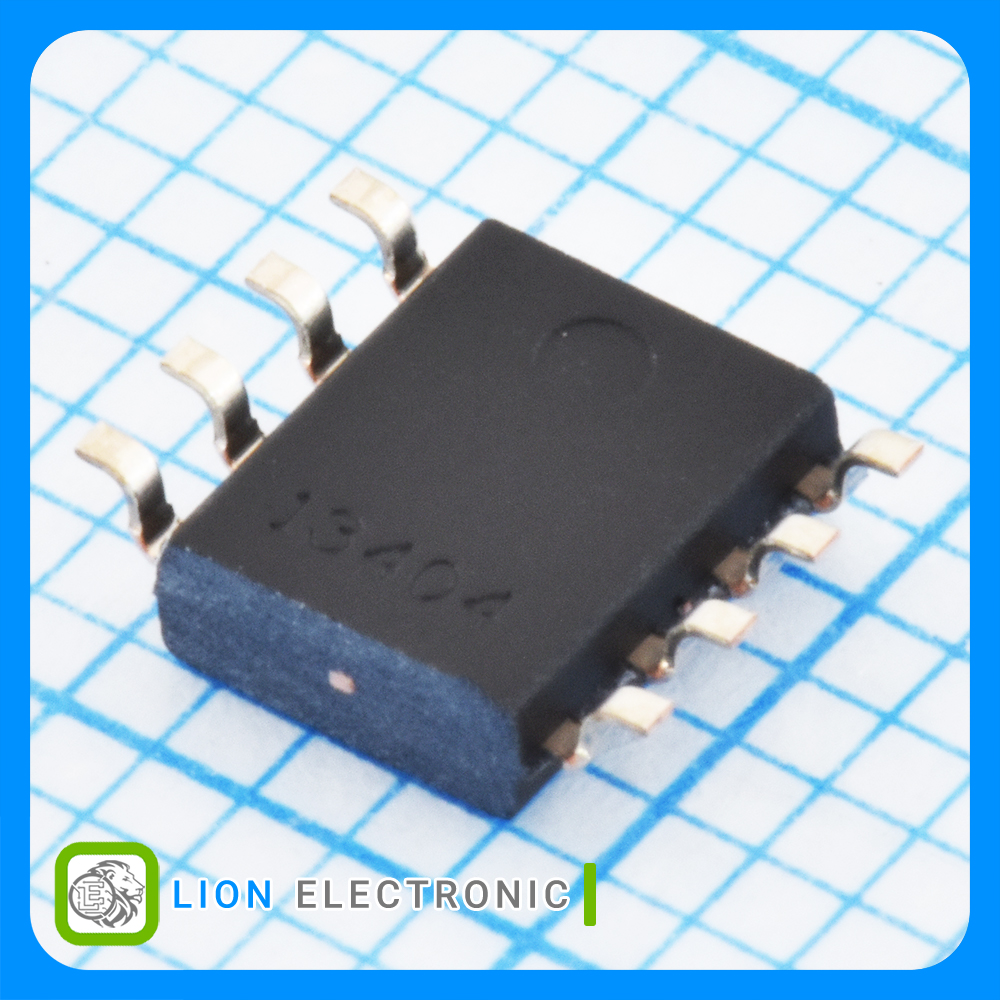

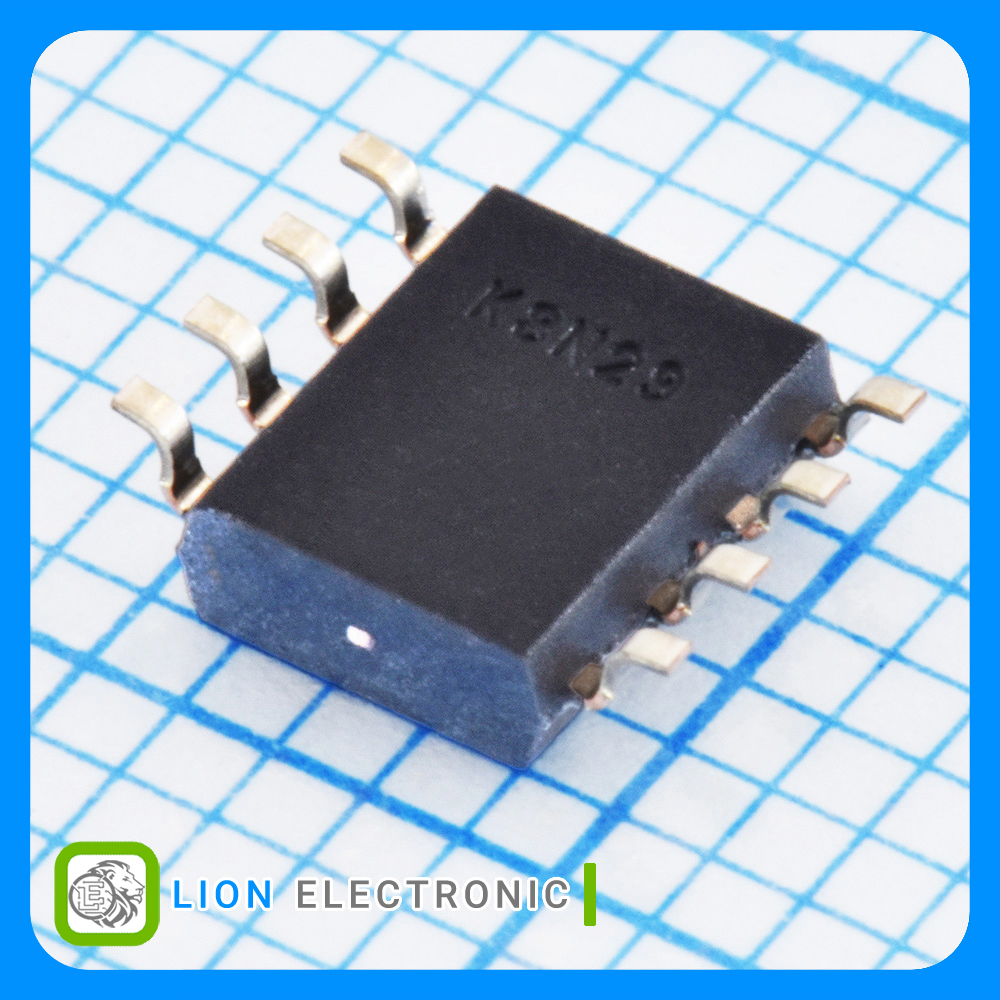

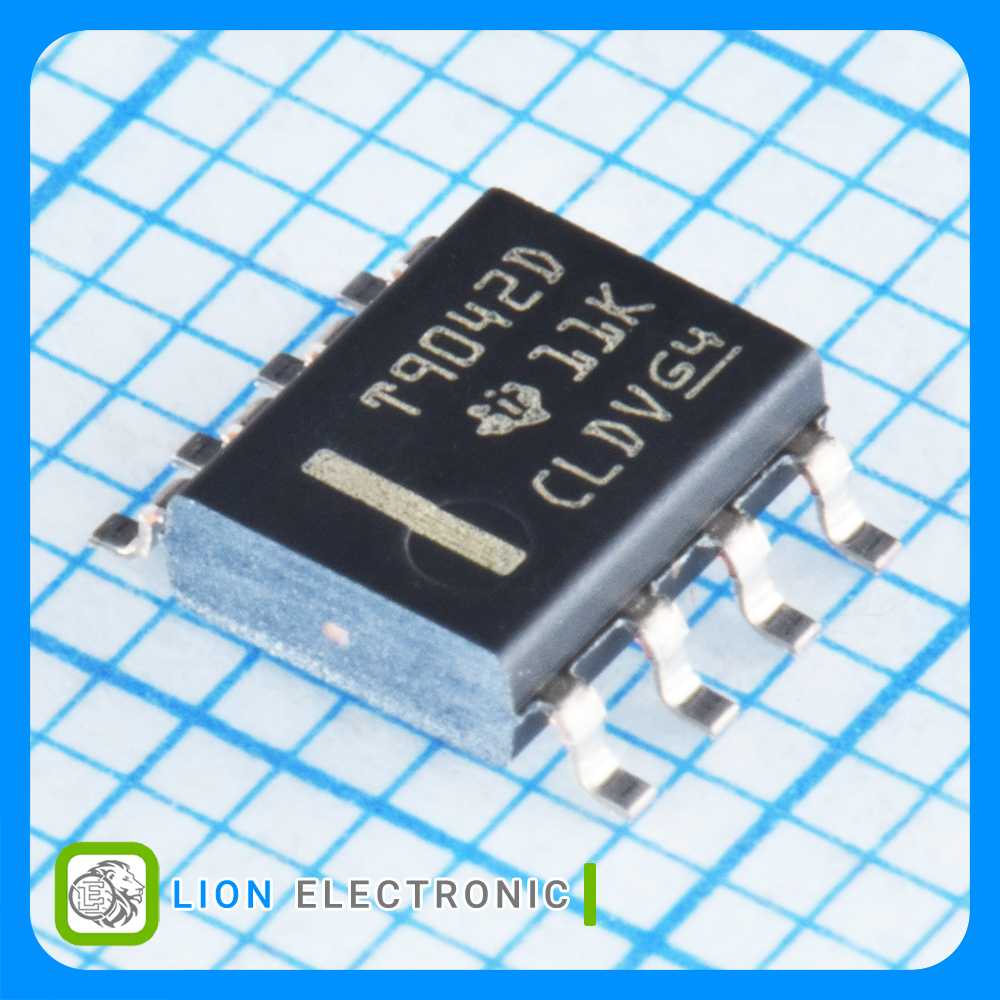

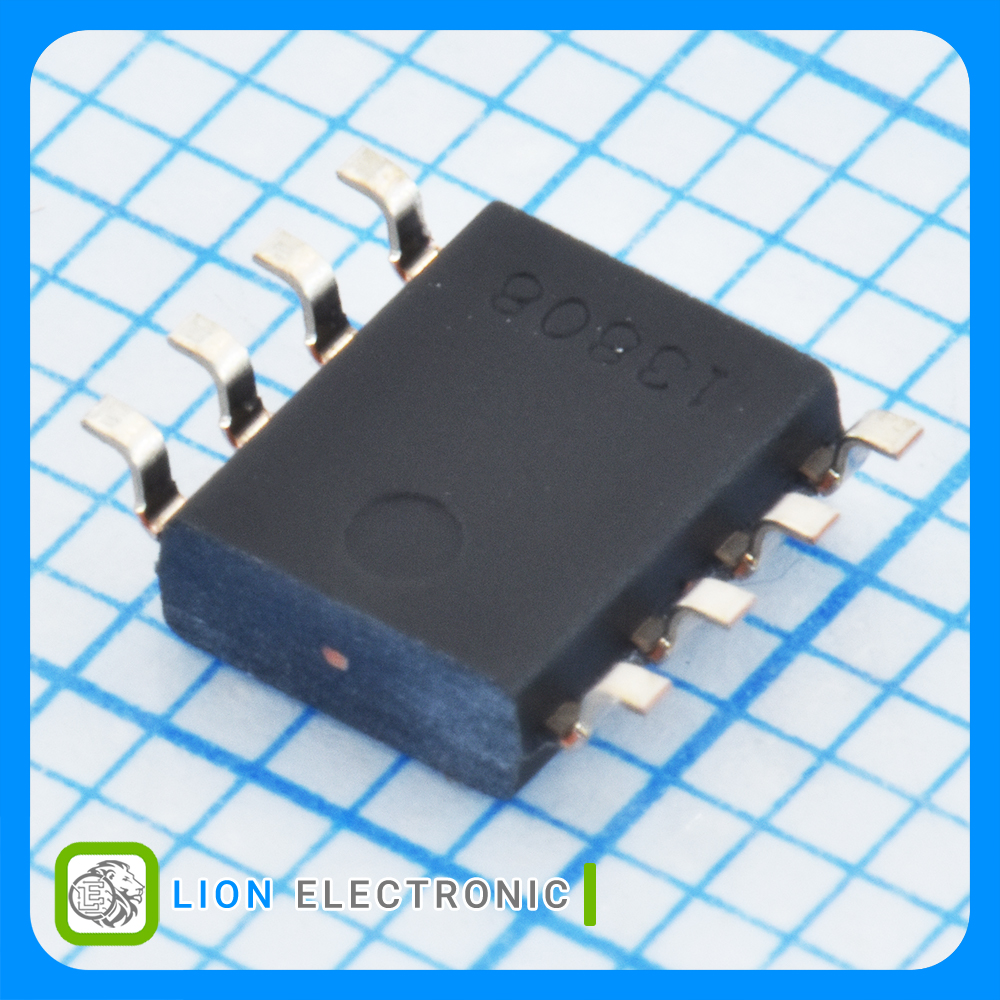

TLV9042IDR
TLV9042IDR
Part Number
2801
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله ریل تو ریل (RRIO) با پهنای باند 350 کیلوهرتز و پکیج SOIC-8
Dual Ultra Low Voltage Micro-Power RRIO Operational Amplifier 2-Channel, 350KHz with SOIC-8 Package
معرفی
آپامپ 2 کاناله ریل تو ریل (RRIO) با پهنای باند 350 کیلوهرتز و پکیج SOIC-8
Dual Ultra Low Voltage Micro-Power RRIO Operational Amplifier 2-Channel, 350KHz with SOIC-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 40mA
- SR - Slew Rate: 200mV/us
- GBP - Gain Bandwidth Product: 350KHz
- CMRR - Common Mode Rejection Ratio: 57dB
- Ib - Input Bias Current: 1pA
- Vos - Input Offset Voltage: 600uV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 1.2V
- Operating Supply Current: 10uA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ TLV9042IDR
آپ امپ TLV9042IDR
Part Number
2
Number of Channels
57dB
CMRR - Common Mode Rejection Ratio
Reel
Packaging
1pA
Ib - Input Bias Current
-40C
Minimum Operating Temperature
200mV/us
SR - Slew Rate
SMD/SMT
Mounting Style
1.2V
Supply Voltage - Min
350KHz
GBP - Gain Bandwidth Product
+125C
Maximum Operating Temperature
10uA
Operating Supply Current
5.5V
Supply Voltage - Max
40mA
Output Current per Channel
600uV
Vos - Input Offset Voltage
SOIC-8
Package-Case
