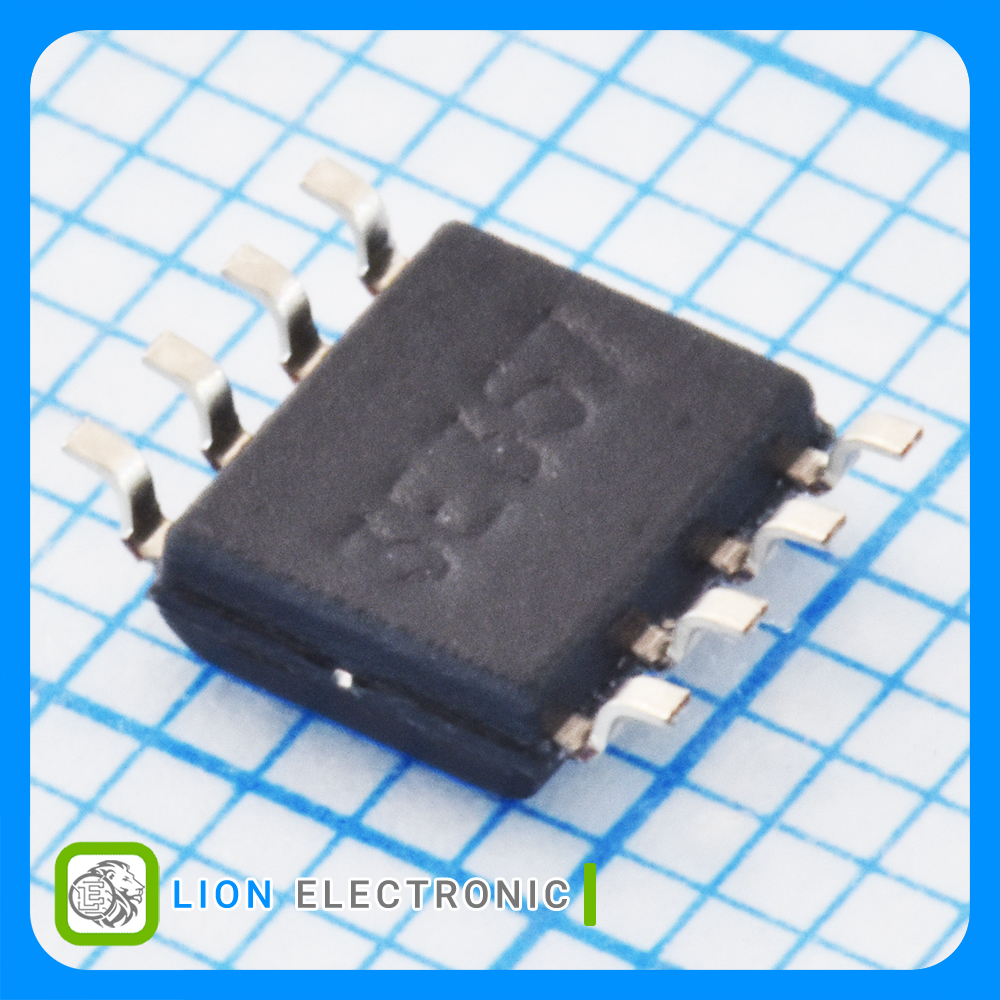

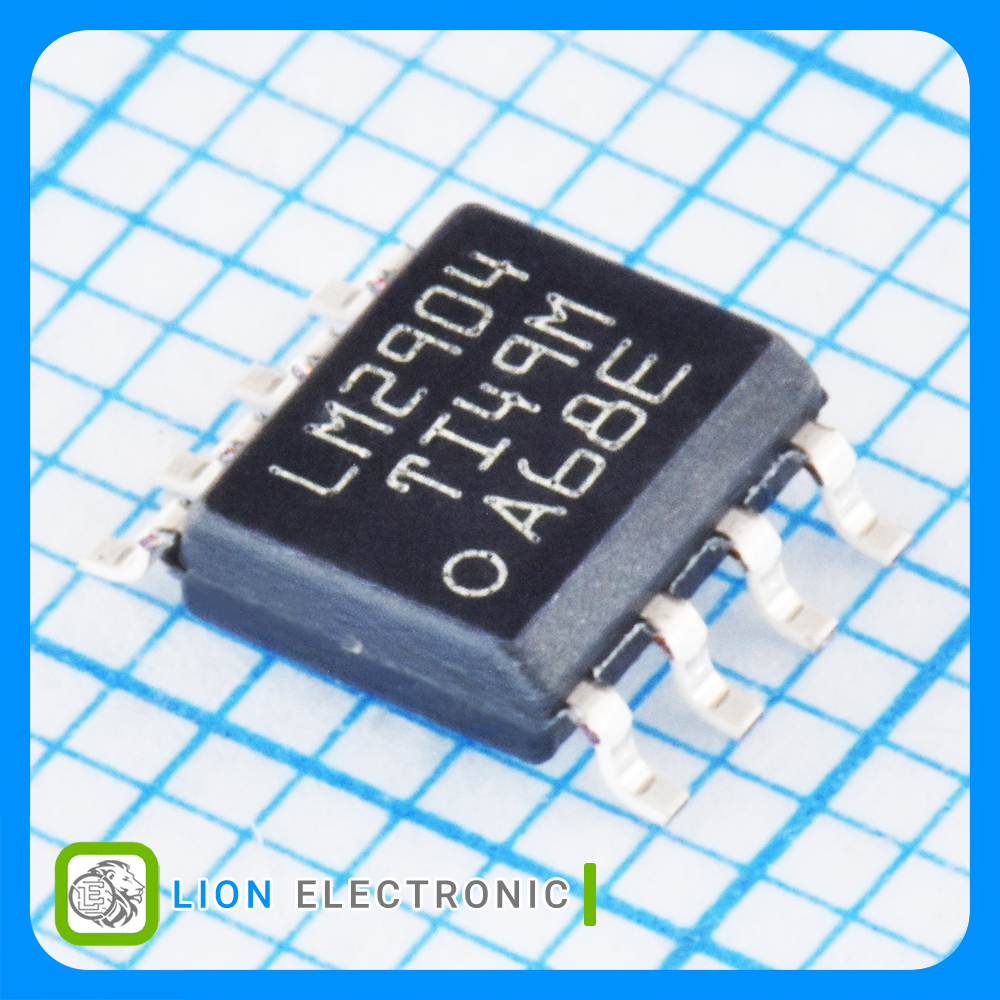

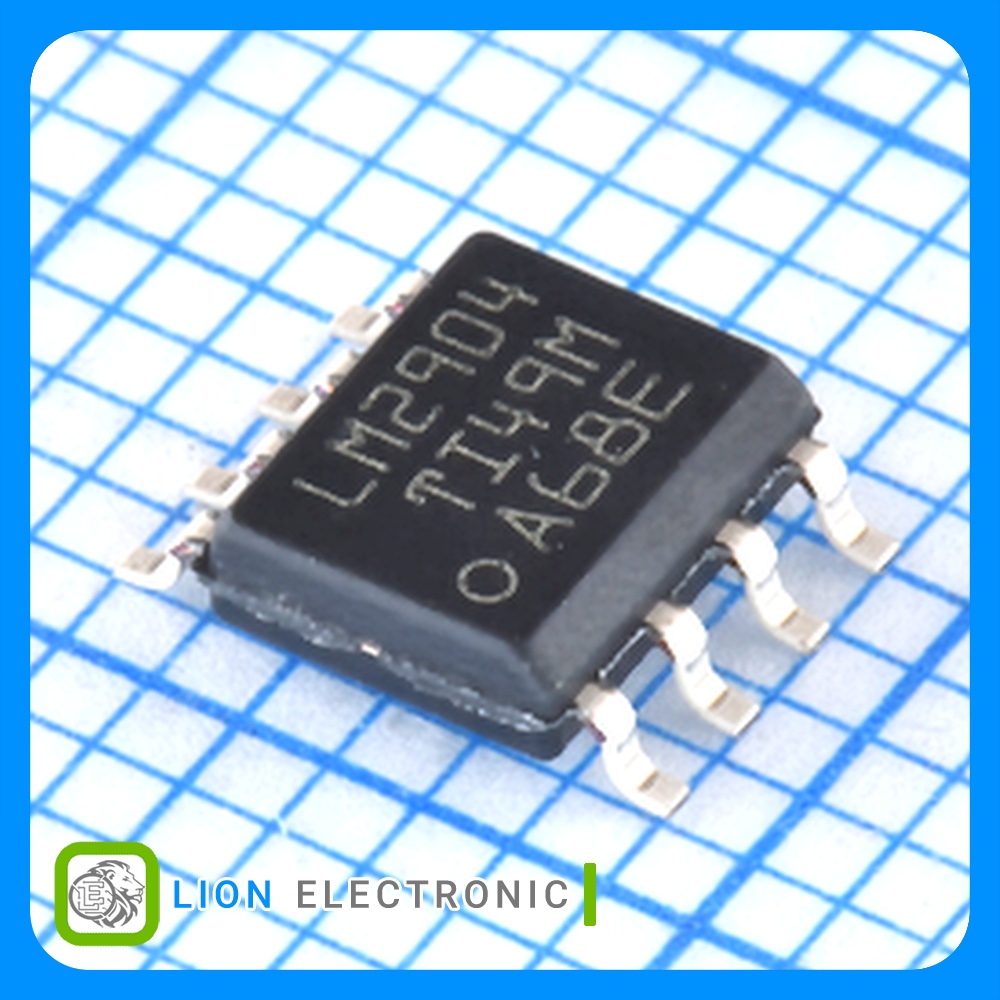

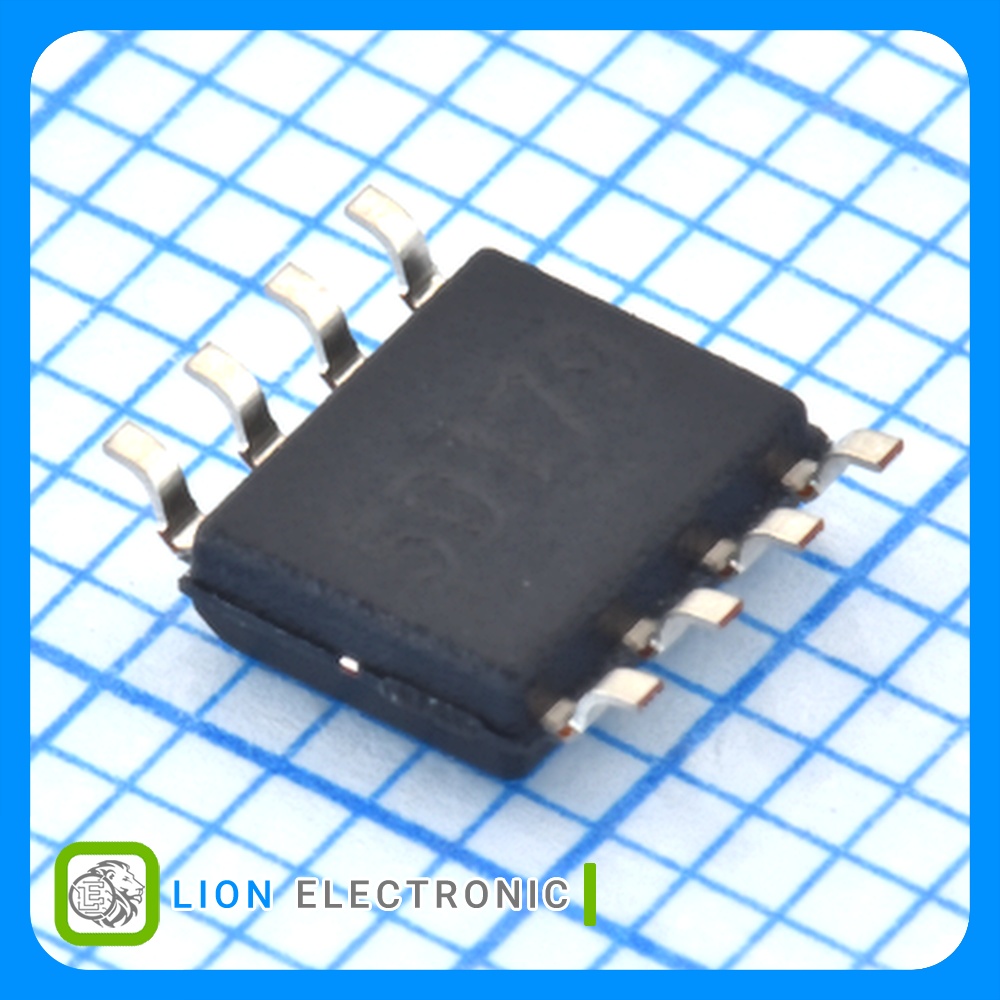

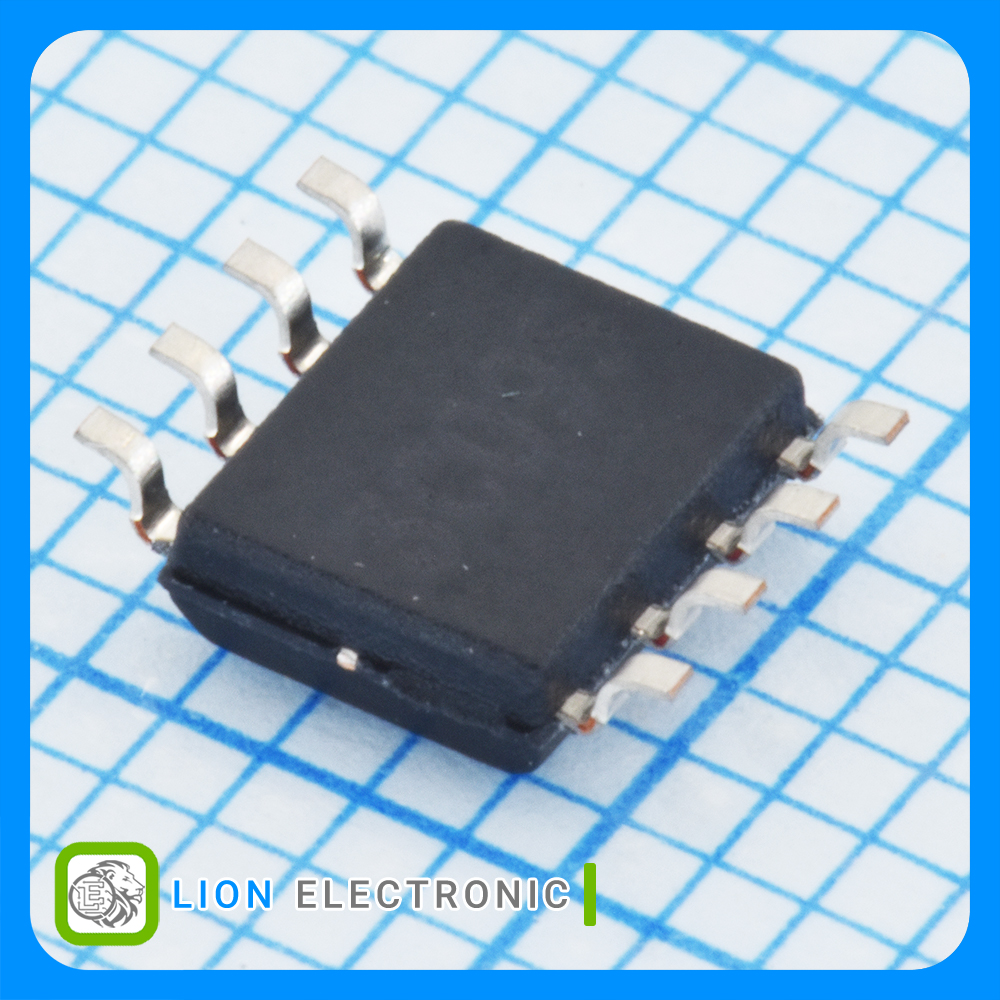

LM2904DR
LM2904DR
Part Number
2803
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله با پهنای باند 700 کیلوهرتز و پکیج SOIC-8
Operational Amplifier 2-Channel, 700KHz with SOIC-8 Package
معرفی
آپامپ 2 کاناله با پهنای باند 700 کیلوهرتز و پکیج SOIC-8
Operational Amplifier 2-Channel, 700KHz with SOIC-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 20mA
- SR - Slew Rate: 300mV/us
- GBP - Gain Bandwidth Product: 700KHz
- CMRR - Common Mode Rejection Ratio: 80dB
- Ib - Input Bias Current: 250nA
- Vos - Input Offset Voltage: 2mV
- Supply Voltage - Max: 26V
- Supply Voltage - Min: 3V
- Operating Supply Current: 350uA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ LM2904DR

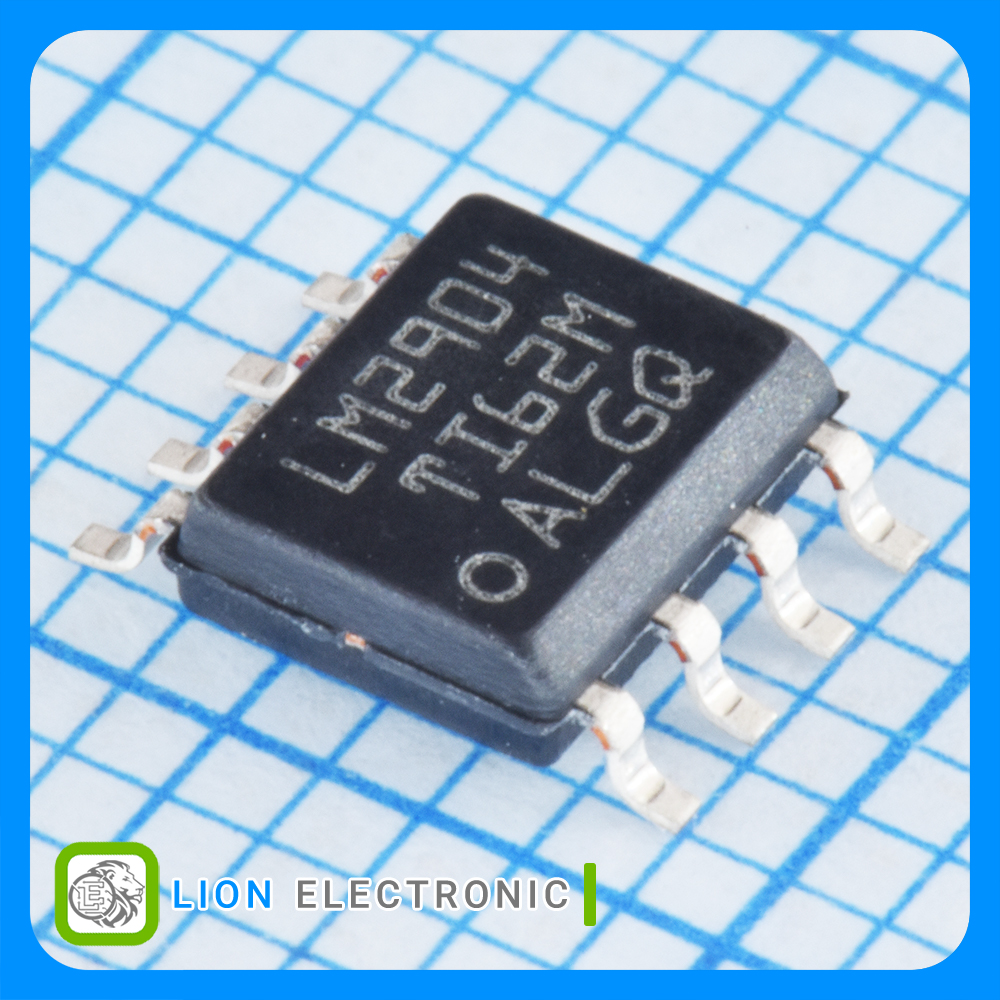

آپ امپ LM2904DR
Part Number
2
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
300mV/us
SR - Slew Rate
20mA
Output Current per Channel
+125C
Maximum Operating Temperature
700KHz
GBP - Gain Bandwidth Product
80dB
CMRR - Common Mode Rejection Ratio
3V
Supply Voltage - Min
2mV
Vos - Input Offset Voltage
250nA
Ib - Input Bias Current
26V
Supply Voltage - Max
350uA
Operating Supply Current
SOIC-8
Package-Case
