HanRun
معرفی
ترانسفورماتور شبکه 10/100BASE-T تکپورت 350 میکروهانری با ایزولاسیون 1.5 کیلوولت RMS

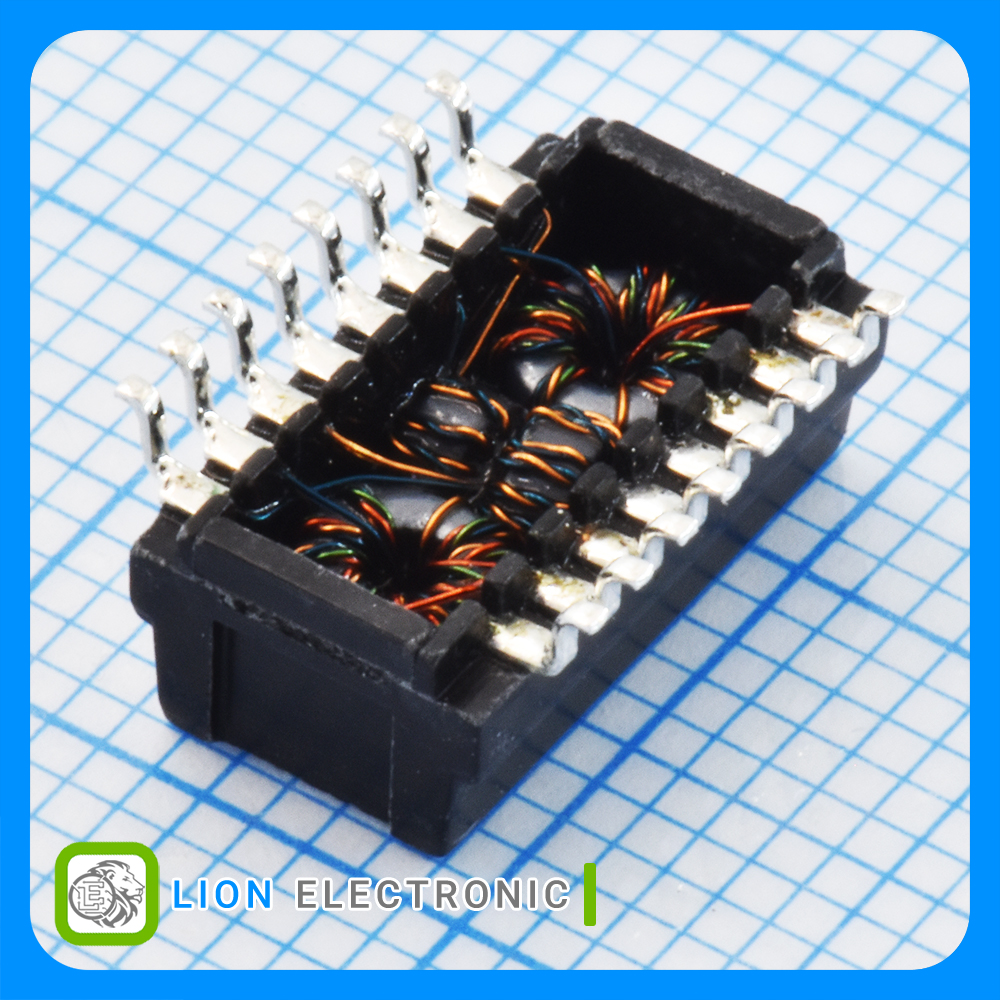

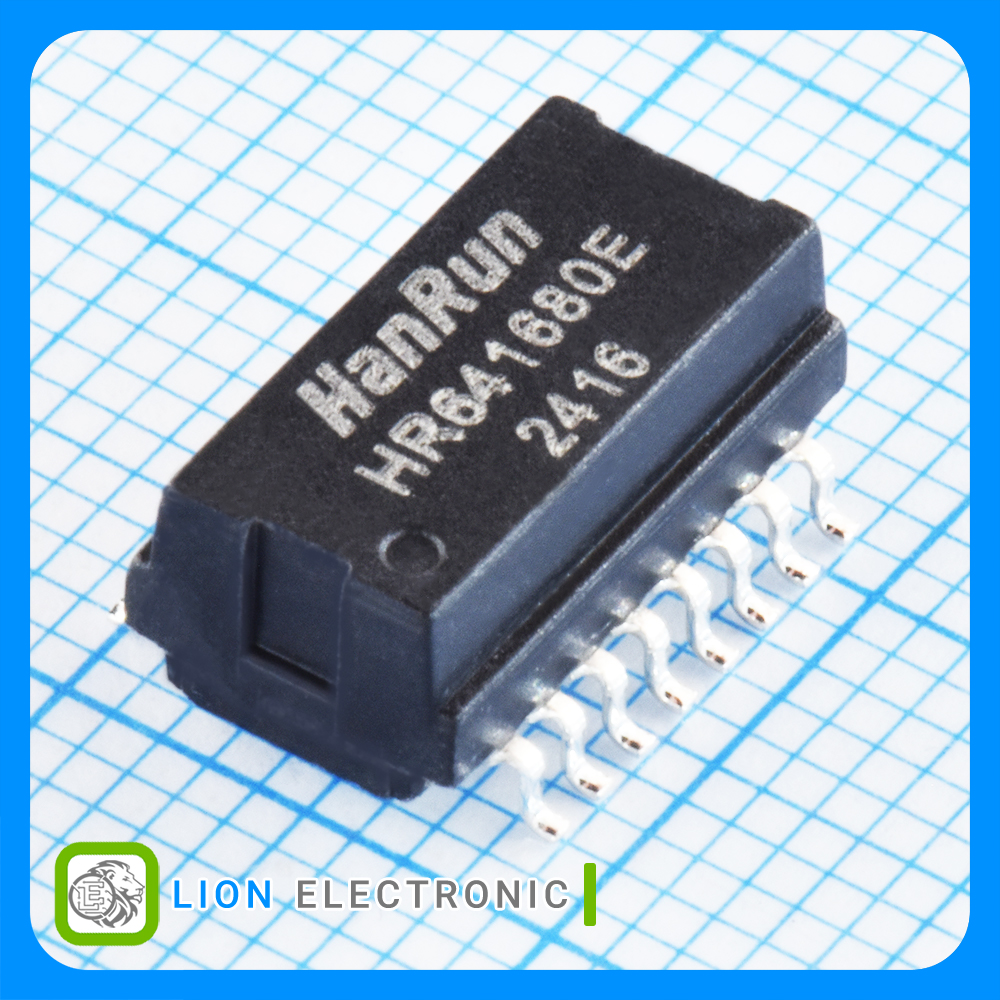

10/100BASE-T Single Port Signal Transformer 350uH with 1.5kVrms Isolation
Specifications
- Type: Module
- Number of Channels: 1
- Frequency Range: 1 - 100MHz
- Inductance: 350uH
- Primary Impedance: 100Ω
- Secondary Impedance: 100Ω
- Isolation Voltage: 1.5kVrms
- Length: 12.7mm
- Width: 7.2mm
- Height: 5.7mm
- Termination style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ترانس ایزولاتور اترنت HR641680E
ترانس ایزولاتور اترنت HR641680E
Part Number
1
Number of Channels
100Ω
Secondary Impedance
100Ω
Primary Impedance
1.5kVrms
Isolation Voltage
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
1 - 100MHz
Frequency Range
7.2mm
Width
12.7mm
Length
5.7mm
Height
350uH
Inductance
Module
Type
