MXPP6-3K6110
MXPP6-3K6110
Part Number
6618
Lion Part
Datasheet
Wuxi Maxinmicro Manufacture
ترانسفورماتور پوش-پول MXPP6-3K6110 با اندوکتانس 475 میکروهانری و ایزولاسیون 3 کیلوولت RMS، سازگار با کنترلر پوش-پول MX6501T از Maxin Micro-electronics

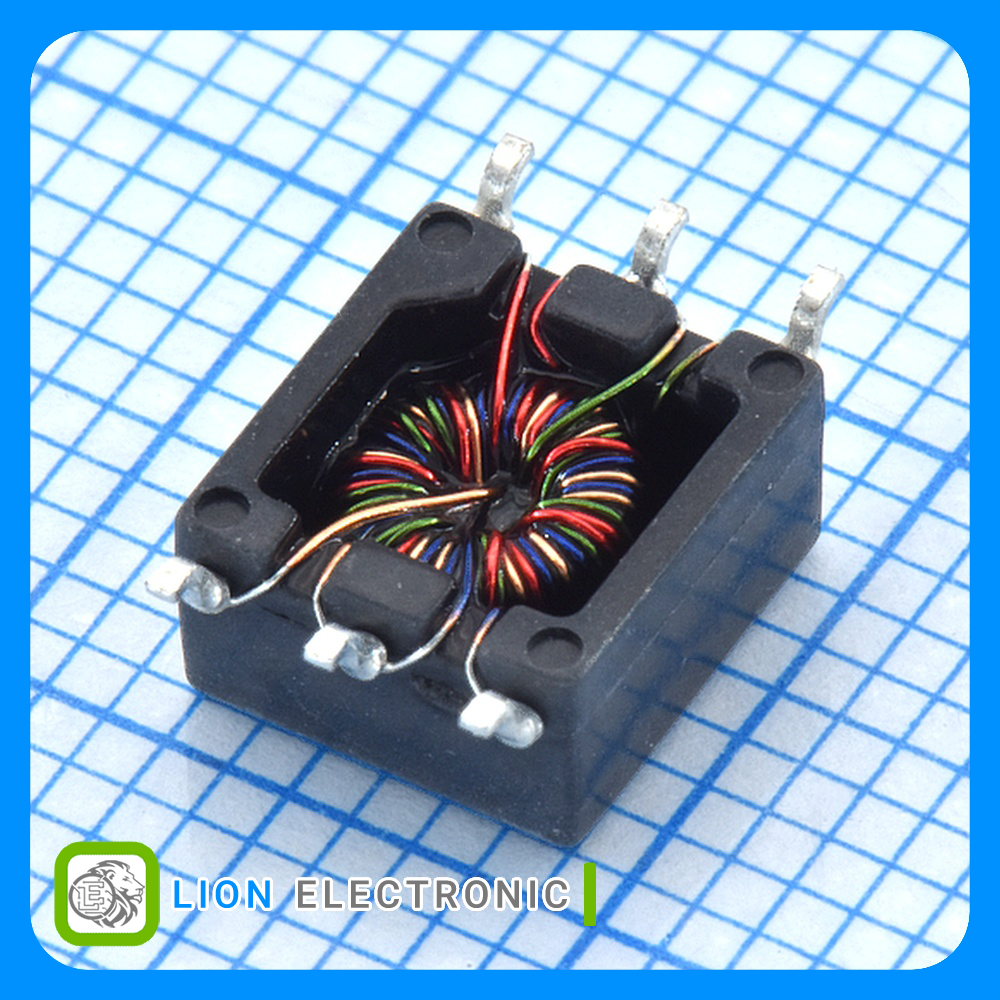

MXPP6-3K6110 is a Push-Pull Signal Transformer 475uH, with 3kVrms Isolation, Which Matching Push-Pull Controller MX6501T from Maxin Micro-electronics
معرفی
ترانسفورماتور پوش-پول MXPP6-3K6110 با اندوکتانس 475 میکروهانری و ایزولاسیون 3 کیلوولت RMS، سازگار با کنترلر پوش-پول MX6501T از Maxin Micro-electronics
MXPP6-3K6110 is a Push-Pull Signal Transformer 475uH, with 3kVrms Isolation, Which Matching Push-Pull Controller MX6501T from Maxin Micro-electronics
Specifications
- Frequency Range: 10kHz
- Inductance: 475uH
- Primary Impedance: 310mΩ
- Secondary Impedance: 330mΩ
- Isolation Voltage: 3kVrms
- Length: 7.1mm
- Width: 6.5mm
- Height: 4.2mm
- Termination style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات MXPP6-3K6110
MXPP6-3K6110
Part Number
330mΩ
Secondary Impedance
310mΩ
Primary Impedance
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
3kVrms
Isolation Voltage
10kHz
Frequency Range
7.1mm
Length
+125C
Maximum Operating Temperature
-
Number of Channels
4.2mm
Height
6.5mm
Width
475uH
Inductance
-
Type
