ترانسفورماتور پالسی 120 میکروهنری 100 اهم با ایزولاسیون 1.5kVrms و پکیج SMD 4.6x3.4x3.2mm

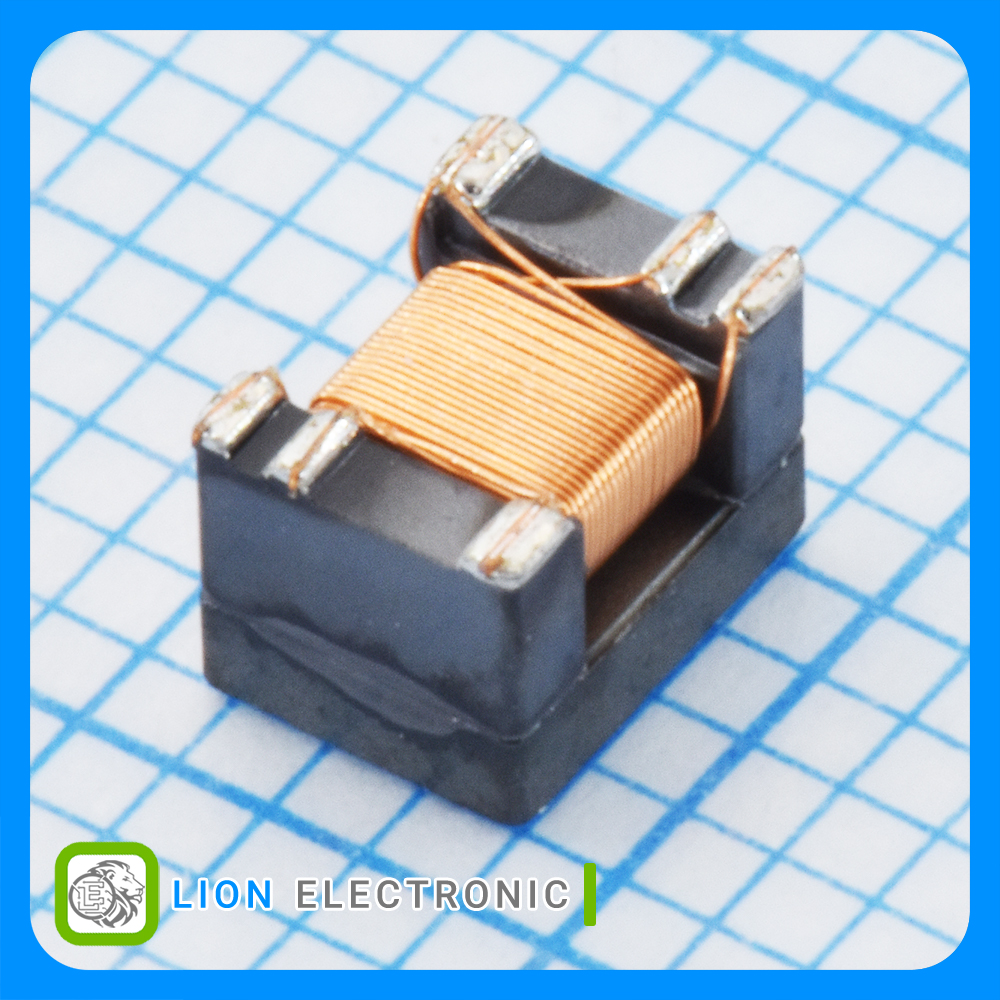

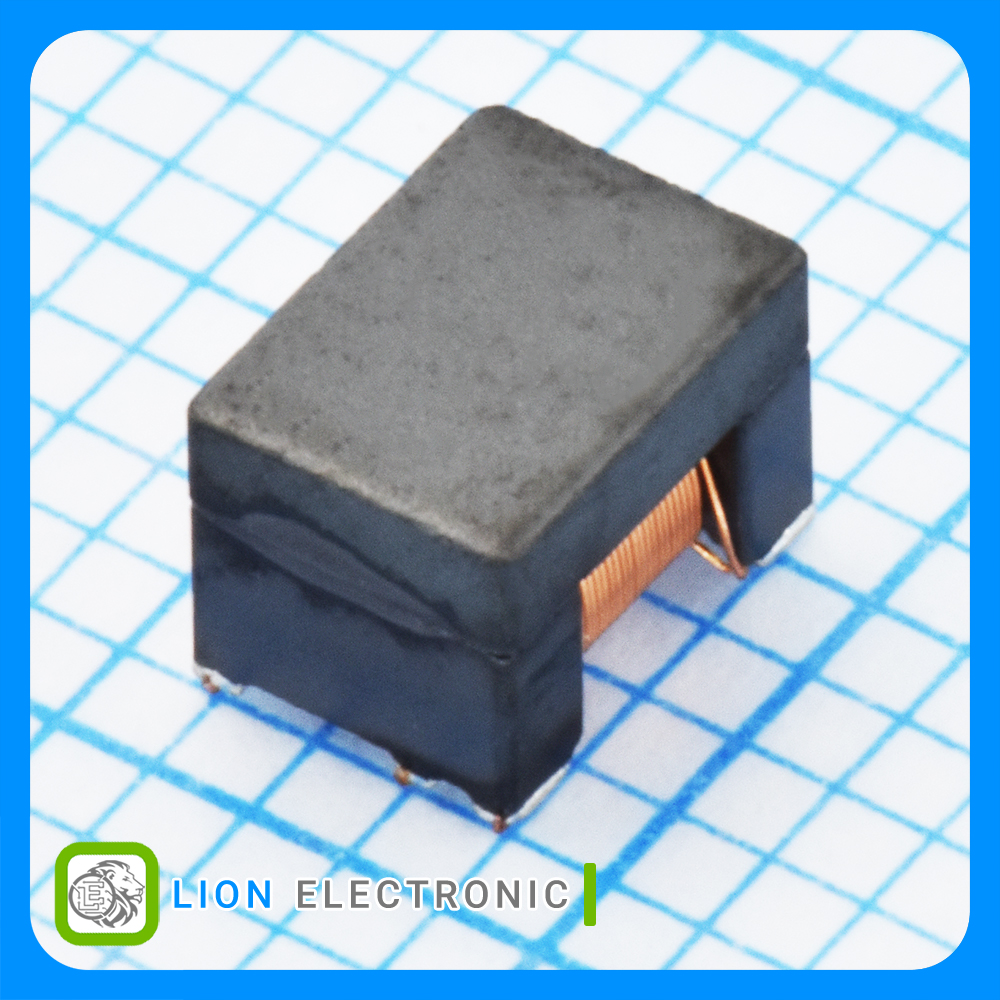

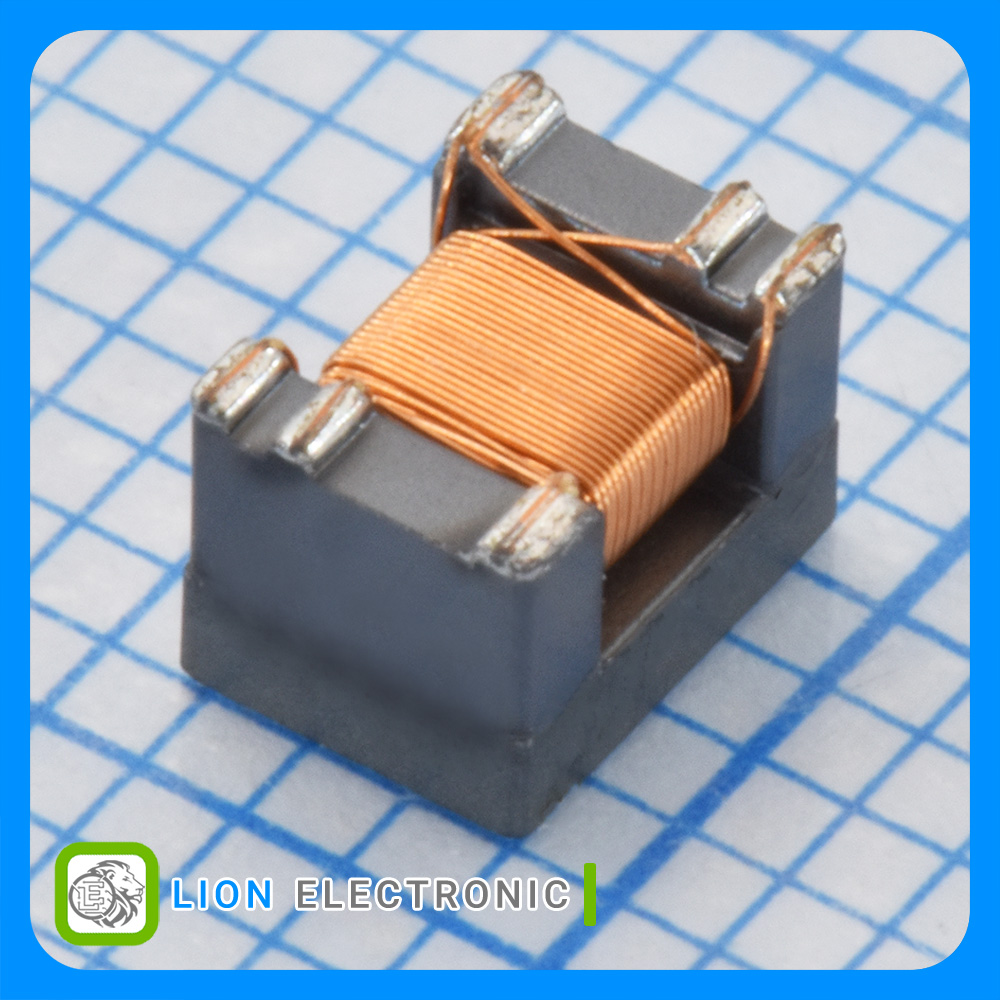

Pulse Transformer 120µH, 100Ω with 1.5kVrms Isolation, SMD 4.6x3.4x3.2mm Package
Specifications
- Type: Pulse Transformer
- Number of Channels: 1
- Frequency Range: 100kHz
- Inductance: 120uH
- Primary Impedance: 100Ω
- Secondary Impedance: 100Ω
- Isolation Voltage: 1.5kVrms
- Length: 4.6mm
- Width: 3.4mm
- Height: 3.2mm
- Termination style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ترانس پالس GA021G00

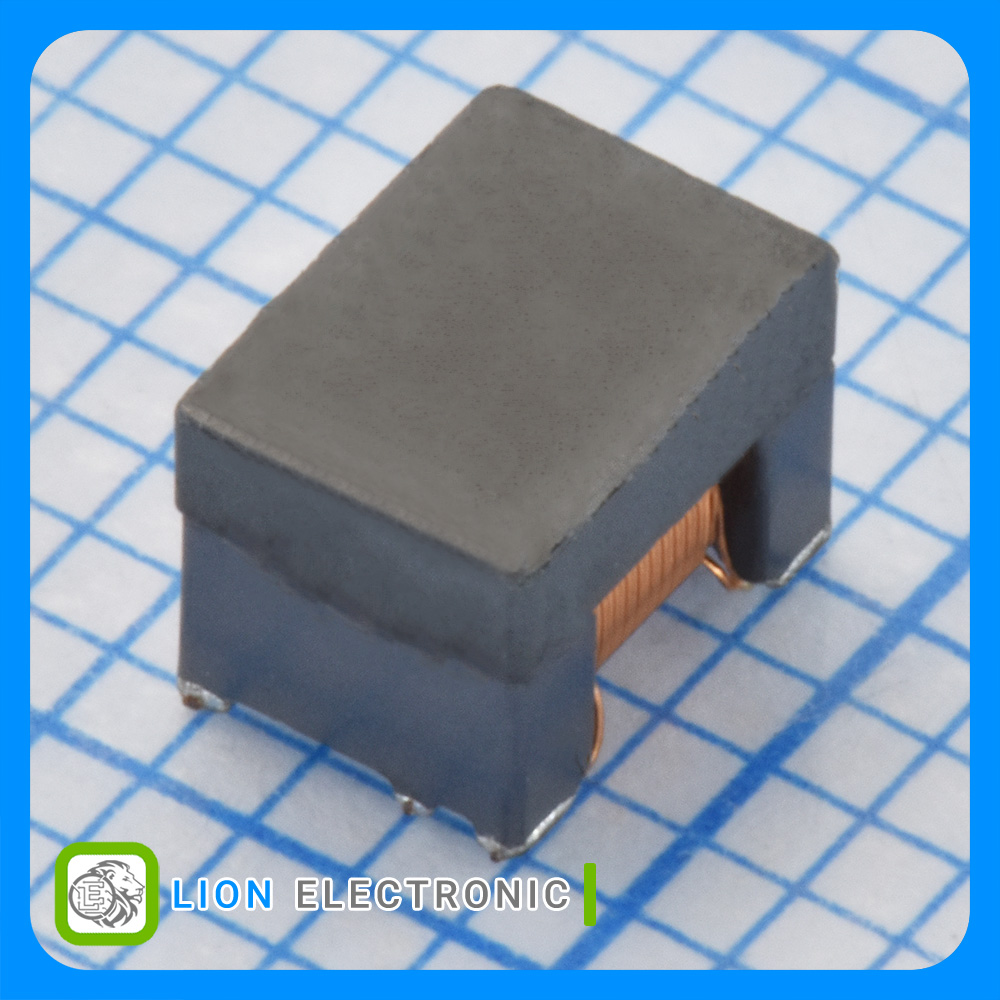

ترانس پالس GA021G00
Part Number
1
Number of Channels
100Ω
Secondary Impedance
100Ω
Primary Impedance
1.5kVrms
Isolation Voltage
Reel
Packaging
SMD/SMT
Termination style
-40C
Minimum Operating Temperature
4.6mm
Length
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
3.4mm
Width
100kHz
Frequency Range
3.2mm
Height
120uH
Inductance
Pulse Transformer
Type
1.2Ω
Maximum DC Resistance
