معرفی
ترانسفورماتور 350 میکروهانری تککاناله 4 با ایزولاسیون 1.5 کیلو ولت RMS

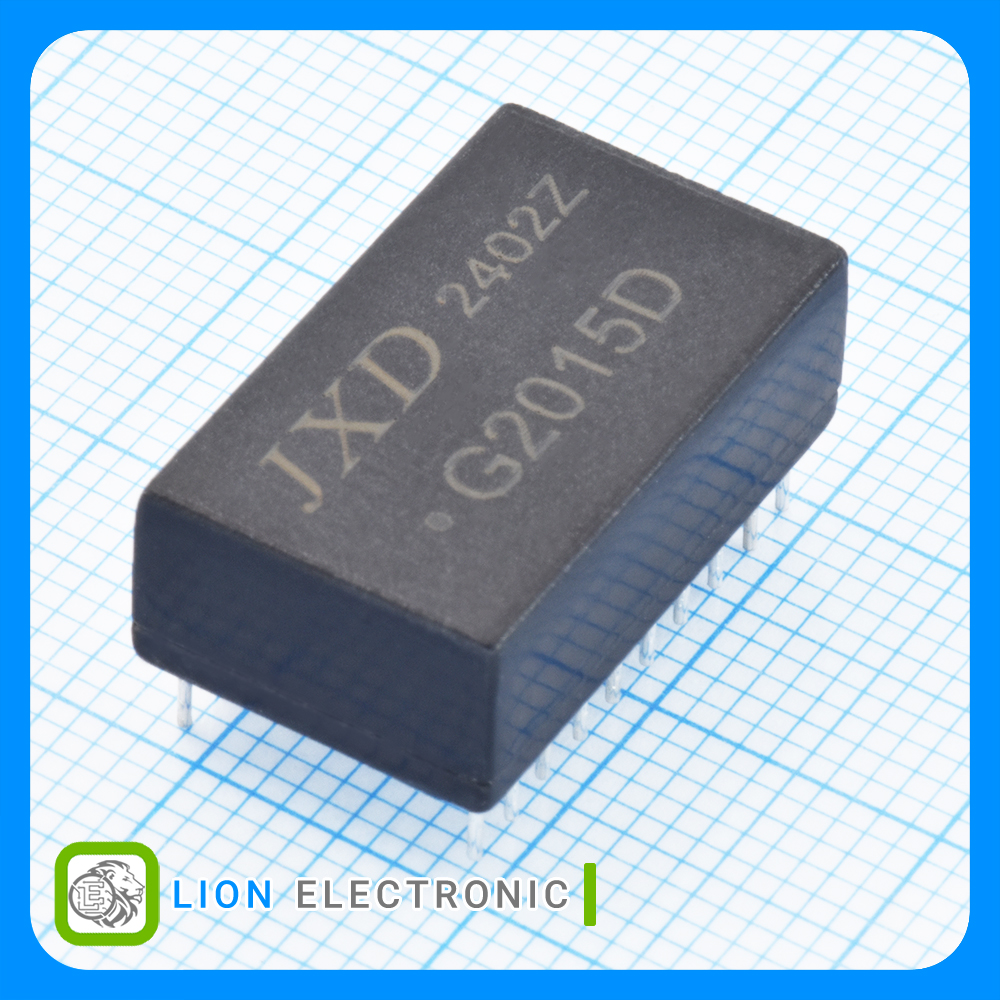

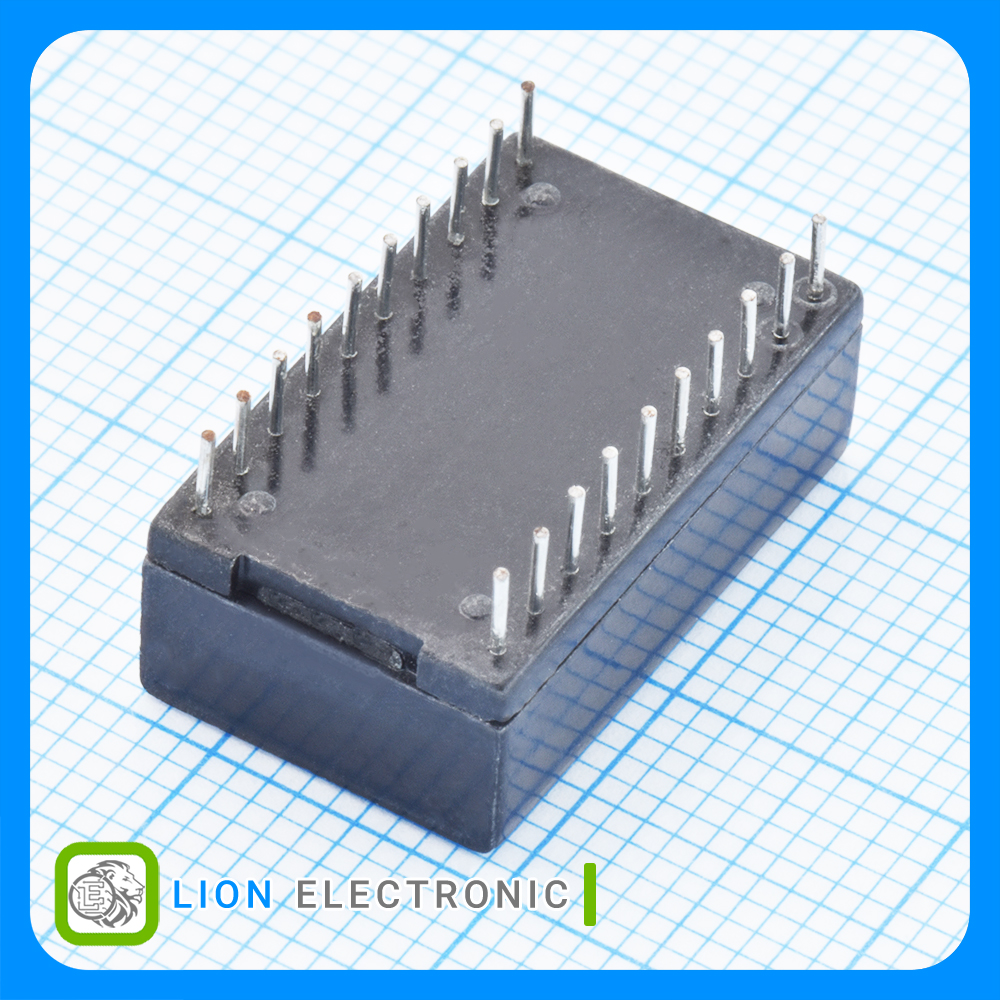

Signal Transformer 350uH, 4 Channel with 1.5kVrms Isolation
Specifications
- Type: Module
- Number of Channels: 4
- Frequency Range: 1 - 100MHz
- Inductance: 350uH
- Primary Impedance: 100Ω
- Secondary Impedance: 100Ω
- Isolation Voltage: 1.5kVrms
- Length: 25.5mm
- Width: 12.5mm
- Height: 6.9mm
- Termination style: Through Hole
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات ترانس ایزولاتور اترنت G2015D

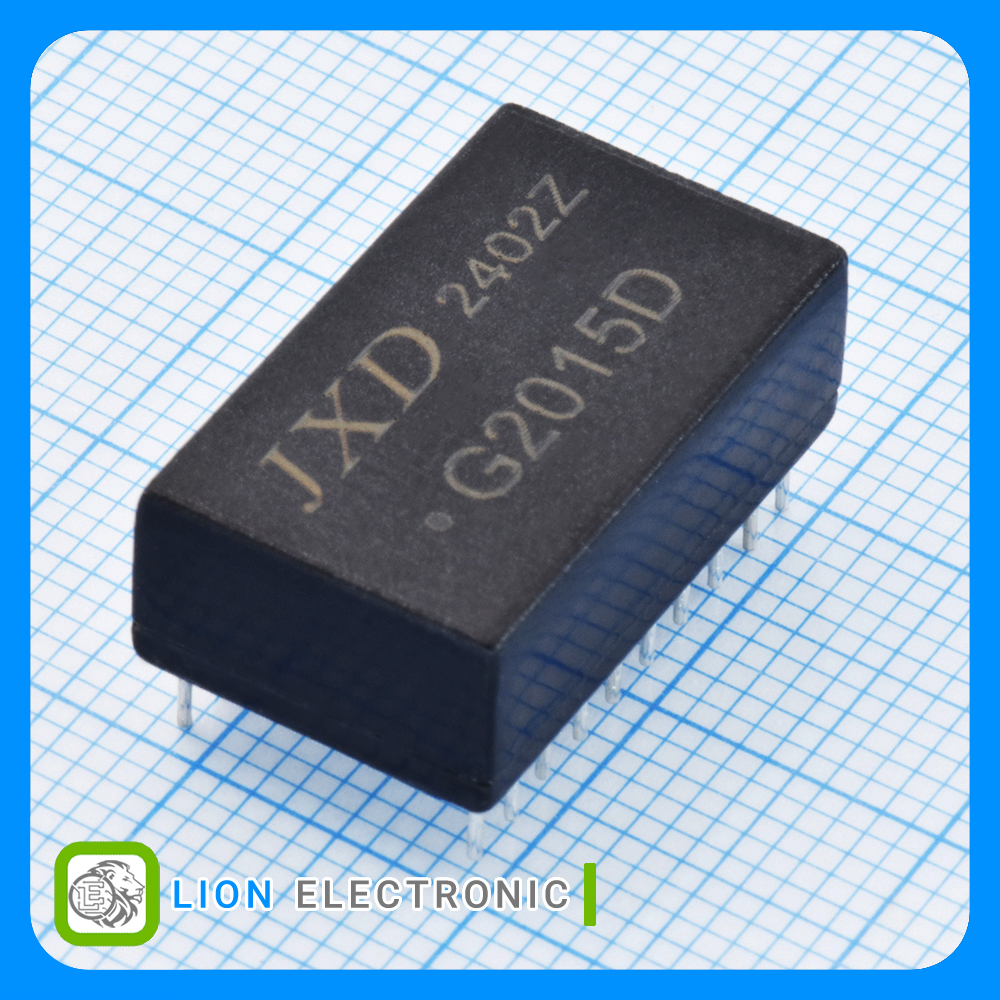

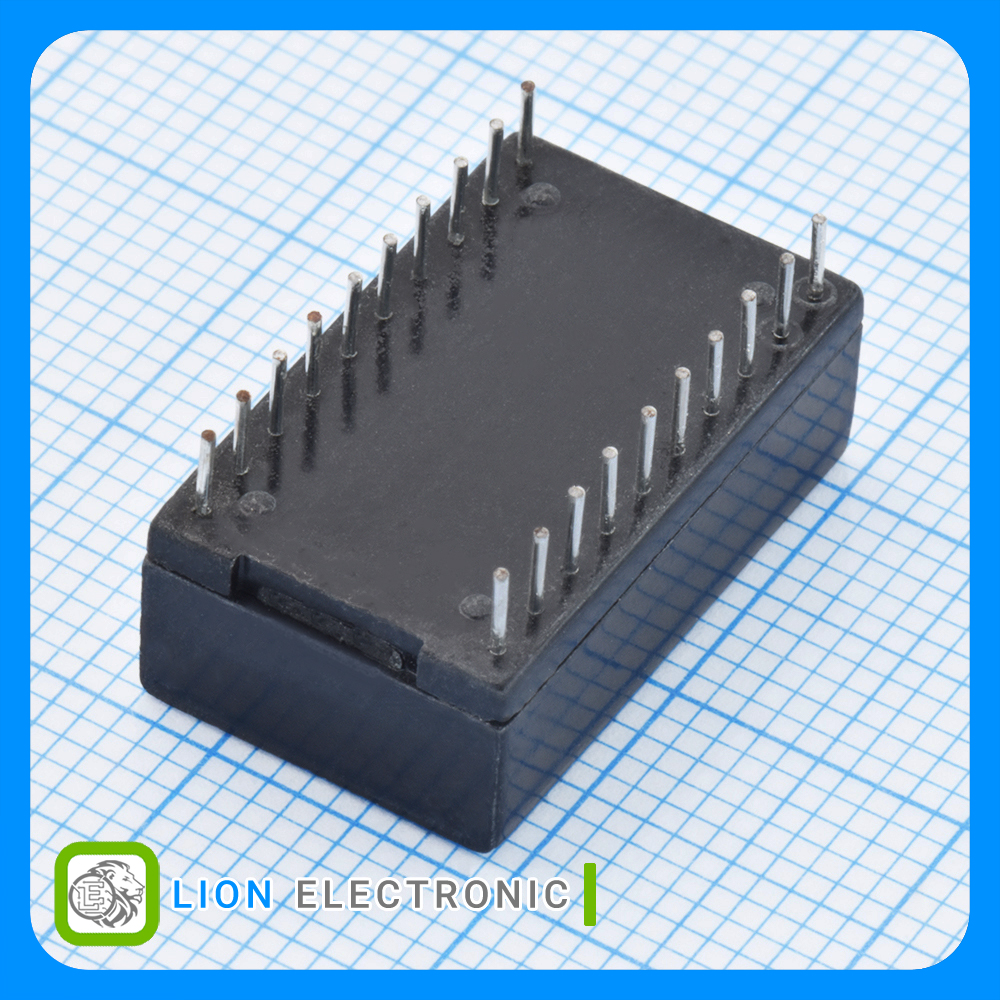

ترانس ایزولاتور اترنت G2015D
Part Number
100Ω
Secondary Impedance
100Ω
Primary Impedance
1.5kVrms
Isolation Voltage
4
Number of Channels
+70C
Maximum Operating Temperature
Through Hole
Termination style
Tube
Packaging
0C
Minimum Operating Temperature
1 - 100MHz
Frequency Range
6.9mm
Height
12.5mm
Width
350uH
Inductance
25.5mm
Length
Module
Type
