معرفی

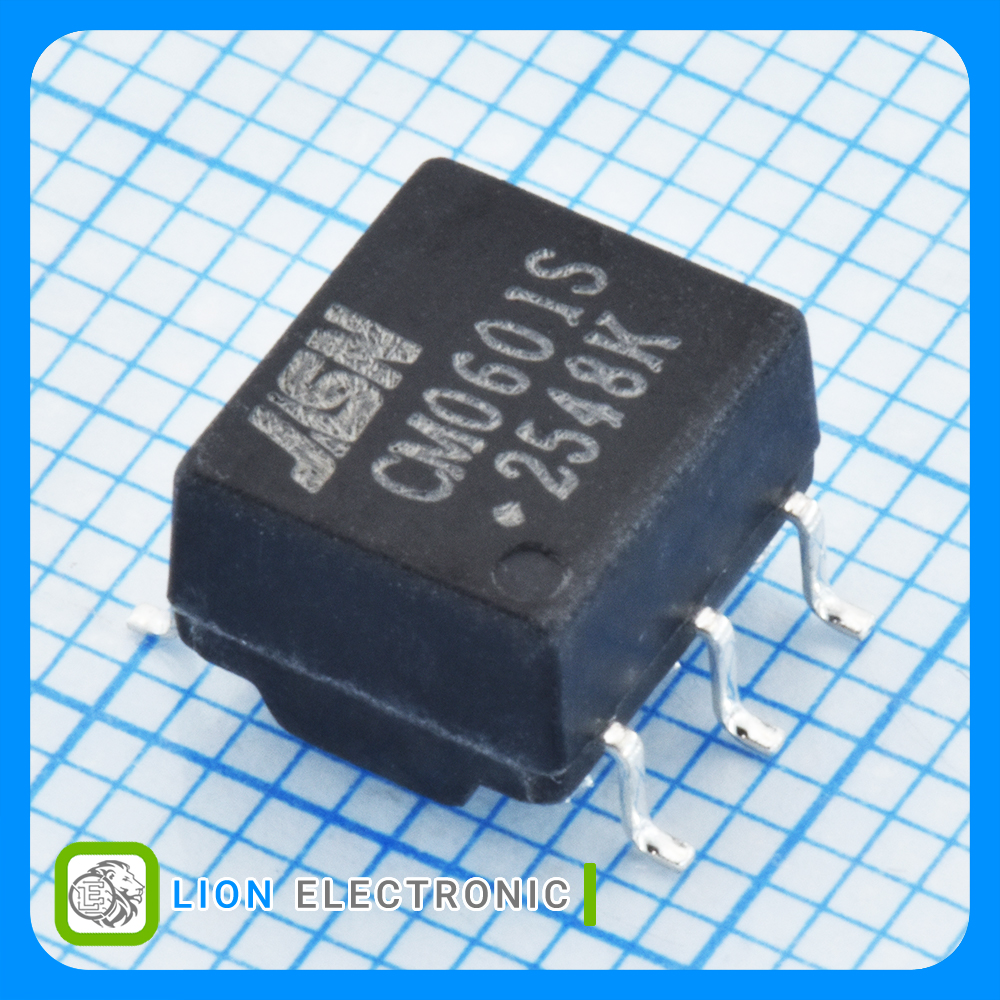

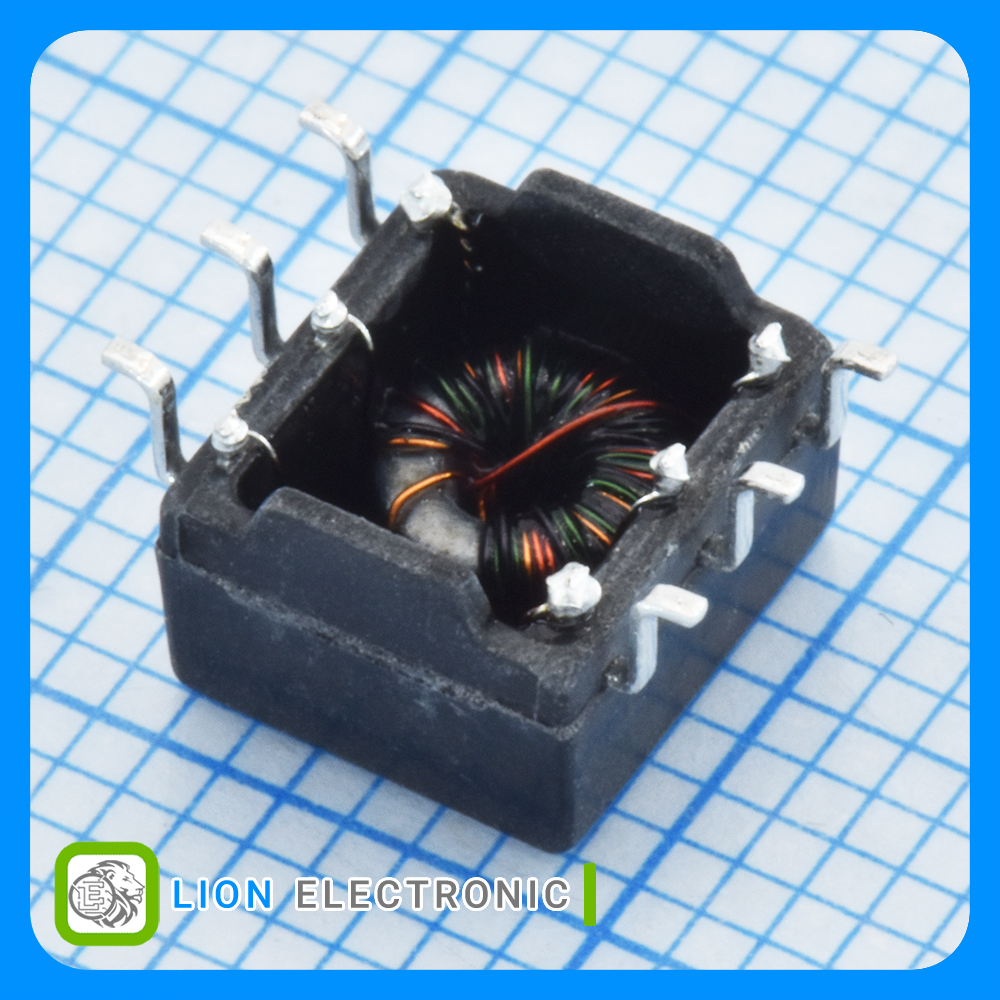

ترانسفورماتور پوش-پول ایزولاسیون 3 کیلوولت RMS با فرکانس 10 کیلوهرتز سایز 7.6x6.7x5.25 میلیمتر
Push-Pull Signal Transformer 3kVrms Isolation, 10kHz with 7.6 x 6.7 x 5.25mm SMD
Specifications
- Frequency Range: 10kHz
- Primary Impedance: 220mΩ
- Secondary Impedance: 450mΩ
- Isolation Voltage: 3kVrms
- Length: 7.6mm
- Width: 6.7mm
- Height: 5.25mm
- Termination style: SMD/SMT
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Reel
مشخصات CM0601S
CM0601S
Part Number
450mΩ
Secondary Impedance
220mΩ
Primary Impedance
+70C
Maximum Operating Temperature
SMD/SMT
Termination style
Reel
Packaging
3kVrms
Isolation Voltage
10kHz
Frequency Range
0C
Minimum Operating Temperature
-
Number of Channels
7.6mm
Length
6.7mm
Width
5.25mm
Height
-
Inductance
-
Type
