Panasonic
معرفی

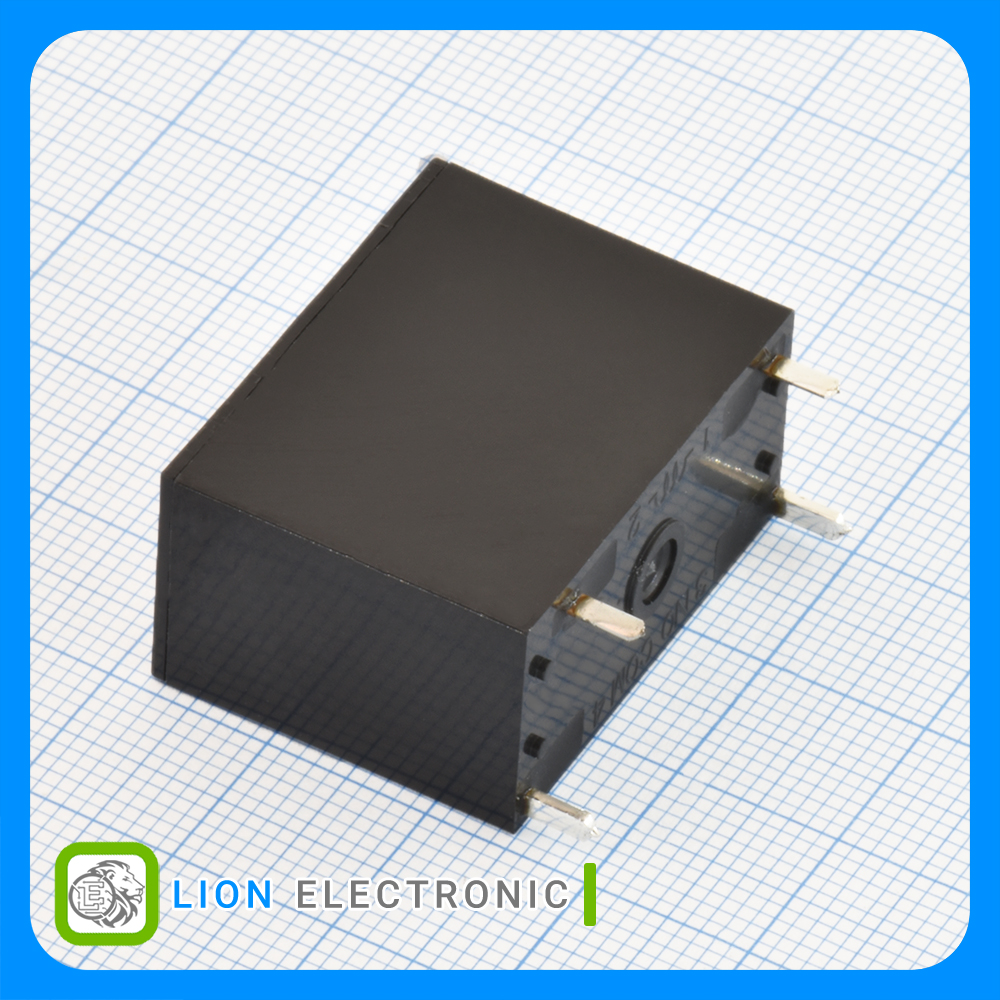

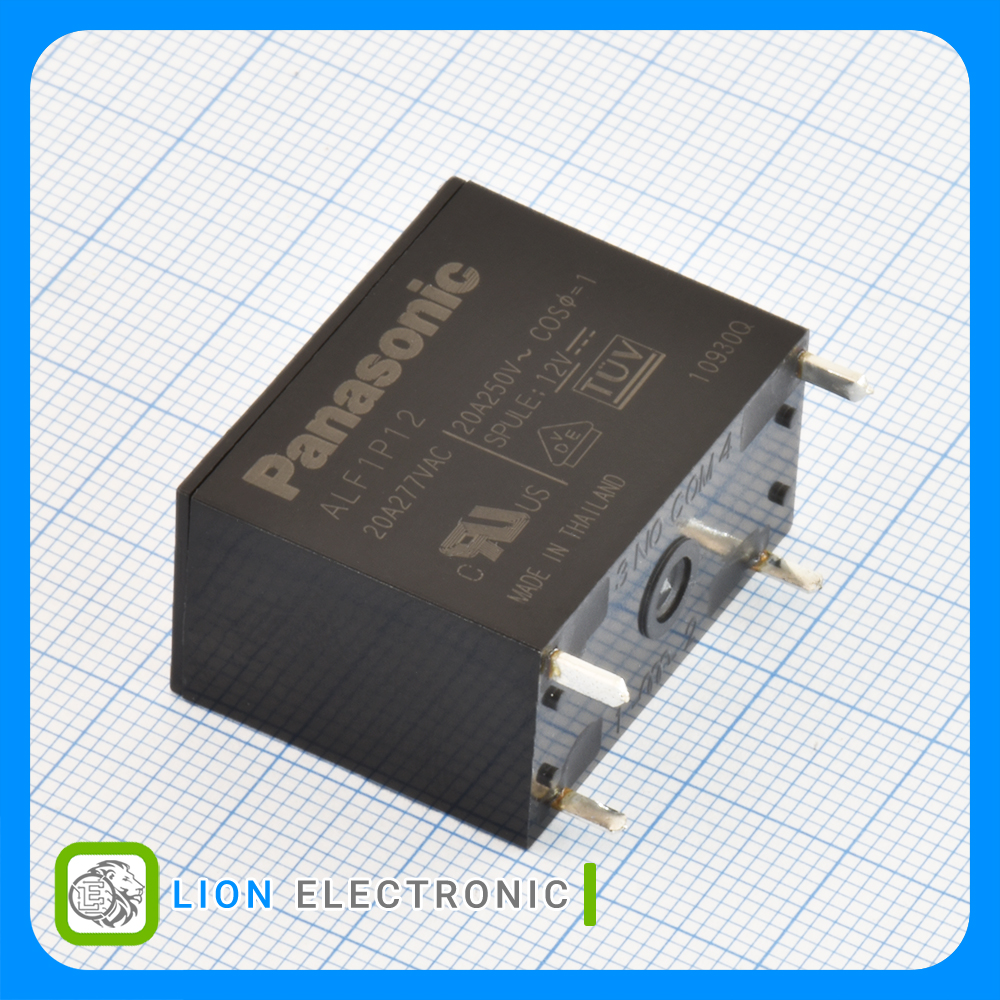

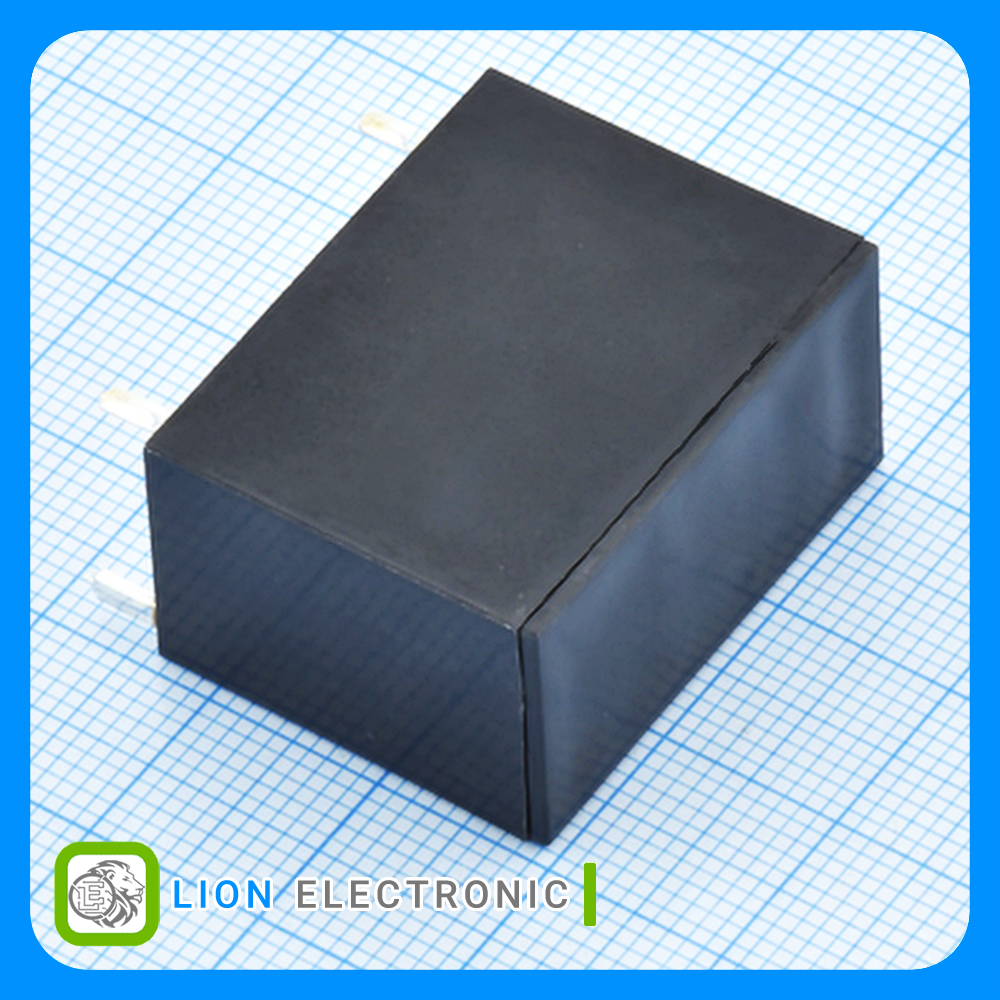

رله 1 Form A (SPST-NO) ولتاژ کویل 12 ولت جریان کنتاکت 20 آمپر توان 900 میلیوات با نصب پایهدار
General Purpose Relay 1 Form A (SPST-NO), 12VDC with 20A Contact Current, 900mW, PCB type
Specifications
- Relay Contact Form: 1 Form A (SPST-NO)
- Coil Voltage: 12VDC
- Contact Current Rating: 20A
- Coil Resistance: 160Ω
- Coil Current: 75mA
- Power Consumption: 900mW
- Height: 23.3mm
- Length: 30.1mm
- Width: 15.7mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Box
- Max Switching Voltage: 250VAC
مشخصات رله ALF1P12

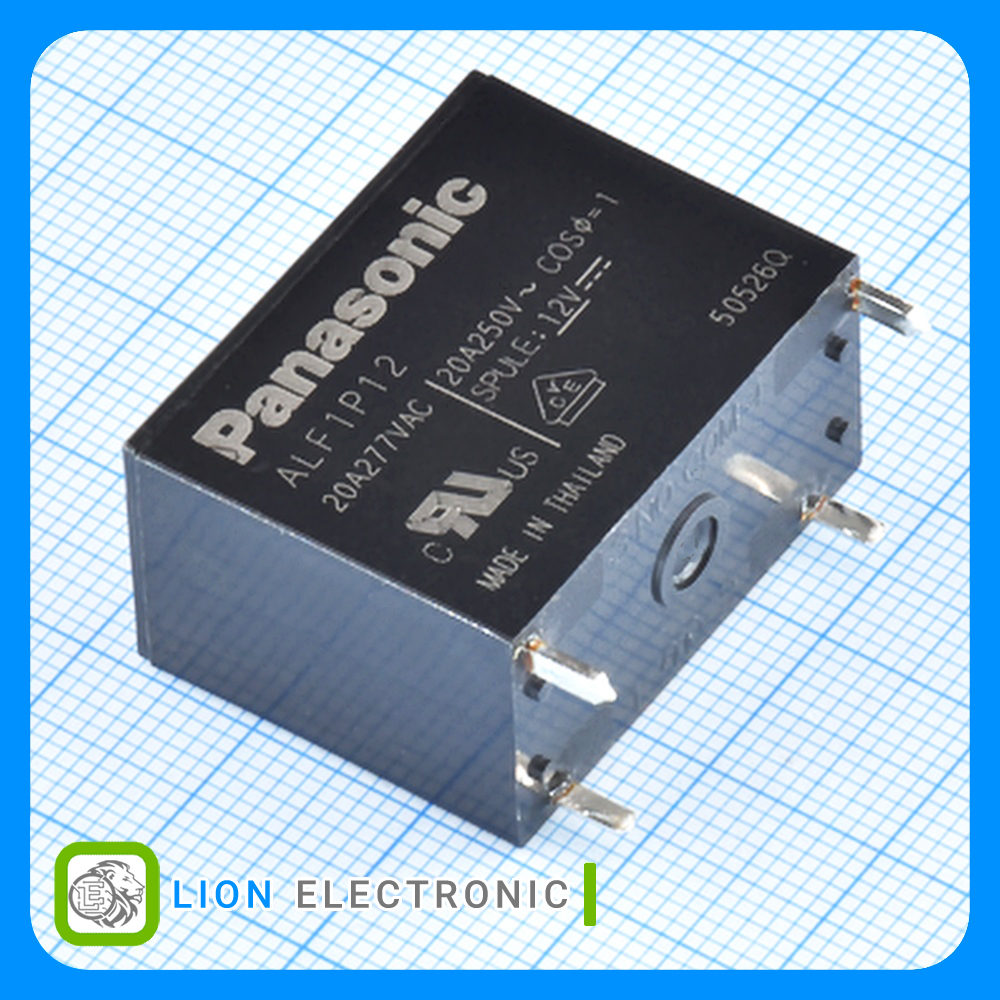

رله ALF1P12
Part Number
1 Form A (SPST-NO)
Relay Contact Form
Non-Latching
Coil Type
12VDC
Coil Voltage
Box
Packaging
N/A
insulation class
20A
Contact Current Rating
160Ω
Coil Resistance
250VAC
Max Switching Voltage
900mW
Power Consumption
Through Hole
Mounting Style
75mA
Coil Current
15.7mm
Width
30.1mm
Length
23.3mm
Height
