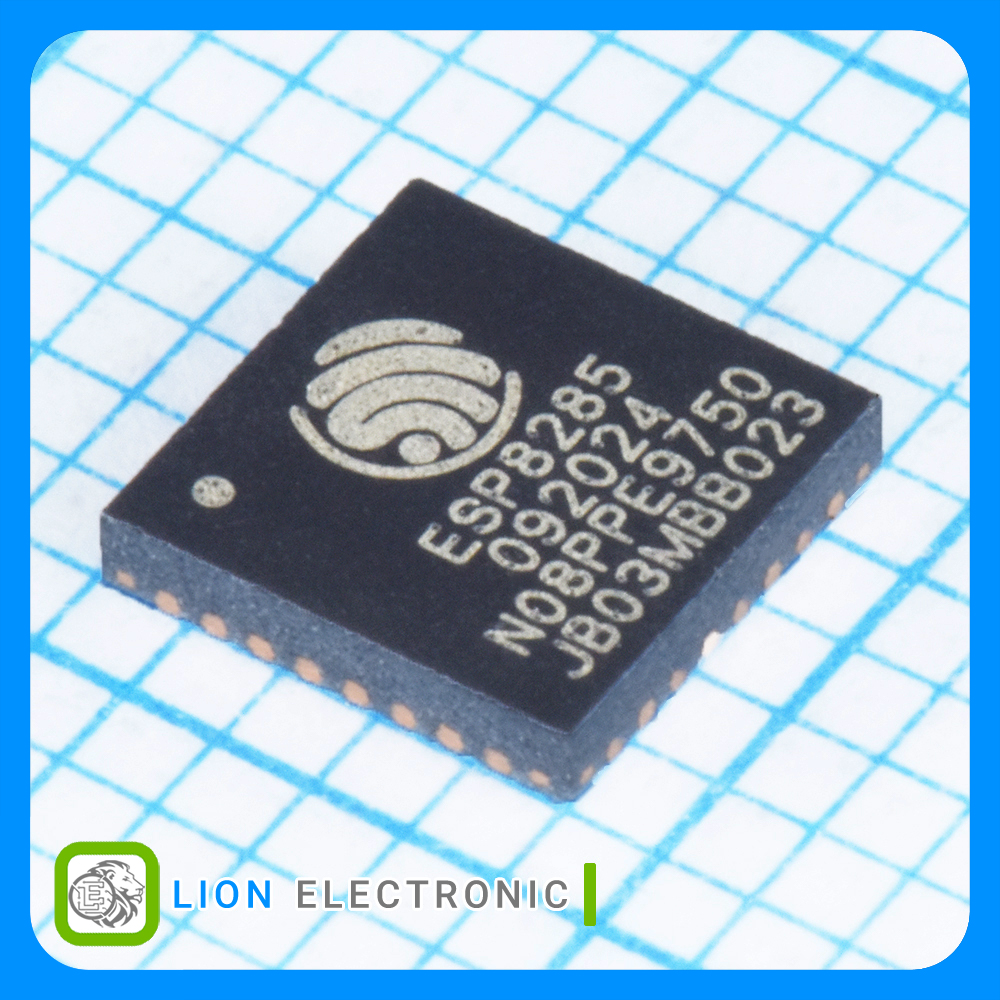

ESP8285N08
ESP8285N08
Part Number
2941
Lion Part
Datasheet
Espressif Manufacture
تراشه SoC Wi-Fi فرکانس 2.4 تا 2.483 گیگاهرتز نرخ 72.2 مگابیت بر ثانیه با حافظه 1 مگابایت SPI Flash، دمای کاری 40- تا 85+ درجه با پکیج QFN-32
Wi-Fi SoC 2.4 - 2.483GHz, 72.2Mbps with 1MB SPI Flash Memory, Temp -40 +85C with QFN-32 Package
معرفی
تراشه SoC Wi-Fi فرکانس 2.4 تا 2.483 گیگاهرتز نرخ 72.2 مگابیت بر ثانیه با حافظه 1 مگابایت SPI Flash، دمای کاری 40- تا 85+ درجه با پکیج QFN-32
Wi-Fi SoC 2.4 - 2.483GHz, 72.2Mbps with 1MB SPI Flash Memory, Temp -40 +85C with QFN-32 Package
Specifications
- Type: Wi-Fi
- Core: RISC
- Program Memory Size: 1MB
- Operating Frequency: 2.4 - 2.483GHz
- Data Rate: 72.2Mbps
- Sensitivity: -97dBm
- Output Power: 19dBm
- Supply Voltage - Max: 3.6V
- Supply Voltage - Min: 2.7V
- Supply Current Receiving: 73mA
- Supply Current Transmitting: 197mA
- Package/Case: QFN-32
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات آی سی ESP8285N08
آی سی ESP8285N08
Part Number
Si
Technology
-97dBm
Sensitivity
Reel
Packaging
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
3.6V
Supply Voltage - Max
1MB
Program Memory Size
72.2Mbps
Data Rate
2.7V
Supply Voltage - Min
197mA
Supply Current Transmitting
RISC
Core
2.4 - 2.483GHz
Operating Frequency
160MHz
Maximum Clock Frequency
73mA
Supply Current Receiving
RF System on a Chip - SoC
Product Type
19dBm
Output Power
I2C, I2S, SDIO, SPI, UART, WiFi
Interface Type
2.7 - 3.6V
Operating Supply Voltage
Wi-Fi
Type
QFN-32
Package-Case
