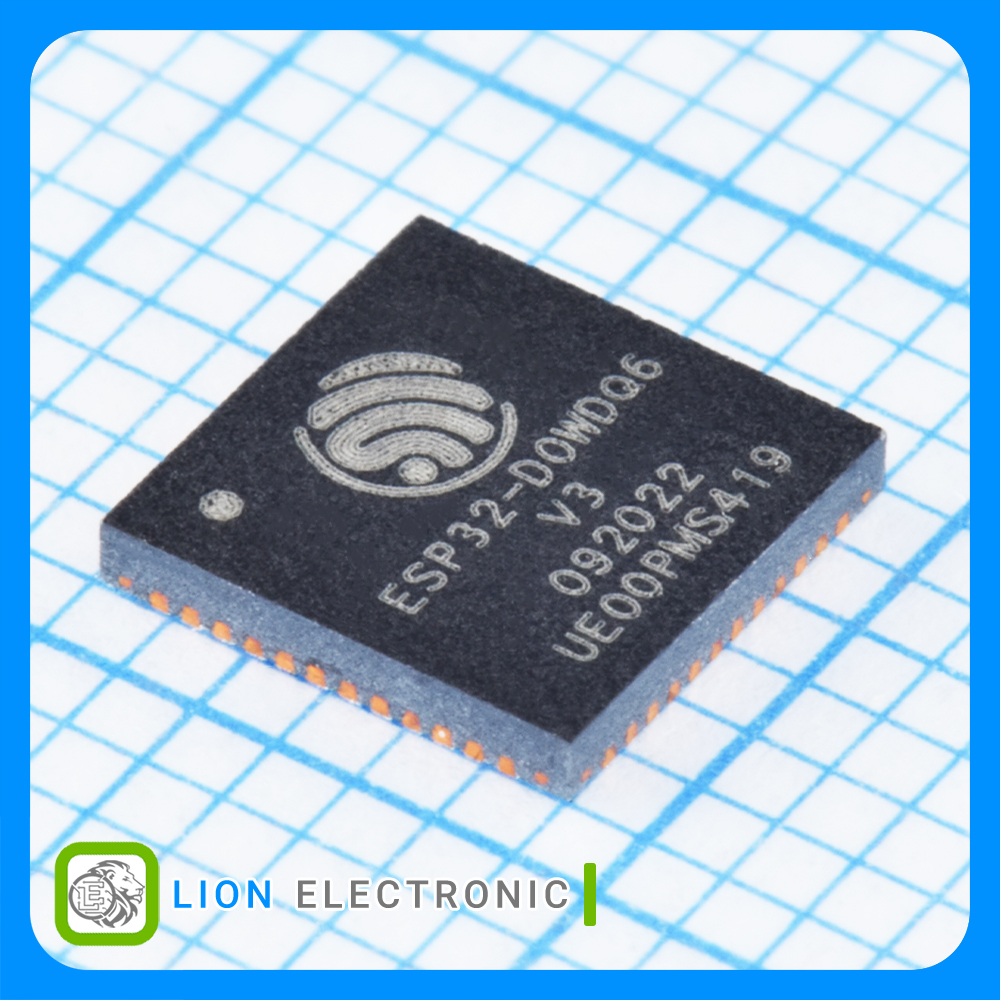

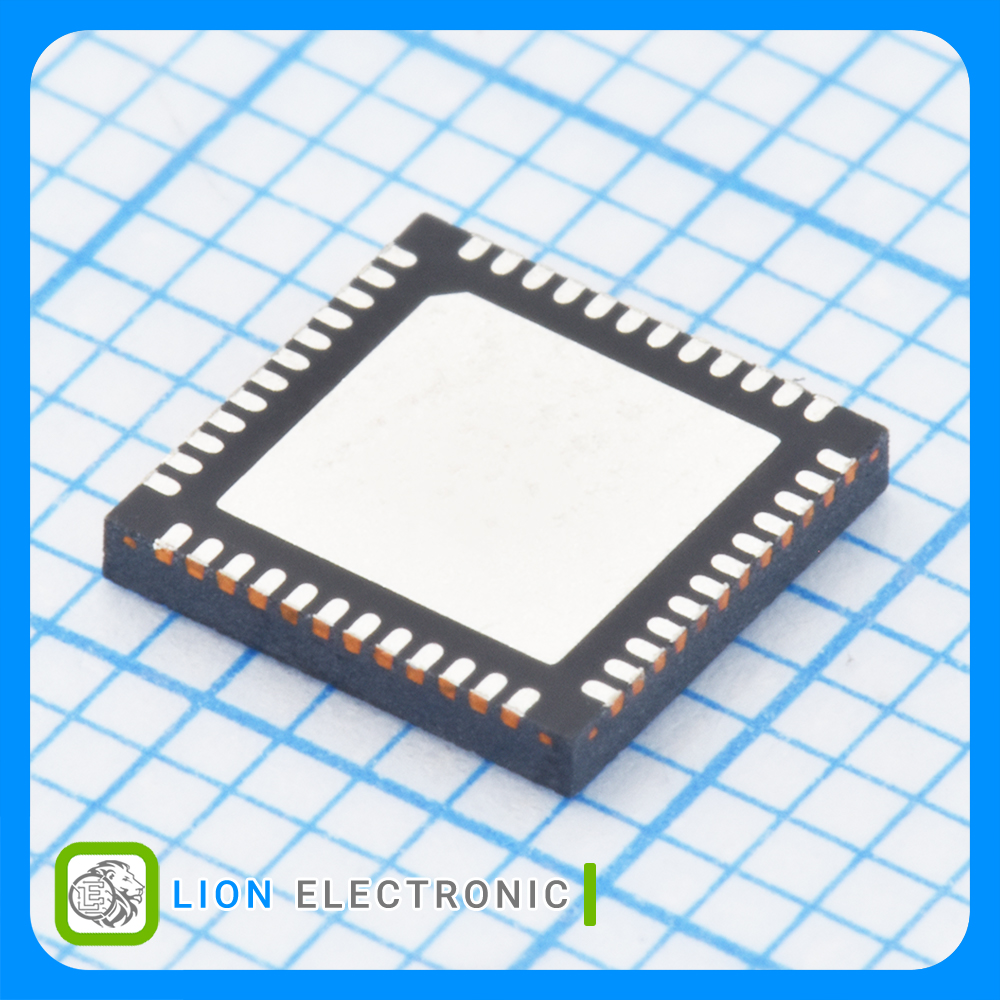

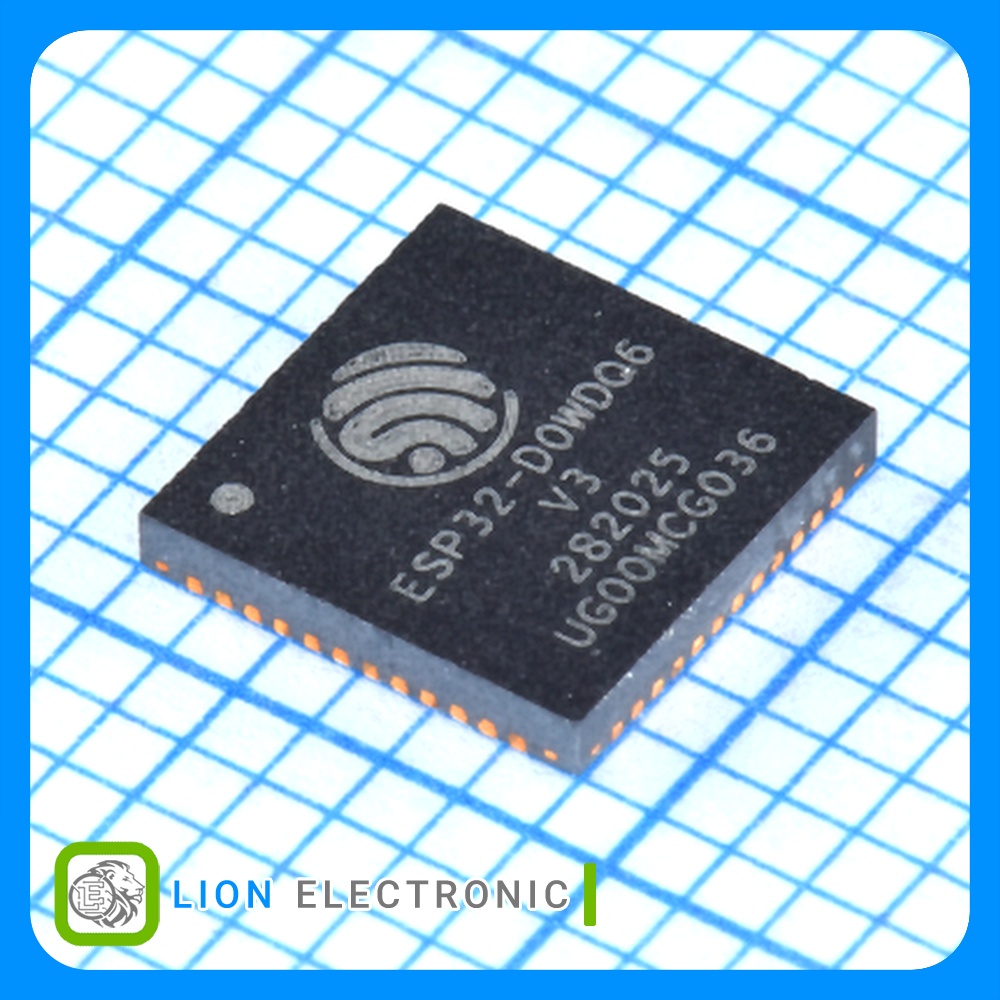

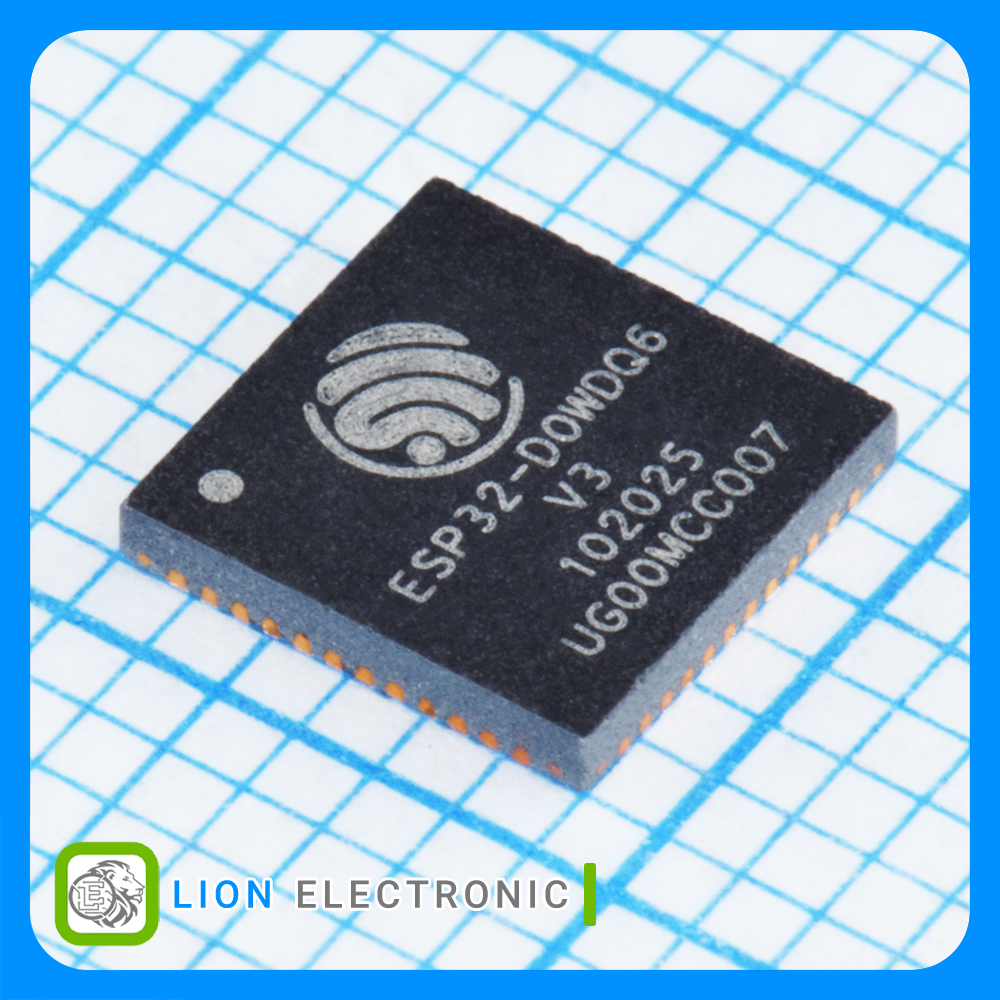

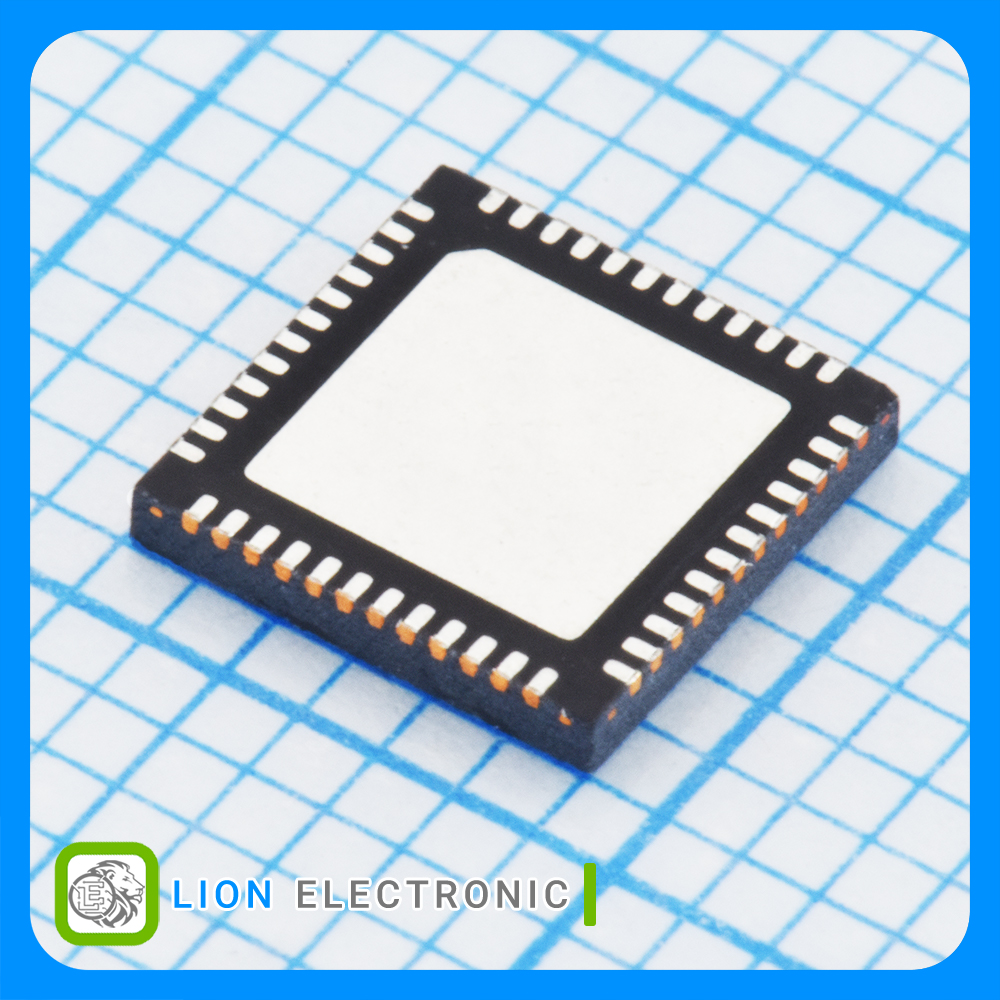

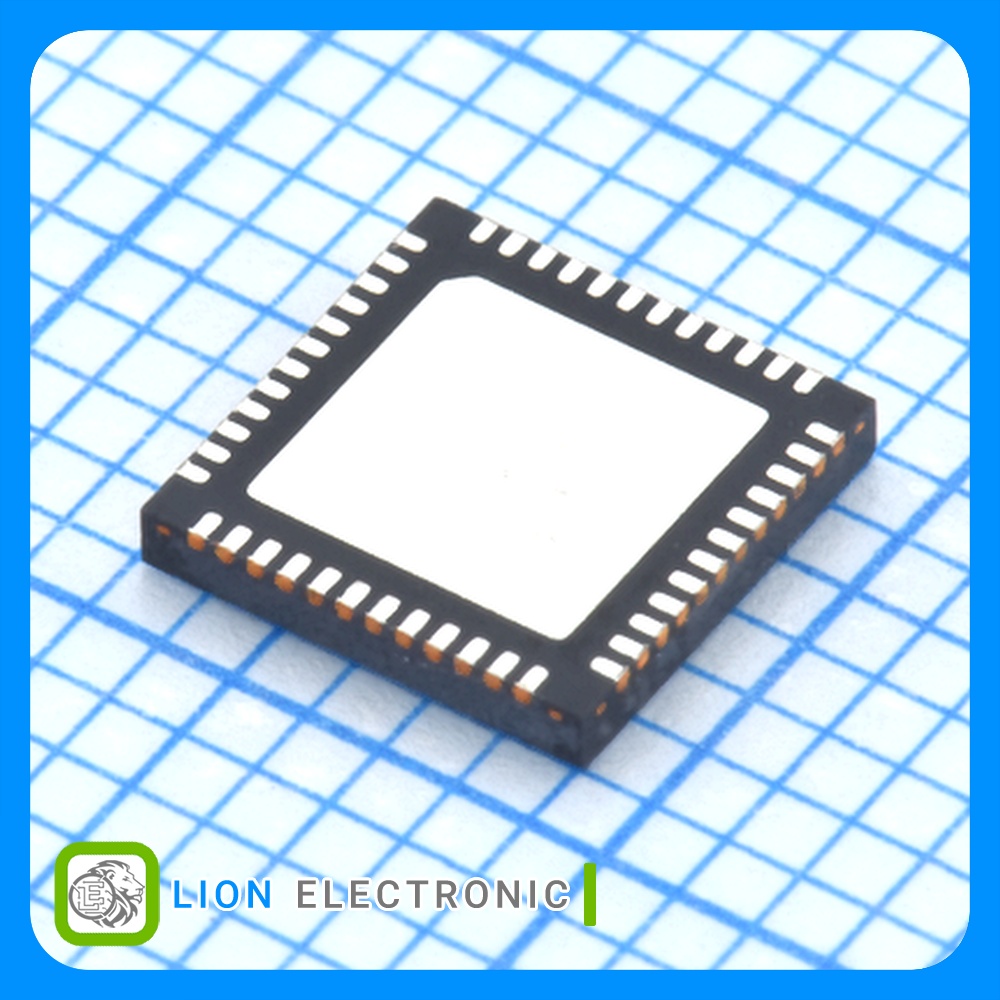

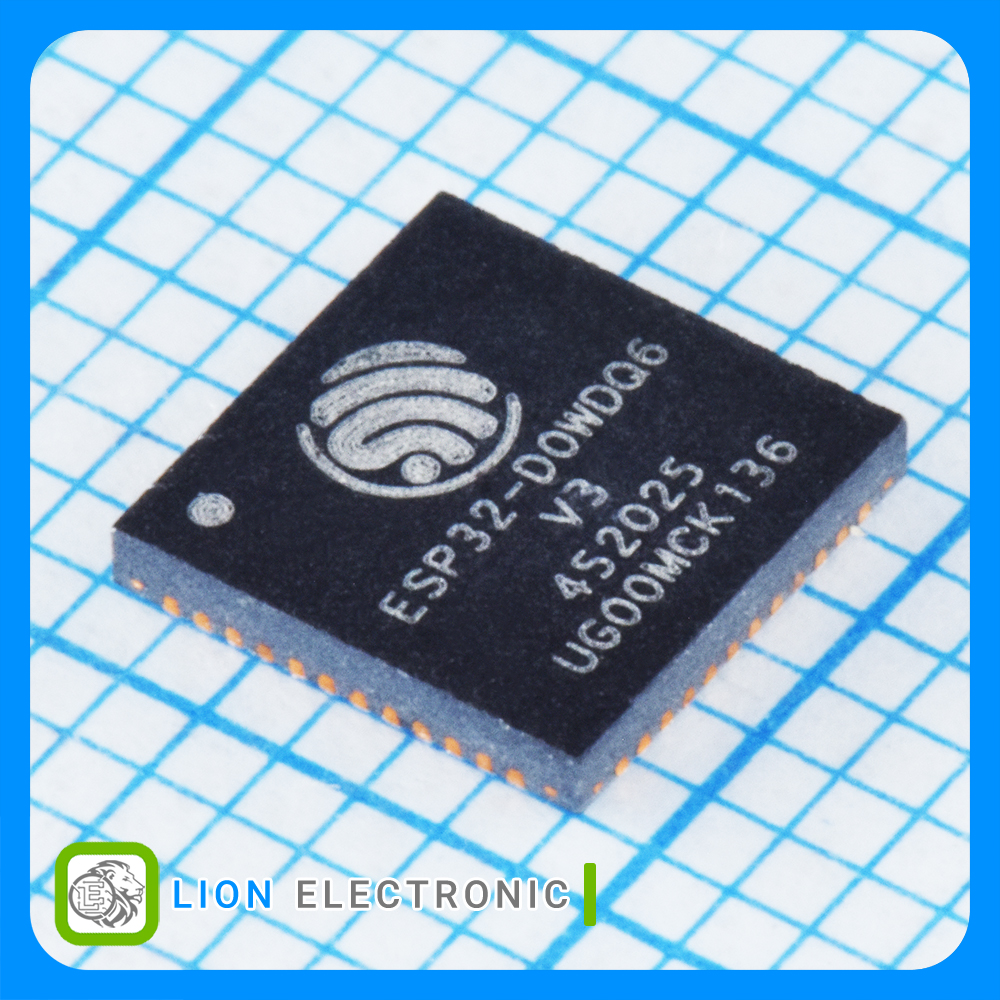

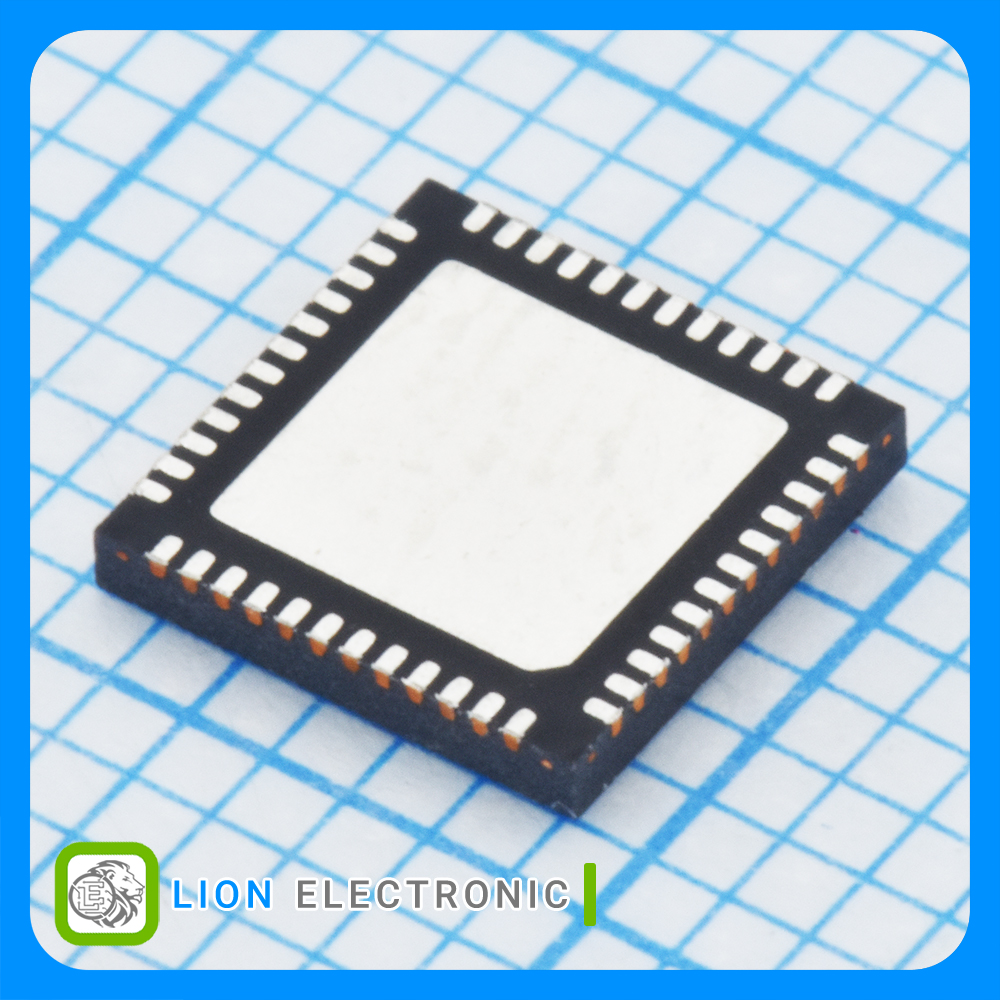

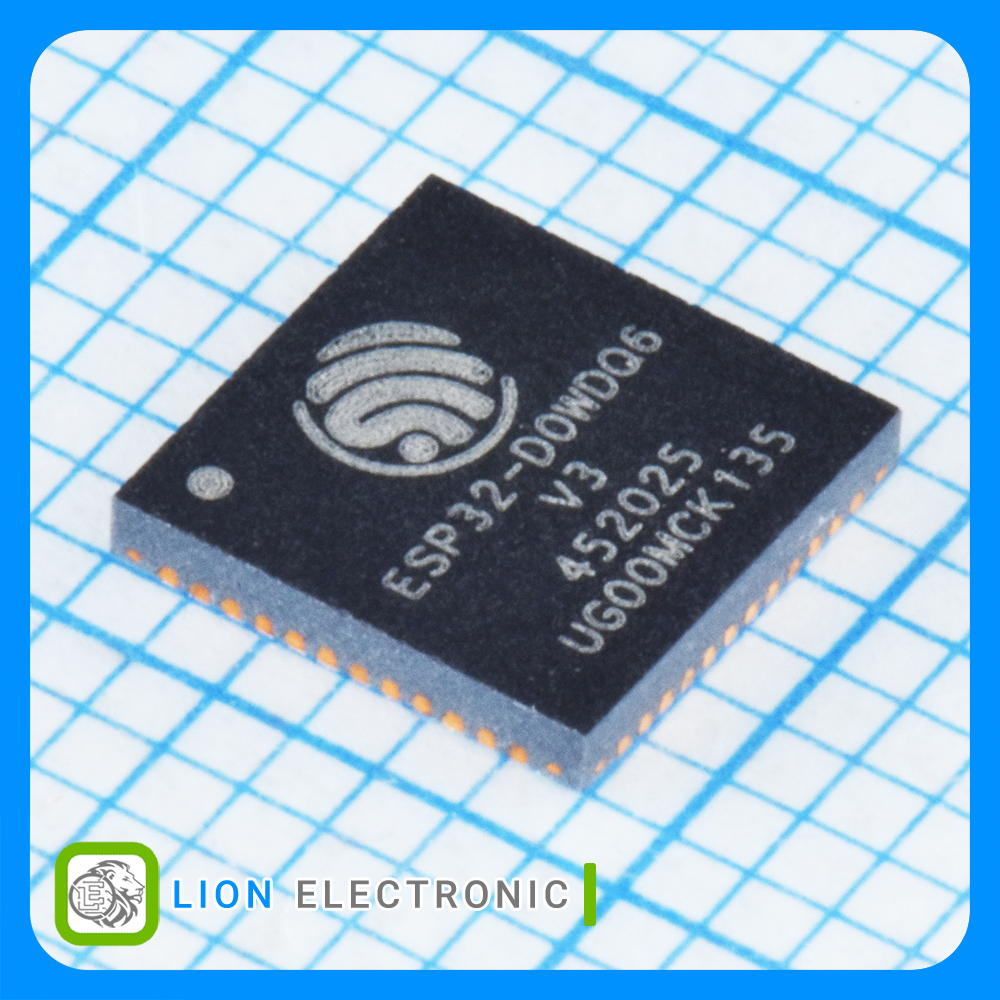

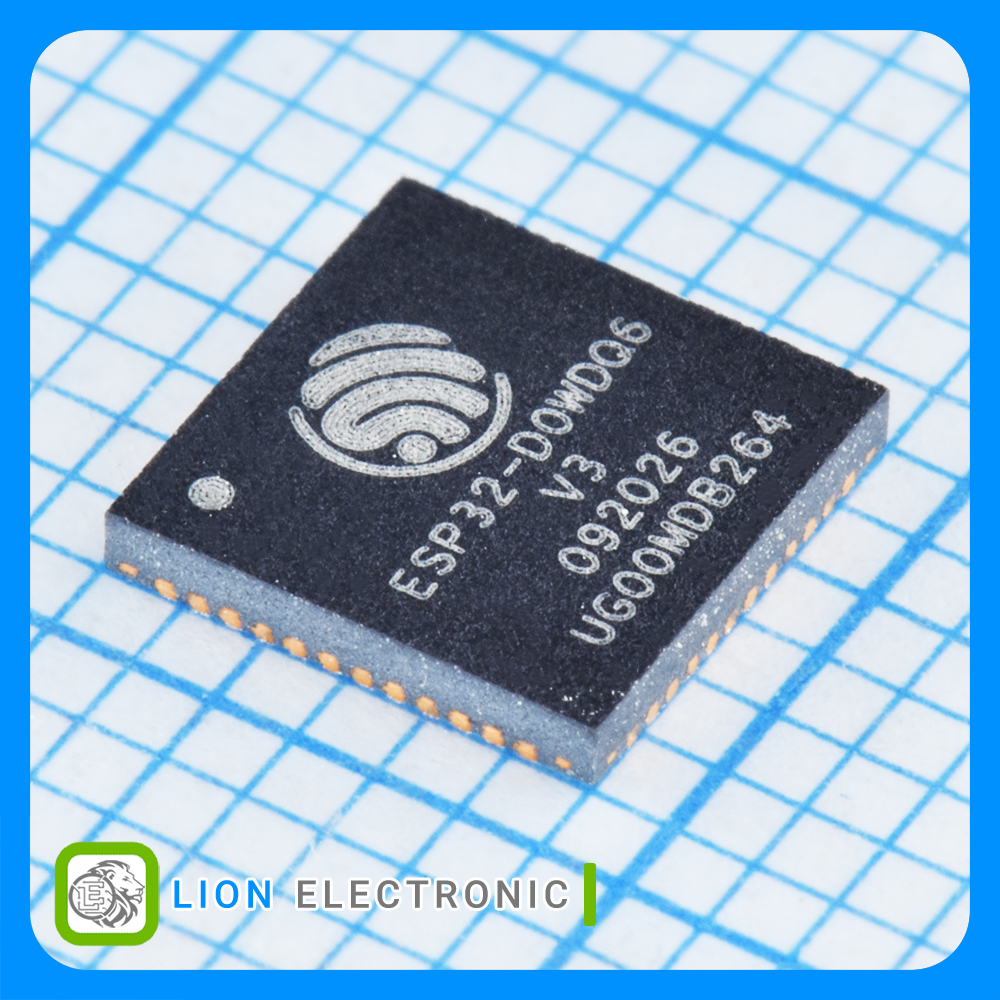

ESP32-D0WDQ6-V3
ESP32-D0WDQ6-V3
Part Number
2942
Lion Part
Datasheet
Espressif Manufacture
تراشه SoC بلوتوث، Wi-Fi فرکانس 2.4 گیگاهرتز نرخ 150 مگابیت بر ثانیه، ترکیبی Wi-Fi و بلوتوث دوهستهای با حافظه 448 کیلوبایت با پکیج QFN-48
Bluetooth, Wi-Fi SoC 2.4GHz, 150Mbps, WiFi Dual Core BT Combo with 448kB Memory with QFN-48 Package
معرفی
تراشه SoC بلوتوث، Wi-Fi فرکانس 2.4 گیگاهرتز نرخ 150 مگابیت بر ثانیه، ترکیبی Wi-Fi و بلوتوث دوهستهای با حافظه 448 کیلوبایت با پکیج QFN-48
Bluetooth, Wi-Fi SoC 2.4GHz, 150Mbps, WiFi Dual Core BT Combo with 448kB Memory with QFN-48 Package
Specifications
- Type: Bluetooth, Wi-Fi
- Core: LX6
- Program Memory Size: 448kB
- Operating Frequency: 2.4GHz
- Data Rate: 150Mbps
- Sensitivity: -98dBm
- Output Power: 20.5dBm
- Supply Voltage - Max: 3.6V
- Supply Voltage - Min: 2.3V
- Supply Current Receiving: 95mA to 100mA
- Supply Current Transmitting: 240mA
- Package/Case: QFN-48
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آی سی ESP32-D0WDQ6-V3
آی سی ESP32-D0WDQ6-V3
Part Number
-98dBm
Sensitivity
12bit
ADC Resolution
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
3.6V
Supply Voltage - Max
Bluetooth, Wi-Fi
Type
+125C
Maximum Operating Temperature
LX6
Core
448kB
Program Memory Size
34
Number of I-Os
2.3V
Supply Voltage - Min
150Mbps
Data Rate
2.4GHz
Operating Frequency
240mA
Supply Current Transmitting
CAN, I2C, I2S, SDIO, SPI, UART
Interface Type
95mA to 100mA
Supply Current Receiving
2.3 - 3.6V
Operating Supply Voltage
20.5dBm
Output Power
QFN-48
Package-Case
