Espressif
معرفی

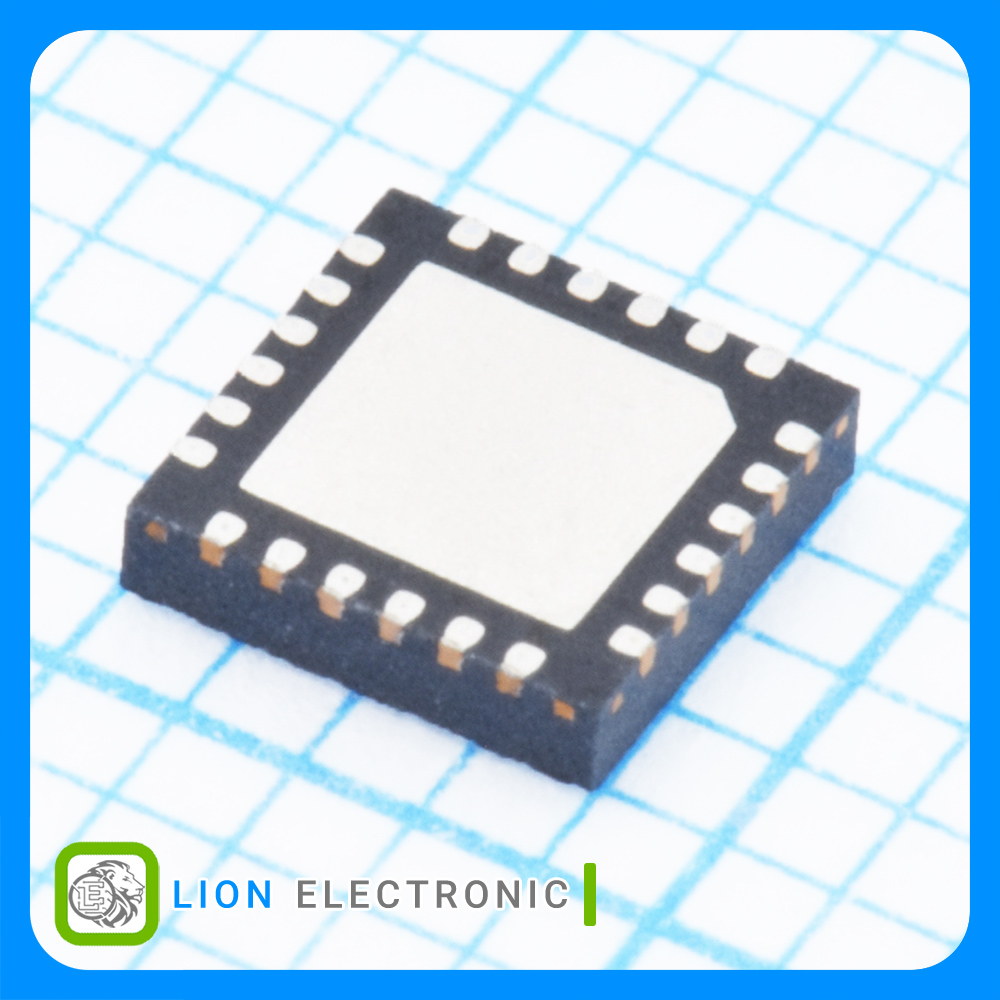

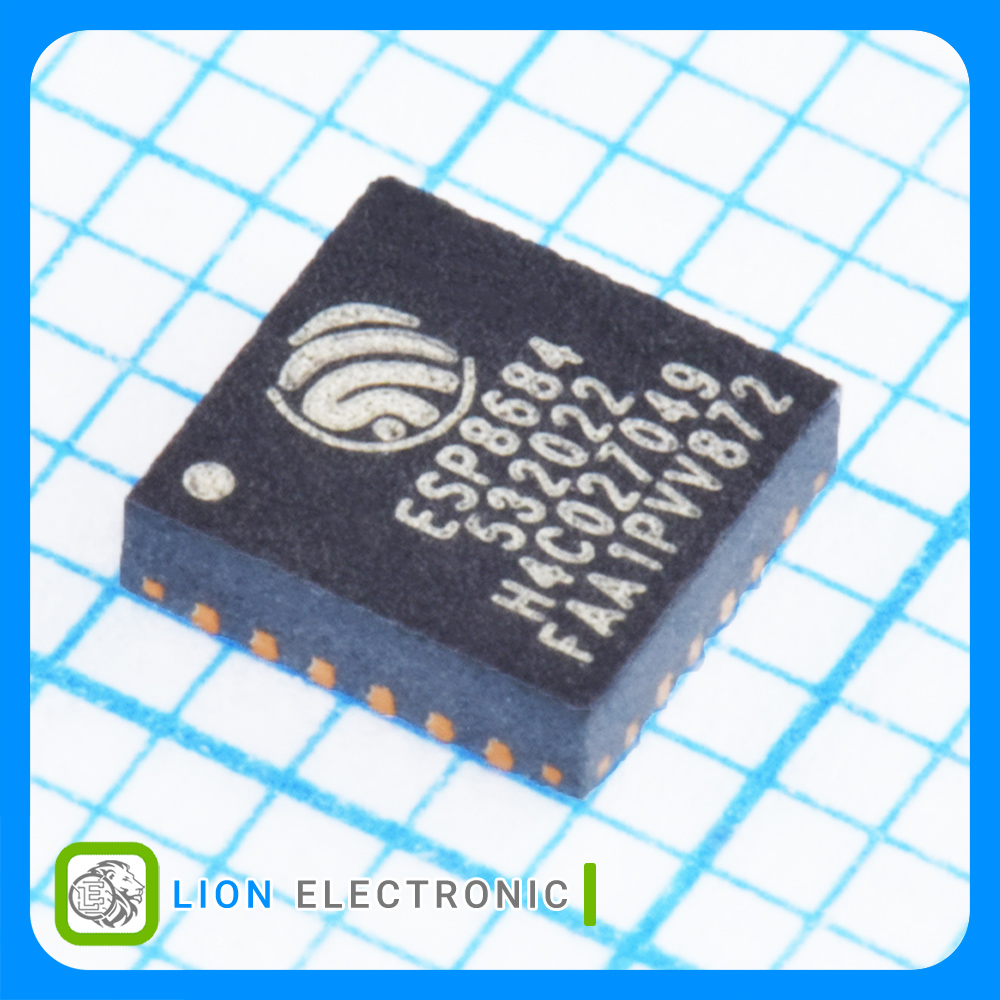

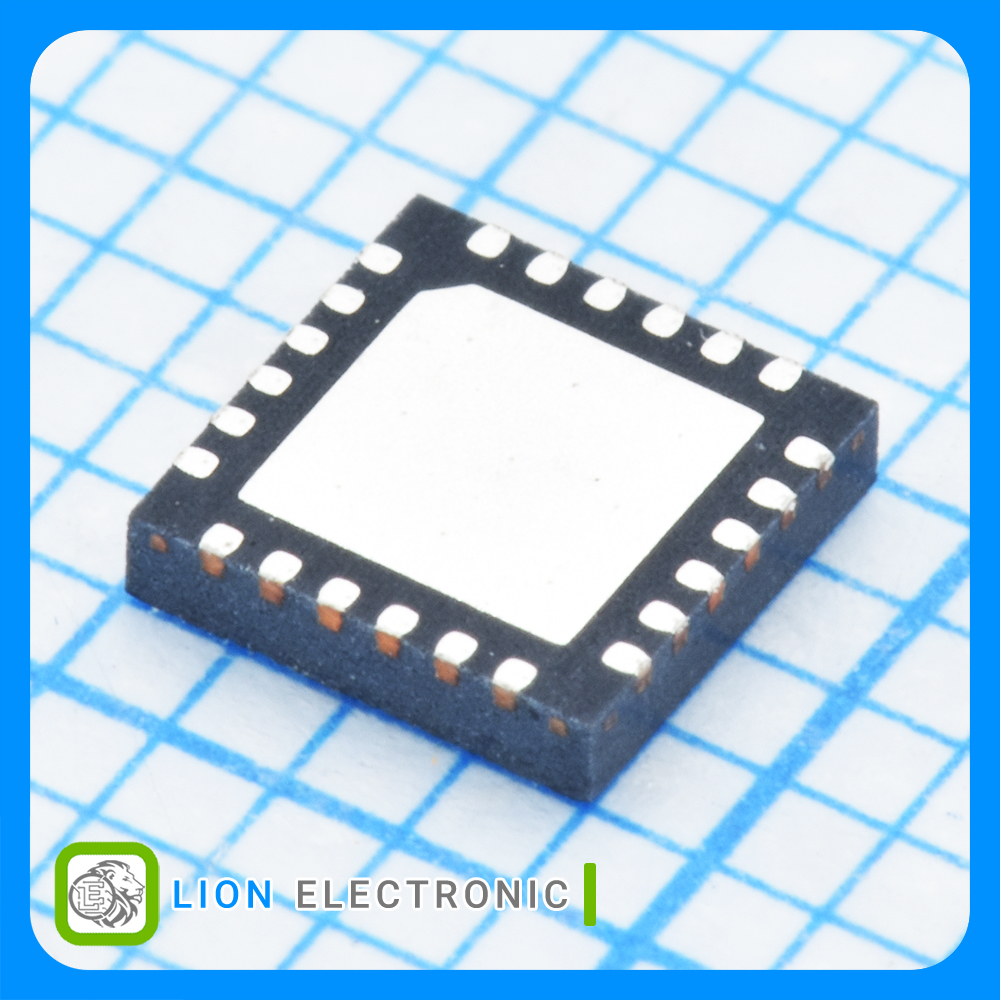

تراشه SoC BLE 5.0, Wi-Fi فرکانس 2.4 گیگاهرتز نرخ 72.2 مگا بیت بر ثانیه با حافظه 4 مگابایت با پکیج QFN-24
BLE 5.0, Wi-Fi SoC 2.4GHz, 72.2Mbps with 4MB Memory with QFN-24 Package
Specifications
- Type: BLE 5.0, Wi-Fi
- Core: RISC-V
- Program Memory Size: 4MB
- Operating Frequency: 2.4GHz
- Data Rate: 72.2Mbps
- Sensitivity: -100dBm
- Output Power: 20dBm
- Supply Voltage - Max: 3.6V
- Supply Voltage - Min: 3V
- Supply Current Receiving: 62mA
- Supply Current Transmitting: 370mA, 300mA, 280mA
- Package/Case: QFN-24
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات ESP8684H4

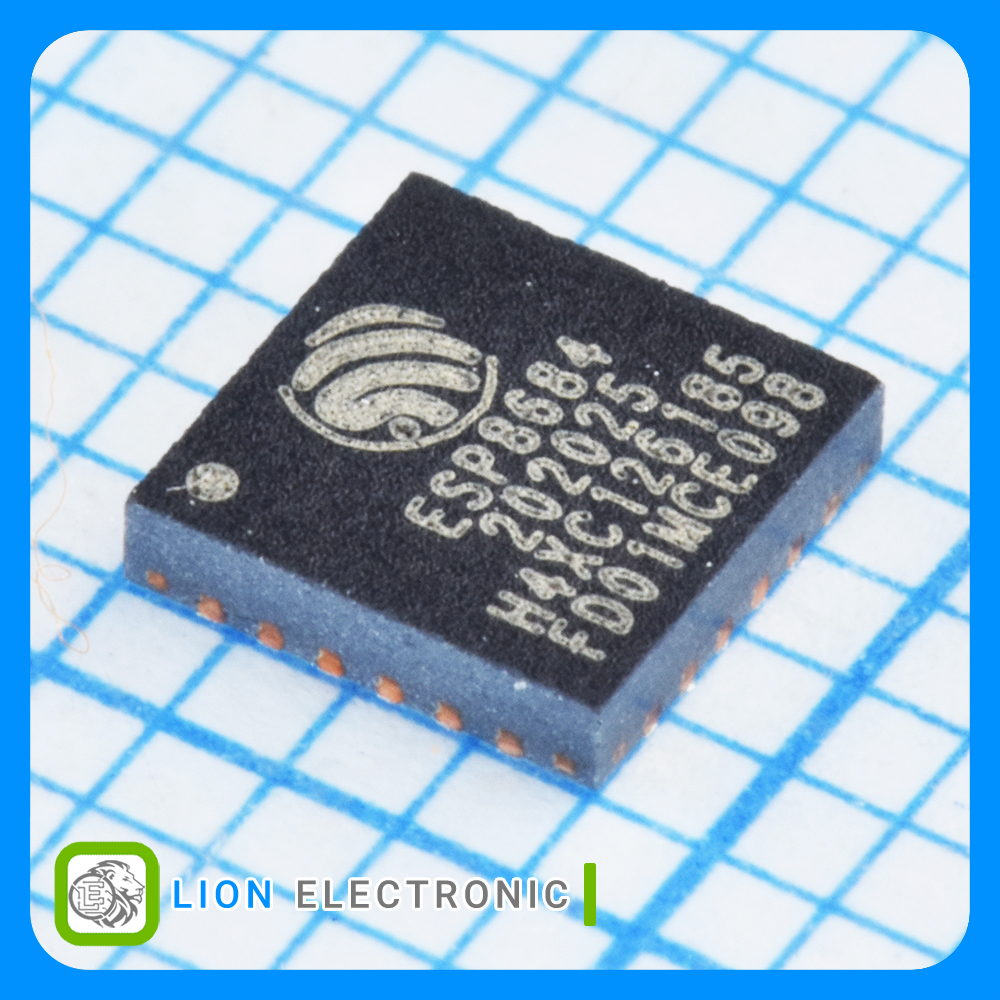

ESP8684H4
Part Number
-100dBm
Sensitivity
Reel
Packaging
-40C
Minimum Operating Temperature
3.6V
Supply Voltage - Max
+105C
Maximum Operating Temperature
BLE 5.0, Wi-Fi
Type
4MB
Program Memory Size
72.2Mbps
Data Rate
62mA
Supply Current Receiving
2.4GHz
Operating Frequency
RISC-V
Core
3V
Supply Voltage - Min
370mA, 300mA, 280mA
Supply Current Transmitting
20dBm
Output Power
QFN-24
Package-Case
