Espressif
معرفی

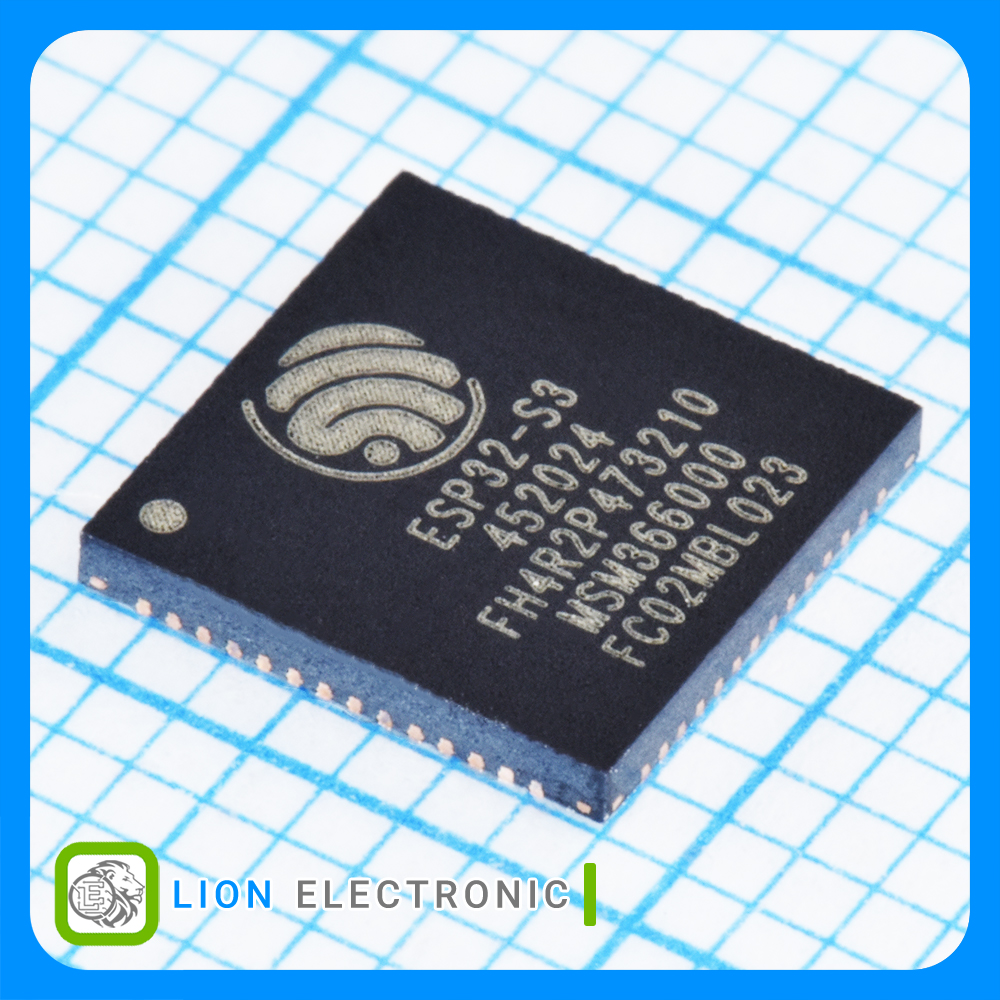

تراشه SoC BLE 5.0, Wi-Fi فرکانس 2.402 تا 2.48 گیگاهرتز نرخ 150 مگابیت بر ثانیه با حافظه 4 مگابایت با پکیج QFN-56
BLE 5.0, Wi-Fi SoC 2.402 - 2.48GHz, 150Mbps with 4MB Memory with QFN-56 Package
Specifications
- Type: BLE 5.0, Wi-Fi
- Core: LX7
- Program Memory Size: 4MB
- Operating Frequency: 2.402 - 2.48GHz
- Data Rate: 150Mbps
- Sensitivity: -98dBm
- Output Power: 21dBm
- Supply Voltage - Max: 3.6V
- Supply Voltage - Min: 1.8V
- Supply Current Receiving: 88mA, 91mA
- Supply Current Transmitting: 283mA, 286mA, 291mA, 340mA
- Package/Case: QFN-56
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات ESP32-S3FH4R2

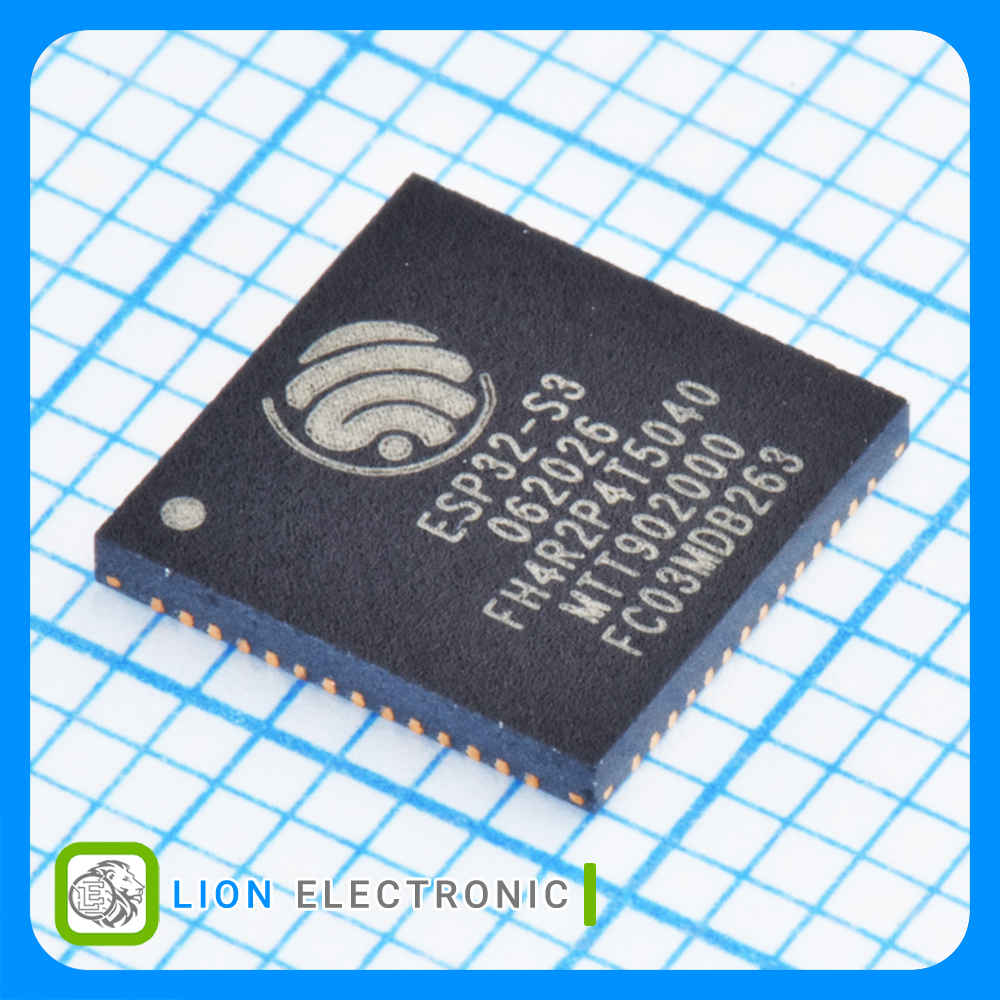

ESP32-S3FH4R2
Part Number
-98dBm
Sensitivity
Reel
Packaging
-40C
Minimum Operating Temperature
3.6V
Supply Voltage - Max
+105C
Maximum Operating Temperature
BLE 5.0, Wi-Fi
Type
1.8V
Supply Voltage - Min
LX7
Core
4MB
Program Memory Size
150Mbps
Data Rate
2.402 - 2.48GHz
Operating Frequency
283mA, 286mA, 291mA, 340mA
Supply Current Transmitting
88mA, 91mA
Supply Current Receiving
21dBm
Output Power
QFN-56
Package-Case
