Espressif
معرفی

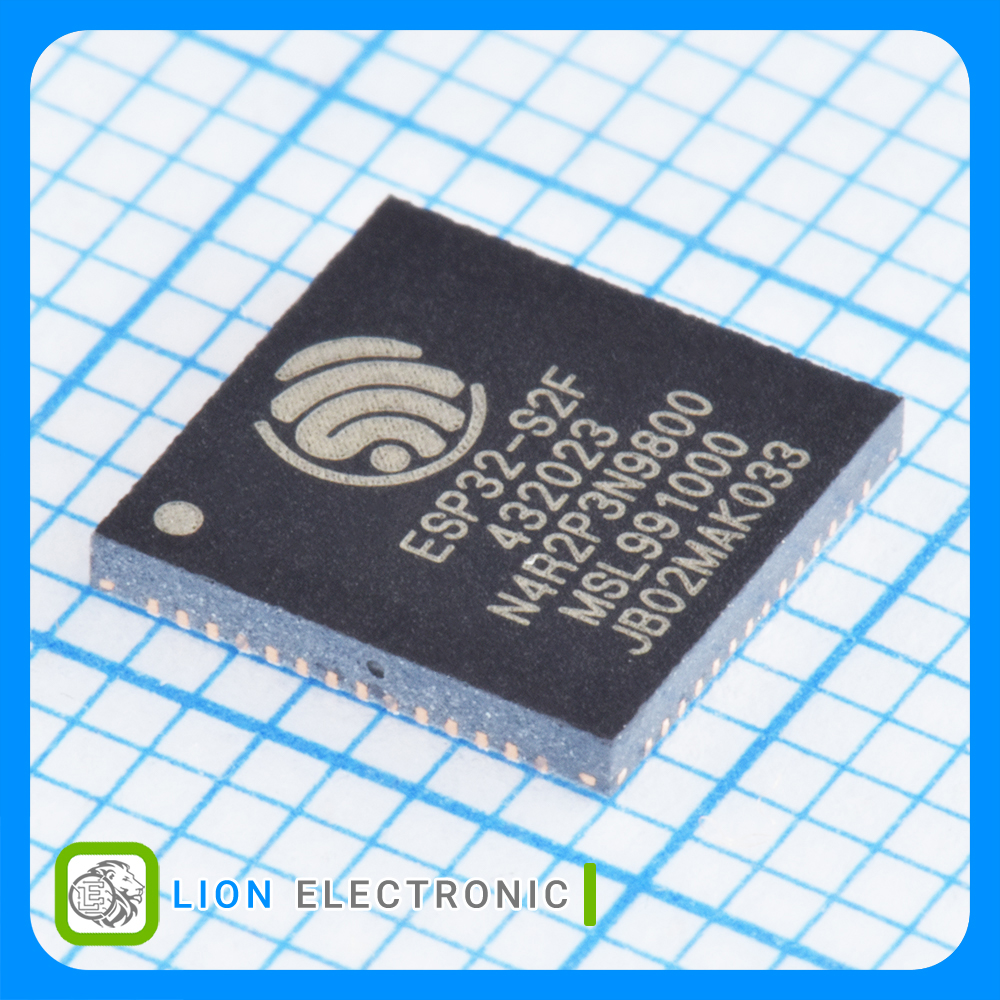

تراشه SoC Wi-Fi فرکانس 2.4 گیگاهرتز نرخ 150 مگابیت بر ثانیه با پکیج QFN-56
Wi-Fi SoC 2.4GHz, 150Mbps with QFN-56 Package
Specifications
- Type: Wi-Fi
- Core: LX7
- Operating Frequency: 2.4GHz
- Data Rate: 150Mbps
- Sensitivity: -75dBm
- Output Power: 19.5dBm
- Supply Voltage - Max: 3.6V
- Supply Voltage - Min: 1.8V
- Supply Current Receiving: 68mA
- Supply Current Transmitting: 310mA
- Package/Case: QFN-56
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ESP32-S2FN4R2
ESP32-S2FN4R2
Part Number
Reel
Packaging
-75dBm
Sensitivity
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
3.6V
Supply Voltage - Max
1.8V
Supply Voltage - Min
LX7
Core
150Mbps
Data Rate
2.4GHz
Operating Frequency
N/A
Program Memory Size
68mA
Supply Current Receiving
310mA
Supply Current Transmitting
19.5dBm
Output Power
Wi-Fi
Type
QFN-56
Package-Case
