Panasonic
معرفی
رله قدرت 1 Form C (SPDT-NO, NC) ولتاژ کویل 12 ولت جریان کنتاکت 10 آمپر با نصب پایهدار

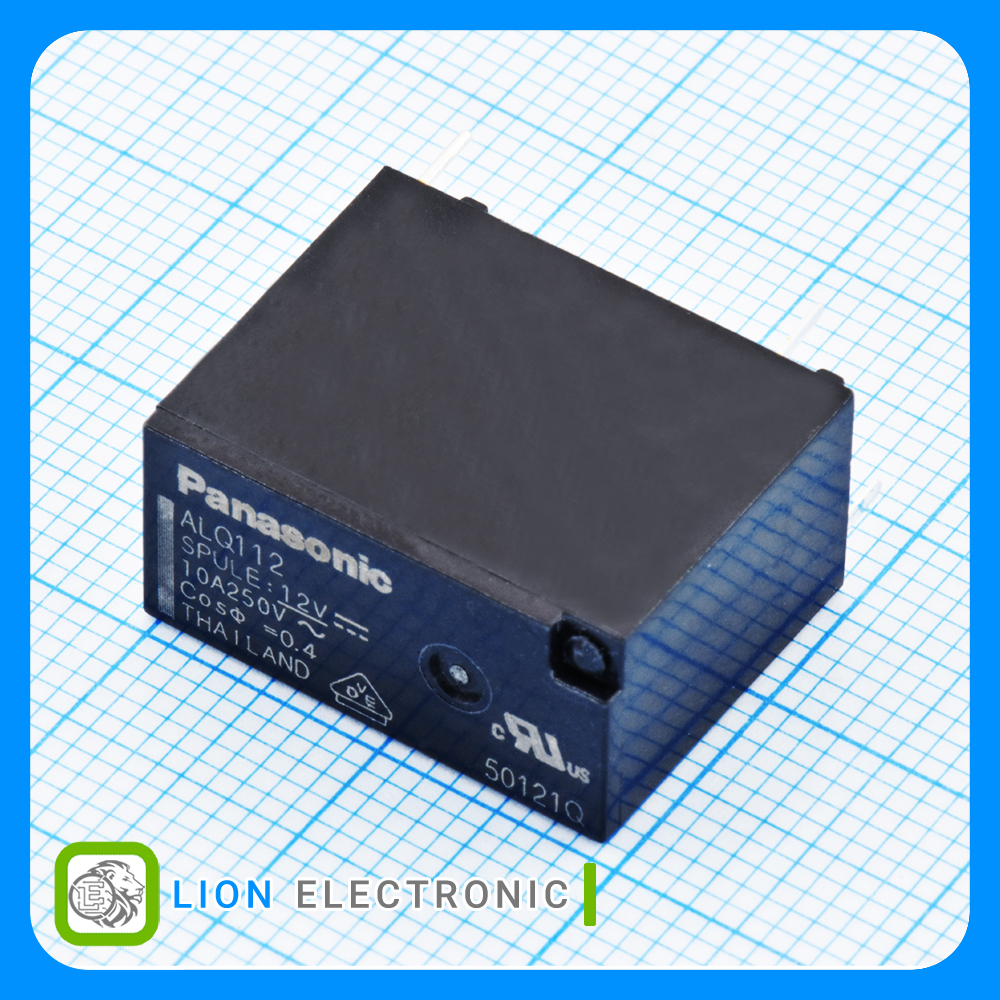

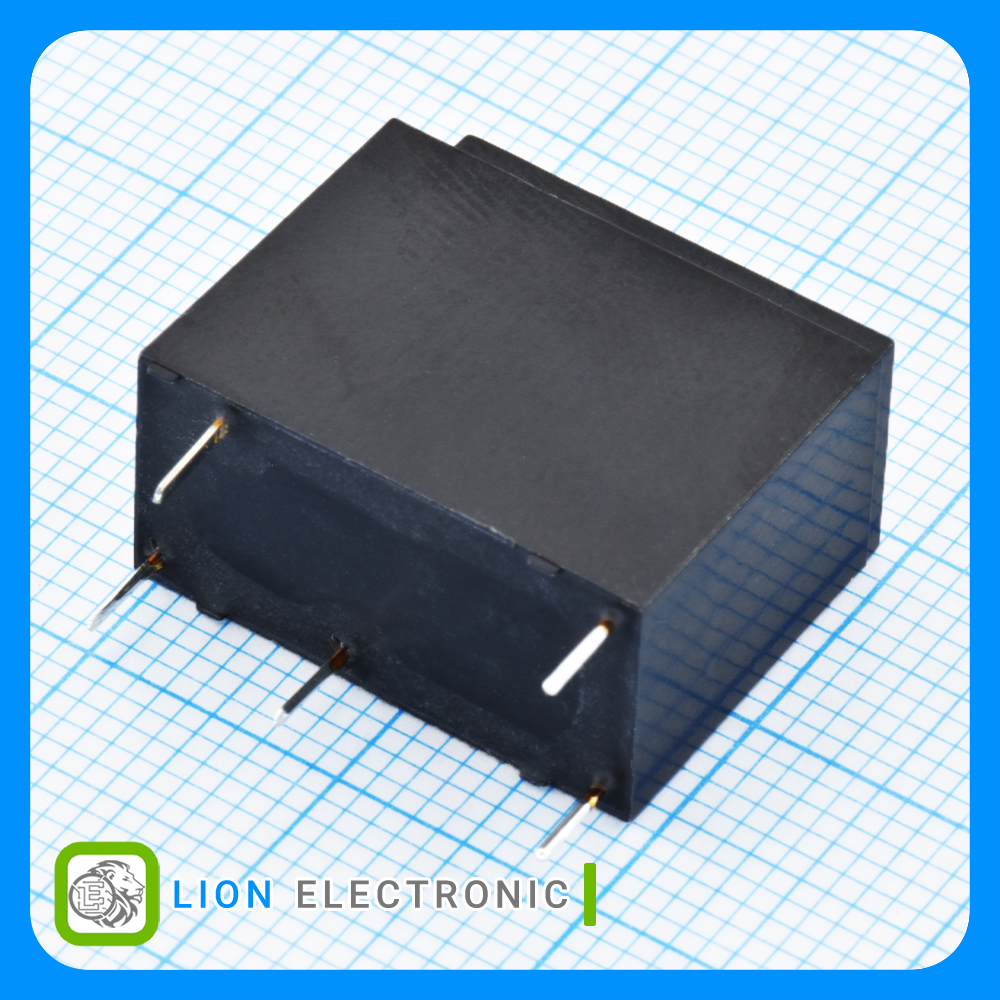

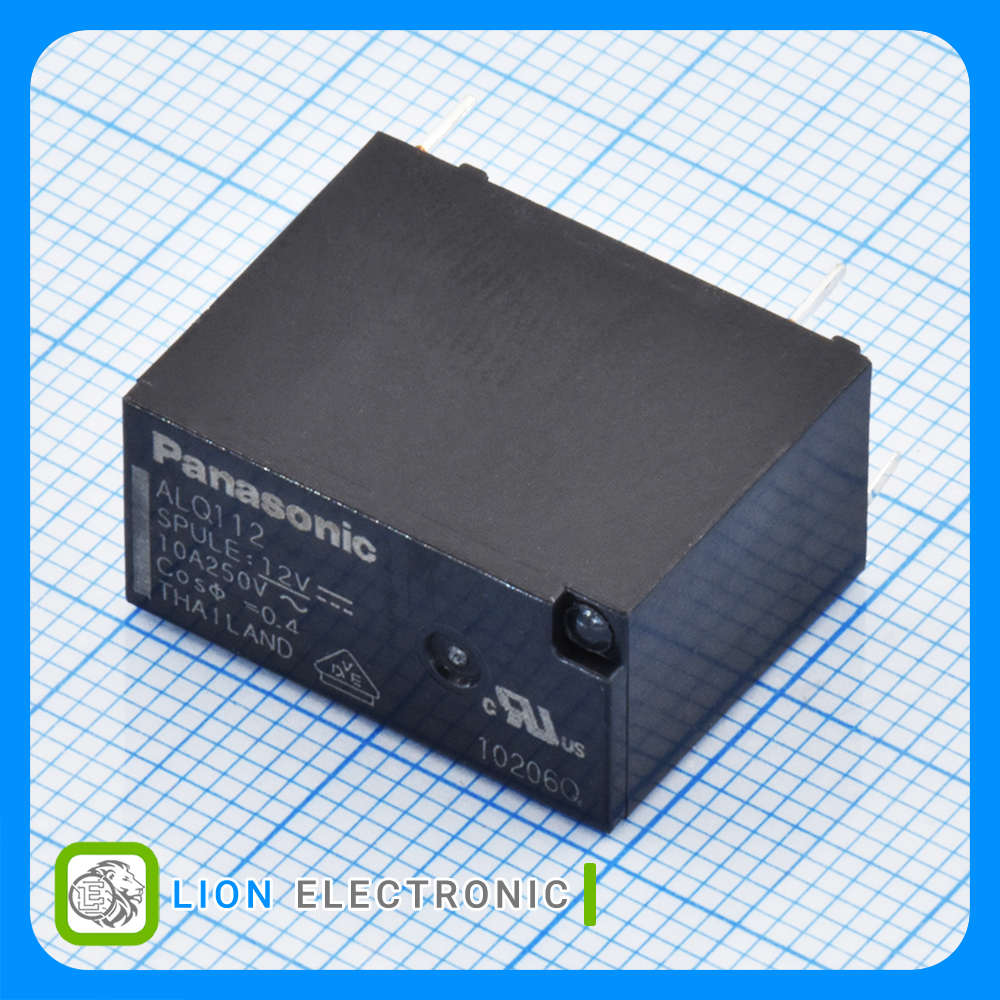

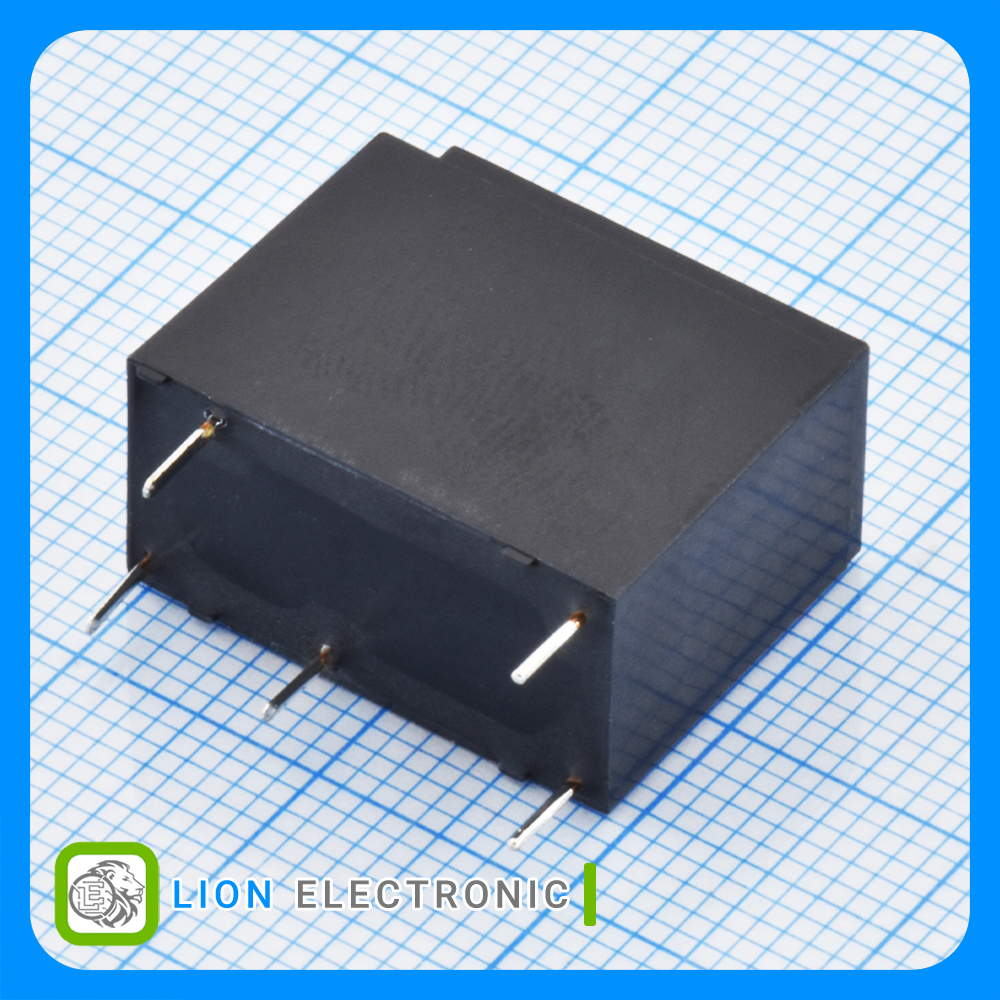

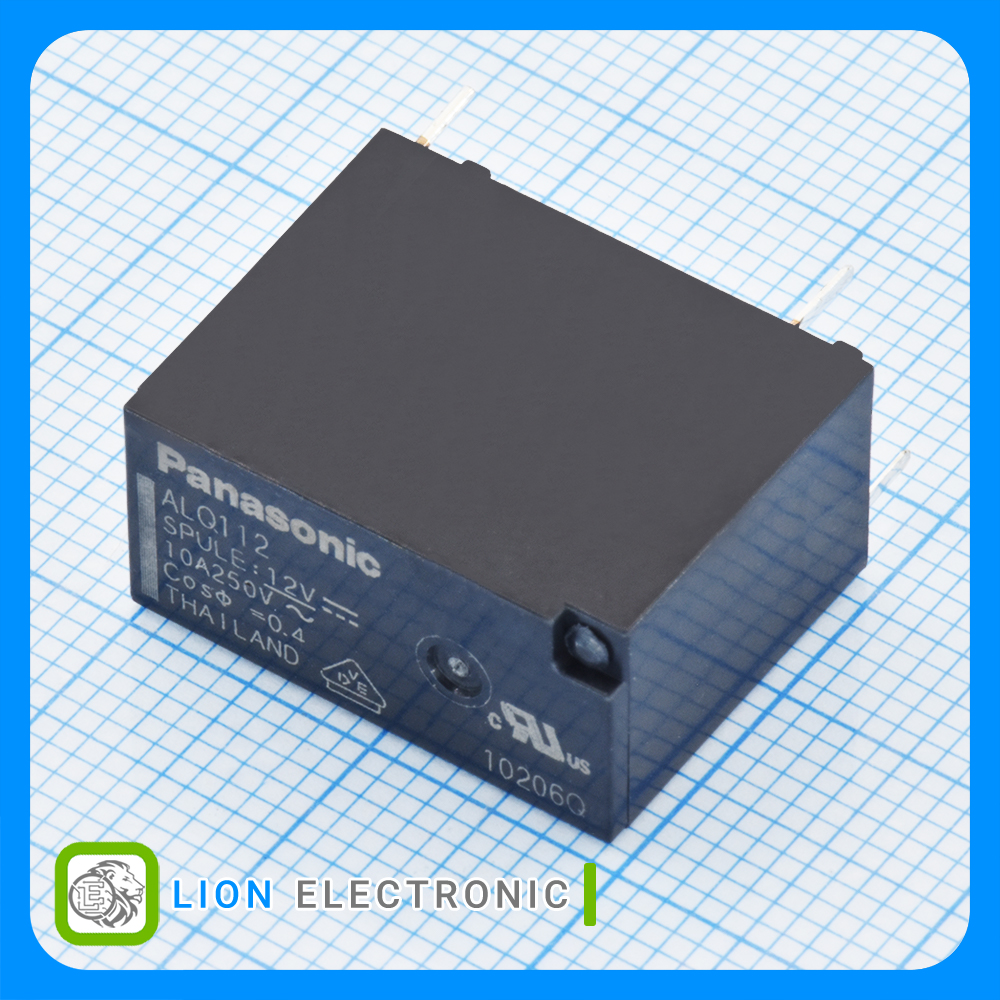

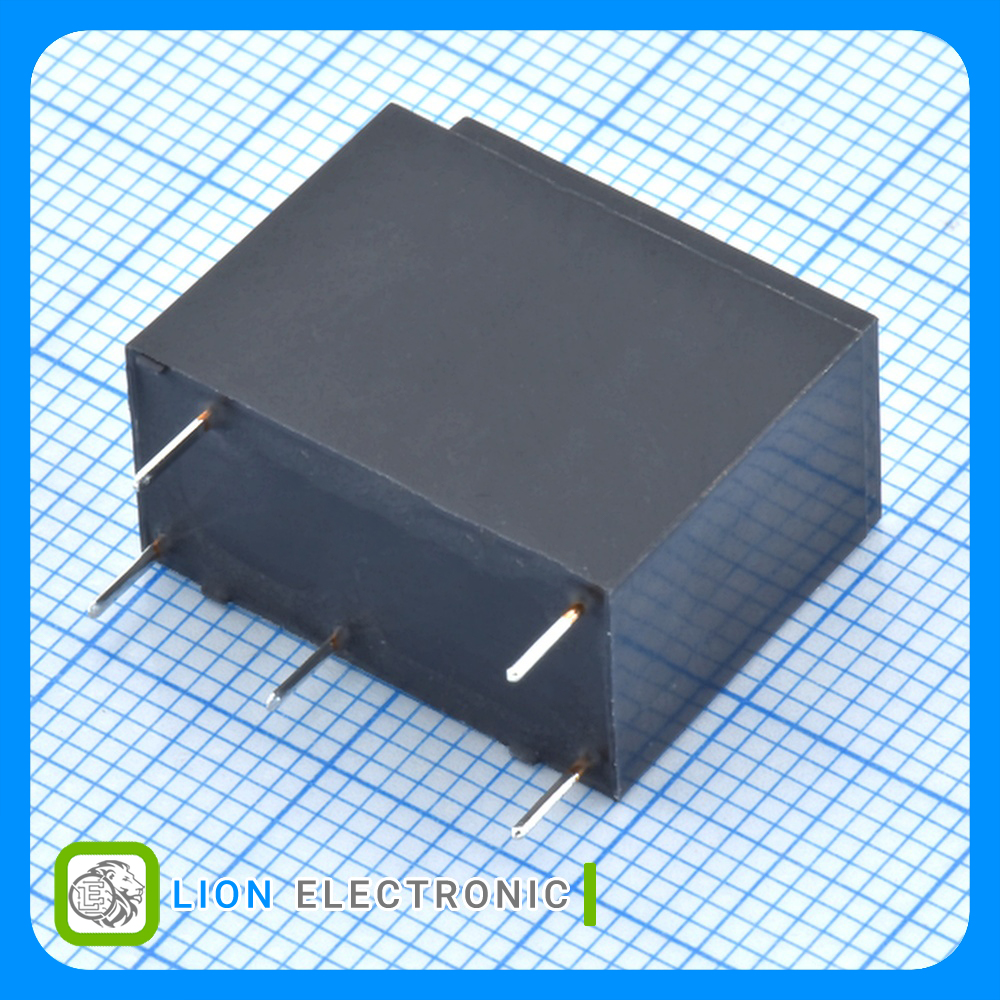

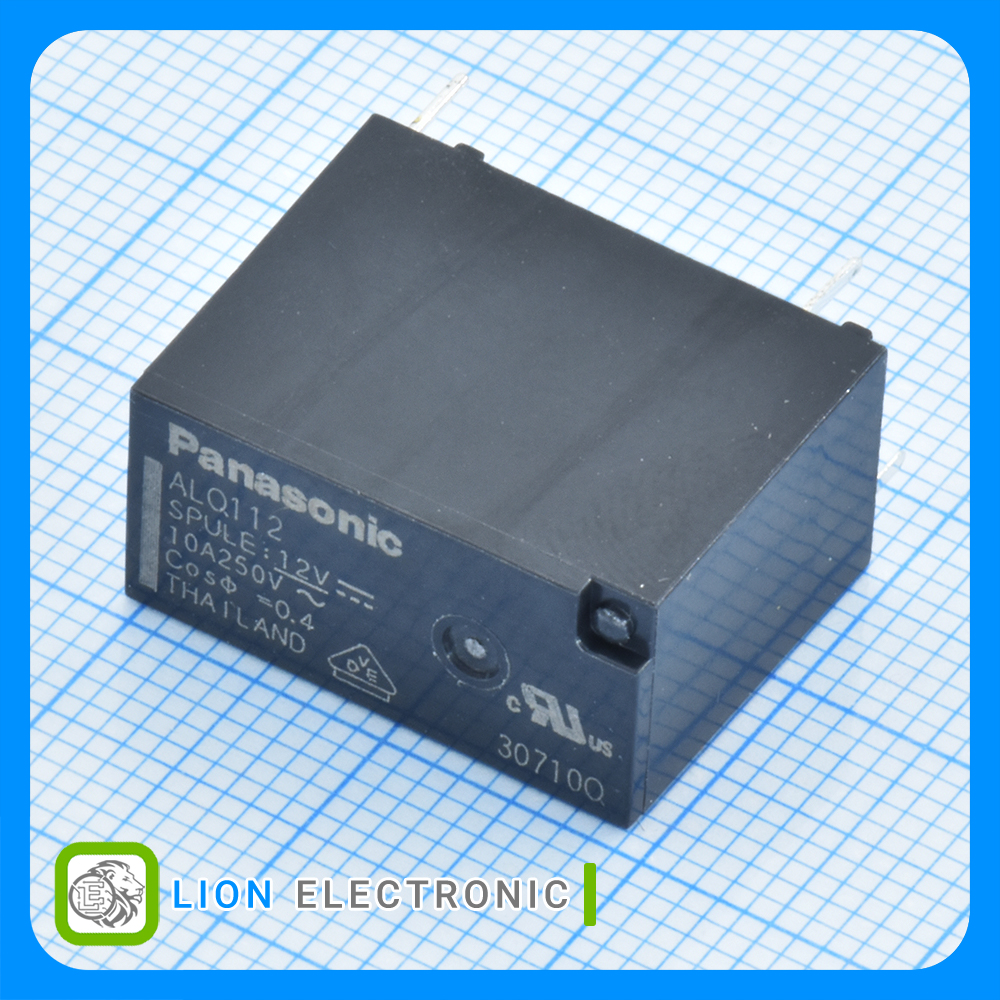

General Purpose Power Relay 1 Form C (SPDT-NO, NC), 12V with 10A Contact Current, Plugin
Specifications
- Relay Contact Form: 1 Form C (SPDT-NO, NC)
- insulation class: Class B
- Coil Voltage: 12VDC
- Contact Current Rating: 10A
- Coil Resistance: 360Ω
- Coil Current: 33.3mA
- Power Consumption: 400mW
- Height: 16mm
- Length: 20mm
- Width: 10mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Bulk
- Max Switching Voltage: 250VAC 30VDC
مشخصات رله ALQ112
رله ALQ112
Part Number
Non-Latching
Coil Type
Class B
insulation class
1 Form C (SPDT-NO, NC)
Relay Contact Form
12VDC
Coil Voltage
250VAC 30VDC
Max Switching Voltage
10A
Contact Current Rating
400mW
Power Consumption
Bulk
Packaging
Through Hole
Mounting Style
33.3mA
Coil Current
360Ω
Coil Resistance
10mm
Width
20mm
Length
16mm
Height
