Panasonic
معرفی

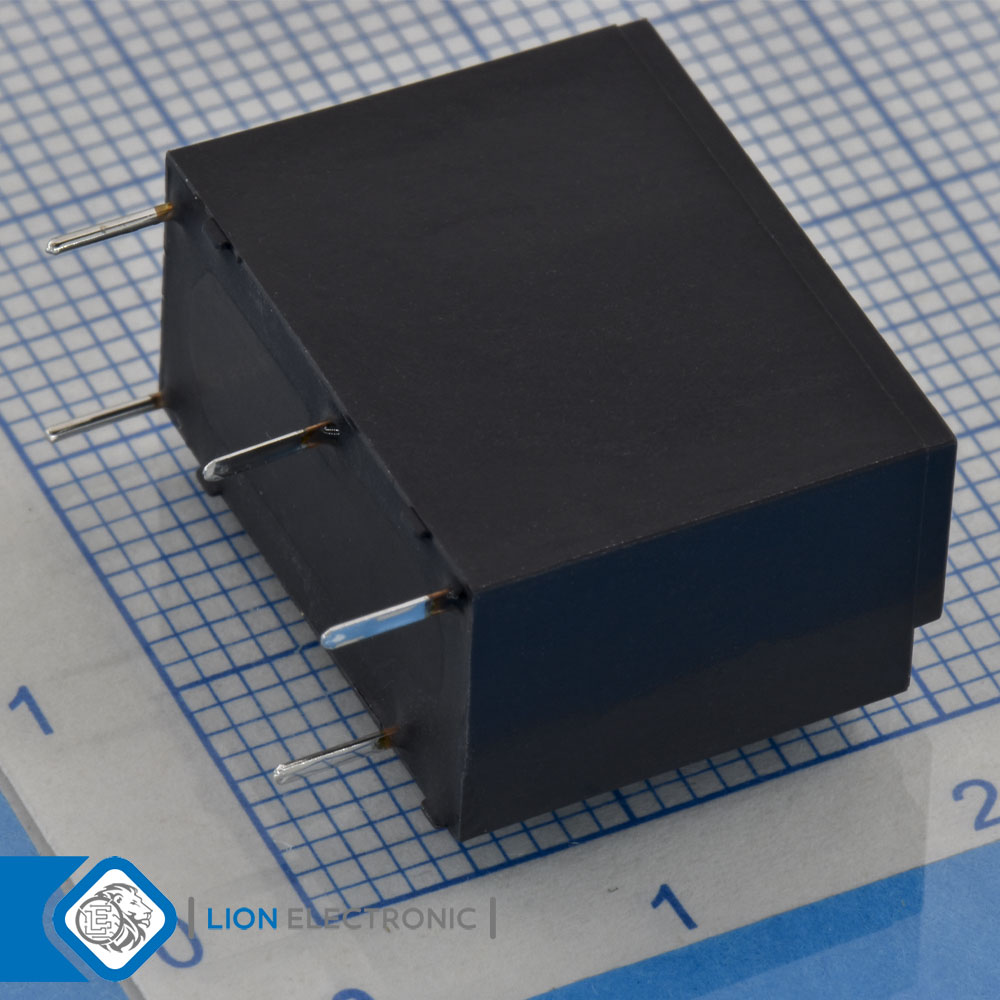

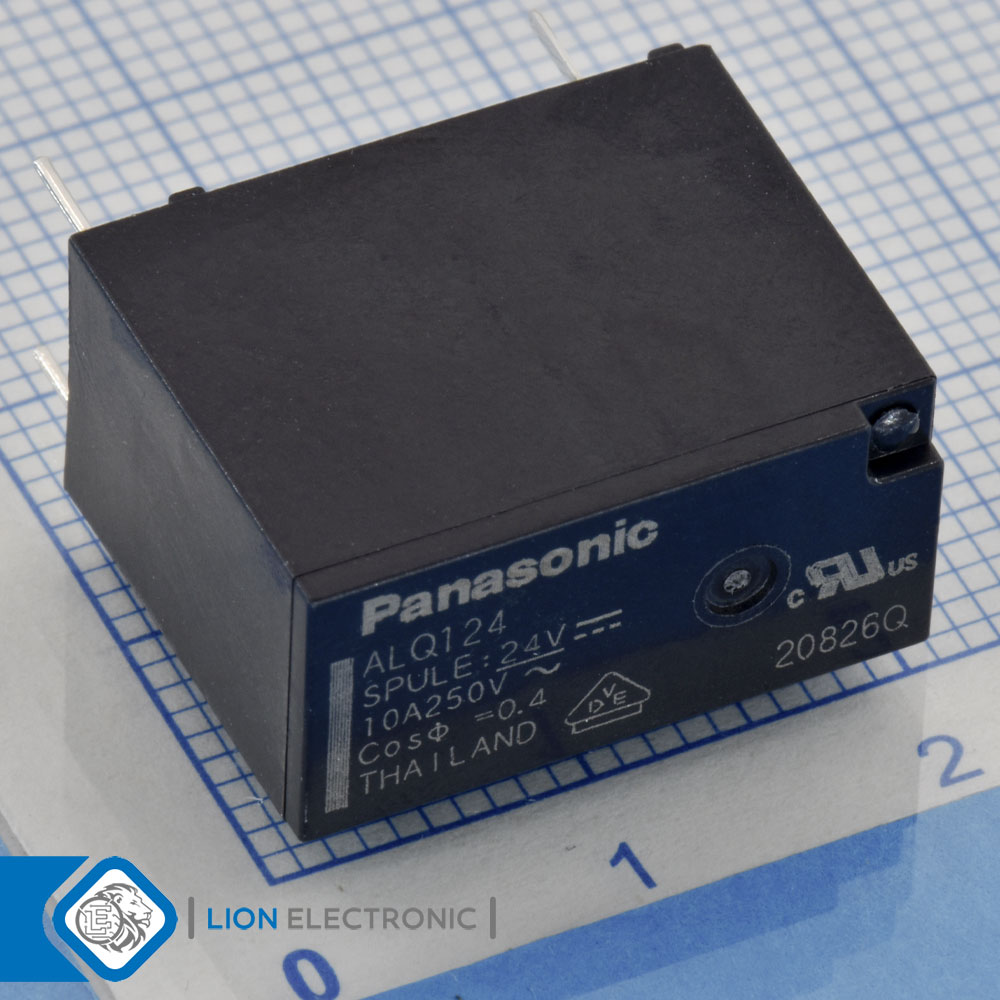

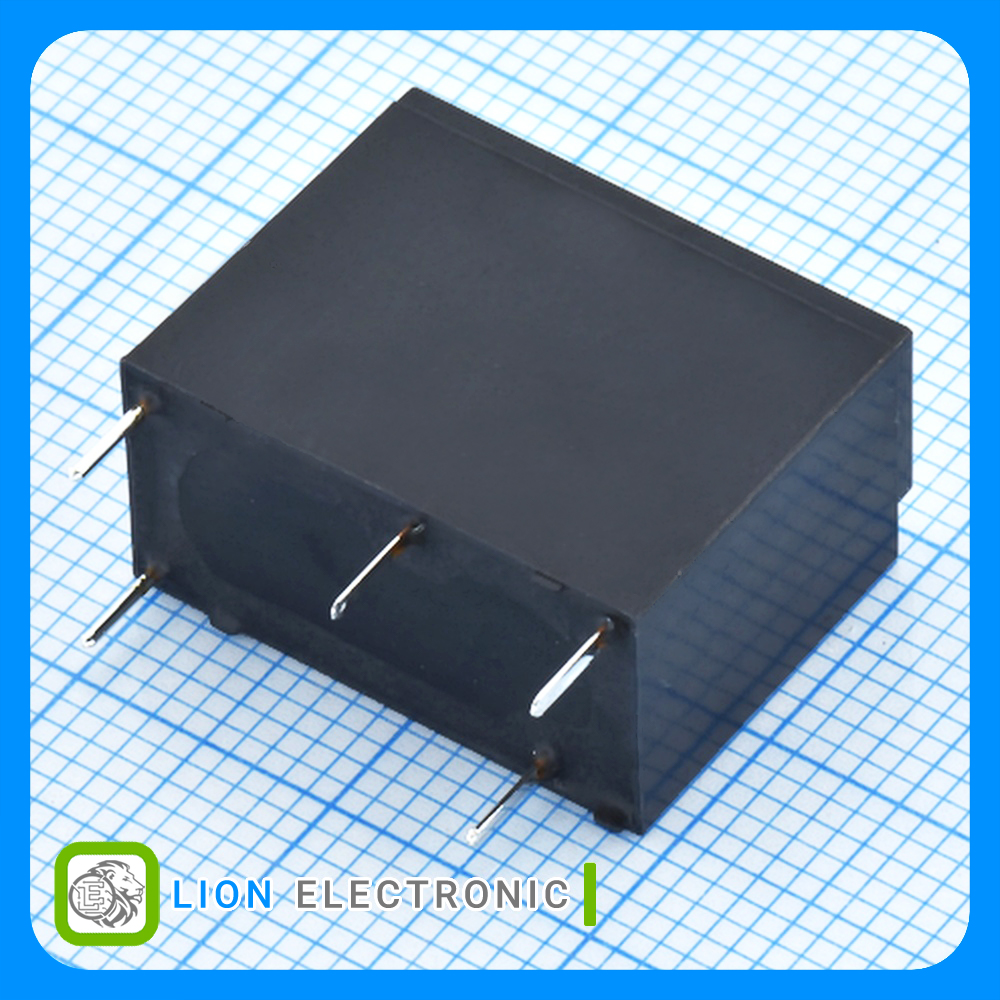

رله قدرت 1 Form C (SPDT-NO, NC) ولتاژ کویل 24 ولت جریان کنتاکت 10 آمپر با نصب پایهدار
General Purpose Power Relay 1 Form C (SPDT-NO, NC), 24V with 10A Contact Current, Plugin
Specifications
- Relay Contact Form: 1 Form C (SPDT-NO, NC)
- insulation class: Class B
- Coil Voltage: 24VDC
- Contact Current Rating: 10A
- Coil Resistance: 1.44kΩ
- Coil Current: 16.7mA
- Power Consumption: 400mW
- Height: 16mm
- Length: 20mm
- Width: 10mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tube
- Max Switching Voltage: 250VAC 30VDC
مشخصات رله ALQ124

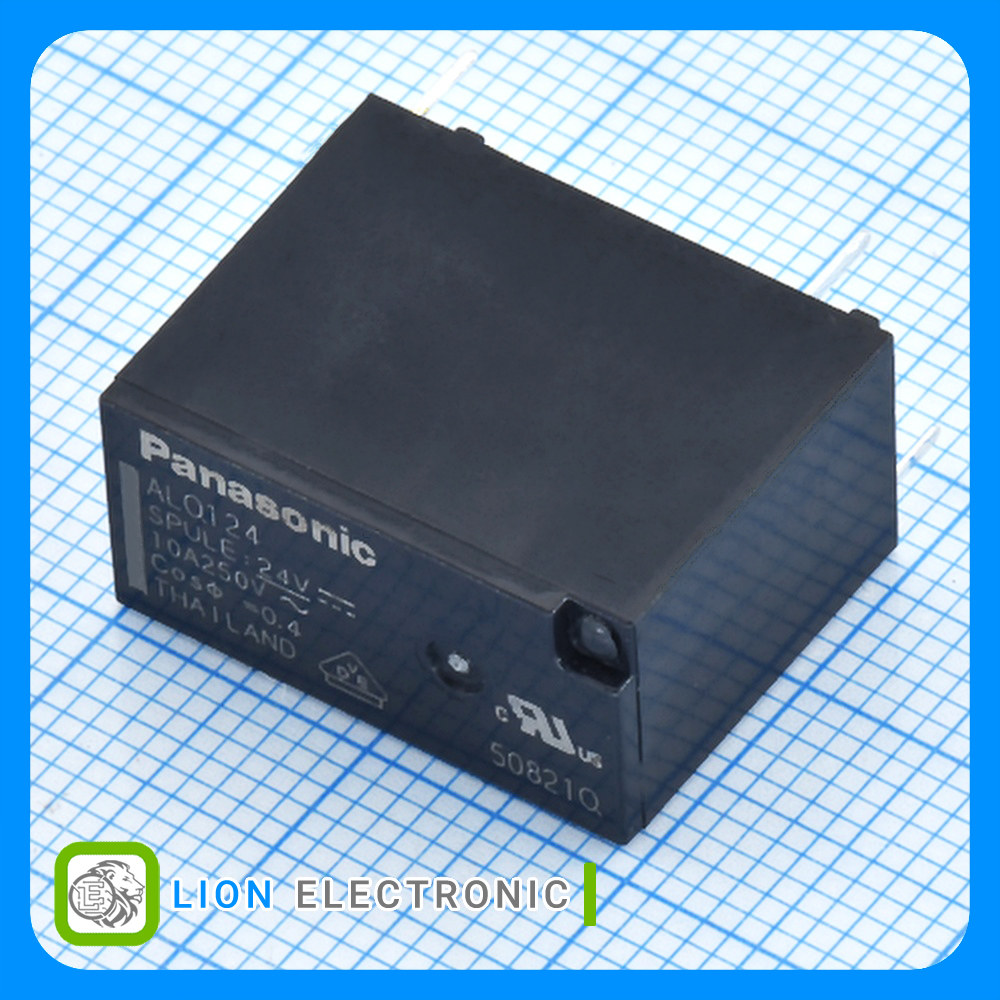

رله ALQ124
Part Number
Class B
insulation class
Non-Latching
Coil Type
1 Form C (SPDT-NO, NC)
Relay Contact Form
250VAC 30VDC
Max Switching Voltage
10A
Contact Current Rating
400mW
Power Consumption
24VDC
Coil Voltage
16.7mA
Coil Current
Tube
Packaging
Through Hole
Mounting Style
1.44kΩ
Coil Resistance
10mm
Width
20mm
Length
16mm
Height
