Panasonic
معرفی

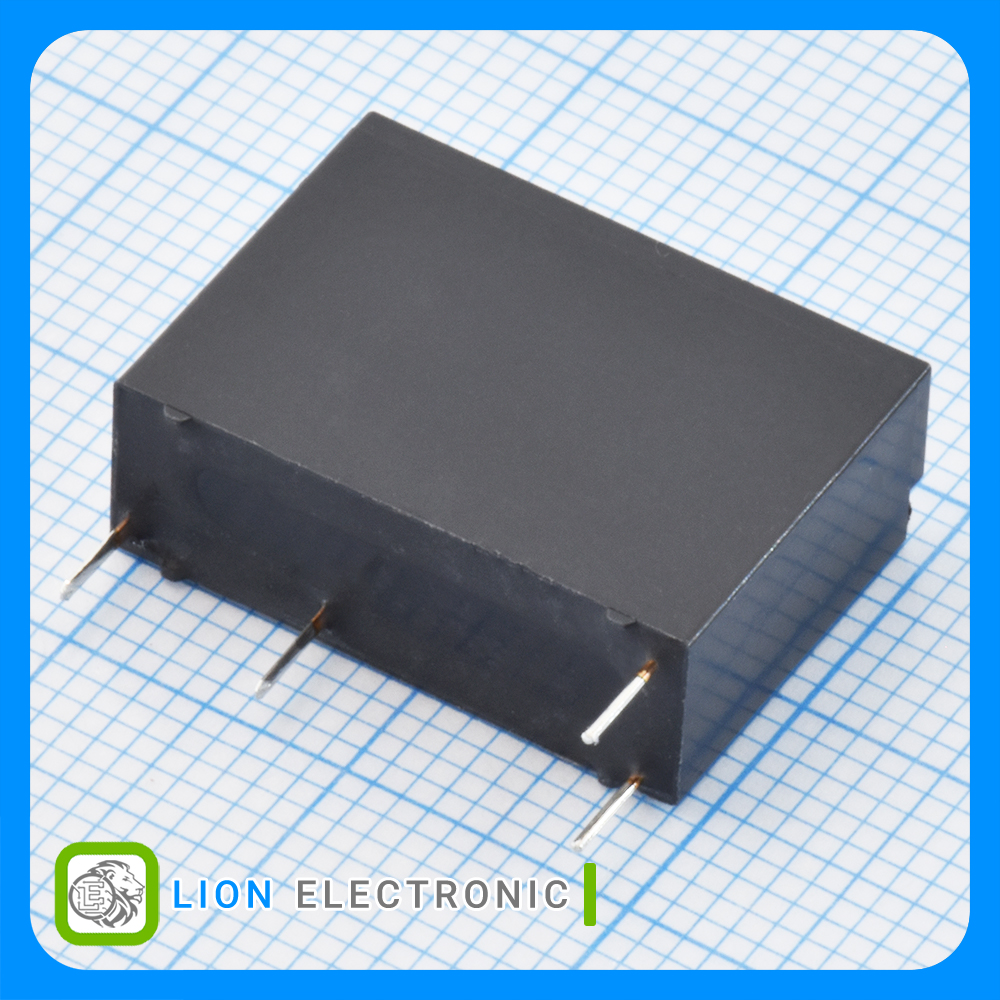

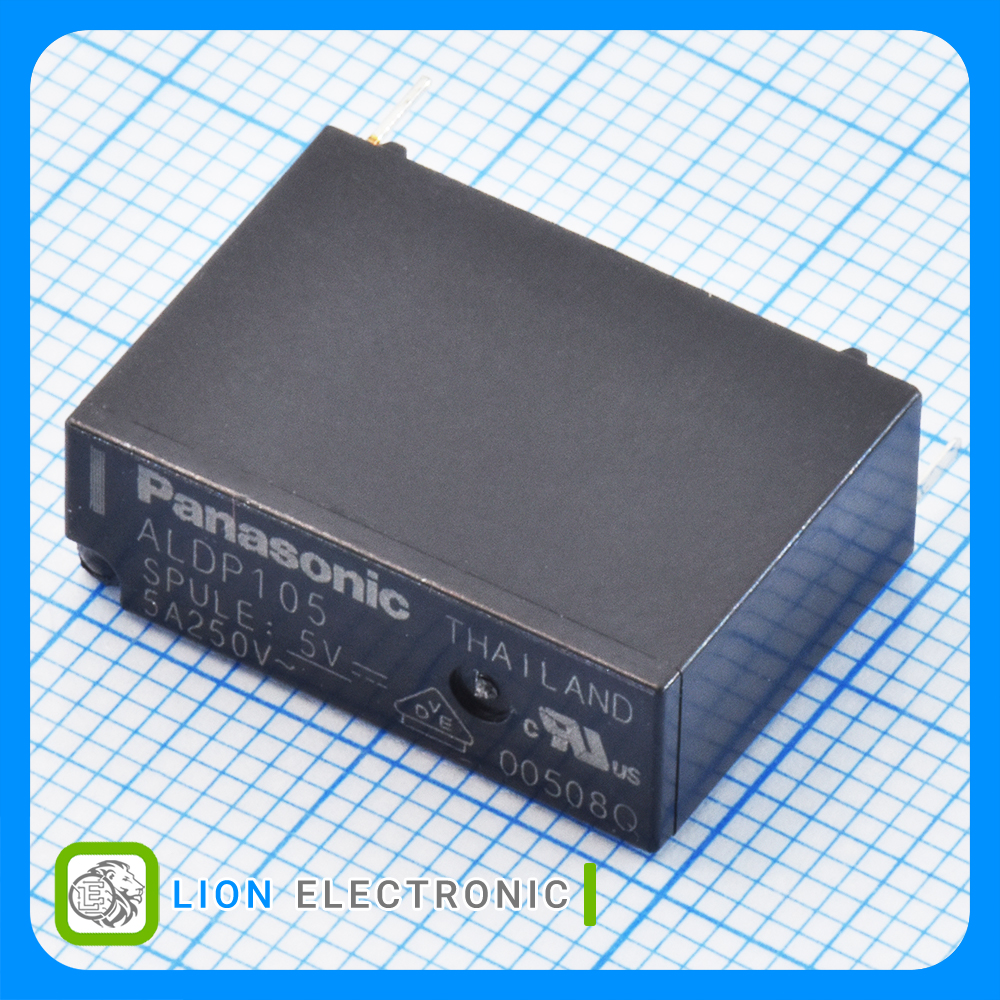

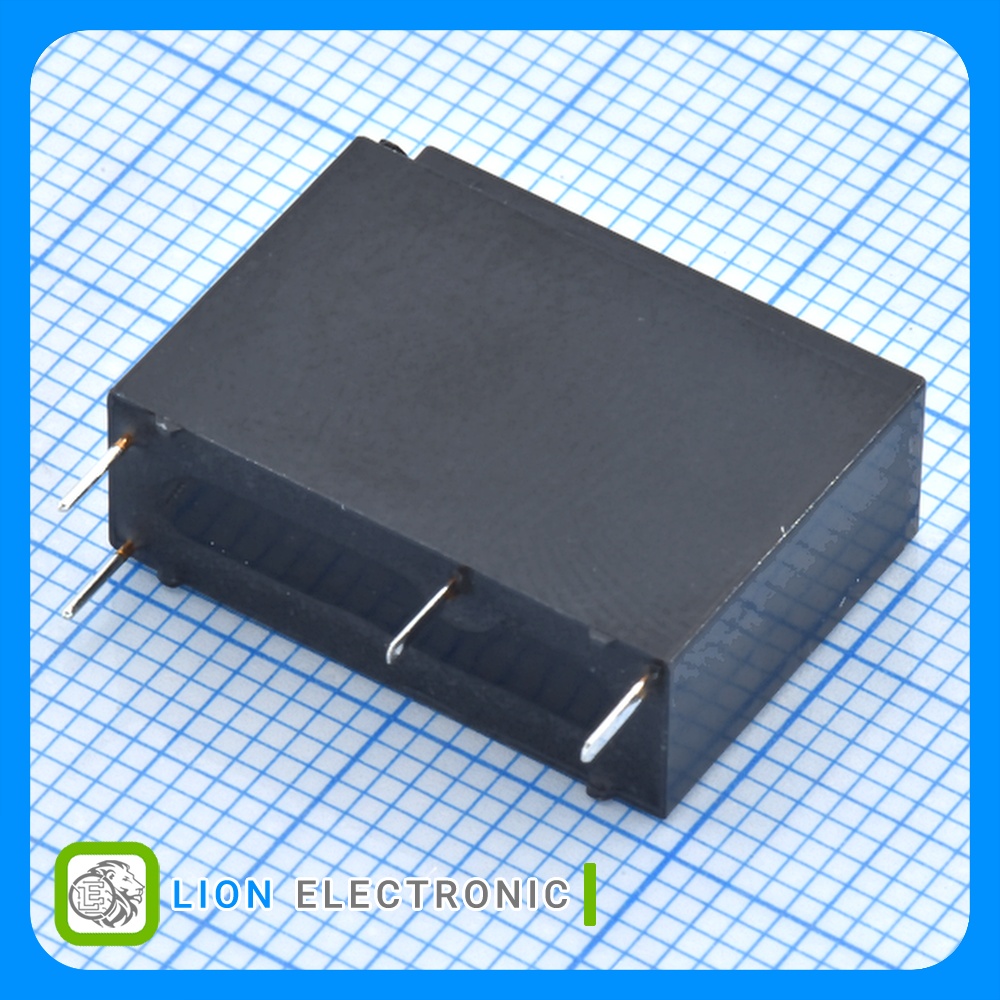

رله قدرت 1 Form A (SPST-NO) ولتاژ کویل 5 ولت جریان کنتاکت 5 آمپر با نصب پایهدار
General Purpose Power Relay 1 Form A (SPST-NO), 5V with 5A Contact Current, Plugin
Specifications
- Relay Contact Form: 1 Form A (SPST-NO)
- insulation class: Class E
- Coil Voltage: 5VDC
- Contact Current Rating: 5A
- Coil Resistance: 125Ω
- Coil Current: 40mA
- Power Consumption: 200mW
- Height: 14.9mm
- Length: 20.2mm
- Width: 6.9mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Bulk
- Max Switching Voltage: 277VAC 30VDC
مشخصات رله ALDP105W

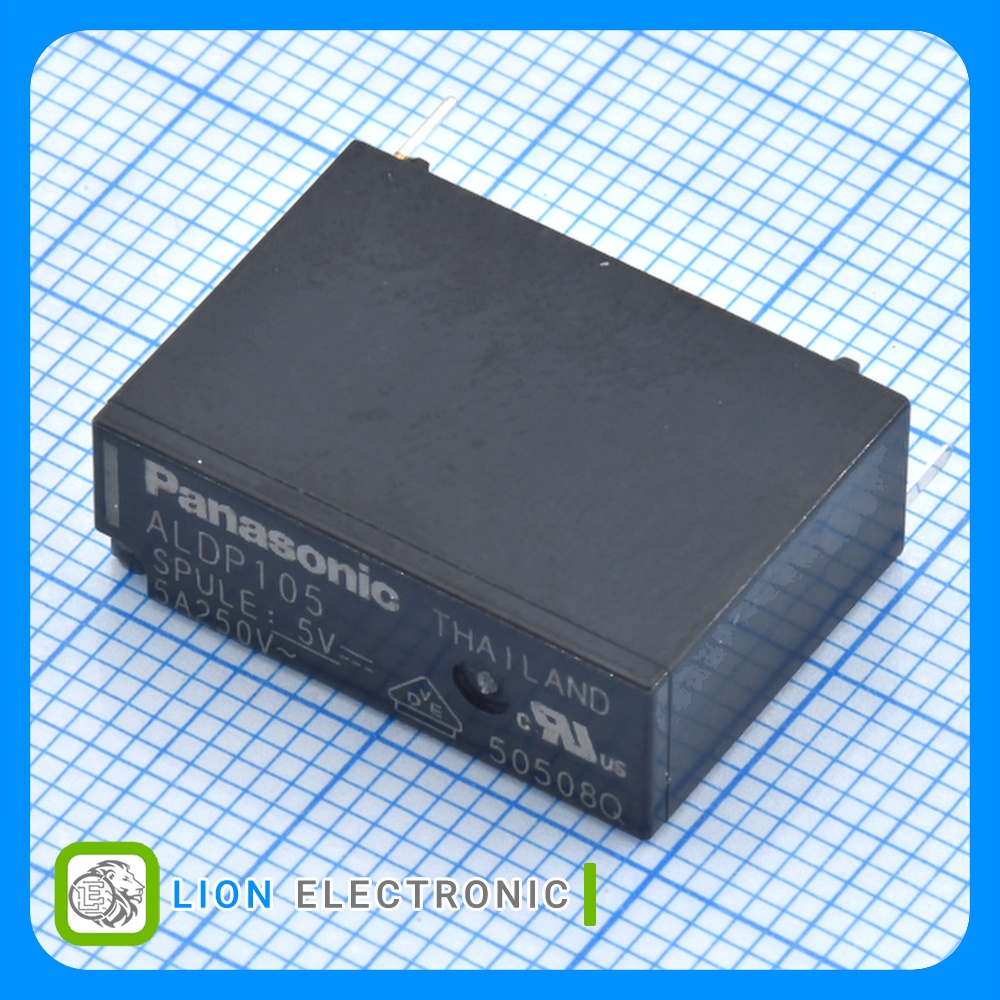

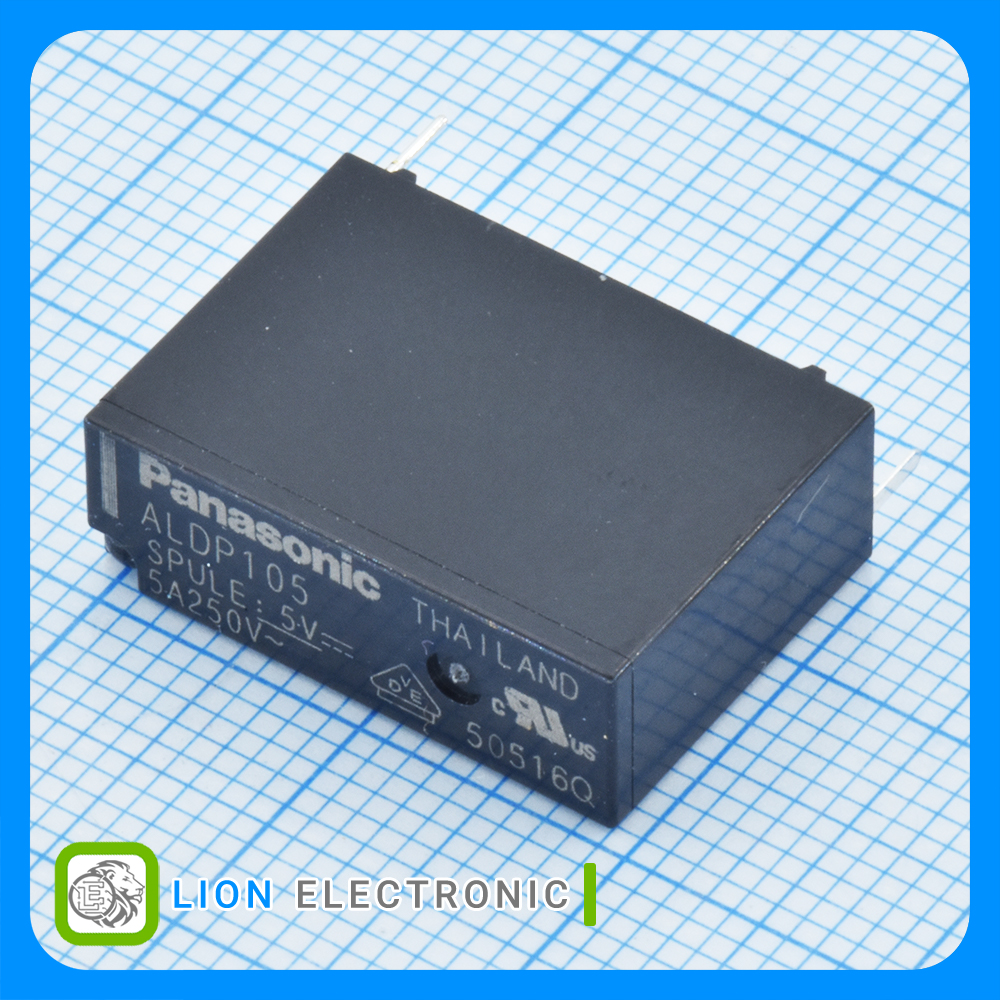

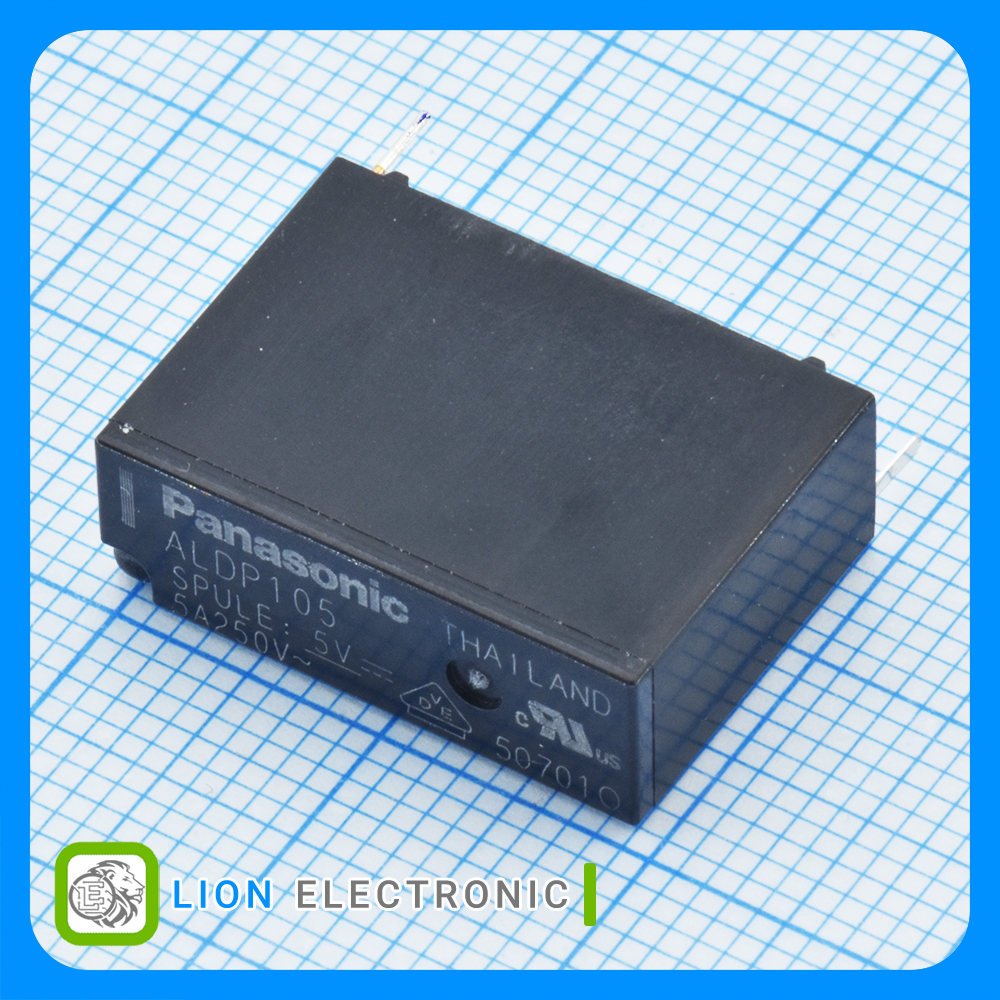

رله ALDP105W
Part Number
Non-Latching
Coil Type
1 Form A (SPST-NO)
Relay Contact Form
277VAC 30VDC
Max Switching Voltage
5VDC
Coil Voltage
200mW
Power Consumption
Class E
insulation class
5A
Contact Current Rating
Bulk
Packaging
125Ω
Coil Resistance
Through Hole
Mounting Style
40mA
Coil Current
6.9mm
Width
20.2mm
Length
14.9mm
Height
