Panasonic
معرفی

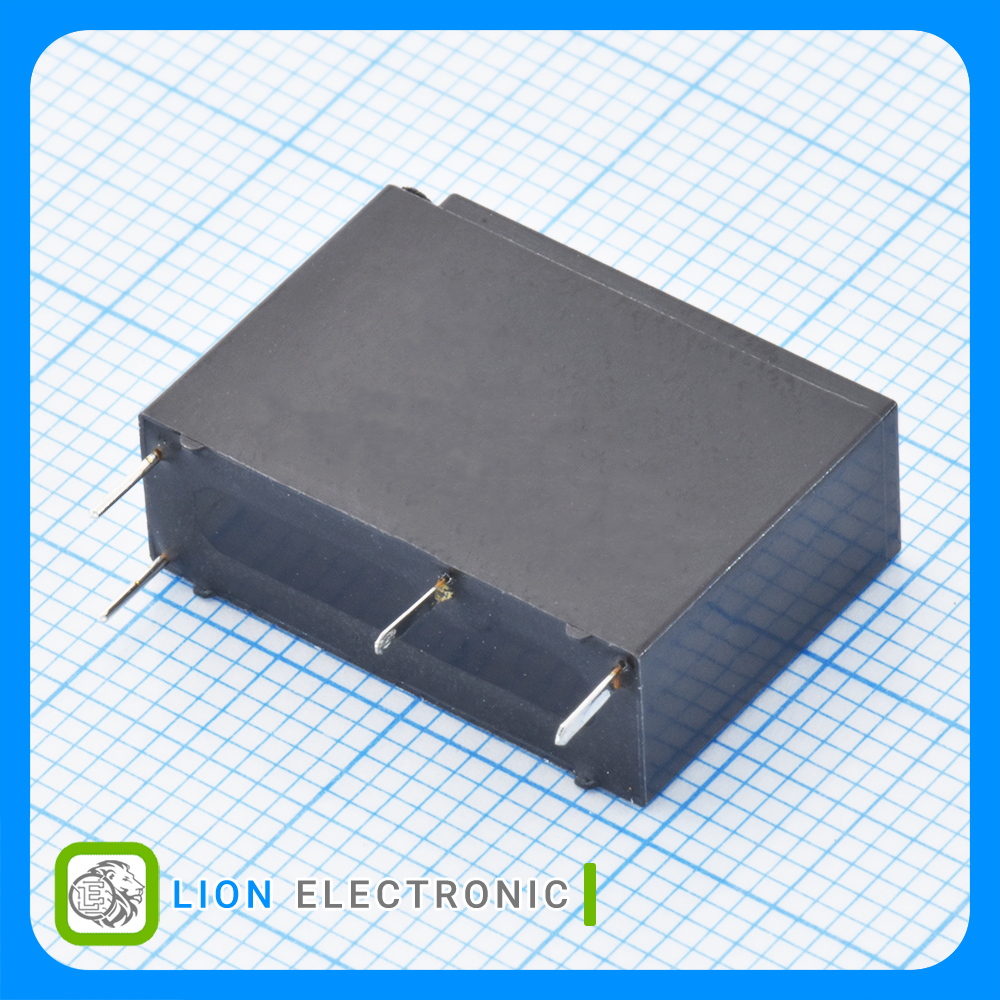

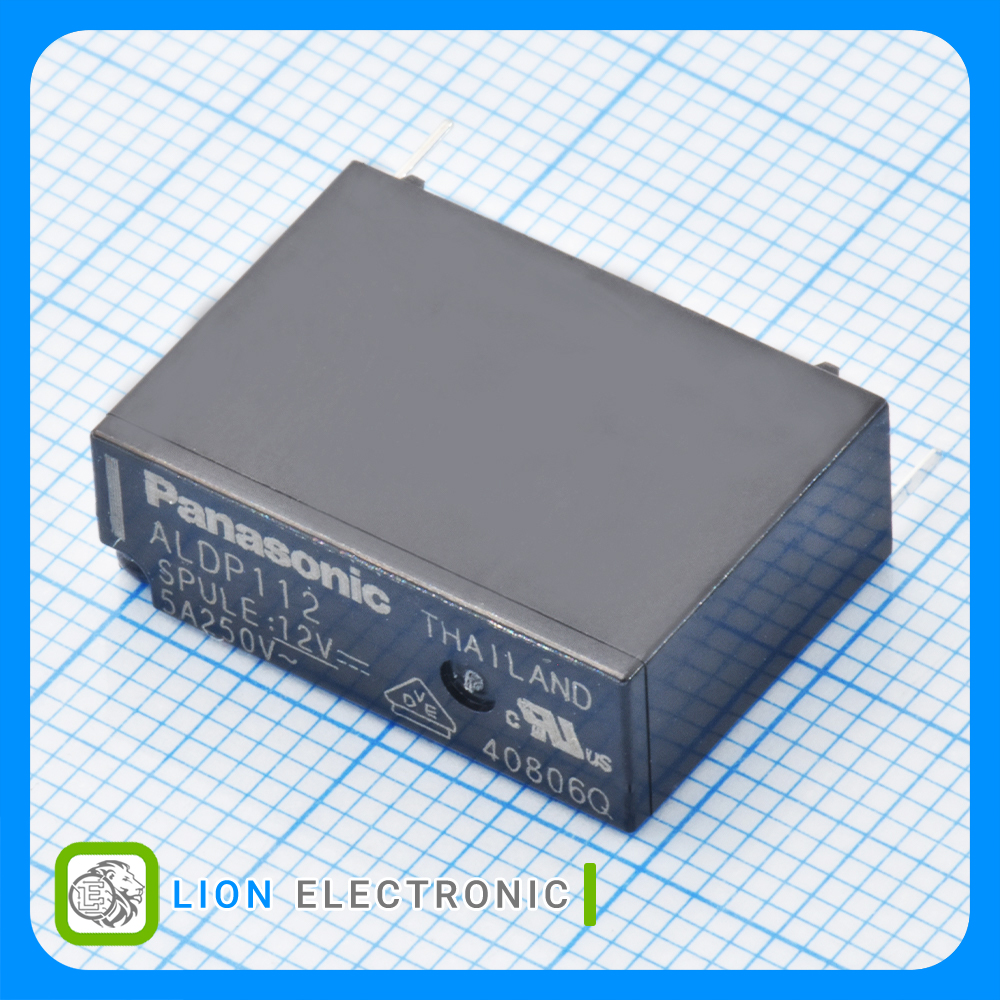

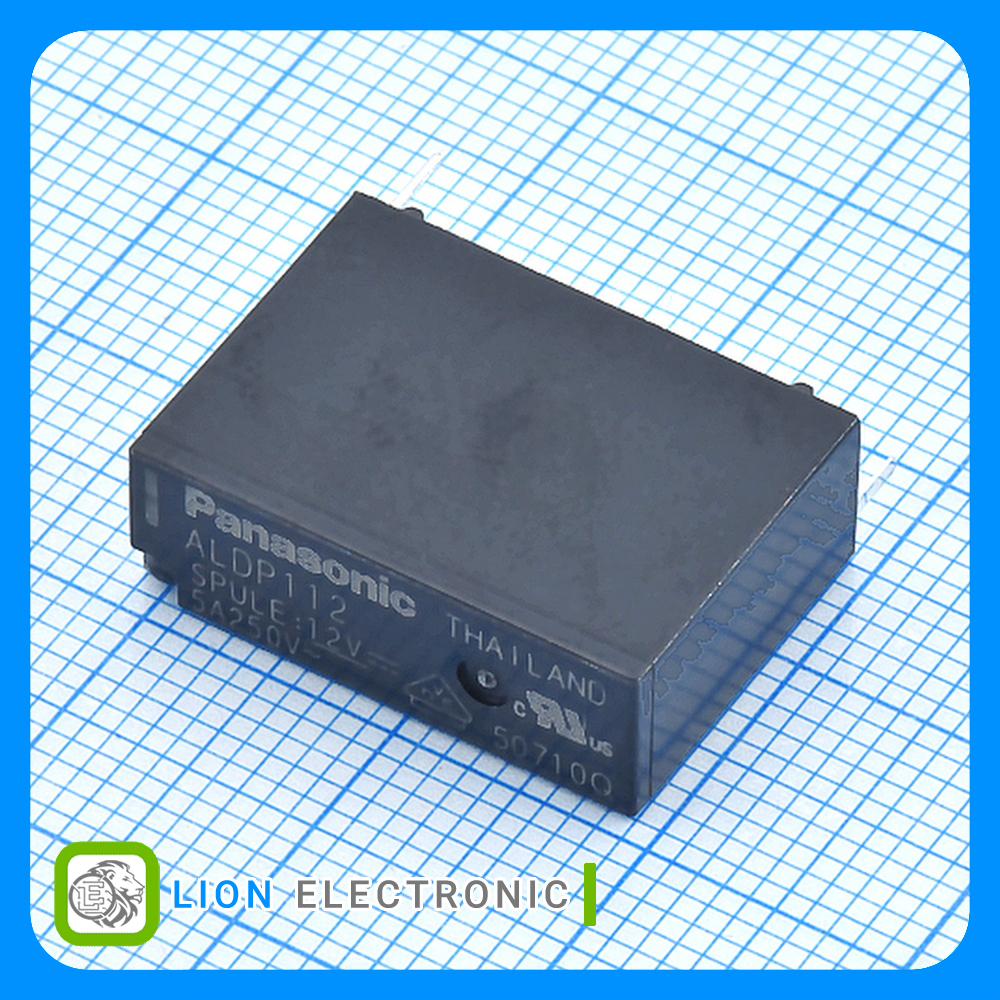

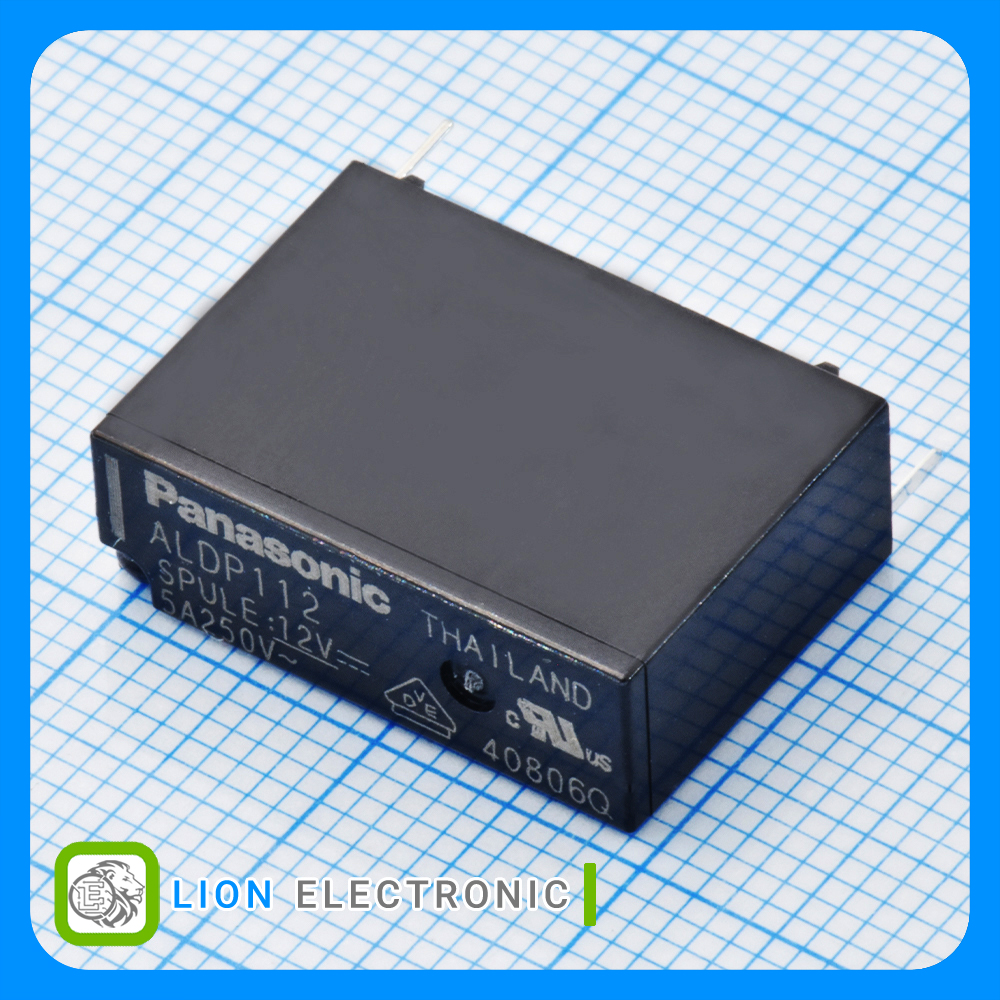

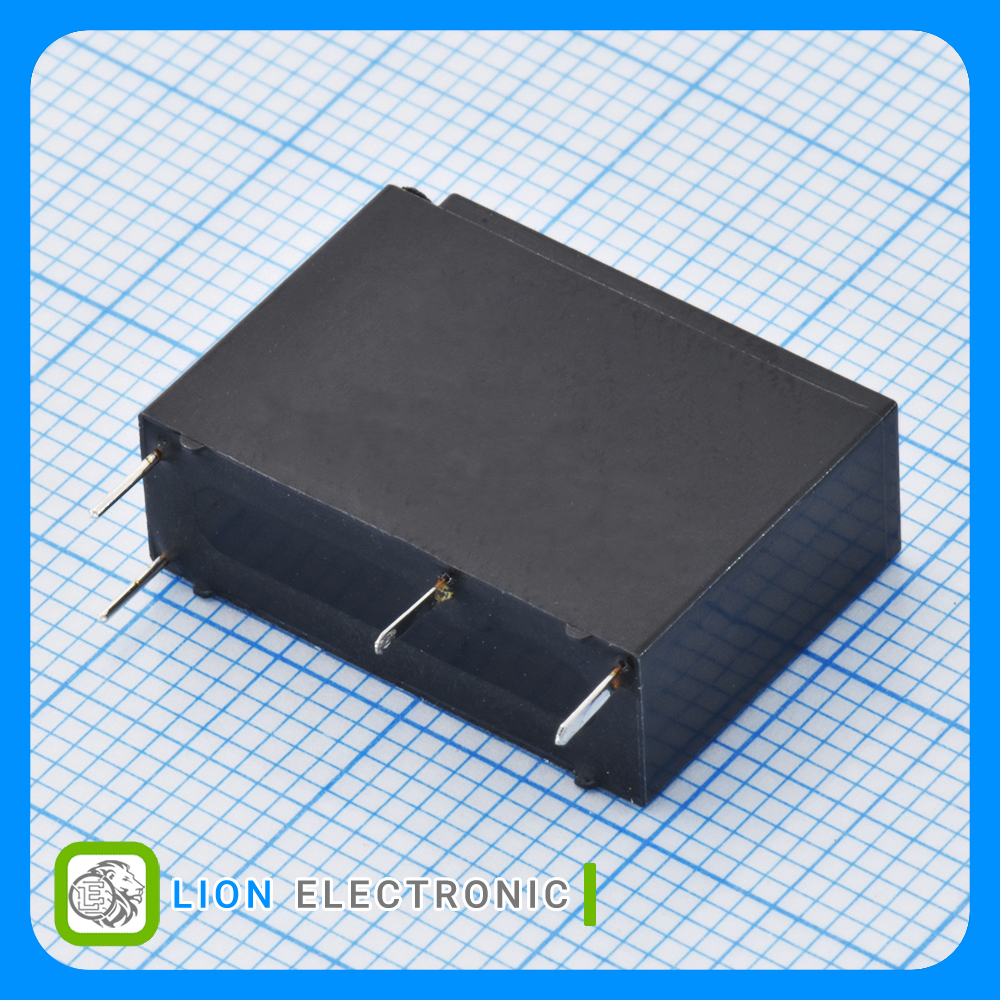

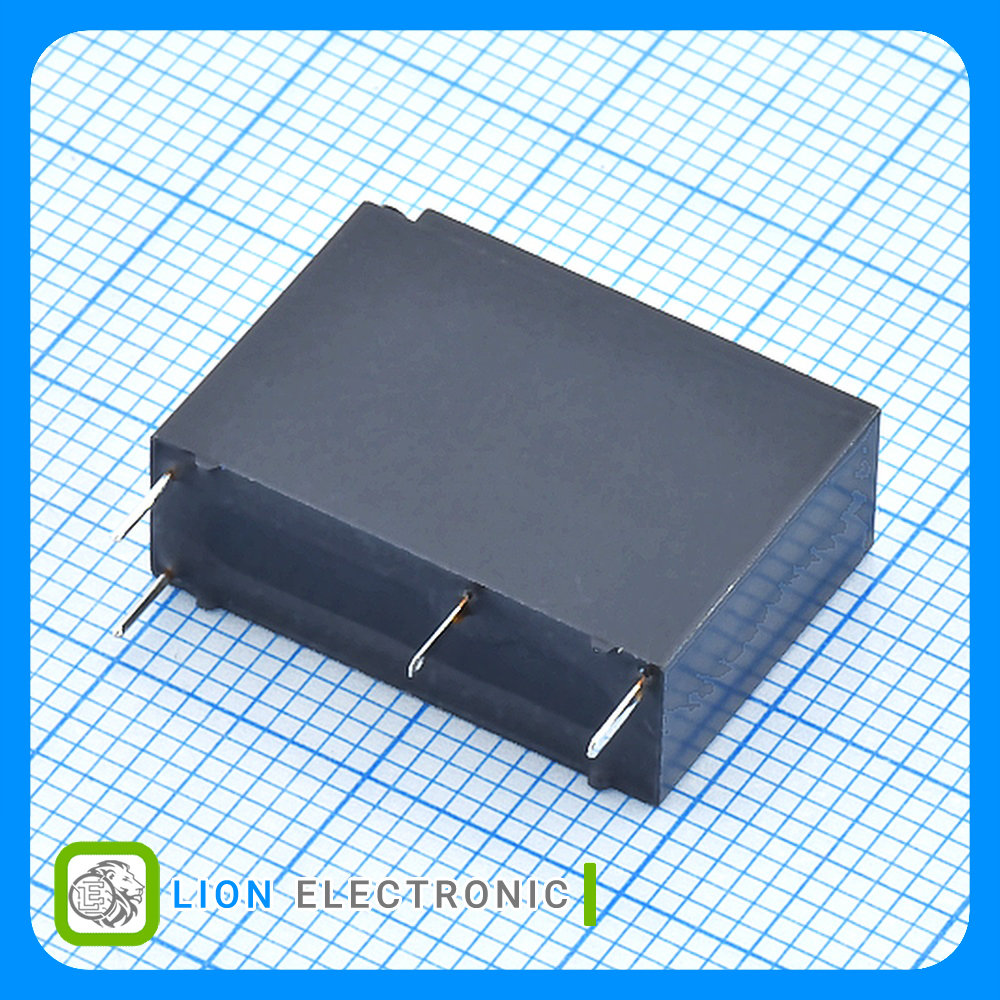

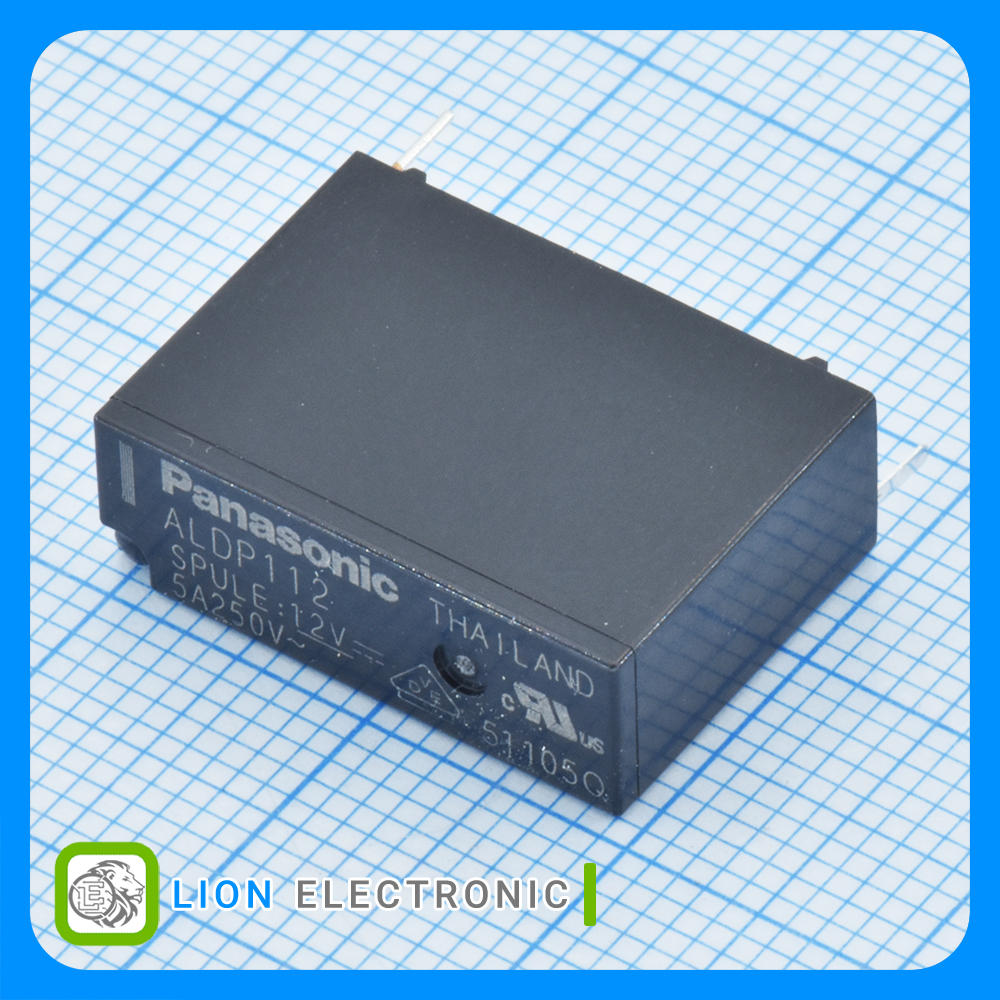

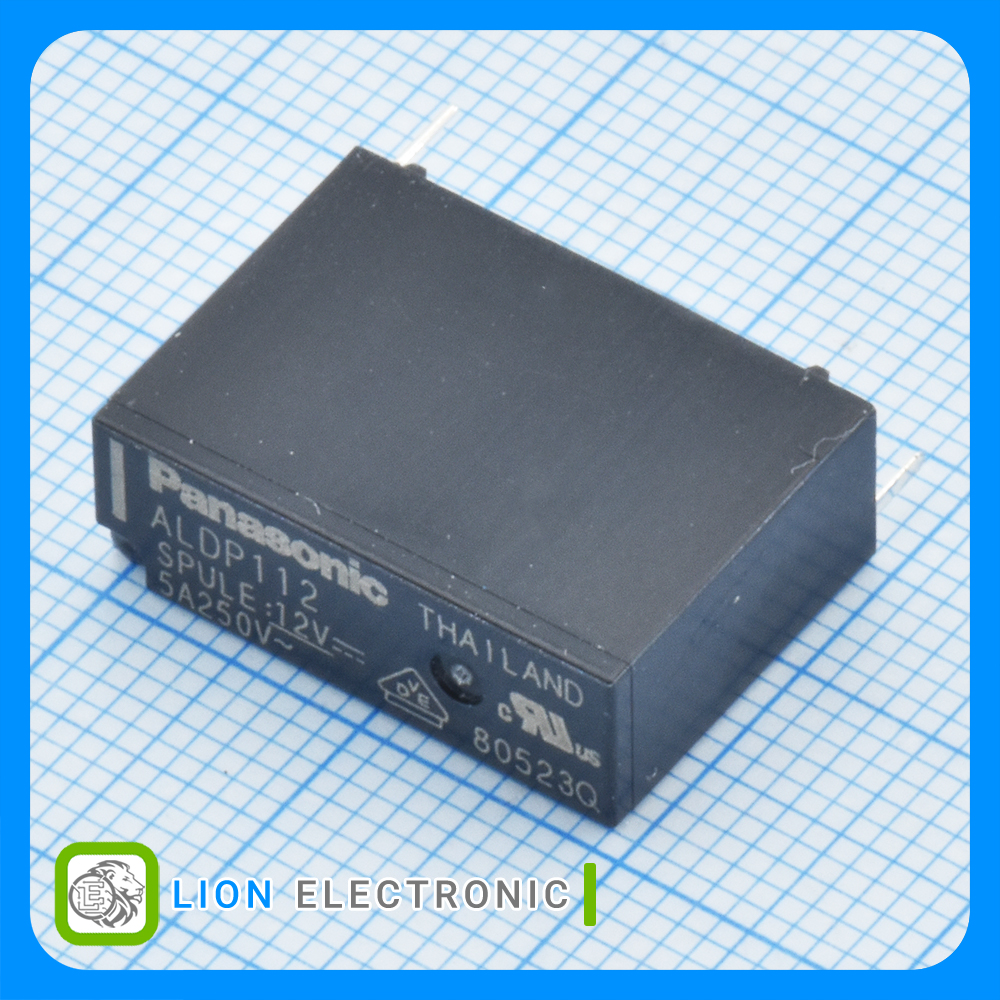

رله قدرت 1 Form A (SPST-NO) ولتاژ کویل 12 ولت جریان کنتاکت 5 آمپر با نصب پایهدار
General Purpose Power Relay 1 Form A (SPST-NO), 12V with 5A Contact Current, Plugin
Specifications
- Relay Contact Form: 1 Form A (SPST-NO)
- insulation class: Class E
- Coil Voltage: 12VDC
- Contact Current Rating: 5A
- Coil Resistance: 720Ω
- Coil Current: 16.7mA
- Power Consumption: 200mW
- Height: 14.9mm
- Length: 20.2mm
- Width: 6.9mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Bulk
- Max Switching Voltage: 277VAC 30VDC
مشخصات ALDP112W
ALDP112W
Part Number
Non-Latching
Coil Type
1 Form A (SPST-NO)
Relay Contact Form
200mW
Power Consumption
Class E
insulation class
5A
Contact Current Rating
277VAC 30VDC
Max Switching Voltage
12VDC
Coil Voltage
Bulk
Packaging
16.7mA
Coil Current
Through Hole
Mounting Style
720Ω
Coil Resistance
6.9mm
Width
20.2mm
Length
14.9mm
Height
