Panasonic
معرفی

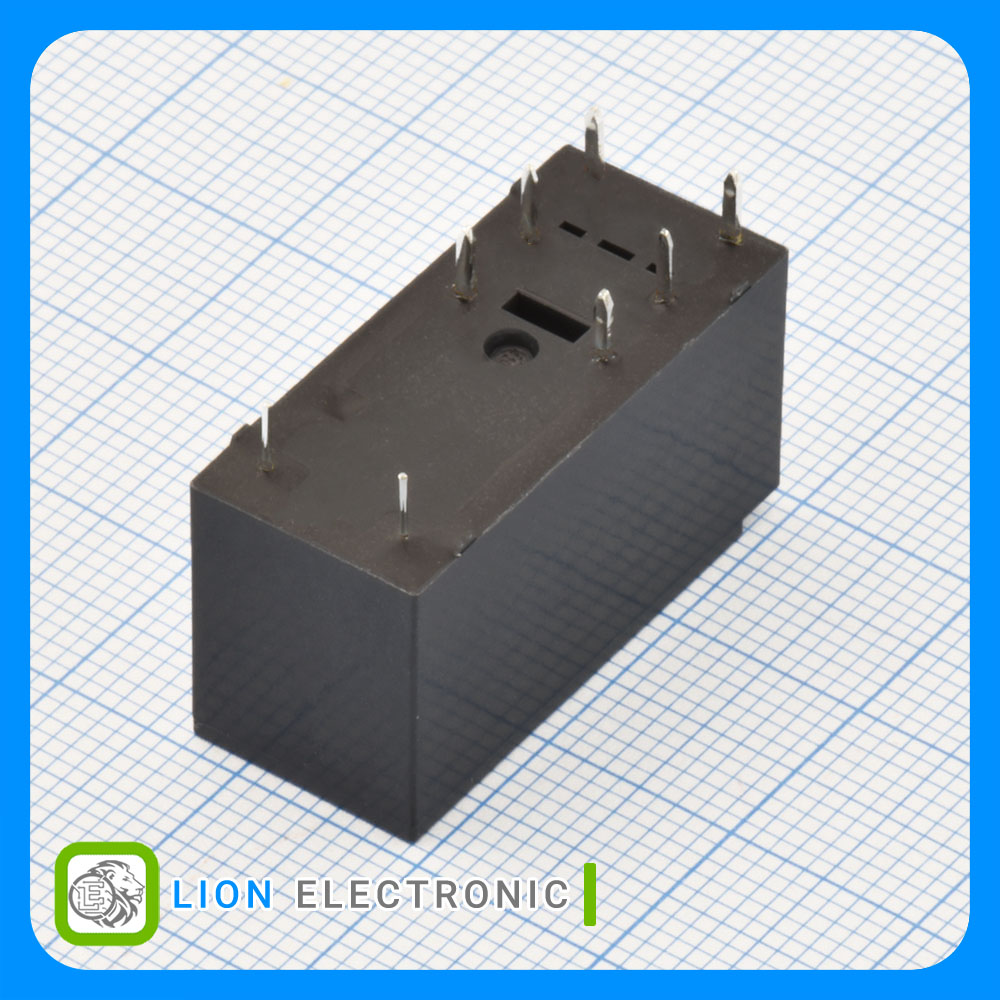

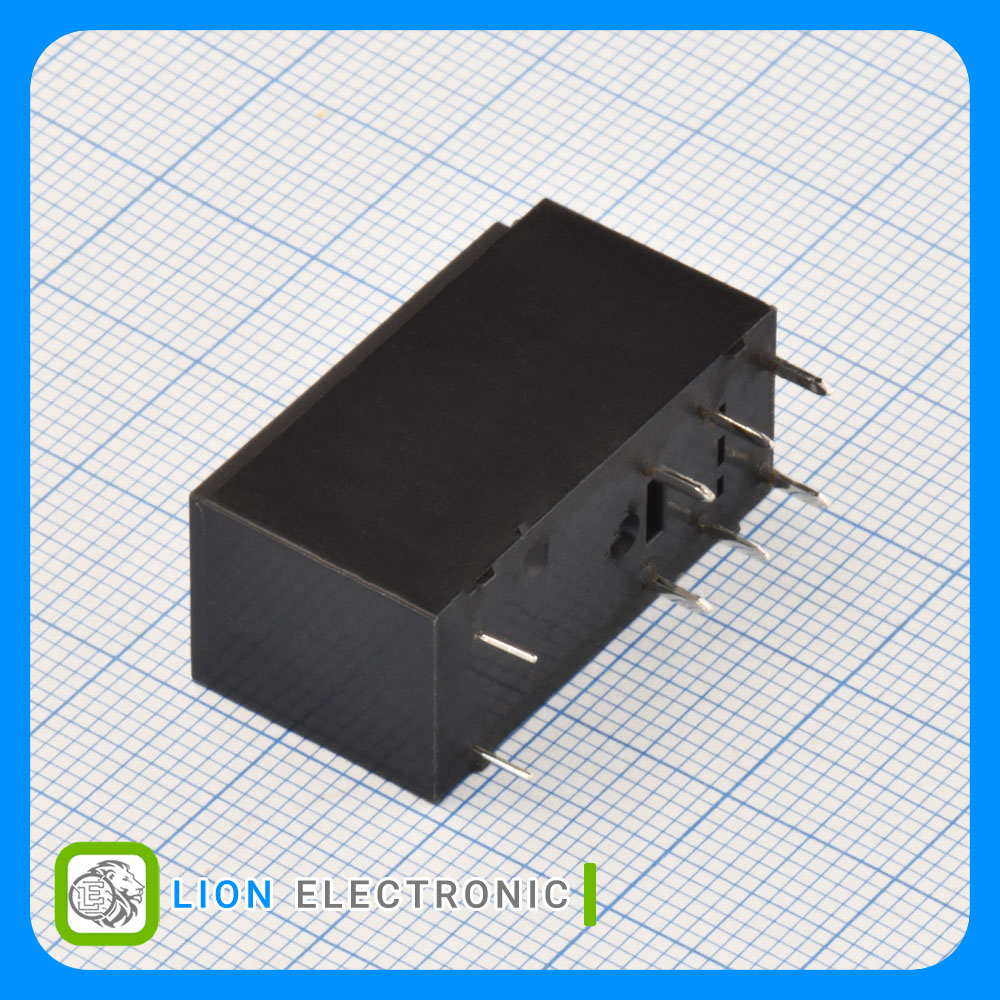

رله 1 Form C (SPDT-NO, NC) ولتاژ کویل 5 ولت جریان کنتاکت 16 آمپر با نصب پایهدار
General Purpose Relay 1 Form C (SPDT-NO, NC), 5VDC 80mA 63Ω Class F, with 16A Contact Current
Specifications
- Relay Contact Form: 1 Form C (SPDT-NO, NC)
- insulation class: Class F
- Coil Voltage: 5VDC
- Contact Current Rating: 16A
- Coil Resistance: 63Ω
- Coil Current: 80mA
- Power Consumption: 400mW
- Height: 15.7mm
- Length: 28.8mm
- Width: 12.5mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tray
- Max Switching Voltage: 440VAC
مشخصات رله ALZN1F05W

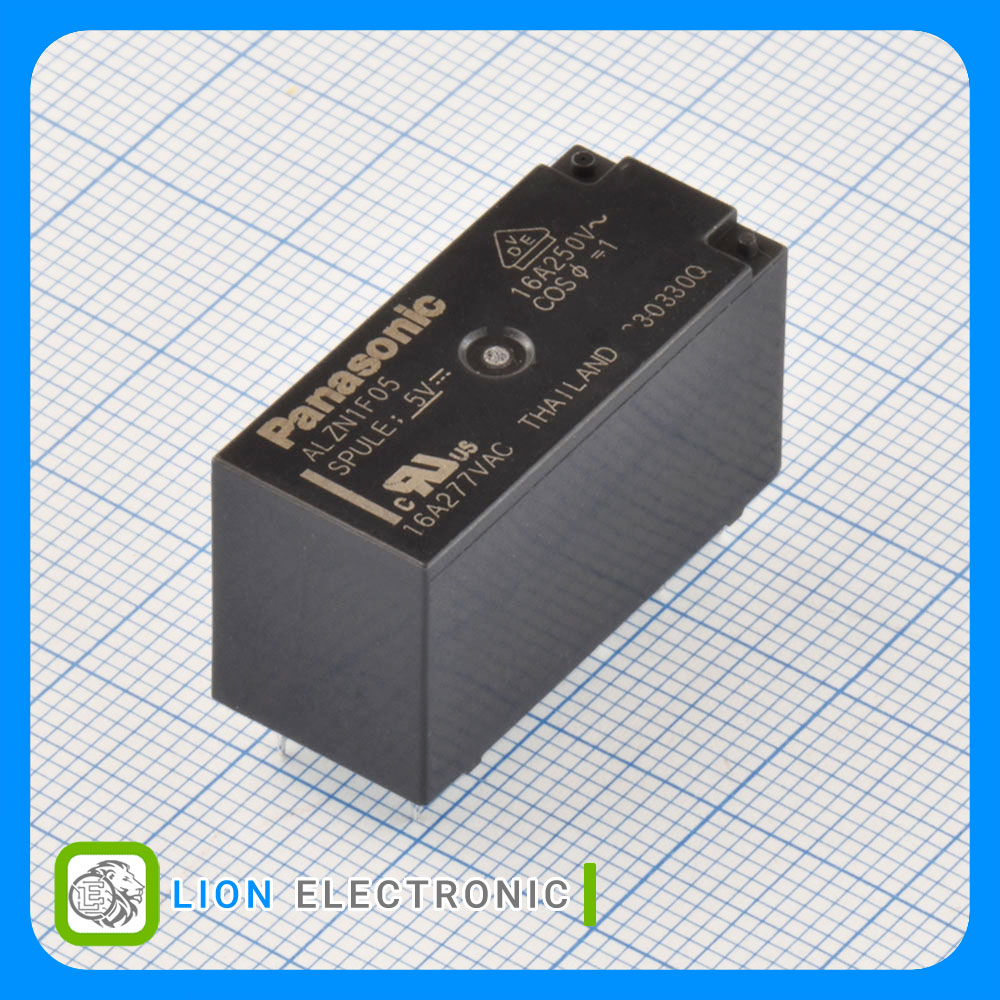

رله ALZN1F05W
Part Number
Non-Latching
Coil Type
440VAC
Max Switching Voltage
1 Form C (SPDT-NO, NC)
Relay Contact Form
5VDC
Coil Voltage
Class F
insulation class
63Ω
Coil Resistance
400mW
Power Consumption
16A
Contact Current Rating
Tray
Packaging
Through Hole
Mounting Style
80mA
Coil Current
12.5mm
Width
28.8mm
Length
15.7mm
Height
