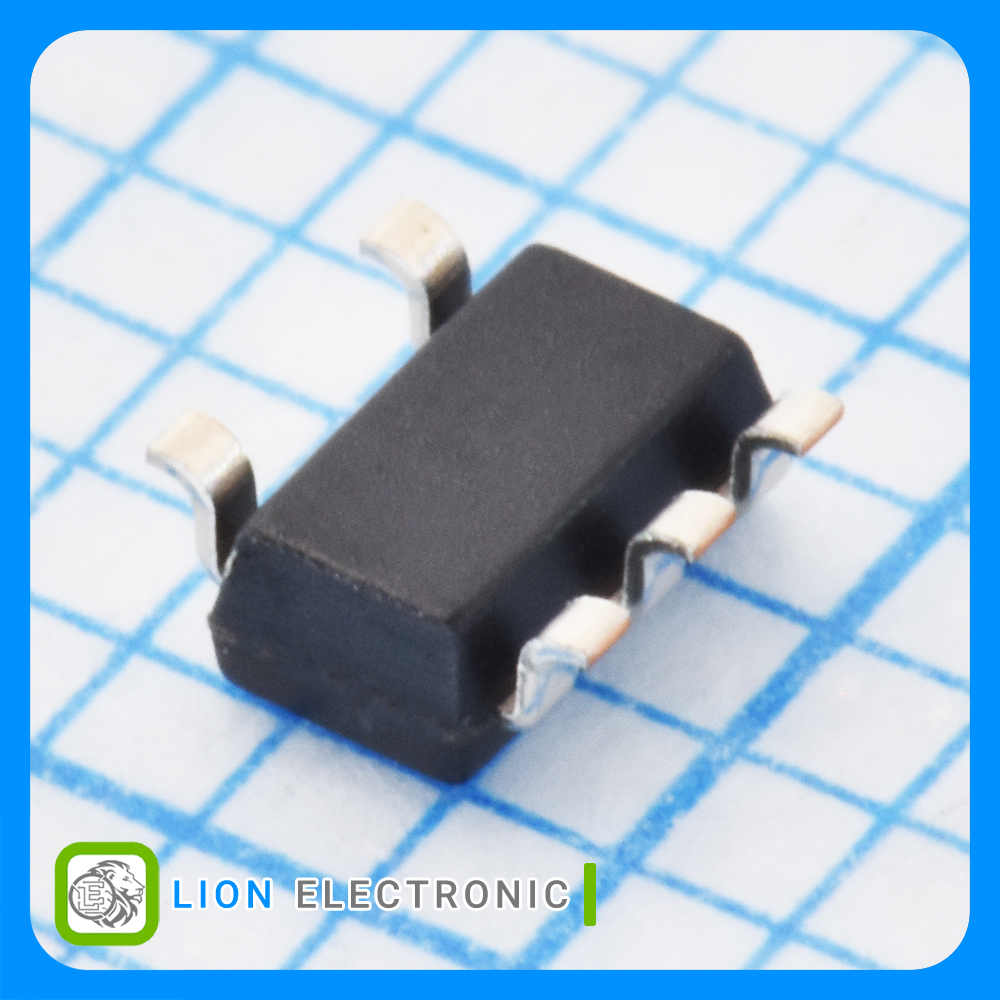

OPA374AIDBVR
OPA374AIDBVR
Part Number
3059
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ (Op-Amp) CMOS کممصرف 1 کاناله با ورودی و خروجی ریل تو ریل، پهنای باند 6.5 مگاهرتز با پکیج SOT-23-5
Low power CMOS Op-Amp Operational Amplifier 1-Channel, Rail-to-Rail I/O, 6.5MHz with SOT-23-5 Package
معرفی
آپامپ (Op-Amp) CMOS کممصرف 1 کاناله با ورودی و خروجی ریل تو ریل، پهنای باند 6.5 مگاهرتز با پکیج SOT-23-5
Low power CMOS Op-Amp Operational Amplifier 1-Channel, Rail-to-Rail I/O, 6.5MHz with SOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 5mA
- SR - Slew Rate: 5V/us
- GBP - Gain Bandwidth Product: 6.5MHz
- CMRR - Common Mode Rejection Ratio: 90dB
- Ib - Input Bias Current: 10pA
- Vos - Input Offset Voltage: 5mV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.3V
- Operating Supply Current: 585uA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ OPA374AIDBVR

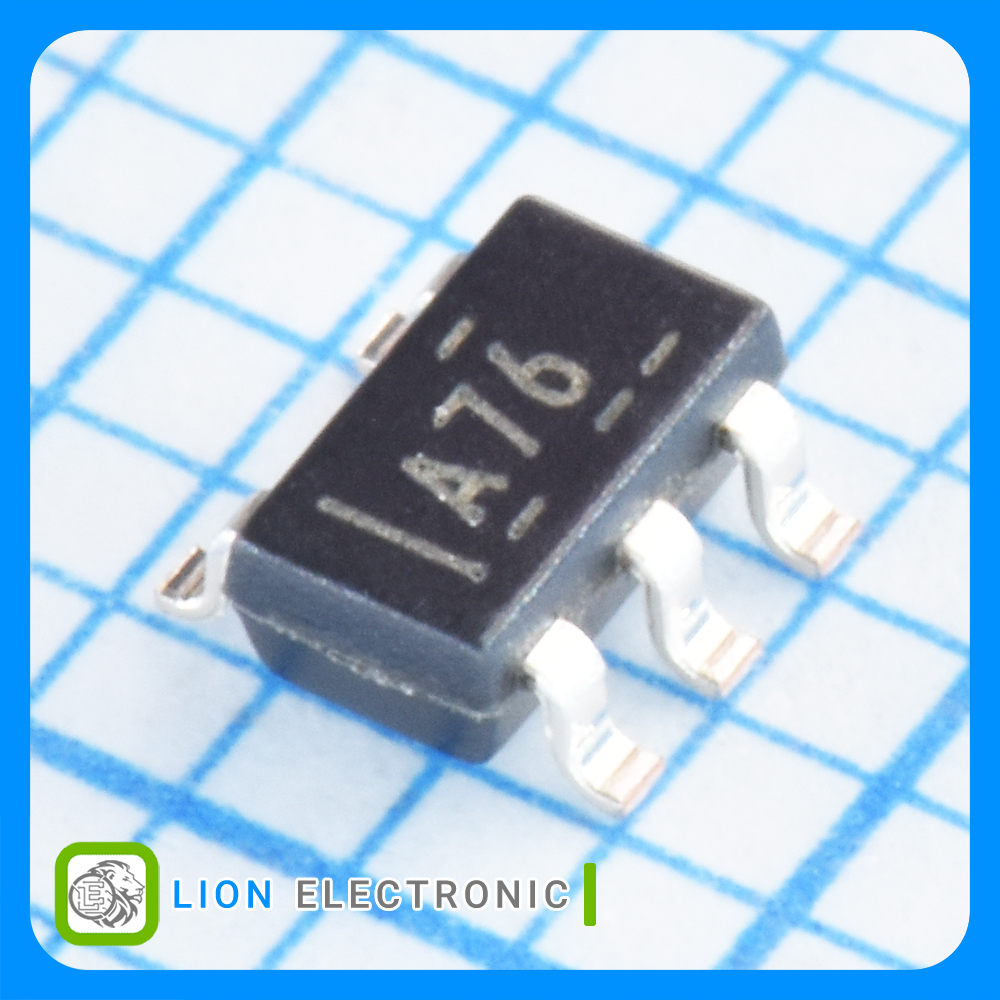

آپ امپ OPA374AIDBVR
Part Number
1
Number of Channels
5mA
Output Current per Channel
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
10pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
2.3V
Supply Voltage - Min
5V/us
SR - Slew Rate
90dB
CMRR - Common Mode Rejection Ratio
6.5MHz
GBP - Gain Bandwidth Product
5mV
Vos - Input Offset Voltage
585uA
Operating Supply Current
SOT-23-5
Package-Case
