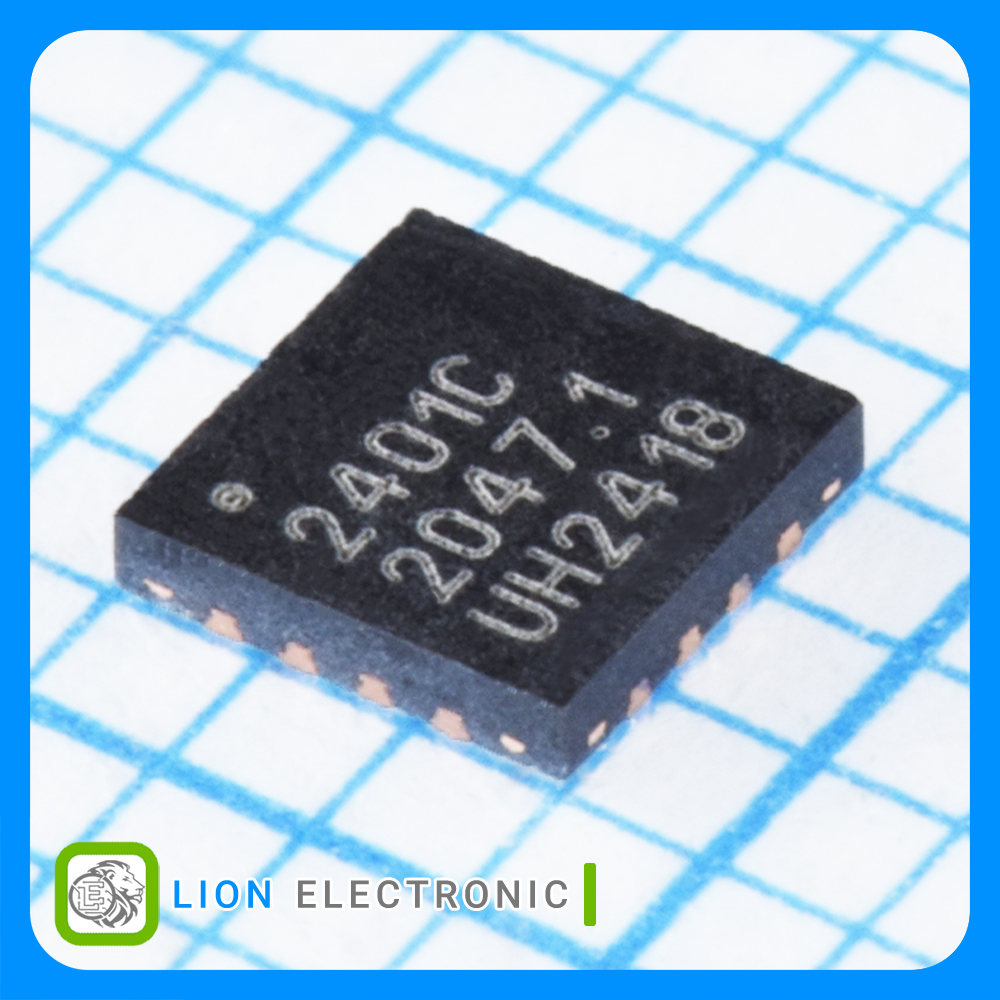

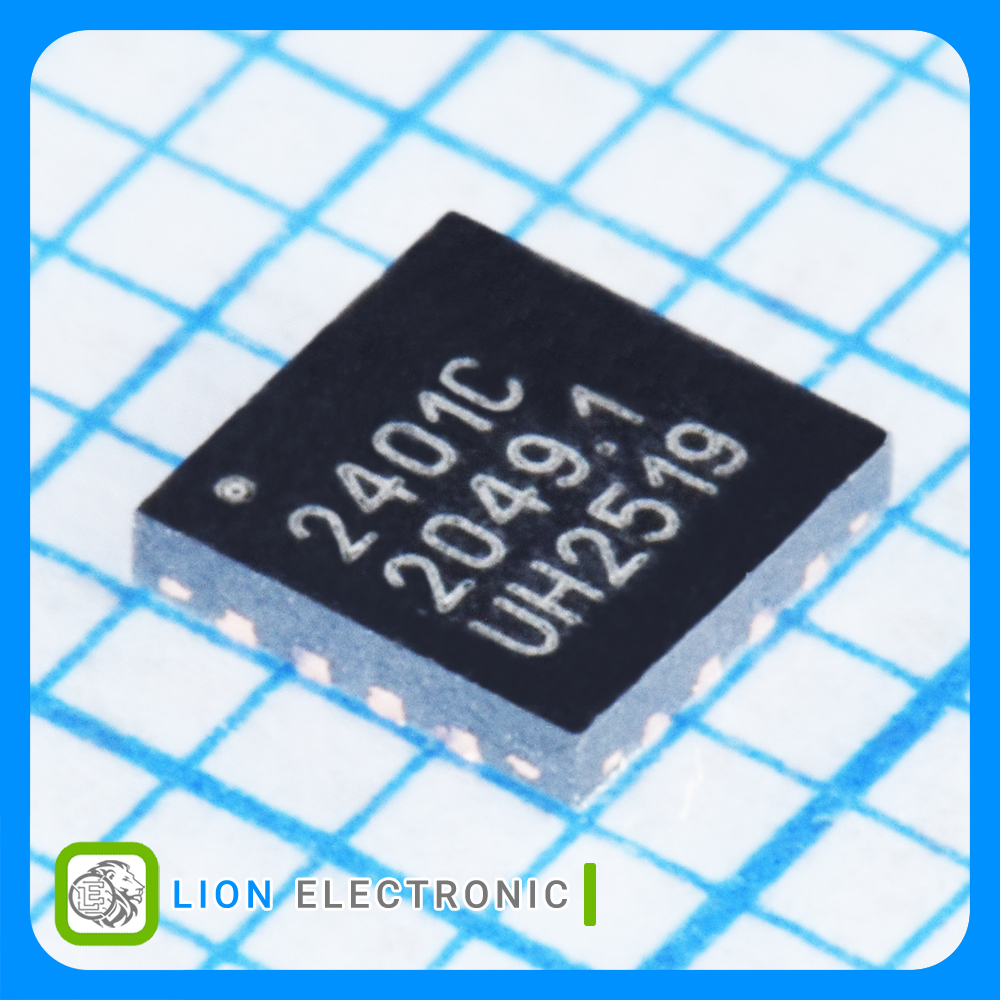

RFX2401C
RFX2401C
Part Number
3087
Lion Part
Datasheet
Skyworks Solutions Manufacture
تقویتکننده RF فرانتاند Zigbee تکتراشه تکدایهای پرقدرت فرکانس 2.4 تا 2.525 گیگاهرتز بهره 12dBi نویز 2.5dB با پکیج QFN-16
RF Front-end Amplifier 2.4 - 2.525GHz, 12dBi Gain, NF 2.5dB, Zigbee High-power Single-chip, Single-die with QFN-16 Package
معرفی
تقویتکننده RF فرانتاند Zigbee تکتراشه تکدایهای پرقدرت فرکانس 2.4 تا 2.525 گیگاهرتز بهره 12dBi نویز 2.5dB با پکیج QFN-16
RF Front-end Amplifier 2.4 - 2.525GHz, 12dBi Gain, NF 2.5dB, Zigbee High-power Single-chip, Single-die with QFN-16 Package
Specifications
- Gain: 12dBi
- Operating Frequency: 2.4 - 2.525GHz
- NF - Noise Figure: 2.5dB
- P1dB - Compression Point: -8dBm
- OIP3 - Third Order Intercept: 22dB
- Operating Supply Voltage: 2 - 3.6V
- Operating Supply Current: 17mA
- Mounting Style: SMD/SMT
- Package/Case: QFN-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات RFX2401C
RFX2401C
Part Number
-8dBm
P1dB - Compression Point
2.5dB
NF - Noise Figure
Reel
Packaging
22dB
OIP3 - Third Order Intercept
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
12dBi
Gain
+125C
Maximum Operating Temperature
2.4 - 2.525GHz
Operating Frequency
2 - 3.6V
Operating Supply Voltage
17mA
Operating Supply Current
QFN-16
Package-Case
