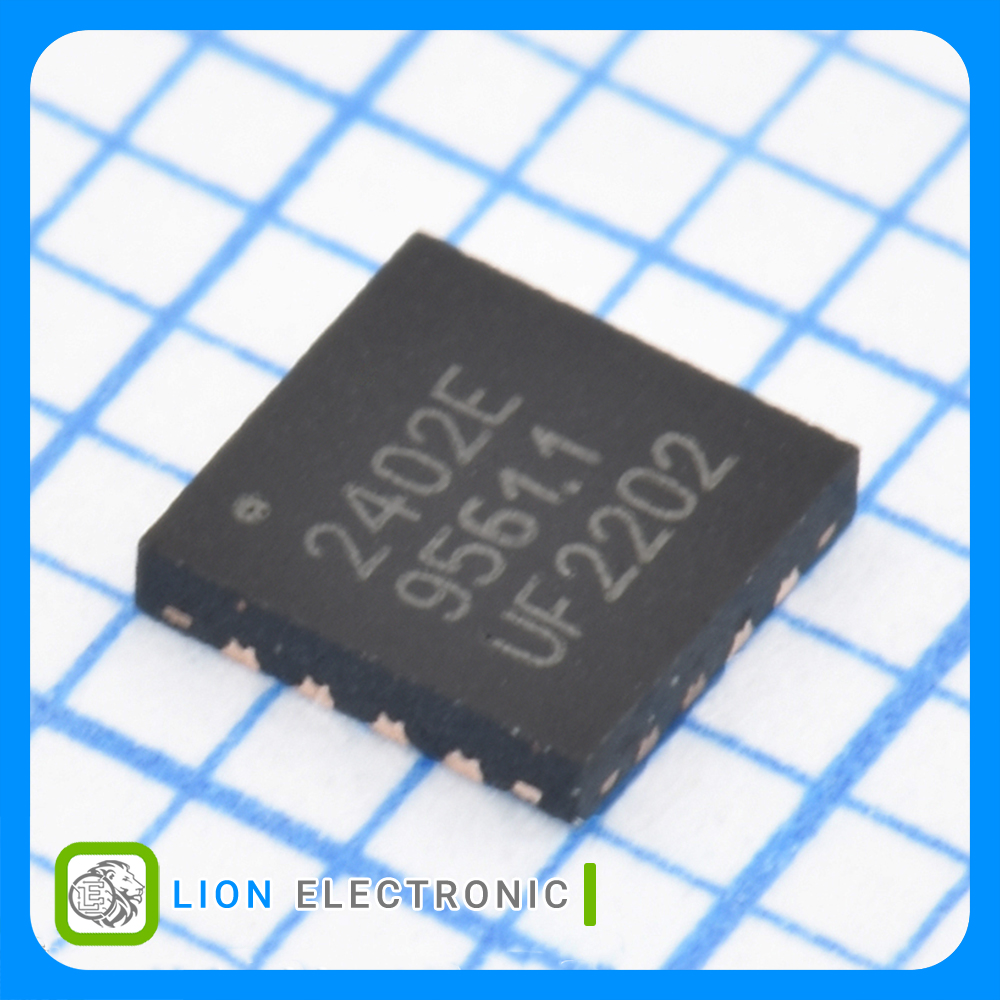

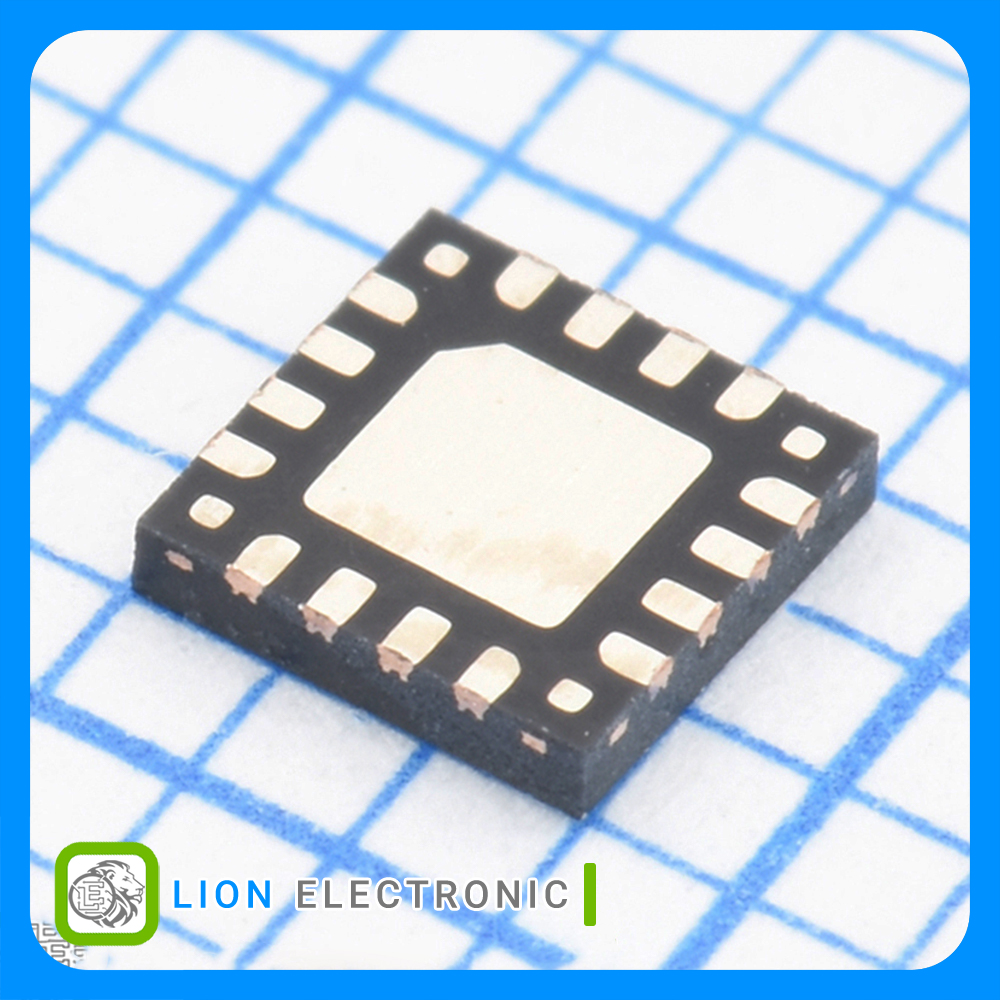

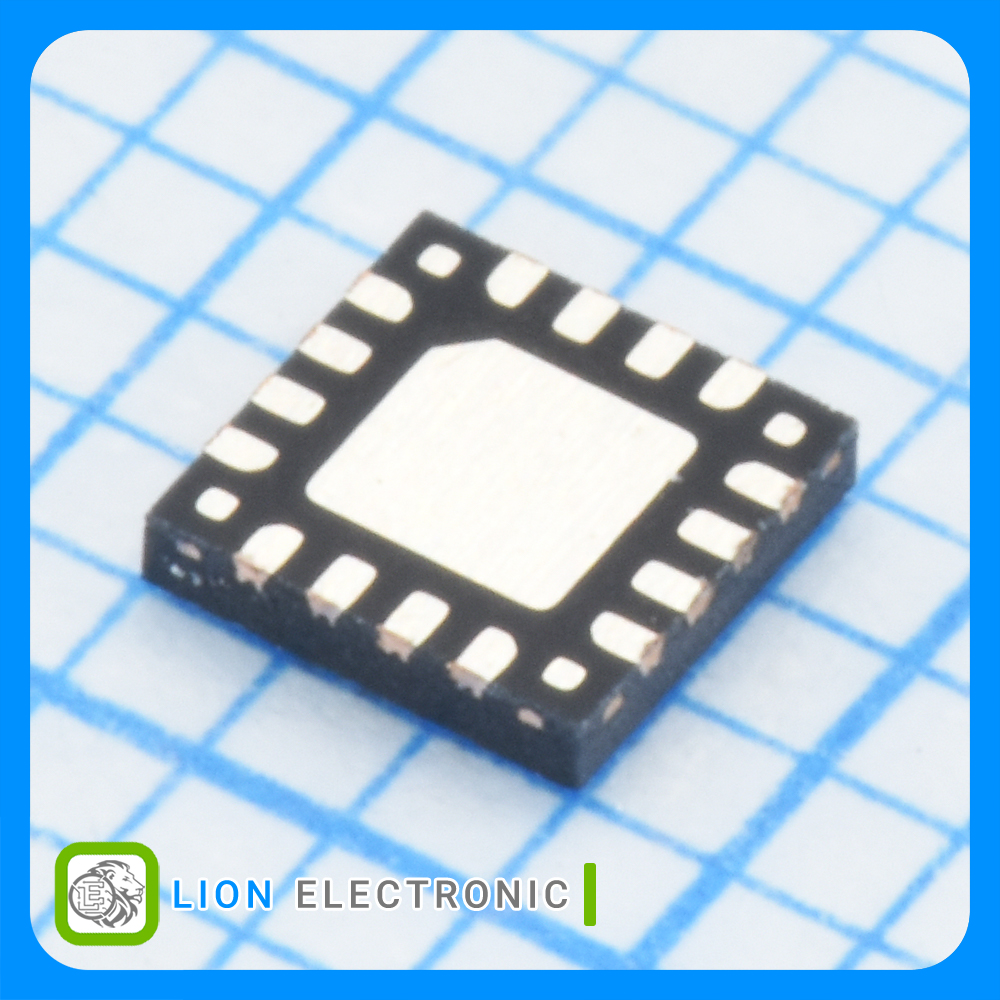

RFX2402E
RFX2402E
Part Number
3681
Lion Part
Datasheet
Skyworks Solutions Manufacture
تقویتکننده RF فرکانس 2.4 تا 2.5 گیگاهرتز بهره 11dB نویز 3dB با پکیج QFN-16
RF Front End CMOS Transmit/Receive WLAN RFeIC 2.4 - 2.5GHz, 11dB Gain, NF 3dB with QFN-16 Package
معرفی
تقویتکننده RF فرکانس 2.4 تا 2.5 گیگاهرتز بهره 11dB نویز 3dB با پکیج QFN-16
RF Front End CMOS Transmit/Receive WLAN RFeIC 2.4 - 2.5GHz, 11dB Gain, NF 3dB with QFN-16 Package
Specifications
- Gain: 11dB
- Operating Frequency: 2.4 - 2.5GHz
- NF - Noise Figure: 3dB
- P1dB - Compression Point: -5dBm
- OIP3 - Third Order Intercept: 24dB
- Operating Supply Voltage: 2.7 - 3.6V
- Operating Supply Current: 80mA
- Mounting Style: SMD/SMT
- Package/Case: QFN-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات RF آمپلی فایر RFX2402E

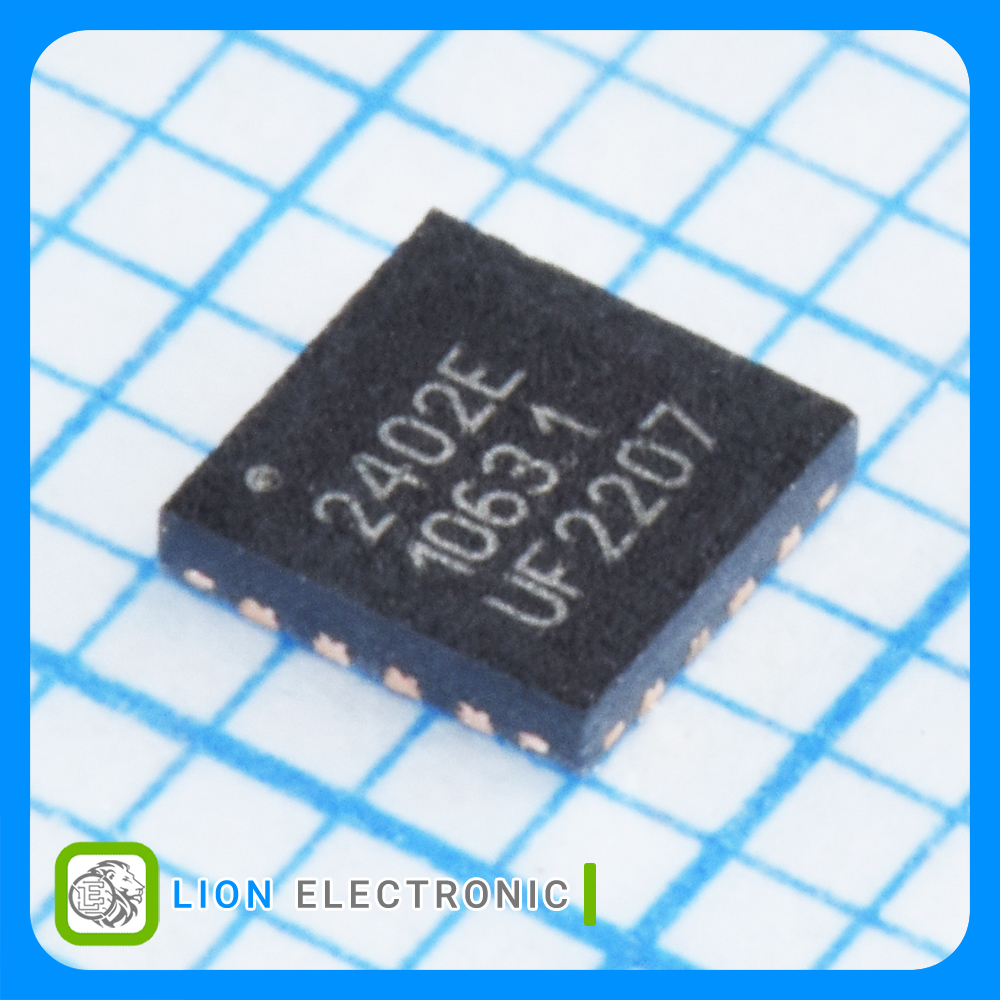

RF آمپلی فایر RFX2402E
Part Number
-5dBm
P1dB - Compression Point
3dB
NF - Noise Figure
Reel
Packaging
-40C
Minimum Operating Temperature
24dB
OIP3 - Third Order Intercept
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
11dB
Gain
2.4 - 2.5GHz
Operating Frequency
2.7 - 3.6V
Operating Supply Voltage
80mA
Operating Supply Current
QFN-16
Package-Case
