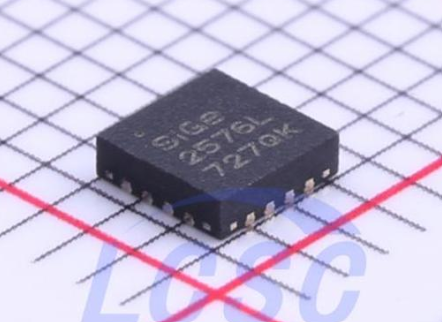

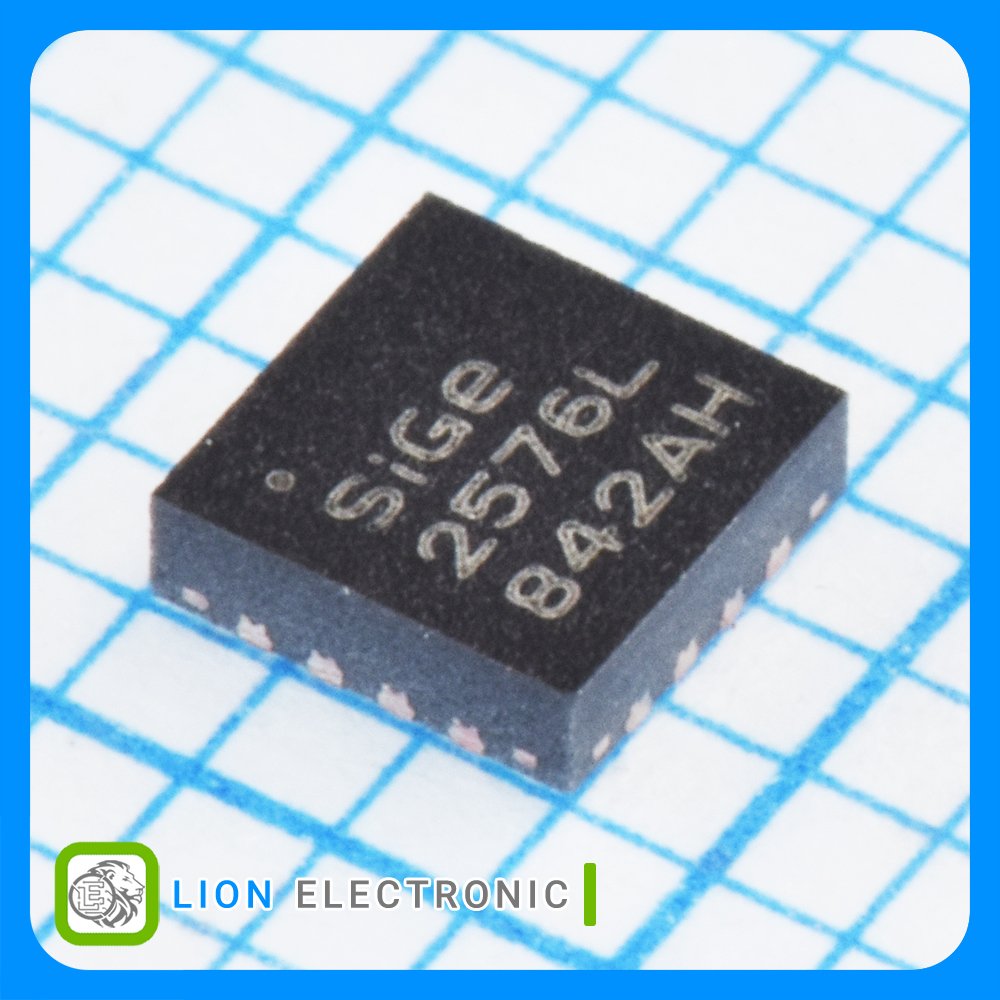

SE2576L-R
SE2576L-R
Part Number
6823
Lion Part
Datasheet
Skyworks Solutions Manufacture
پاور آمپلیفایر RF بیسیم LAN فرکانس 2.4 تا 2.5 گیگاهرتز بهره 33dB توان 1 وات با پکیج QFN-16
2.4GHz High Power Wireless LAN Power Amplifier 2.4 - 2.5GHz, 33dB Gain, 1W with QFN-16 Package
معرفی
پاور آمپلیفایر RF بیسیم LAN فرکانس 2.4 تا 2.5 گیگاهرتز بهره 33dB توان 1 وات با پکیج QFN-16
2.4GHz High Power Wireless LAN Power Amplifier 2.4 - 2.5GHz, 33dB Gain, 1W with QFN-16 Package
Specifications
- Gain: 33dB
- Operating Frequency: 2.4 - 2.5GHz
- P1dB - Compression Point: 32dBm
- Operating Supply Voltage: 5V
- Operating Supply Current: 650mA
- Mounting Style: SMD/SMT
- Package/Case: QFN-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات SE2576L-R
SE2576L-R
Part Number
Reel
Packaging
32dBm
P1dB - Compression Point
-40C
Minimum Operating Temperature
N/A
OIP3 - Third Order Intercept
N/A
NF - Noise Figure
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
33dB
Gain
2.4 - 2.5GHz
Operating Frequency
5V
Operating Supply Voltage
650mA
Operating Supply Current
QFN-16
Package-Case
