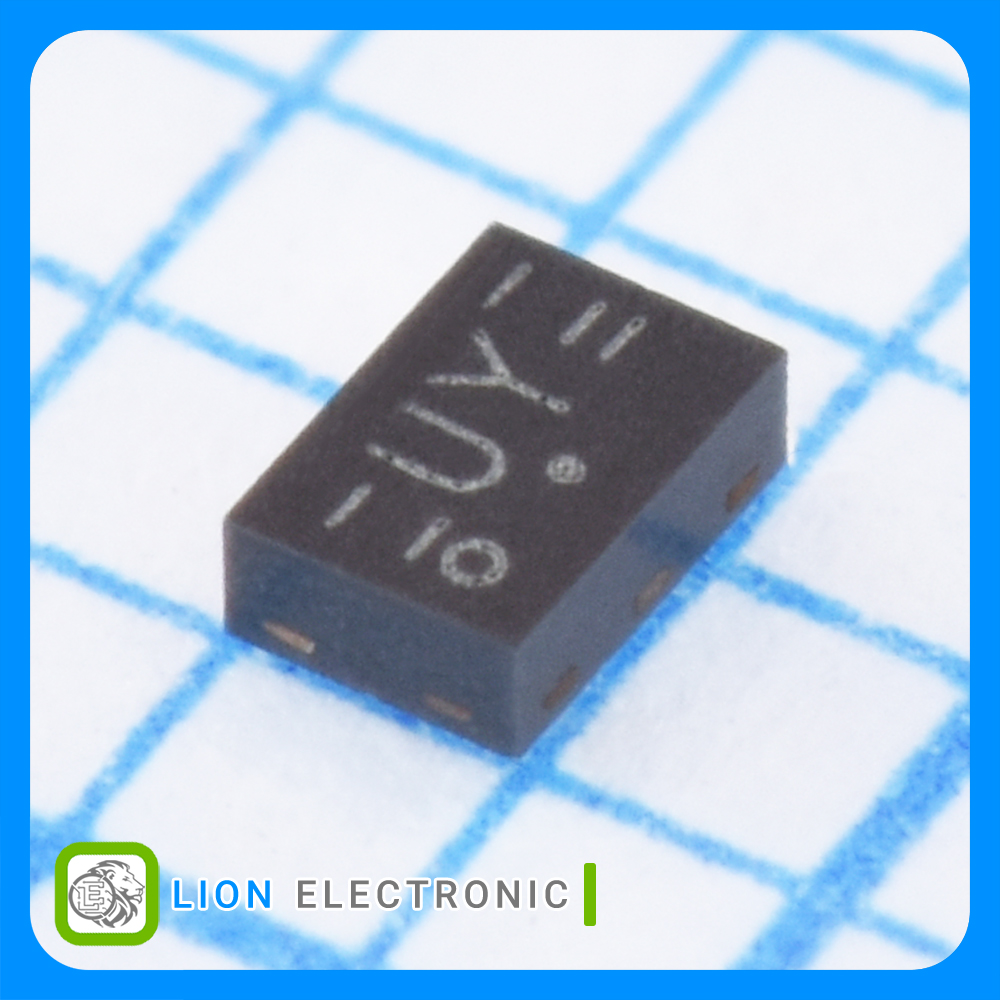

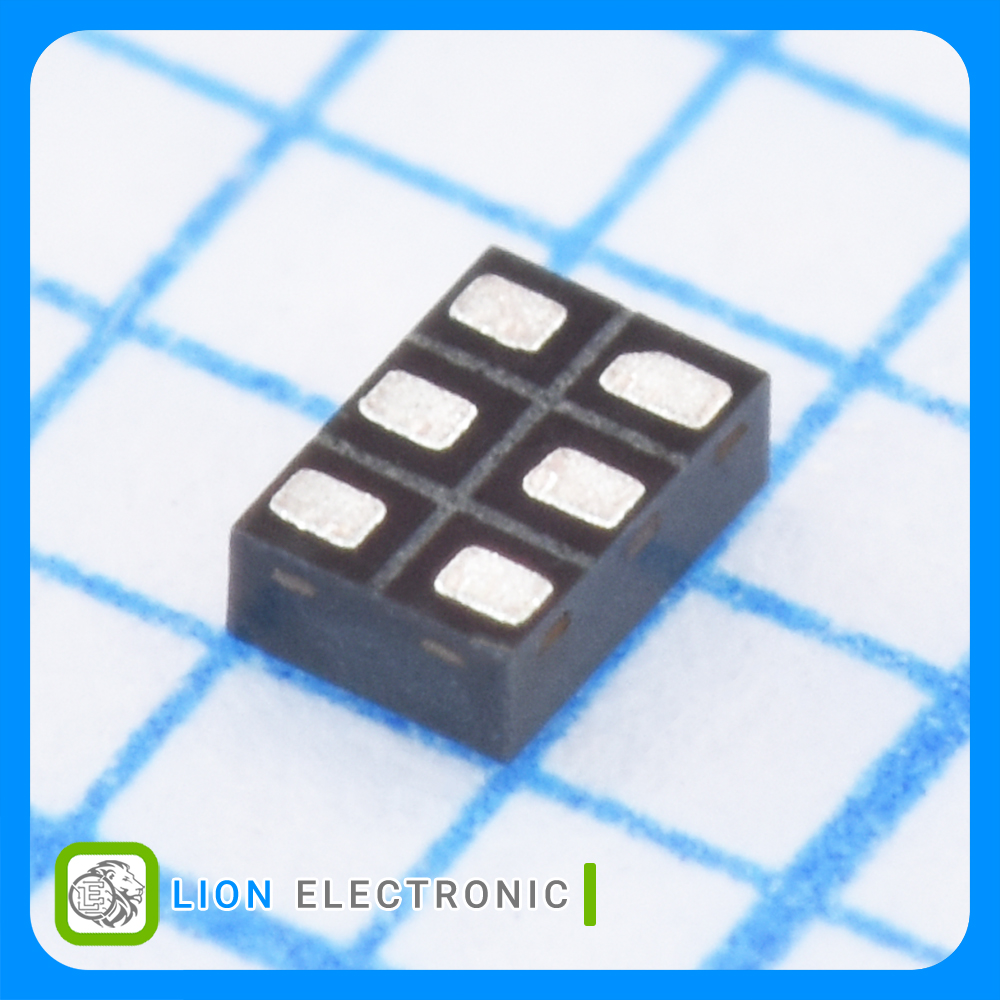

BGU7004,115
BGU7004,115
Part Number
4465
Lion Part
Datasheet
NXP Semiconductors Manufacture
تقویتکننده RF فرکانس 1.559 تا 1.61 گیگاهرتز بهره 17.5dB نویز 1.3dB برای GPS با پکیج XSON-6
Low Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass, 1.559 - 1.61GHz, 17.5dB Gain, NF 1.3dB with XSON-6 Package
معرفی
تقویتکننده RF فرکانس 1.559 تا 1.61 گیگاهرتز بهره 17.5dB نویز 1.3dB برای GPS با پکیج XSON-6
Low Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass, 1.559 - 1.61GHz, 17.5dB Gain, NF 1.3dB with XSON-6 Package
Specifications
- Gain: 17.5dB
- Operating Frequency: 1.559 - 1.61GHz
- NF - Noise Figure: 1.3dB
- P1dB - Compression Point: -8dBm
- OIP3 - Third Order Intercept: 12dBm
- Operating Supply Voltage: 1.5 - 2.85V
- Operating Supply Current: 4.5mA
- Mounting Style: SMD/SMT
- Package/Case: XSON-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات RF آمپلی فایر BGU7004,115
RF آمپلی فایر BGU7004,115
Part Number
12dBm
OIP3 - Third Order Intercept
1.3dB
NF - Noise Figure
-8dBm
P1dB - Compression Point
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
17.5dB
Gain
1.5 - 2.85V
Operating Supply Voltage
1.559 - 1.61GHz
Operating Frequency
4.5mA
Operating Supply Current
XSON-6
Package-Case
