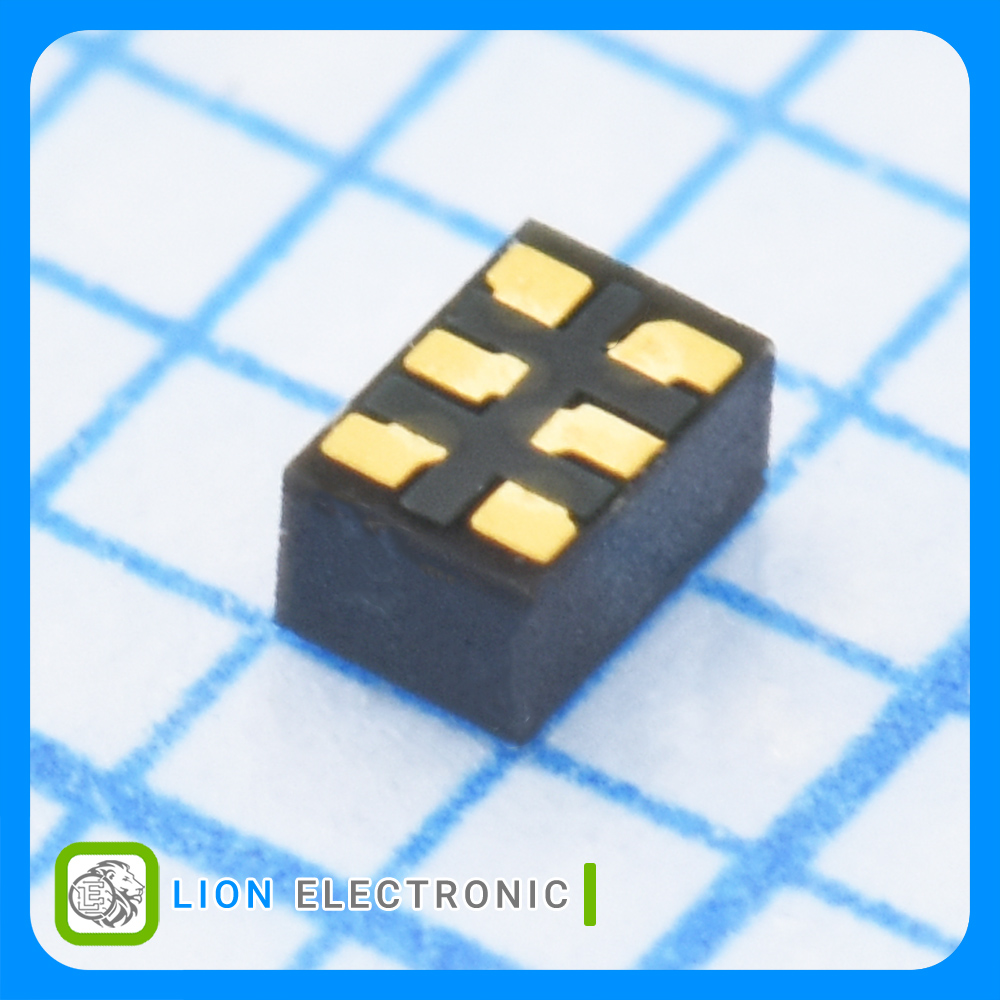

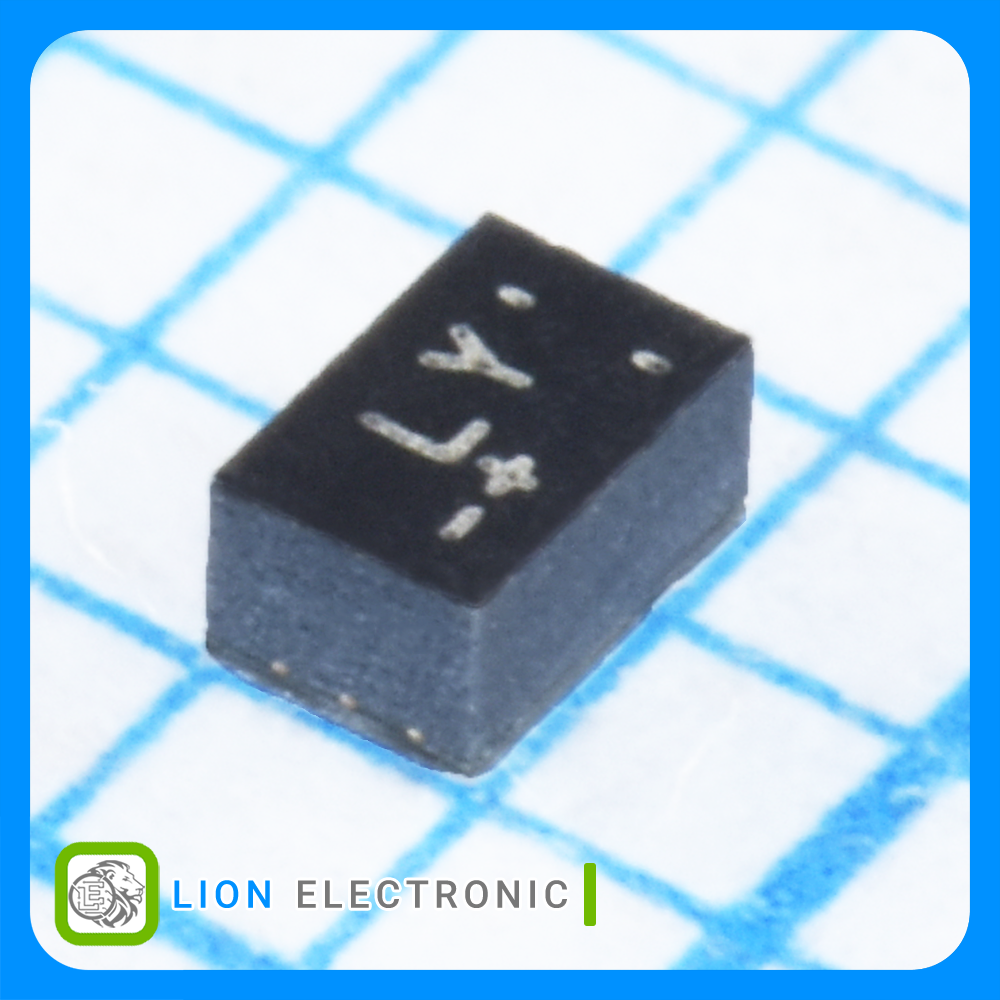

MAX2659ELT+T
MAX2659ELT+T
Part Number
4433
Lion Part
Datasheet
Analog Devices Manufacture
تقویتکننده کمنویز LNA برای GPS/Galileo/GLONASS با گین 20.5dB، نویز 0.8dB، تغذیه 1.6 تا 3.6 ولت و جریان 4.1 میلیآمپر با پکیج UDFN-6
MAX2659 GPS/Galileo/GLONASS Low-Noise Amplifier, 20.5dB Gain, 0.8dB NF, 1.6V-3.6V Supply, 4.1mA, UDFN-6 Package
معرفی
تقویتکننده کمنویز LNA برای GPS/Galileo/GLONASS با گین 20.5dB، نویز 0.8dB، تغذیه 1.6 تا 3.6 ولت و جریان 4.1 میلیآمپر با پکیج UDFN-6
MAX2659 GPS/Galileo/GLONASS Low-Noise Amplifier, 20.5dB Gain, 0.8dB NF, 1.6V-3.6V Supply, 4.1mA, UDFN-6 Package
Specifications
- Gain: 20.5dB
- Operating Frequency: 1 - 2GHz
- NF - Noise Figure: 0.8dB
- P1dB - Compression Point: -12dBm
- OIP3 - Third Order Intercept: -5dBm
- Operating Supply Voltage: 2.85V
- Operating Supply Current: 4.1mA
- Mounting Style: SMD/SMT
- Package/Case: UDFN-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات MAX2659ELT+T
MAX2659ELT+T
Part Number
-5dBm
OIP3 - Third Order Intercept
0.8dB
NF - Noise Figure
-12dBm
P1dB - Compression Point
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
20.5dB
Gain
1 - 2GHz
Operating Frequency
2.85V
Operating Supply Voltage
4.1mA
Operating Supply Current
UDFN-6
Package-Case
