Qorvo
معرفی

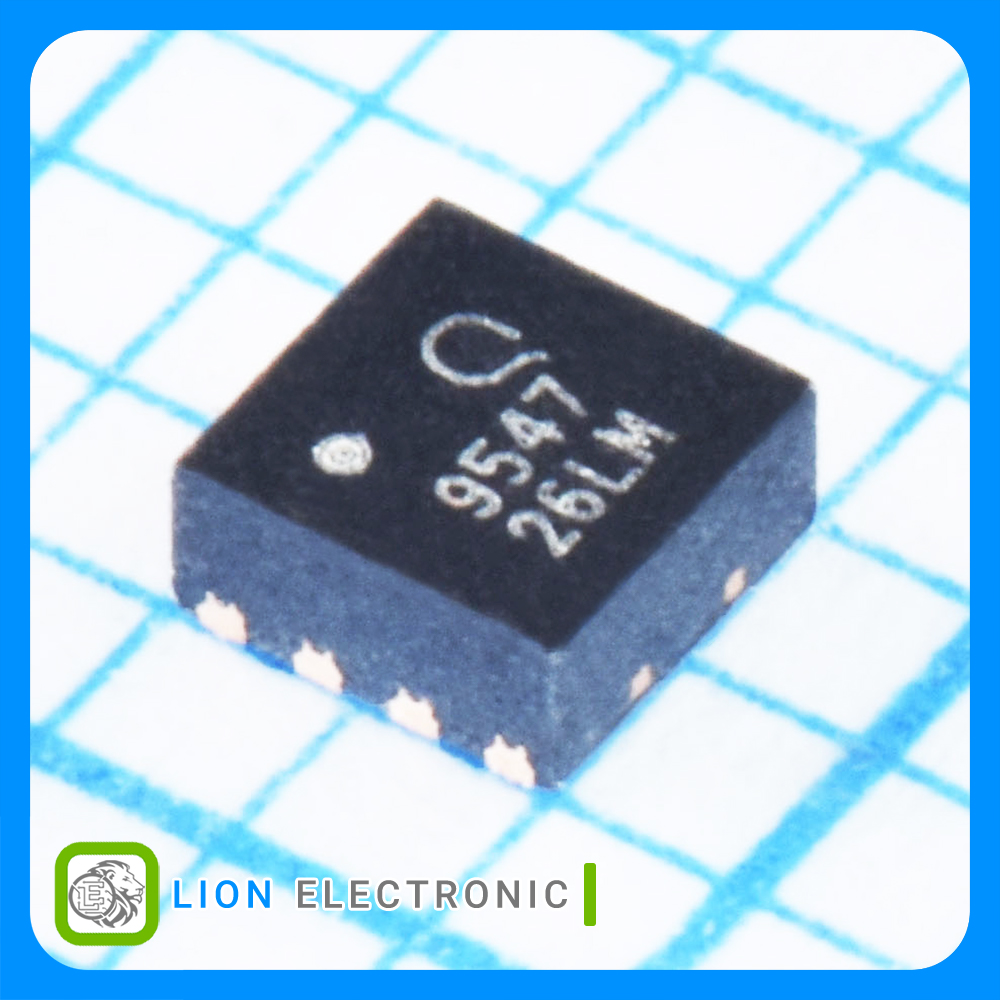

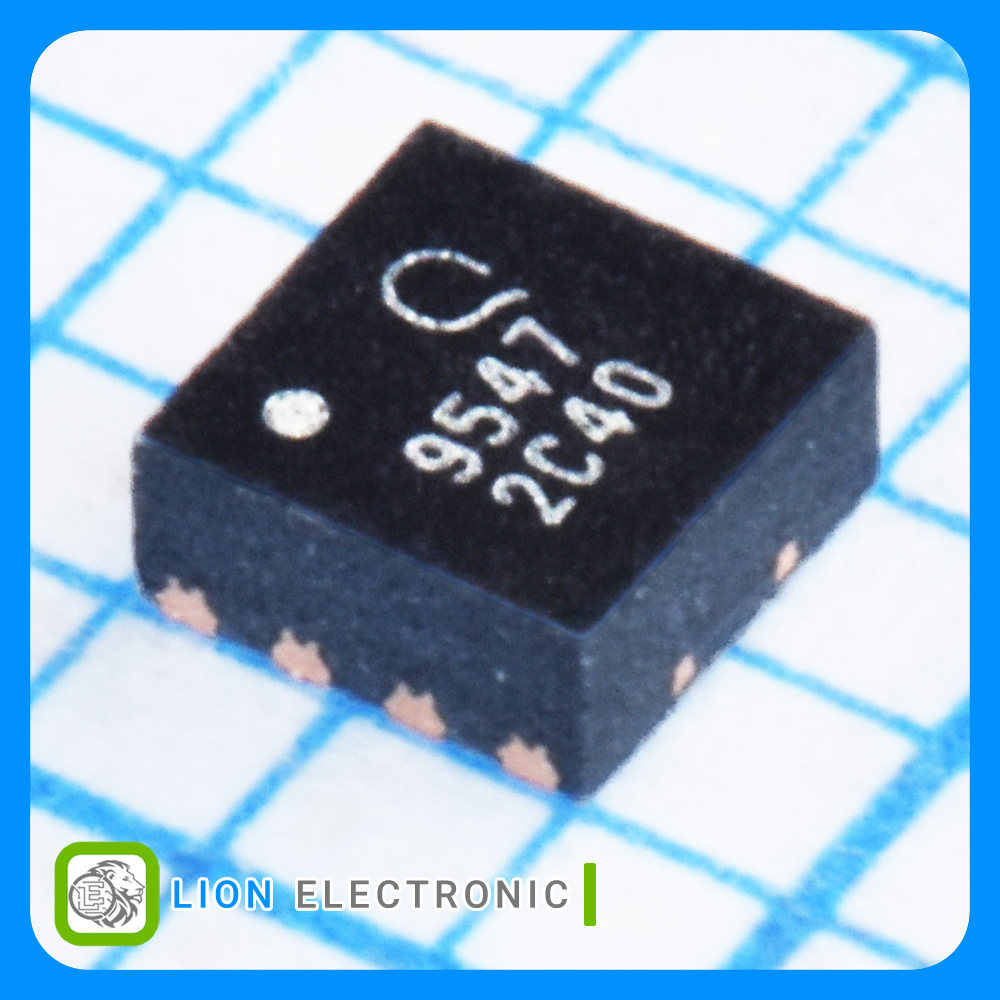

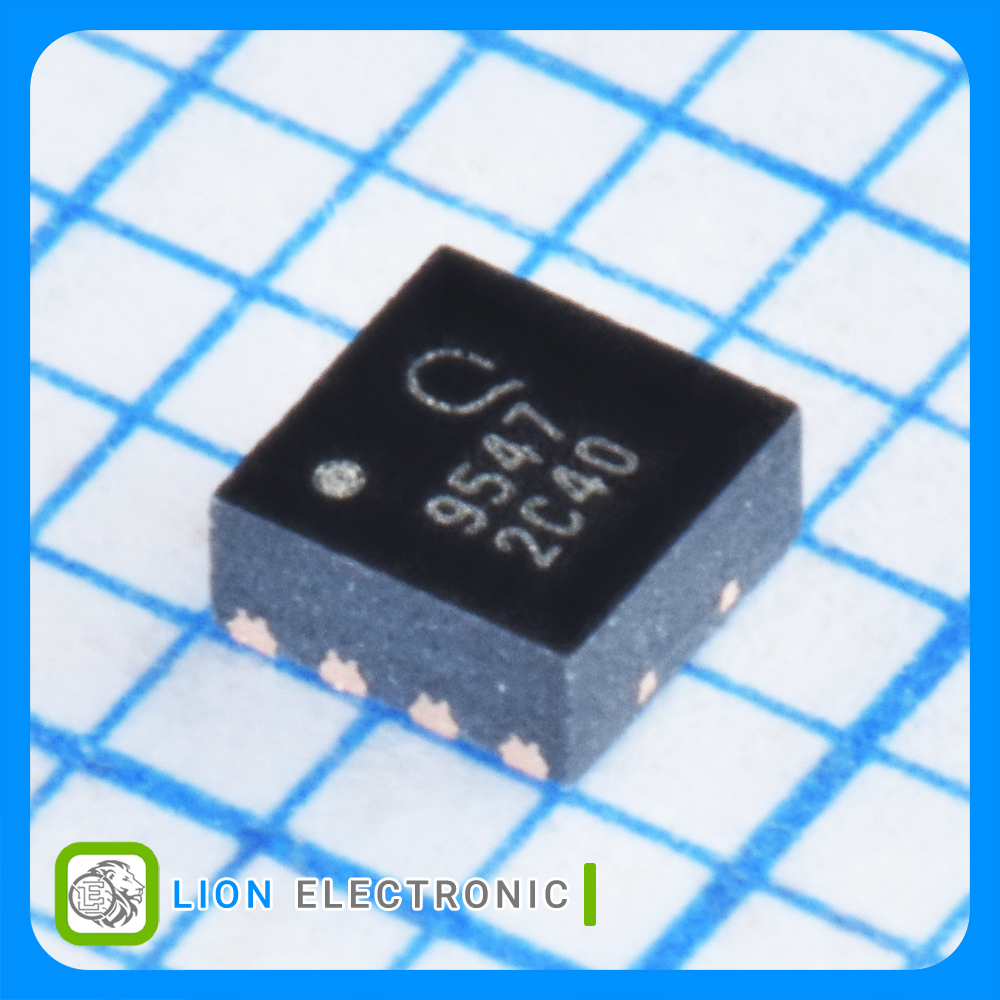

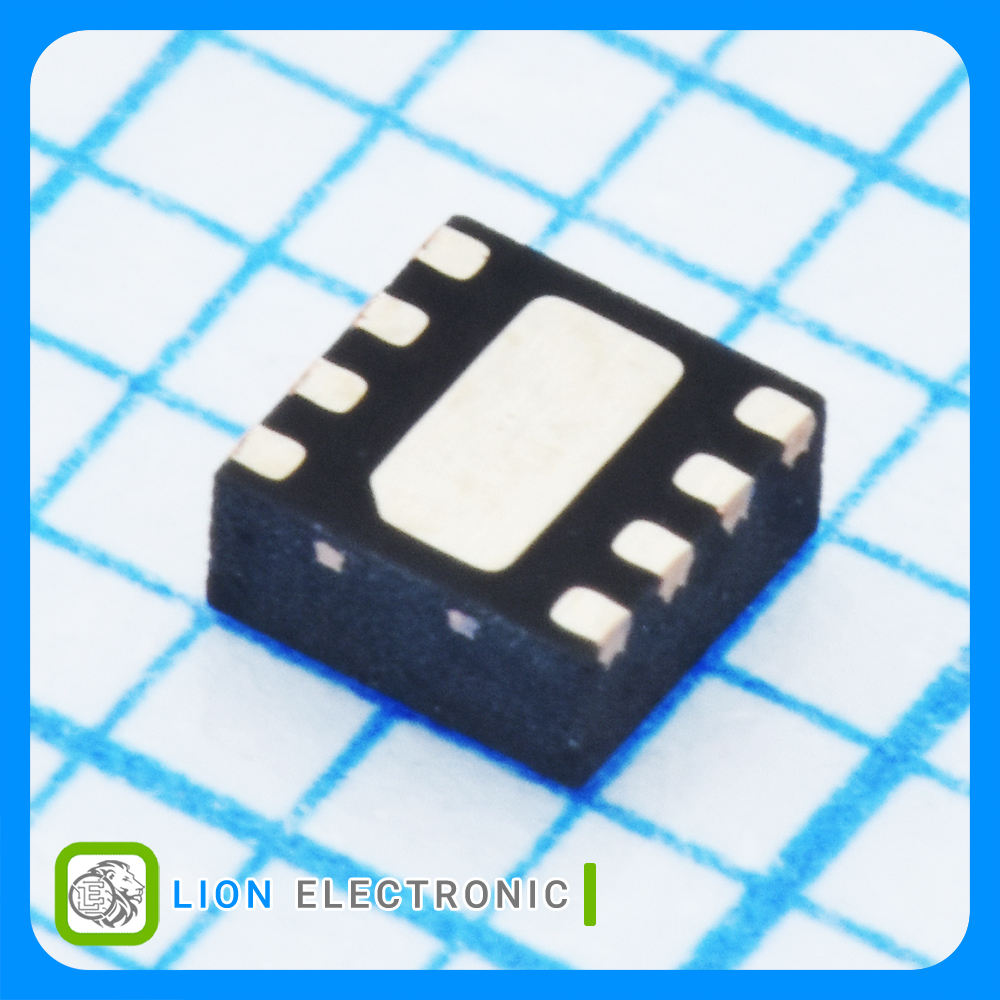

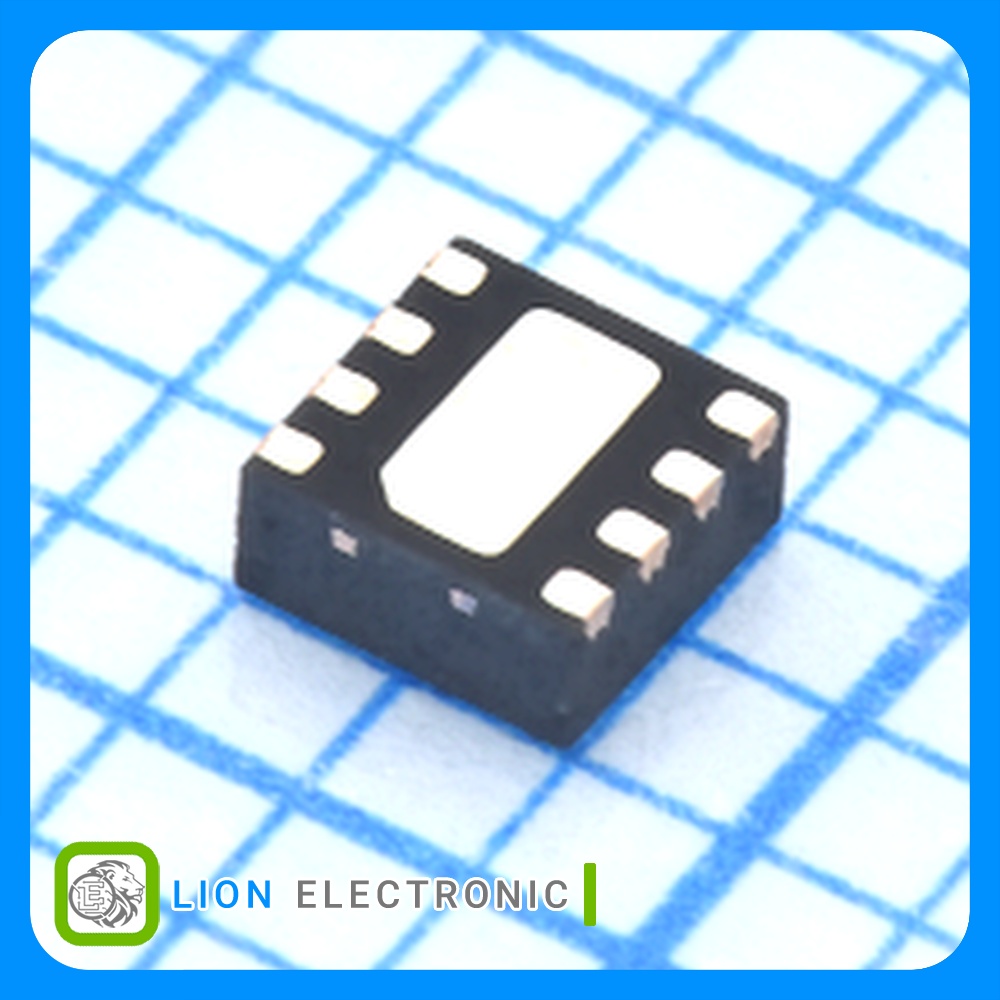

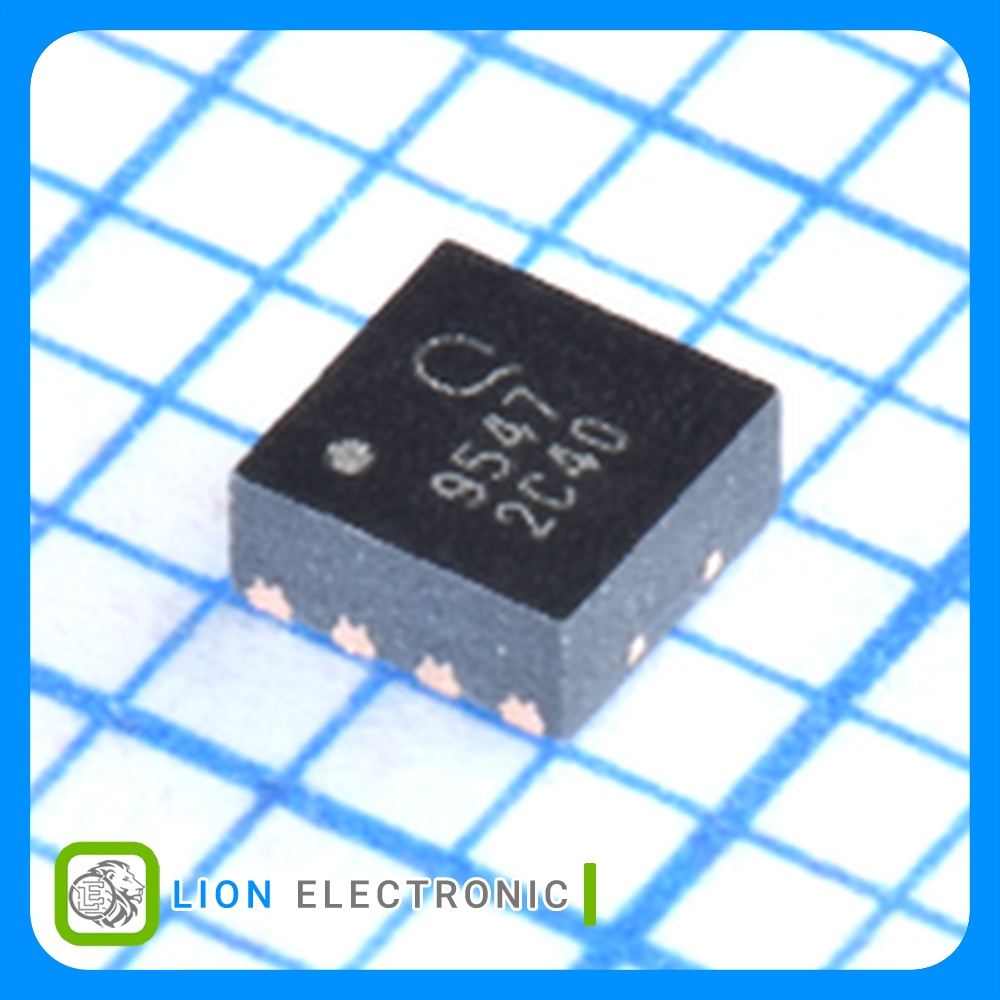

تقویتکننده RF برای LNA فرکانس 0.1 تا 6 گیگاهرتز بهره 19.5dB نویز 0.3dB با پکیج DFN-8
RF Amplifier Ultra Low-Noise LNA 0.1-6GHz, 19.5dB Gain, NF 0.3dB with DFN-8 Package
Specifications
- Gain: 19.5dB
- Operating Frequency: 100MHz - 6GHz
- NF - Noise Figure: 0.3dB
- P1dB - Compression Point: 22.7dBm
- OIP3 - Third Order Intercept: 39.3dBm
- Operating Supply Voltage: 5V
- Operating Supply Current: 65mA
- Mounting Style: SMD/SMT
- Package/Case: DFN-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات QPL9547TR7

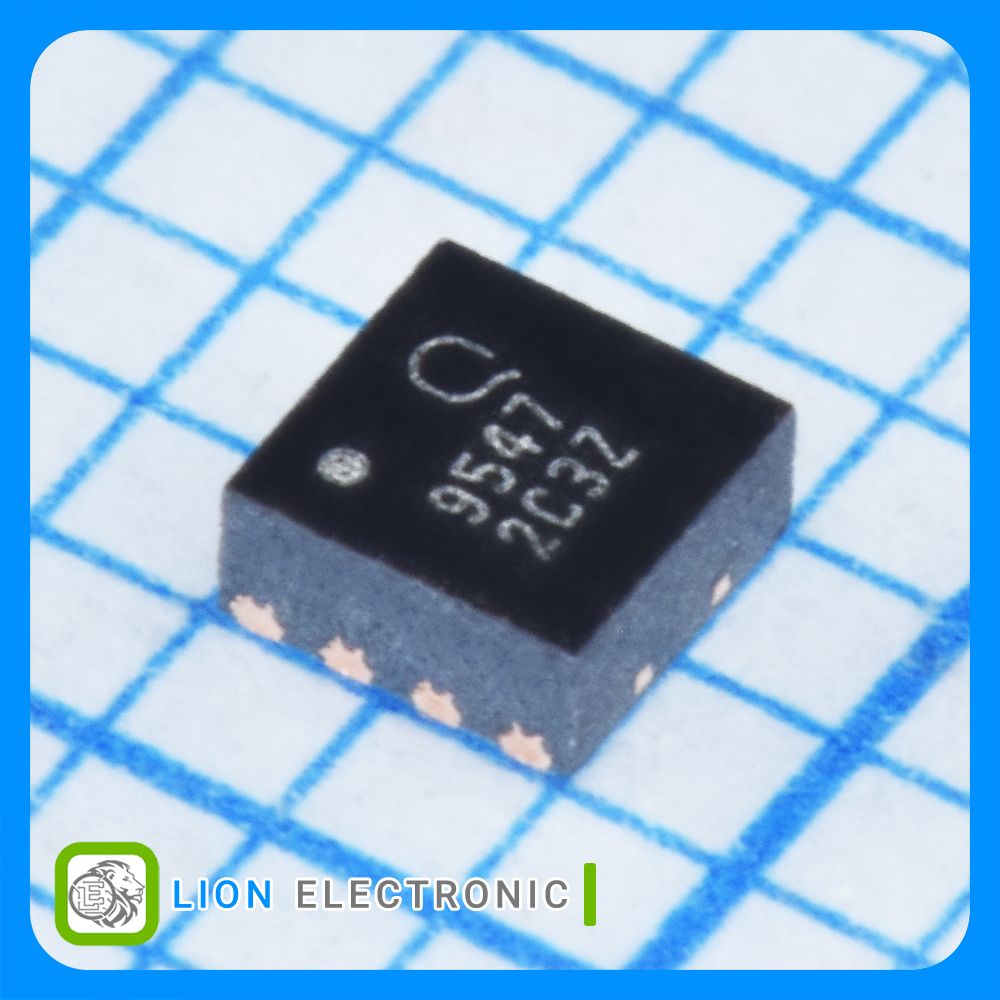

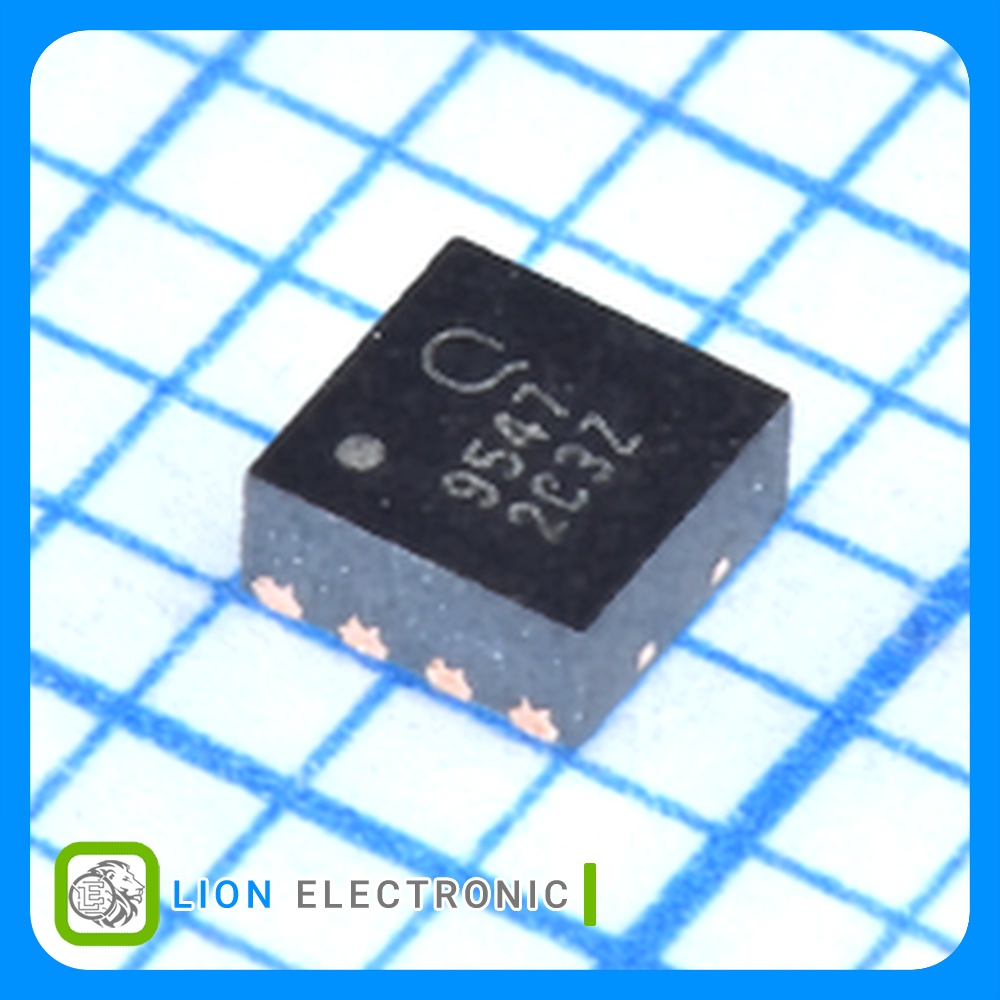

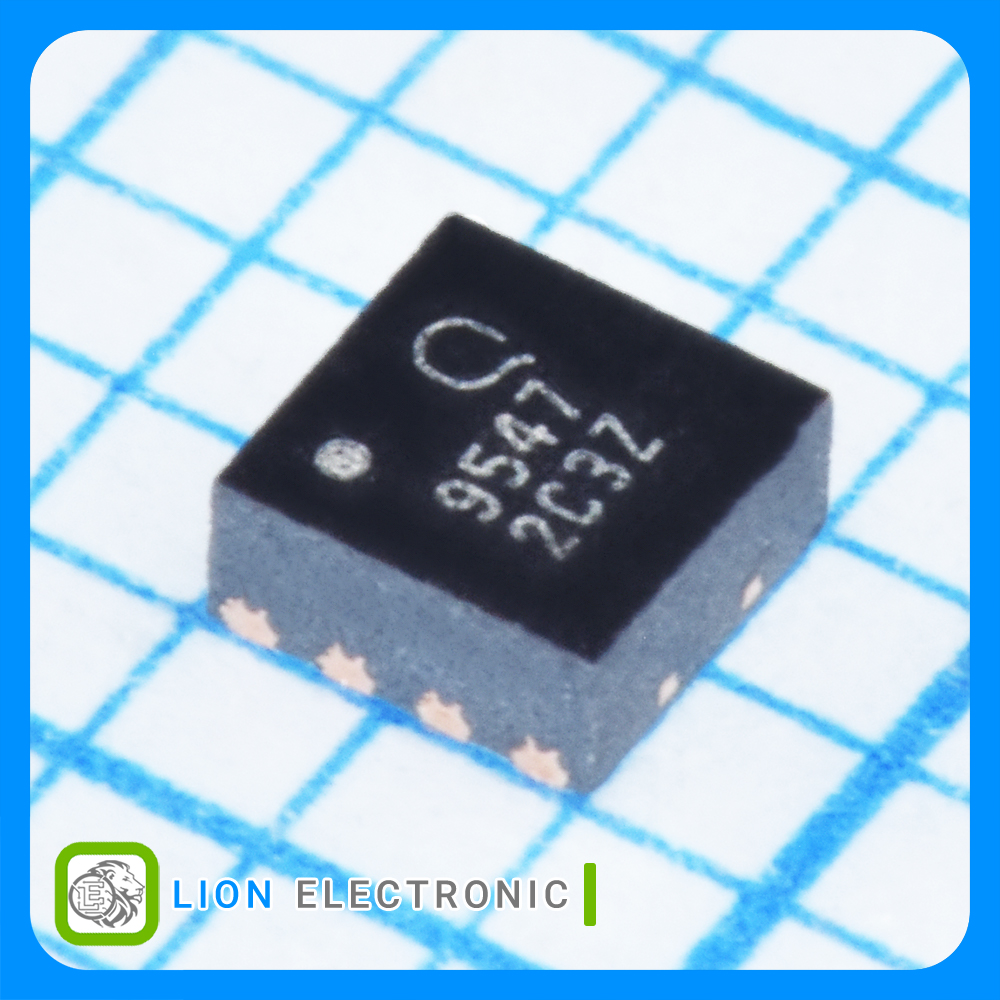

QPL9547TR7
Part Number
0.3dB
NF - Noise Figure
Reel
Packaging
22.7dBm
P1dB - Compression Point
39.3dBm
OIP3 - Third Order Intercept
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+105C
Maximum Operating Temperature
19.5dB
Gain
100MHz - 6GHz
Operating Frequency
DFN-8
Package-Case
5V
Operating Supply Voltage
65mA
Operating Supply Current
