ال ای دی RGB R:619-624-G:524-537-B:463-466nm با جریان 25 میلیآمپر 55+80+80 میلیوات با پکیج 0805

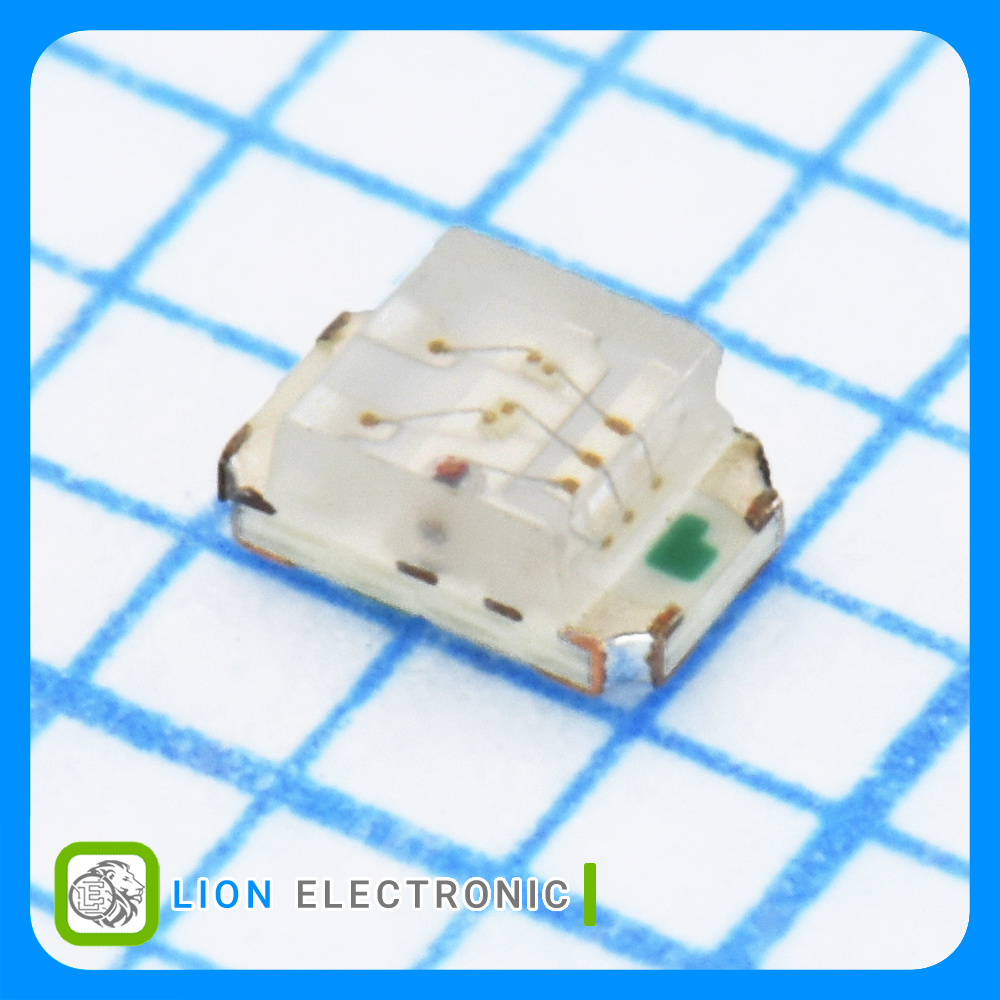

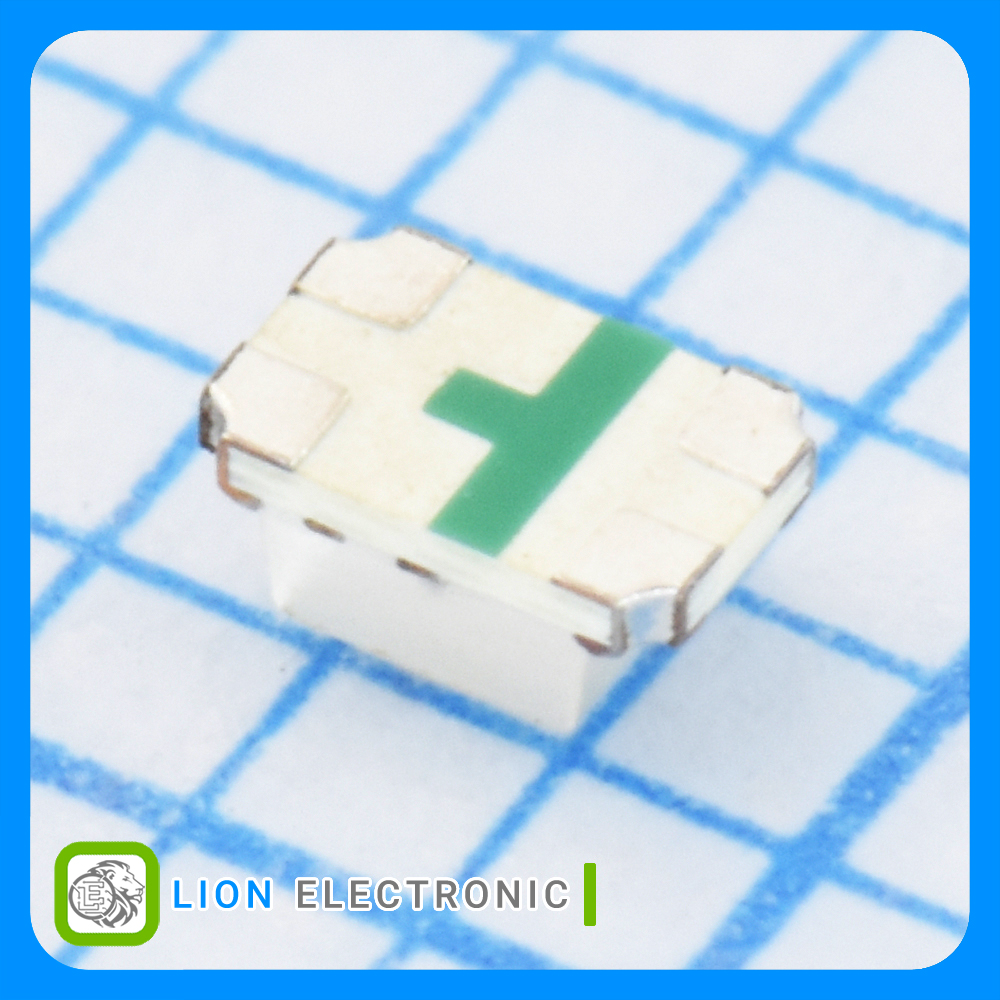

LED RGB R:619-624-G:524-537-B:463-466nm, 25mA, 55+80+80mW with 0805 Package
Specifications
- Illumination Color: RGB
- Vf - Forward Voltage: R:1.9-2.1-G:2.6-2.8-B:2.6-2.8V
- If - Forward Current: 25mA
- Power Rating: 55+80+80mW
- Wavelength/Color Temperature: R:619-624-G:524-537-B:463-466nm
- Luminous Intensity: R:42-59-G:220-286-B:52-68mcd
- Package/Case: 0805 (2012 metric)
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ال ای دی(RGB) XL-2012RGBC
ال ای دی(RGB) XL-2012RGBC
Part Number
55+80+80mW
Power Rating
Reel
Packaging
-30C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
25mA
If - Forward Current
RGB
Illumination Color
R:619-624-G:524-537-B:463-466nm
Wavelength-Color Temperature
0805 (2012 metric)
Package-Case
R:42-59-G:220-286-B:52-68mcd
Luminous Intensity
R:1.9-2.1-G:2.6-2.8-B:2.6-2.8V
Vf - Forward Voltage
