XINGLIGHT
معرفی
ال ای دی قرمز 615-630 نانومتر 20 میلیآمپر با ابعاد 3.2 x 1.25 x 1.1 میلیمتر

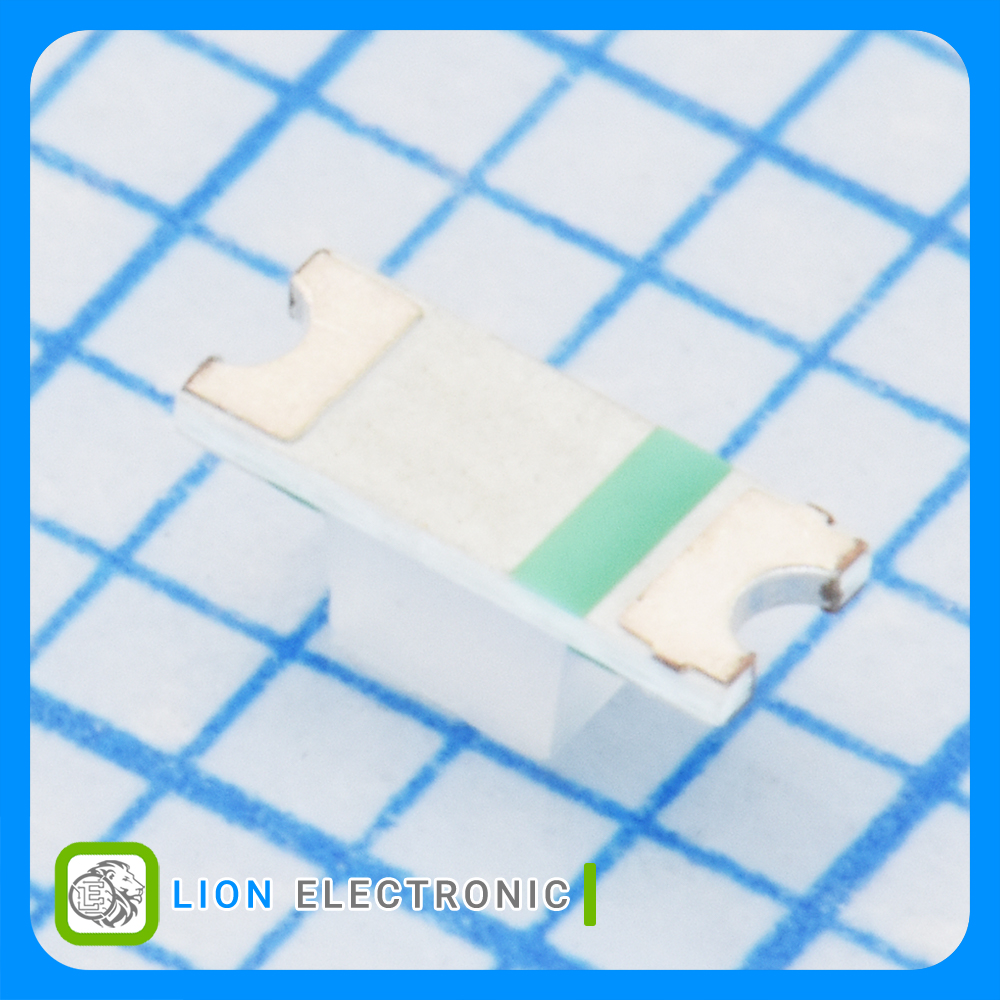

Red LED 615-630nm, 20mA, 50mW, 3.2 x 1.25 x 1.1mm
Specifications
- Illumination Color: Red
- Vf - Forward Voltage: 1.7-2.3V
- If - Forward Current: 20mA
- Power Rating: 50mW
- Wavelength/Color Temperature: 615-630nm
- Luminous Intensity: 80-210mcd
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات XL-3215SURC

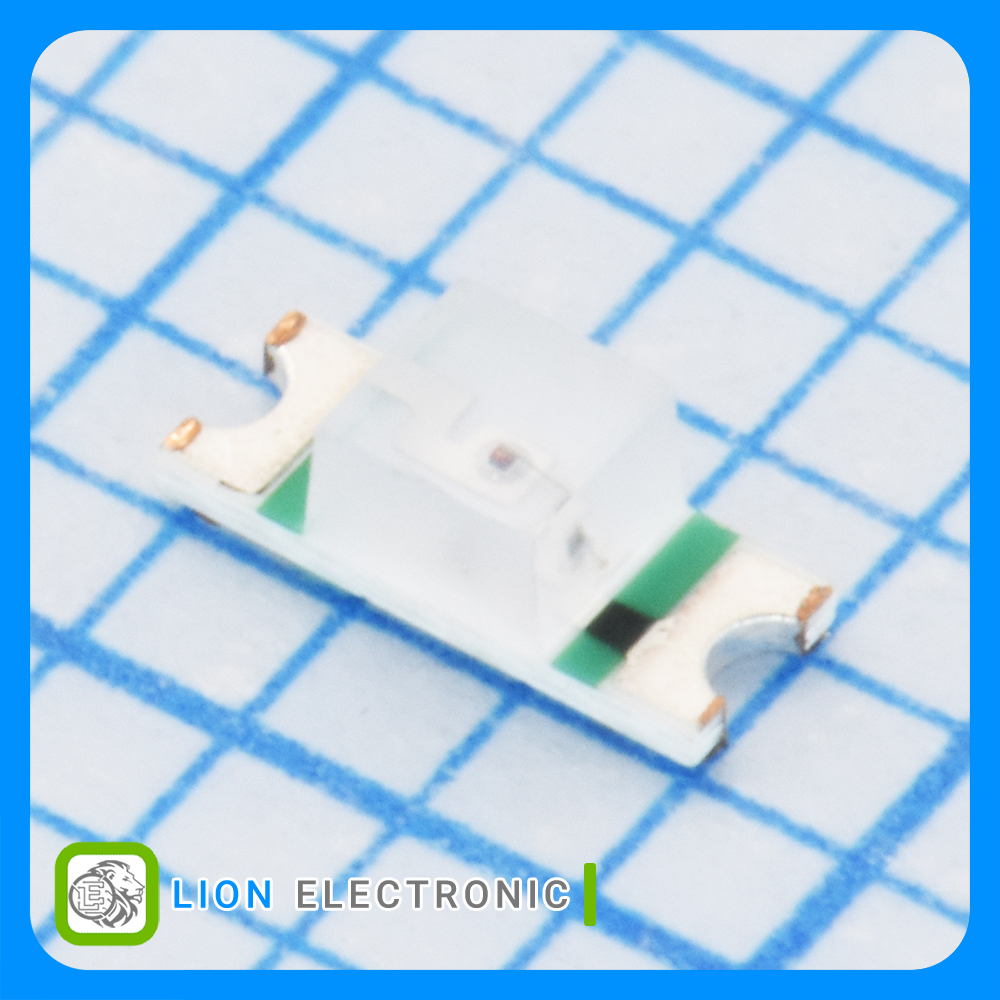

XL-3215SURC
Part Number
50mW
Power Rating
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Red
Illumination Color
+85C
Maximum Operating Temperature
20mA
If - Forward Current
80-210mcd
Luminous Intensity
615-630nm
Wavelength-Color Temperature
1.7-2.3V
Vf - Forward Voltage
-
Package-Case
