XINGLIGHT
معرفی
ال ای دی سبز 515 تا 530 نانومتر 20 میلیآمپر 70 میلیوات با ابعاد 3.2x1.25x1.1 میلیمتر

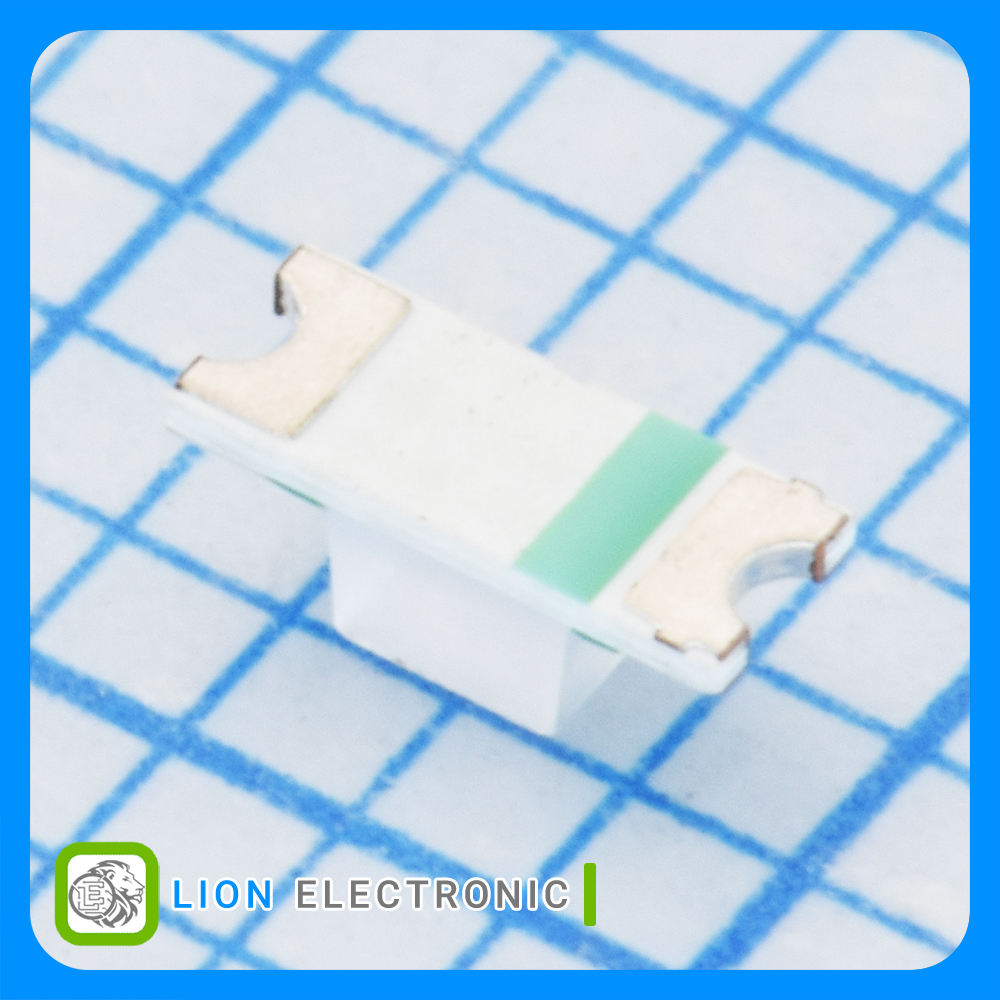

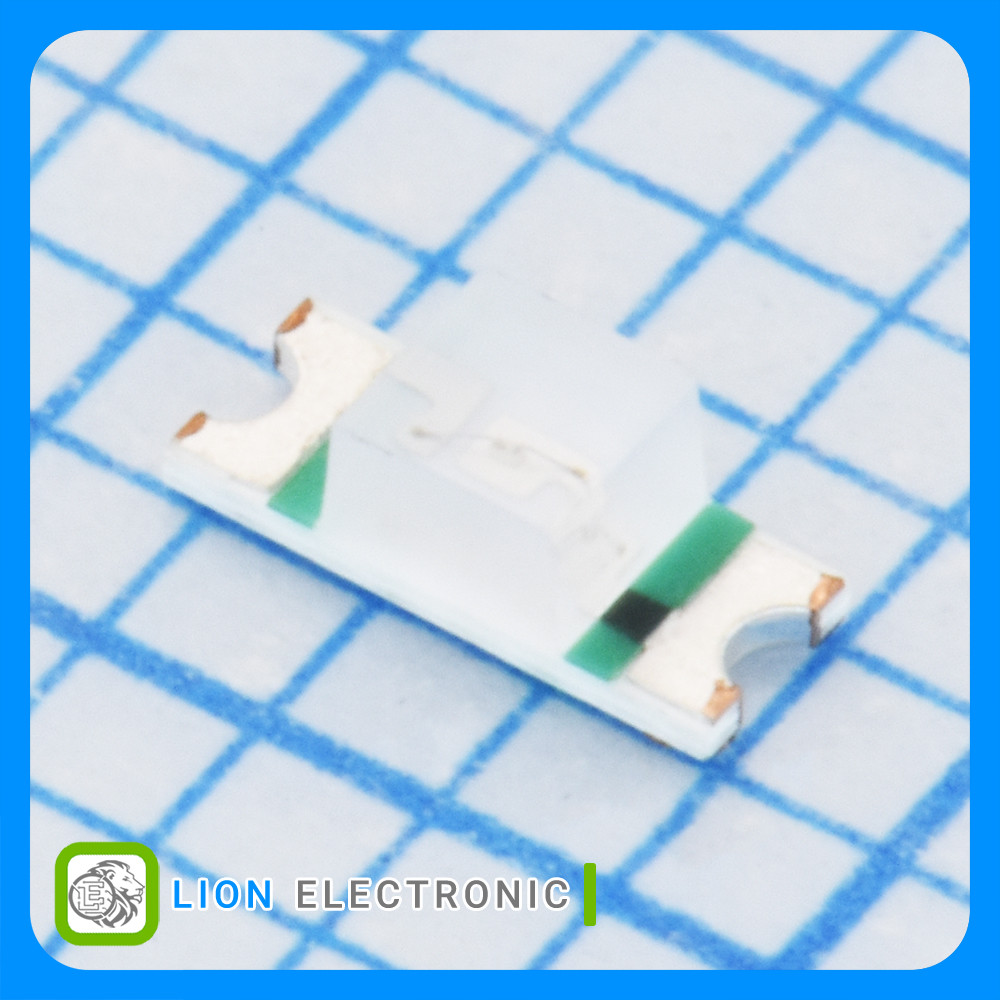

LED Emerald Green 515-530nm 20mA 70mW 3.2 x 1.25 x 1.1mm
Specifications
- Illumination Color: Emerald green
- Vf - Forward Voltage: 2.5-3.3V
- If - Forward Current: 20mA
- Power Rating: 70mW
- Wavelength/Color Temperature: 515-530nm
- Luminous Intensity: 550-1150mcd
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C

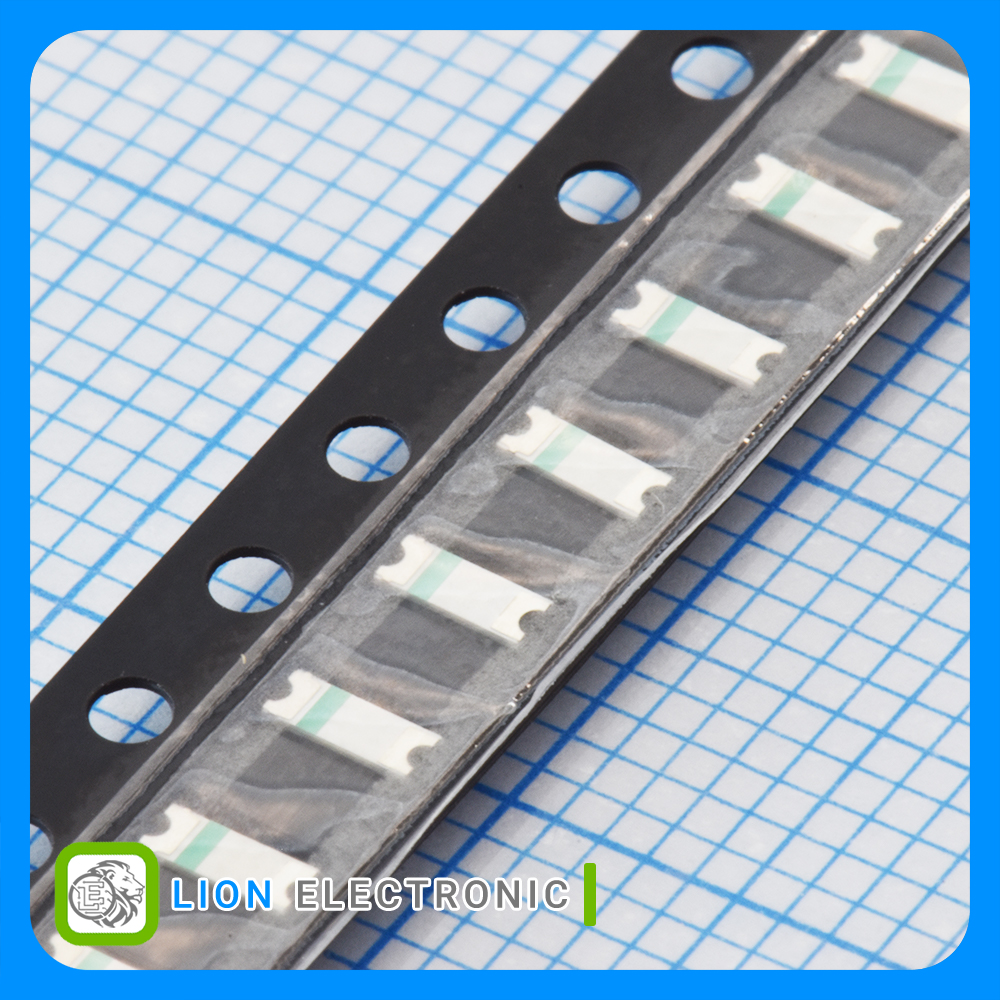

- Packaging: Reel
مشخصات XL-3215UGC
XL-3215UGC
Part Number
Emerald green
Illumination Color
Reel
Packaging
-40C
Minimum Operating Temperature
70mW
Power Rating
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
20mA
If - Forward Current
515-530nm
Wavelength-Color Temperature
550-1150mcd
Luminous Intensity
2.5-3.3V
Vf - Forward Voltage
-
Package-Case
