XINGLIGHT
معرفی
ال ای دی سبز شفاف با طول موج 515-535nm (531nm) جریان 20 میلیآمپر (25 میلیآمپر) توان 70 میلیوات با پکیج 0402

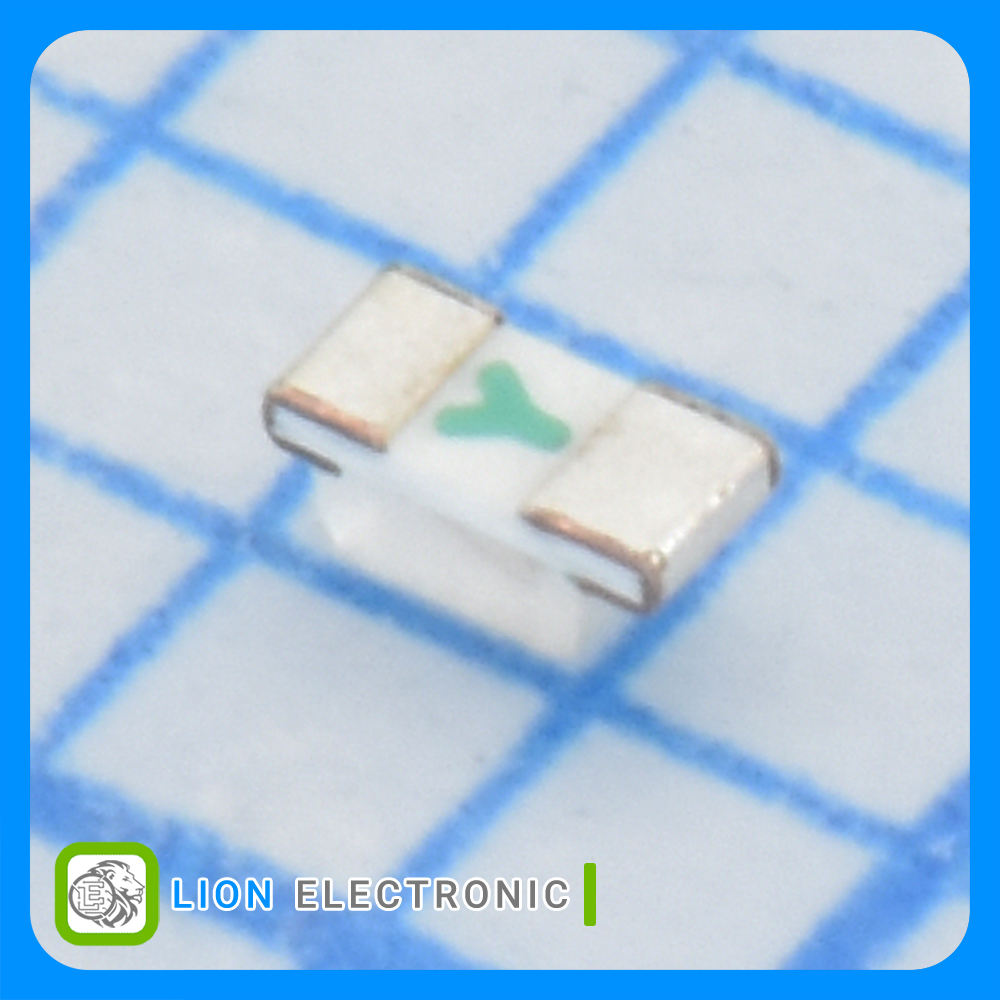

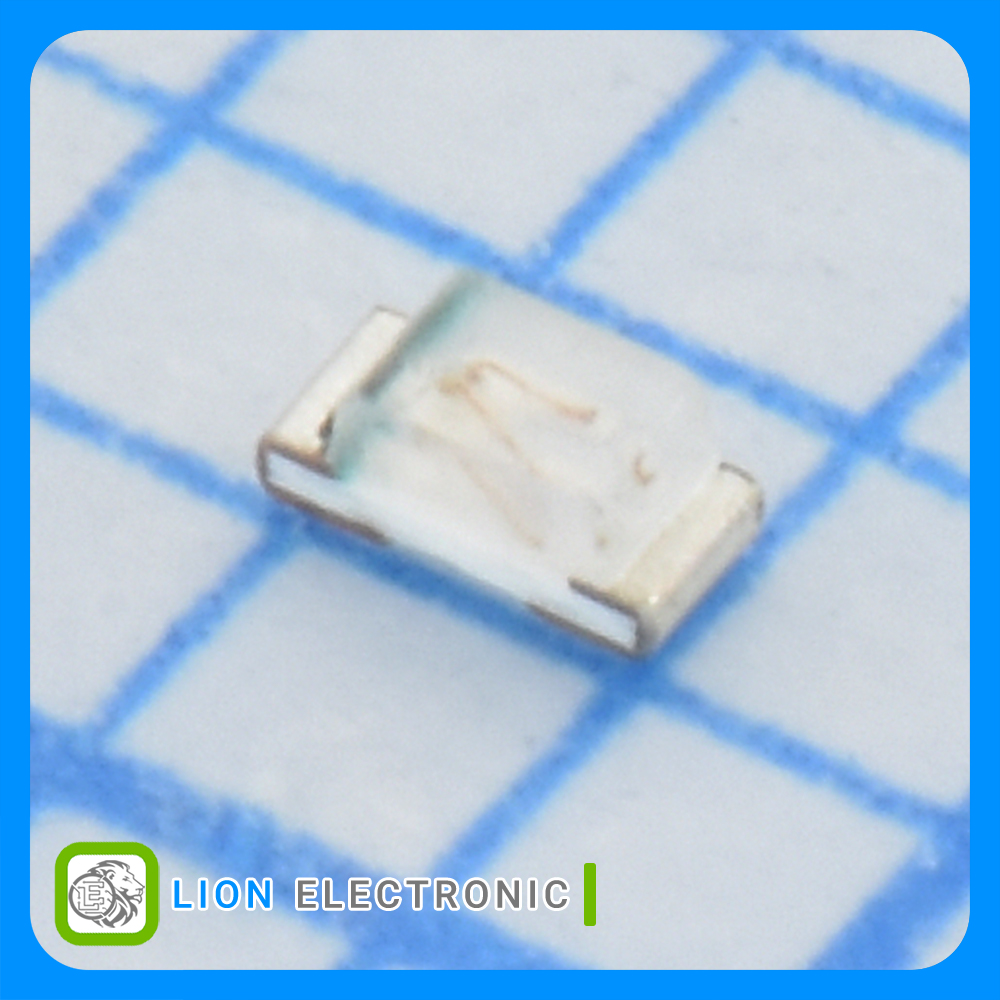

LED Green Water 515-535nm (531nm), 20mA (25mA), 70mW with 0402 Package
Specifications
- Illumination Color: Green Water
- Vf - Forward Voltage: 2.6V
- If - Forward Current: 20mA
- Power Rating: 70mW
- Wavelength/Color Temperature: 515-535nm
- Luminous Intensity: 350mcd - 900mcd
- Package/Case: 0402(1005 metric)
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات XL-1005UGC
XL-1005UGC
Part Number
Reel
Packaging
-40C
Minimum Operating Temperature
70mW
Power Rating
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
20mA
If - Forward Current
Green Water
Illumination Color
515-535nm
Wavelength-Color Temperature
350mcd - 900mcd
Luminous Intensity
0402(1005 metric)
Package-Case
2.6V
Vf - Forward Voltage
