معرفی
ال ای دی زرد 585 تا 595 نانومتر 20 میلیآمپر با ابعاد 3.2x1.25x1.1 میلیمتر
LED Yellow 585-595nm 20mA 50mW 3.2 x 1.25 x 1.1mm
Specifications
- Illumination Color: Yellow
- Vf - Forward Voltage: 1.7-2.3V
- If - Forward Current: 20mA
- Power Rating: 50mW
- Wavelength/Color Temperature: 585-595nm
- Luminous Intensity: 50-180mcd
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات XL-3215UYC

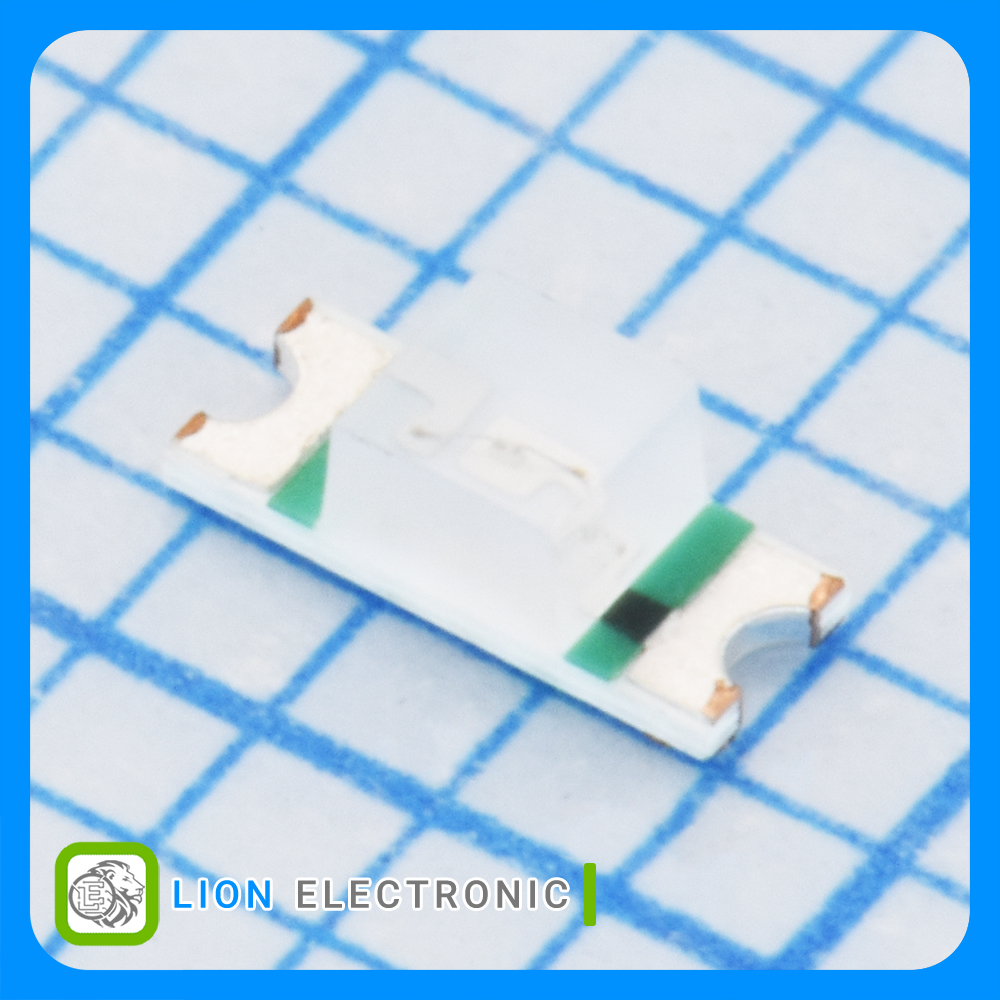

XL-3215UYC
Part Number
50mW
Power Rating
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
20mA
If - Forward Current
50-180mcd
Luminous Intensity
+85C
Maximum Operating Temperature
Yellow
Illumination Color
585-595nm
Wavelength-Color Temperature
1.7-2.3V
Vf - Forward Voltage
-
Package-Case
