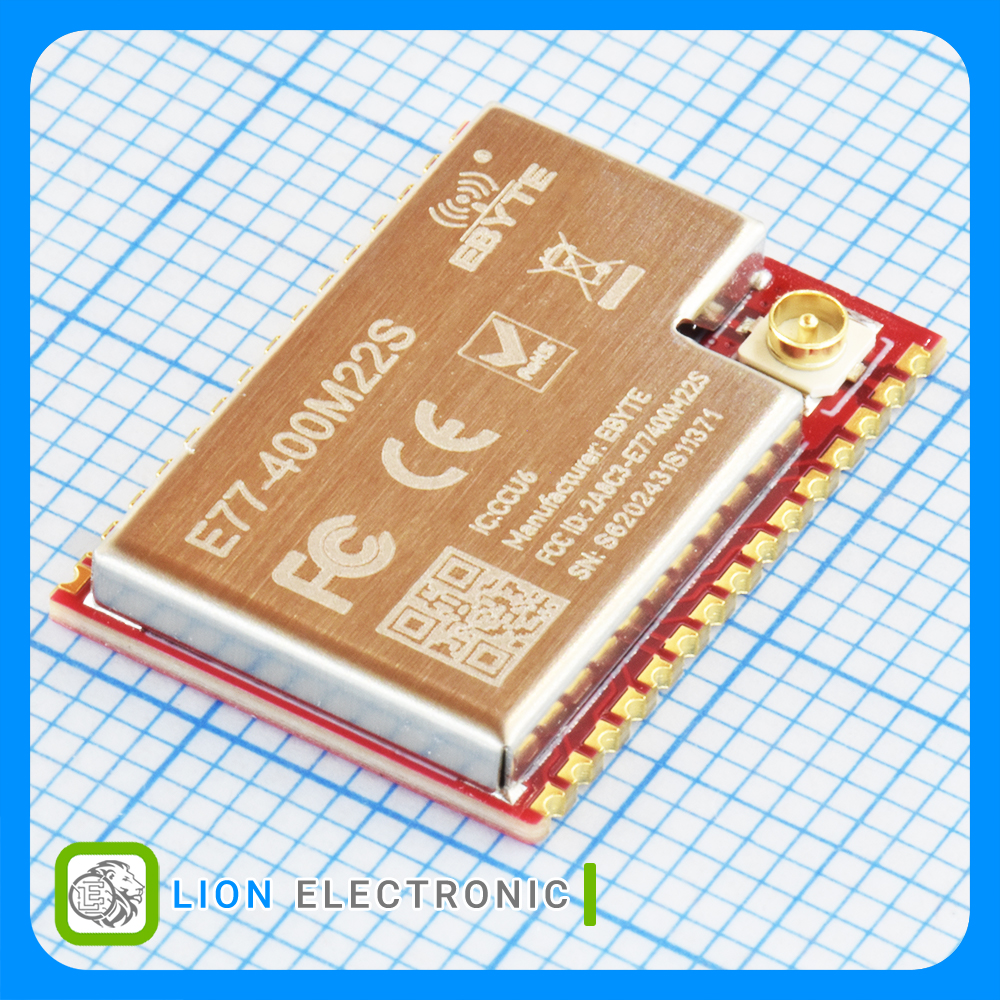

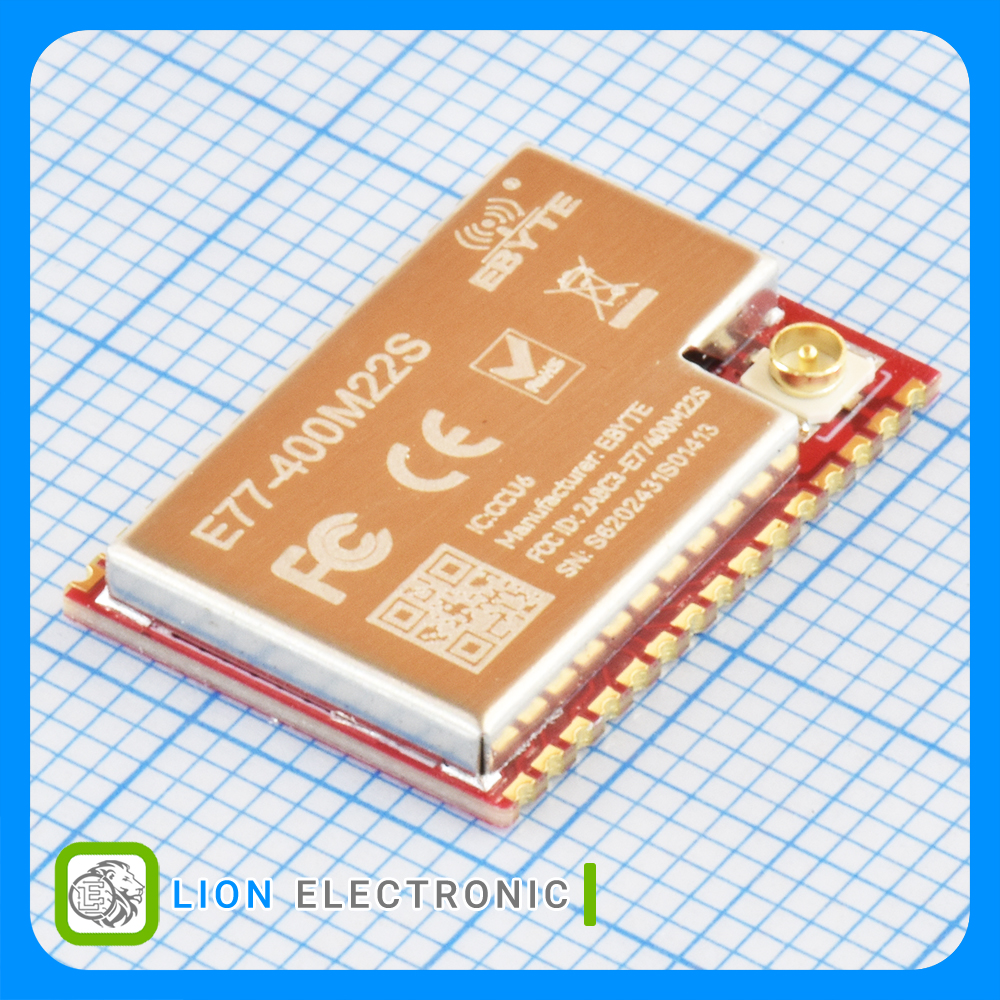

E77-400M22S
E77-400M22S
Part Number
3509
Lion Part
Datasheet
EBYTE Manufacture
ماژول بیسیم LoRa مبتنی بر STM32WLE5CCU6 (ARM Cortex-M4 + LoRa SoC) با فرکانس 410 تا 510 مگاهرتز و توان 21.5dBm

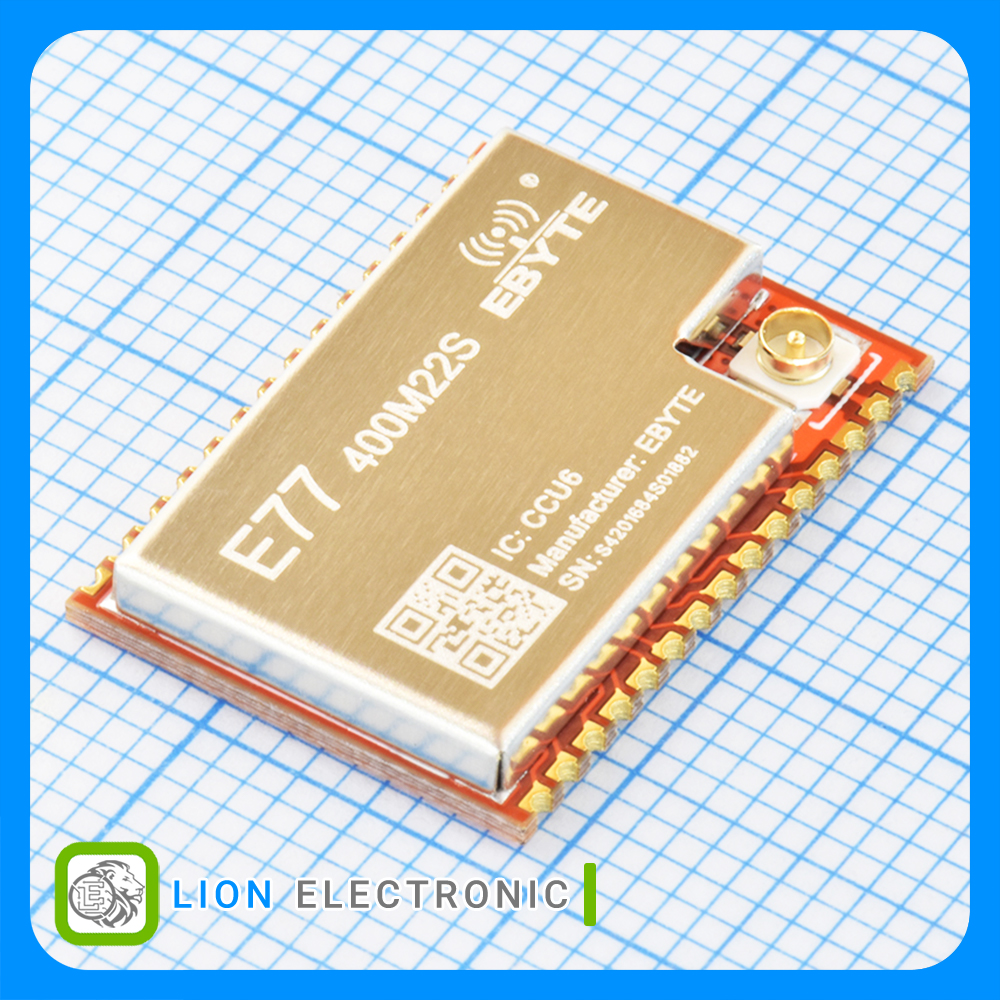

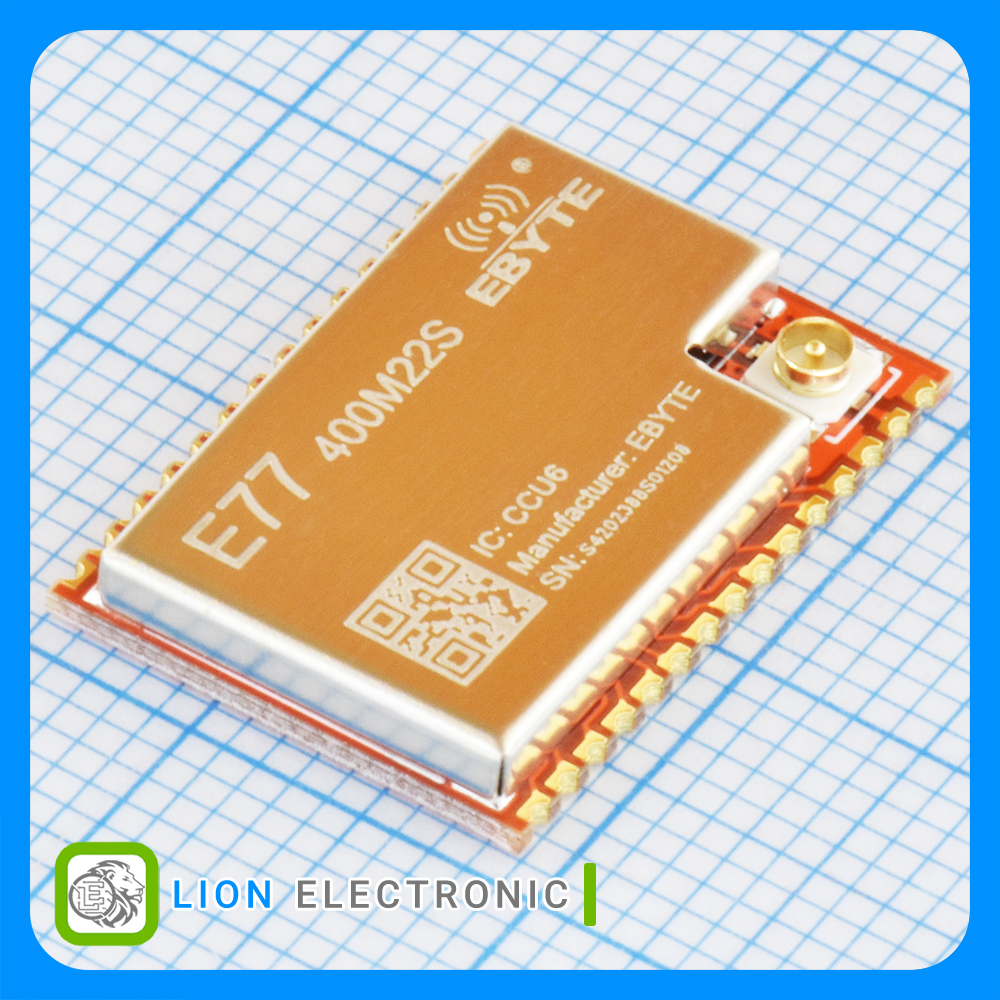

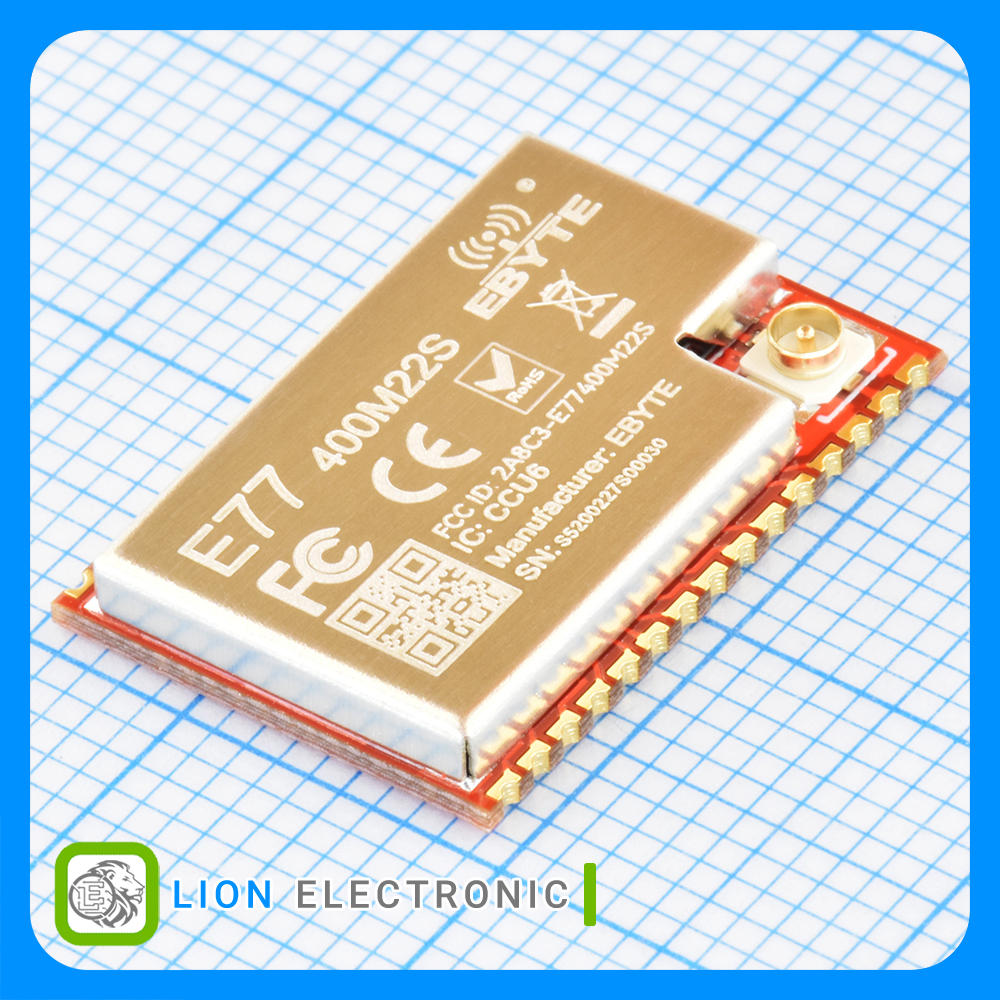

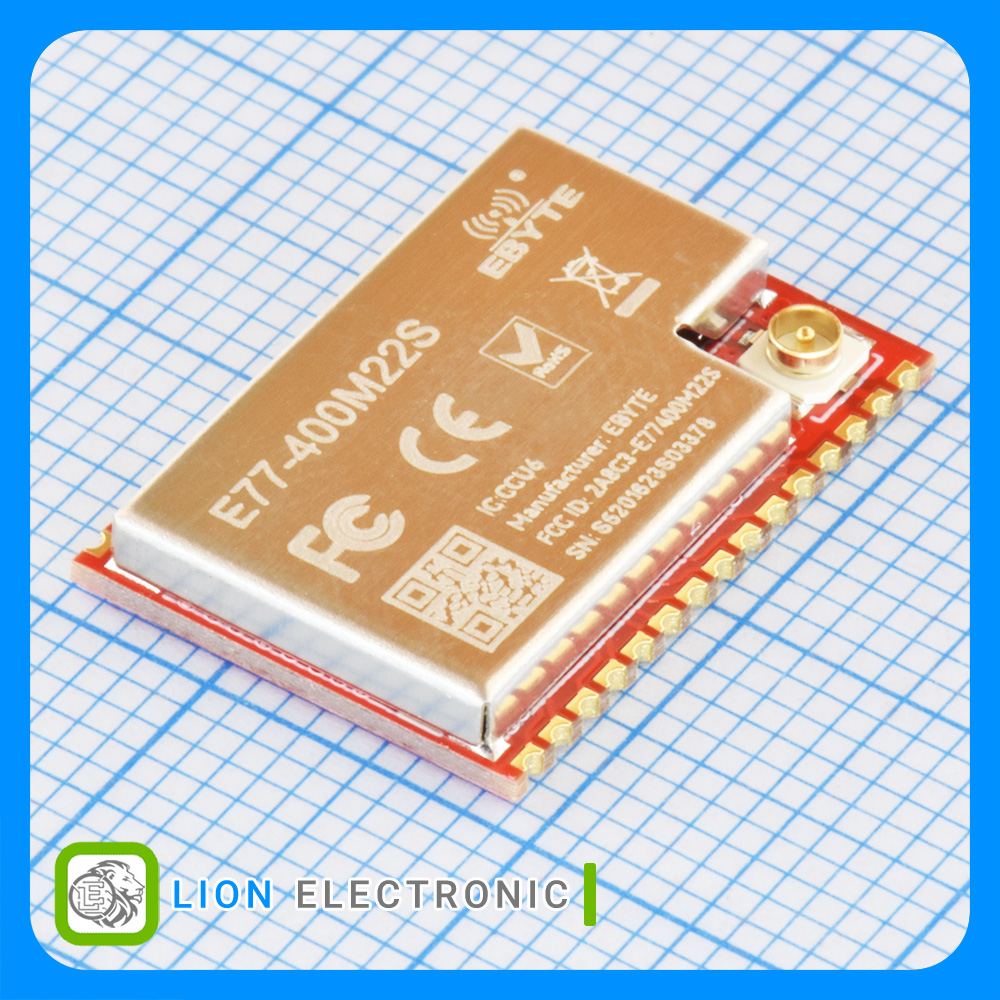

LoRa Wireless Module Based on STM32WLE5CCU6 (ARM Cortex-M4 + LoRa SoC), 410-510MHz, 21.5dBm with IPEX Antenna Connector
معرفی
ماژول بیسیم LoRa مبتنی بر STM32WLE5CCU6 (ARM Cortex-M4 + LoRa SoC) با فرکانس 410 تا 510 مگاهرتز و توان 21.5dBm
LoRa Wireless Module Based on STM32WLE5CCU6 (ARM Cortex-M4 + LoRa SoC), 410-510MHz, 21.5dBm with IPEX Antenna Connector
Specifications
- Product: LoRa wireless module
- Interface Type: ADC, GPIO, I2C, SPI, UART
- Antenna Connector Type: IPEX
- Frequency: 410MHz to 510MHz
- Output Power: 21.5dBm
- Operating Supply Voltage: 1.8 - 3.6V
- Supply Current Transmitting: 128mA
- Supply Current Receiving: 14mA
- Dimensions: 14mm x 20mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات E77-400M22S
E77-400M22S
Part Number
IPEX
Antenna Connector Type
Reel
Packaging
-40C
Minimum Operating Temperature
141.3mW
Output Power
+85C
Maximum Operating Temperature
14mA
Supply Current Receiving
128mA
Supply Current Transmitting
14mm x 20mm
Dimensions
ADC, GPIO, I2C, SPI, UART
Interface Type
410MHz to 510MHz
Frequency
1.8 - 3.6V
Operating Supply Voltage
LoRa wireless module
Product
