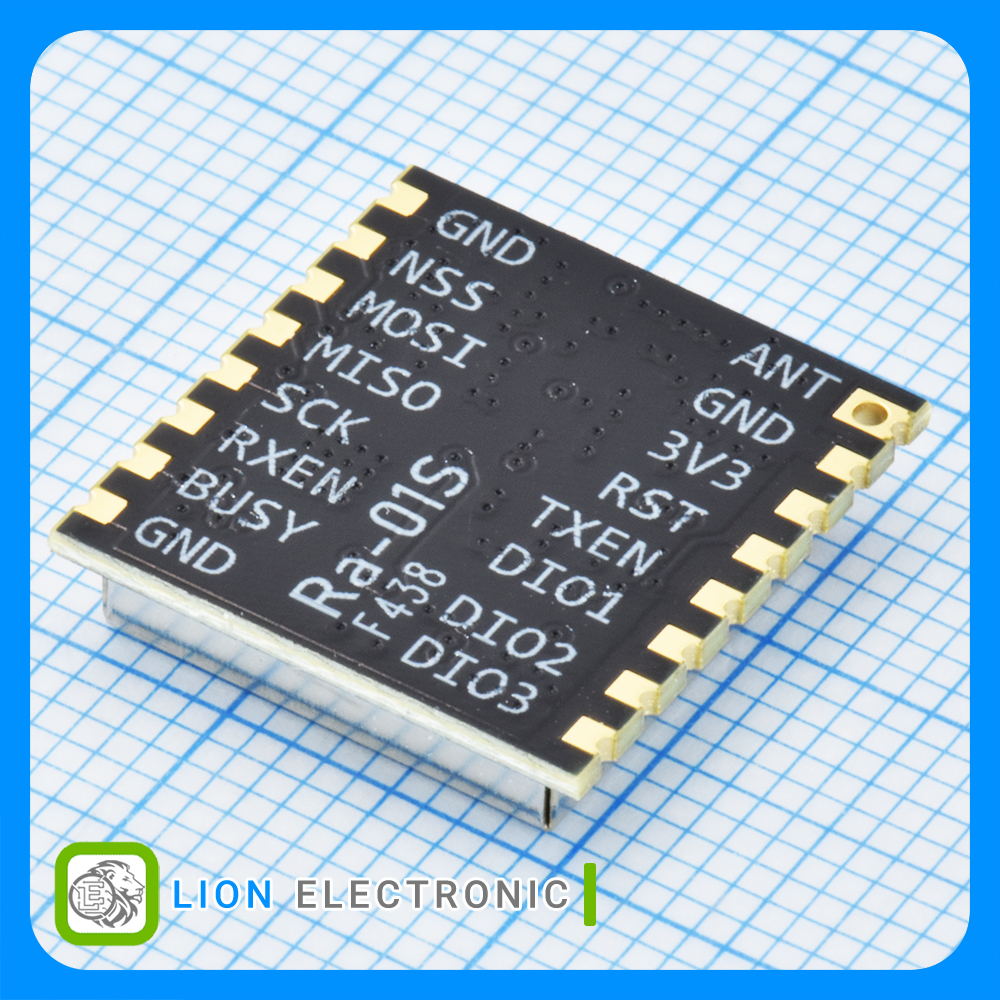

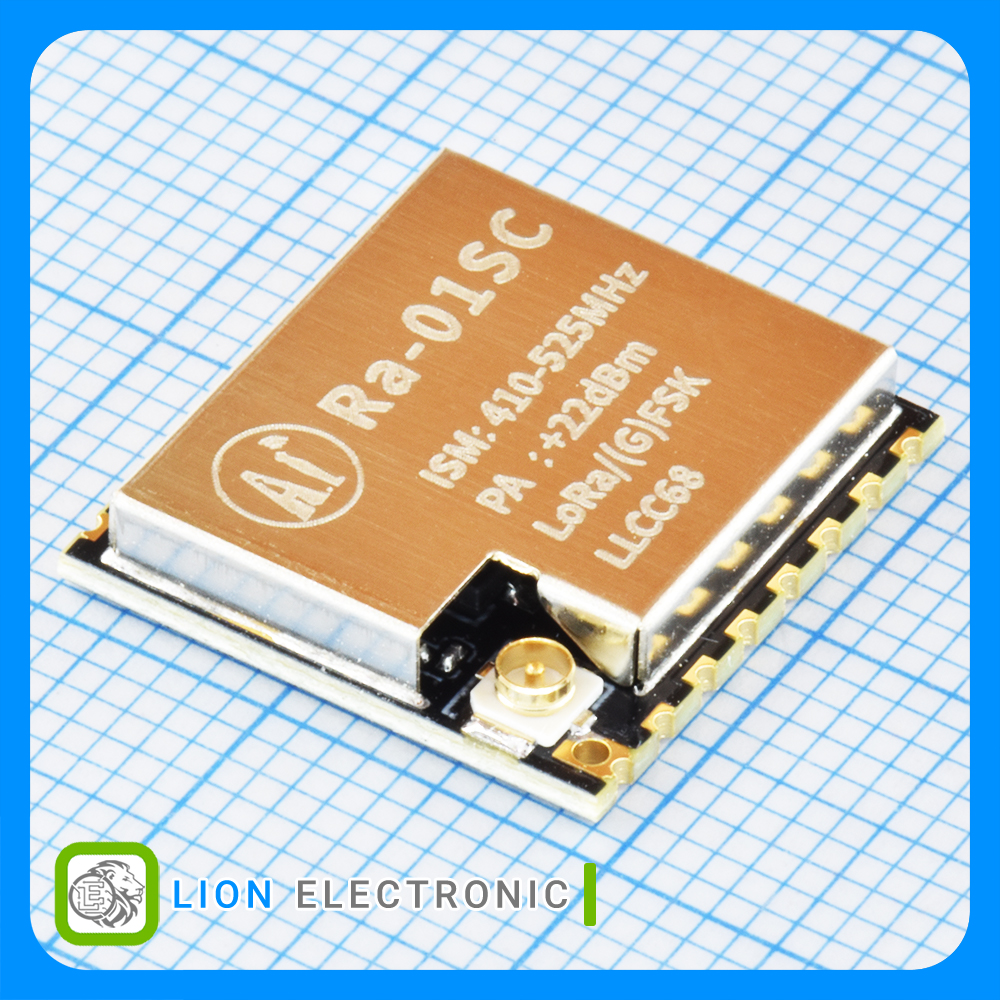

RA-01SC-I
RA-01SC-I
Part Number
4306
Lion Part
Datasheet
Ai-Thinker Manufacture
ماژول LoRa مبتنی بر چیپ LLCC68 باند 410 تا 525 مگاهرتز توان 22dBm با رابط SPI و آنتن IPEX، ابعاد 16x17 میلیمتر
LoRa Module Based on LLCC68, 410-525MHz, 22dBm, SPI, IPEX Antenna, 16x17mm
معرفی
ماژول LoRa مبتنی بر چیپ LLCC68 باند 410 تا 525 مگاهرتز توان 22dBm با رابط SPI و آنتن IPEX، ابعاد 16x17 میلیمتر
LoRa Module Based on LLCC68, 410-525MHz, 22dBm, SPI, IPEX Antenna, 16x17mm
Specifications
- Product: LoRa wireless module
- Interface Type: SPI
- Antenna Connector Type: IPEX
- Frequency: 410MHz to 525MHz
- Output Power: 22dBm
- Operating Supply Voltage: 2.7 - 3.6V
- Supply Current Transmitting: 140mA
- Supply Current Receiving: 4.5mA
- Dimensions: 17mm x16mm x 3.2mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ماژول لورا RA-01SC-I
ماژول لورا RA-01SC-I
Part Number
4.5mA
Supply Current Receiving
IPEX
Antenna Connector Type
Reel
Packaging
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
158.5mW
Output Power
140mA
Supply Current Transmitting
17mm x16mm x 3.2mm
Dimensions
410MHz to 525MHz
Frequency
LoRa wireless module
Product
2.7 - 3.6V
Operating Supply Voltage
SPI
Interface Type
