EBYTE
معرفی
ماژول بیسیم LoRa فرکانس 433/470 مگاهرتز مبتنی بر SX1278 توان خروجی 1 وات

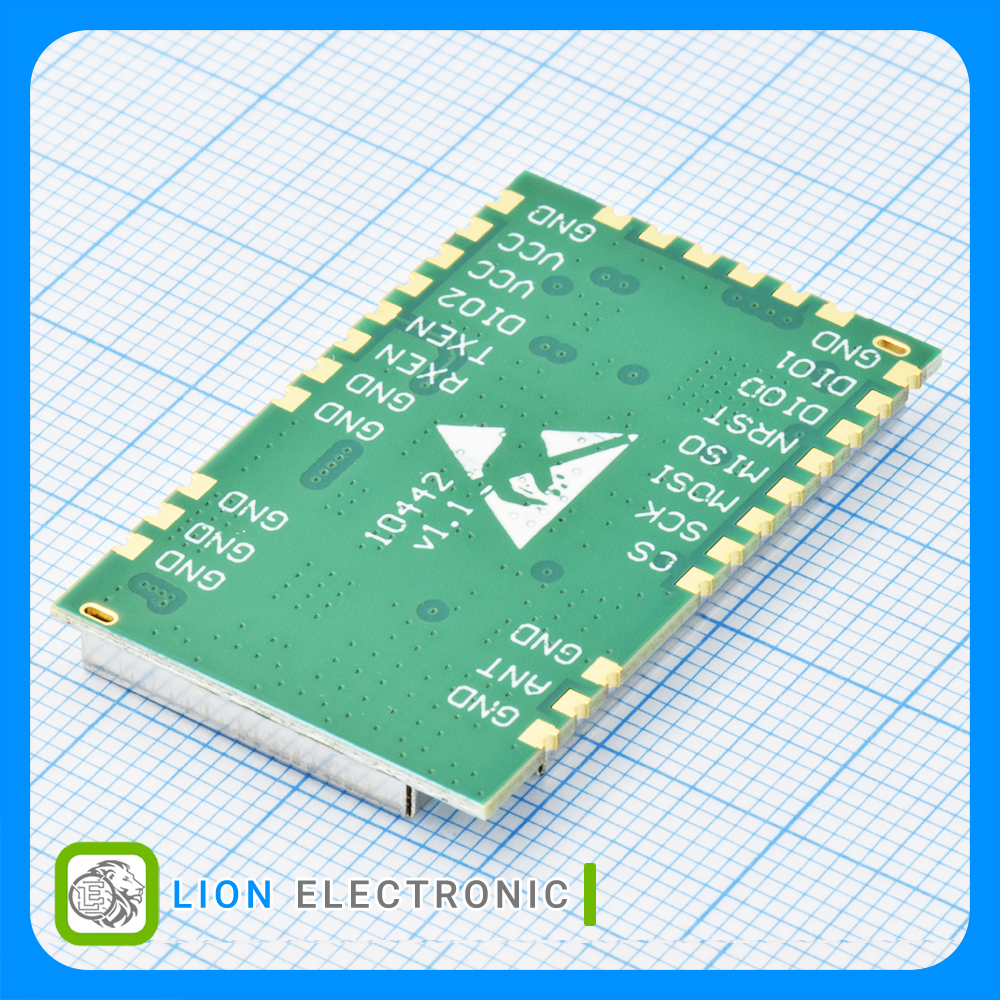

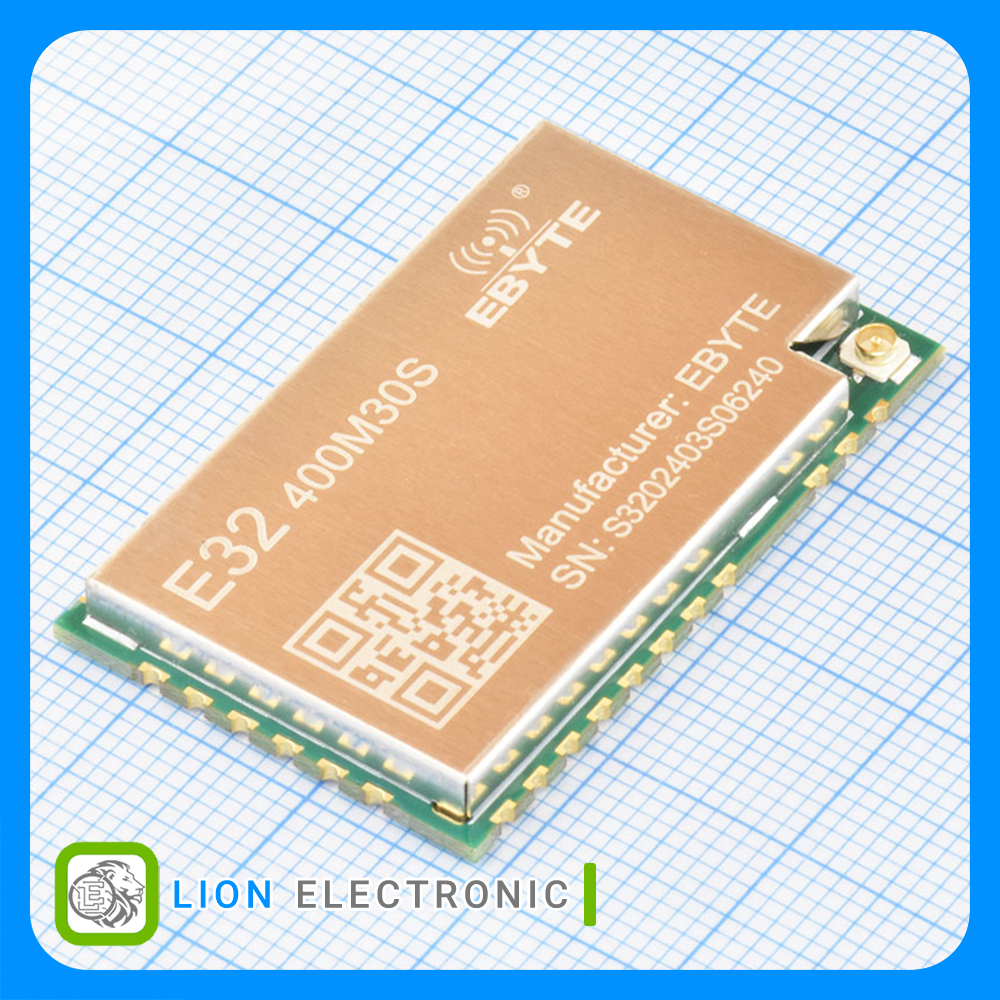

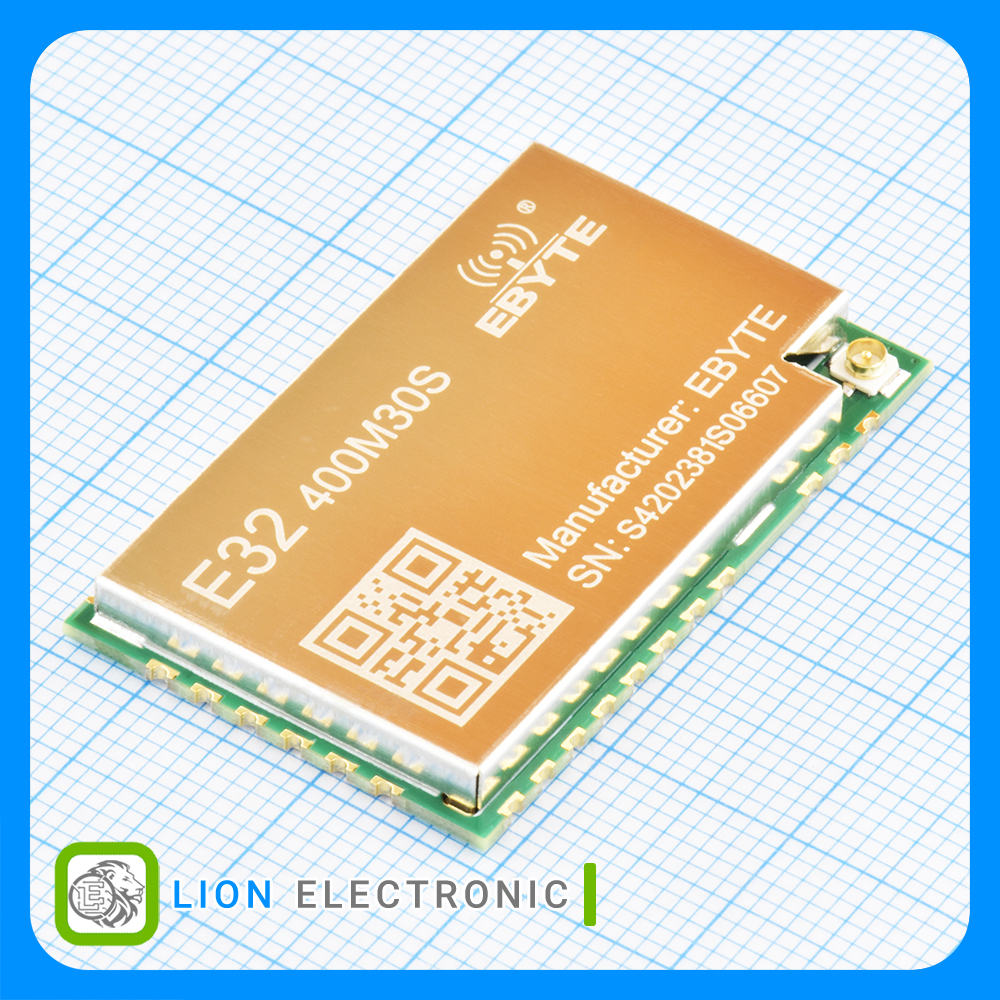

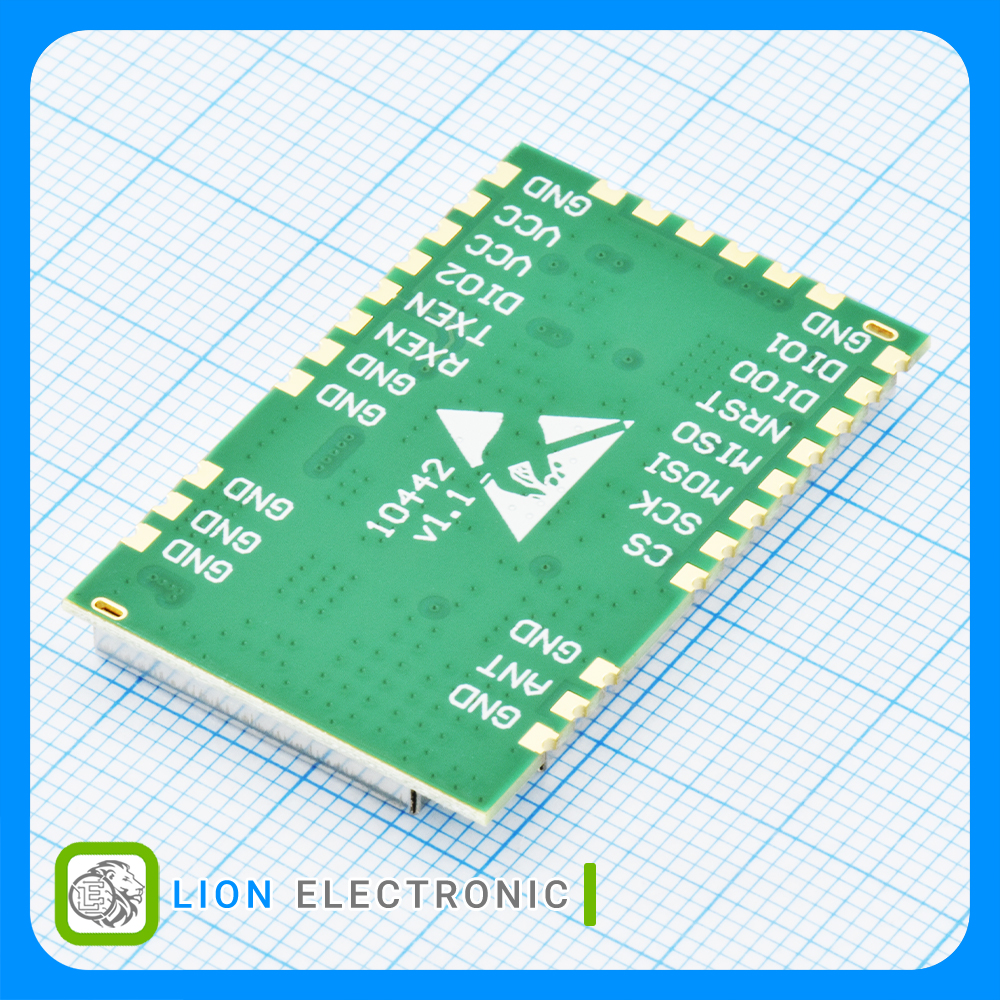

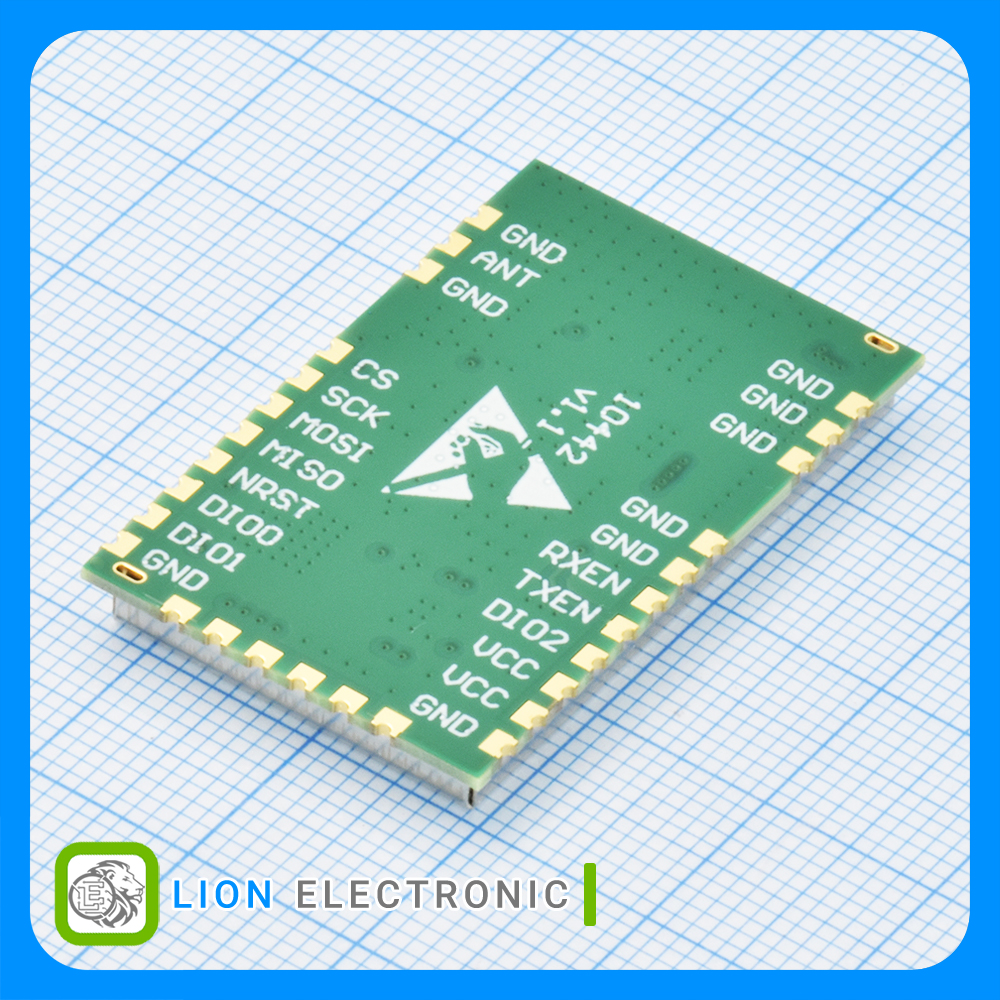

433/470MHz LoRa Wireless Module with 1W Transmission Power, Based on SX1278
Specifications
- Product: LoRa wireless module
- Interface Type: SPI
- Antenna Connector Type: IPEX
- Frequency: 410MHz to 493MHz
- Output Power: 1W
- Operating Supply Voltage: 3.3 - 5.5V
- Supply Current Transmitting: 650mA
- Supply Current Receiving: 19mA
- Dimensions: 38.5mm x 24mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ماژول وایرلس E32-400M30S

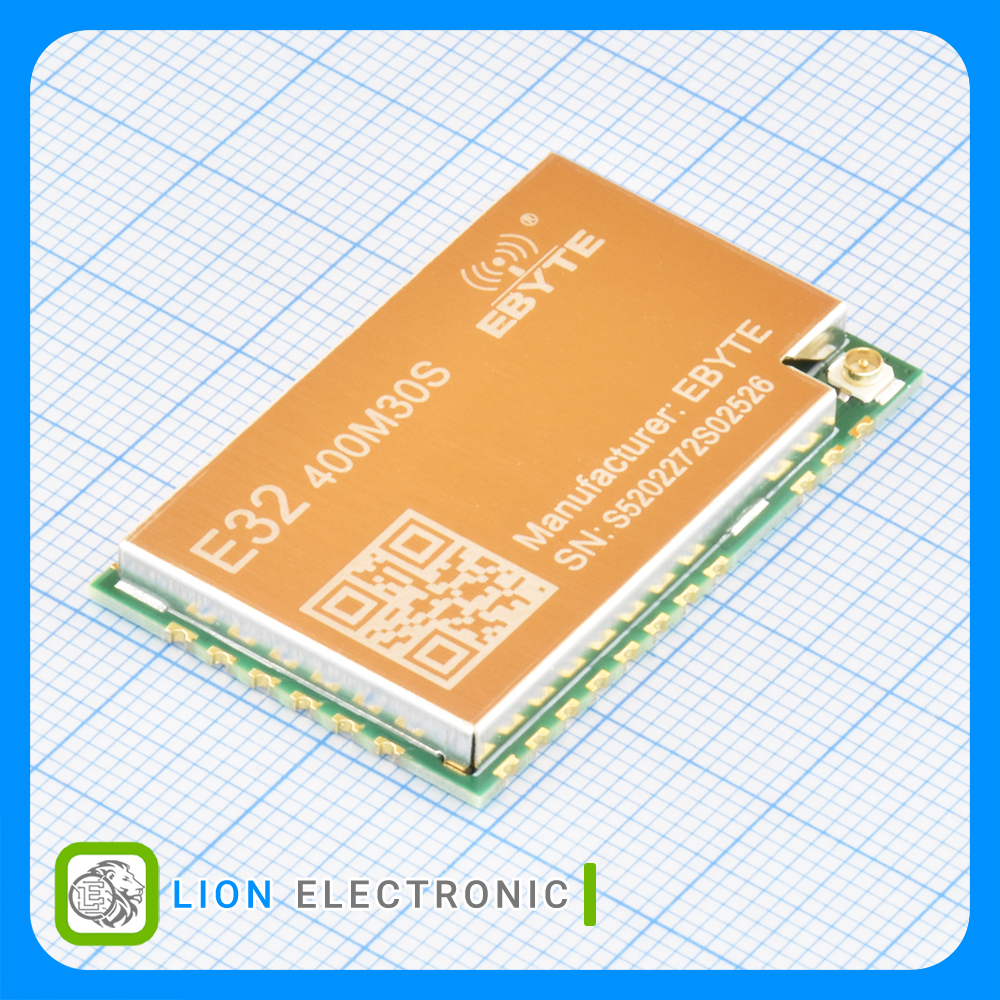

ماژول وایرلس E32-400M30S
Part Number
IPEX
Antenna Connector Type
Reel
Packaging
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
1W
Output Power
19mA
Supply Current Receiving
410MHz to 493MHz
Frequency
650mA
Supply Current Transmitting
LoRa wireless module
Product
38.5mm x 24mm
Dimensions
3.3 - 5.5V
Operating Supply Voltage
SPI
Interface Type
