EBYTE
معرفی

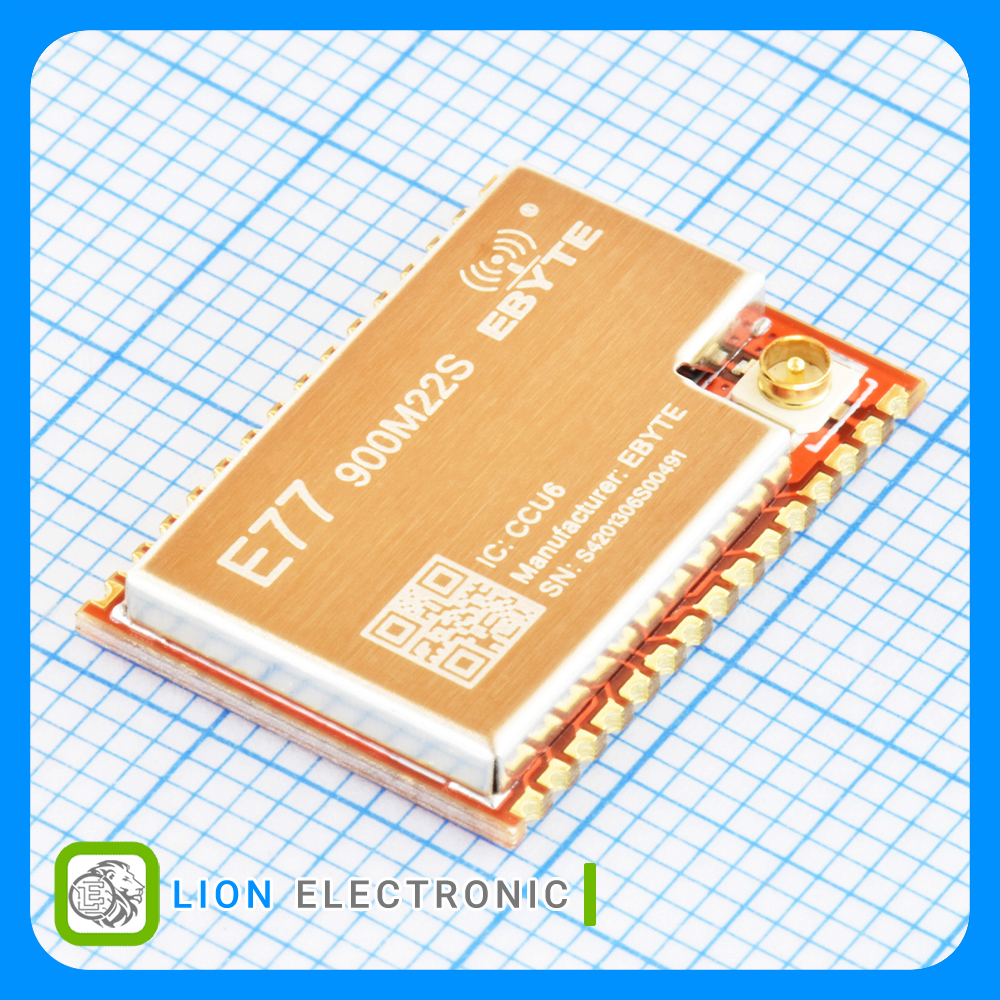

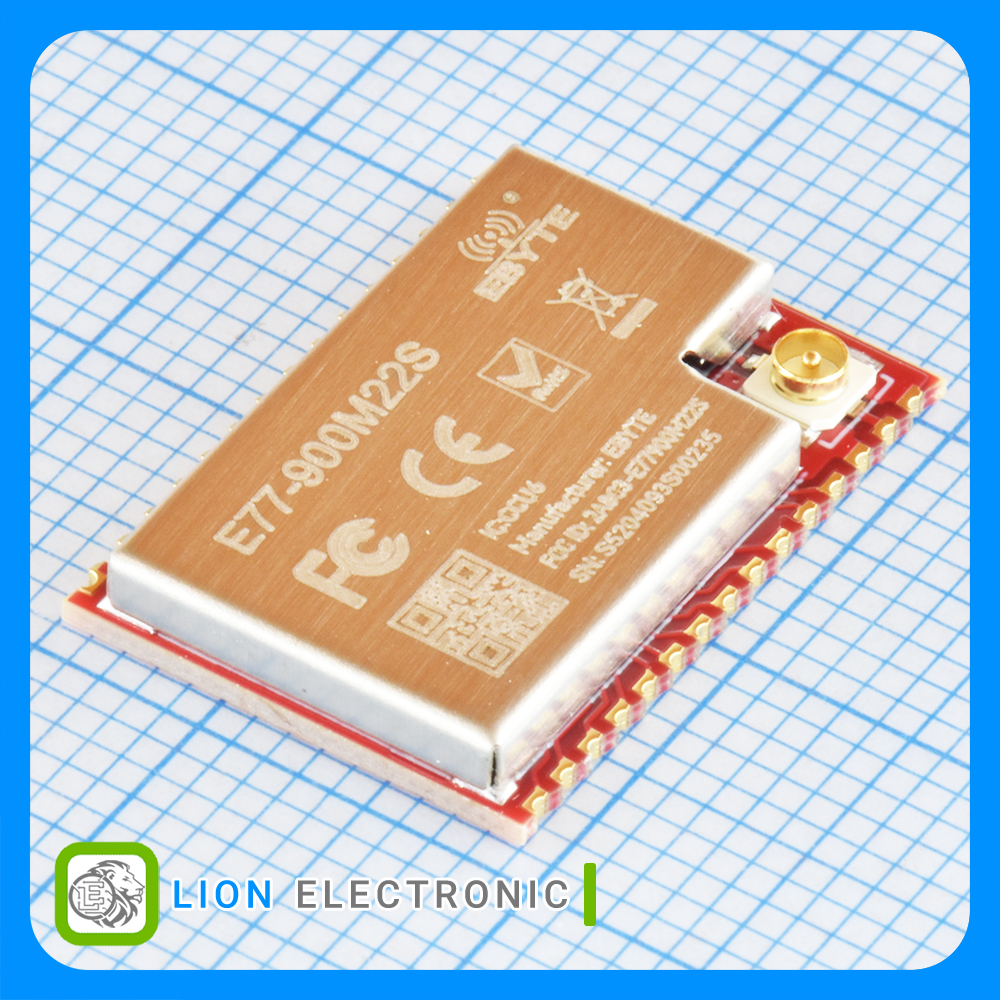

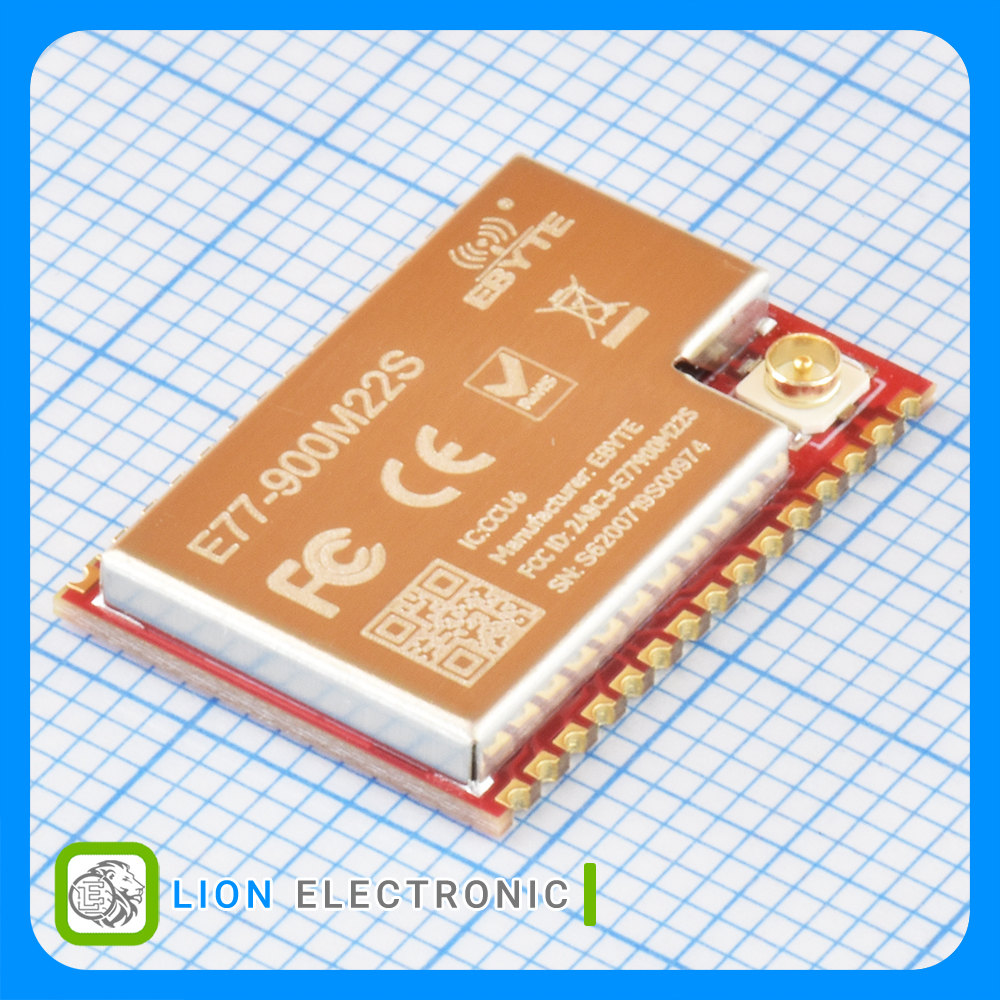

ماژول لورا 850 تا 930 مگاهرتز با خروجی 21.5dBm برپایه STM32WLE5CCU6 SoC با کانکتور IPEX
LoRa Module 850-930MHz, 21.5dBm based on STM32WLE5CCU6 SoC with IPEX Connector
Specifications
- Product: LoRa wireless module
- Interface Type: ADC, GPIO, I2C, SPI, UART
- Antenna Connector Type: IPEX
- Frequency: 850MHz to 930MHz
- Output Power: 21.5dBm
- Operating Supply Voltage: 1.8 - 3.6V
- Supply Current Transmitting: 128mA
- Supply Current Receiving: 14mA
- Dimensions: 14mm x 20mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ماژول وایرلس(لورا) E77-900M22S
ماژول وایرلس(لورا) E77-900M22S
Part Number
IPEX
Antenna Connector Type
Reel
Packaging
-40C
Minimum Operating Temperature
141.3mW
Output Power
+85C
Maximum Operating Temperature
14mA
Supply Current Receiving
128mA
Supply Current Transmitting
14mm x 20mm
Dimensions
ADC, GPIO, I2C, SPI, UART
Interface Type
1.8 - 3.6V
Operating Supply Voltage
850MHz to 930MHz
Frequency
LoRa wireless module
Product
