EBYTE
معرفی

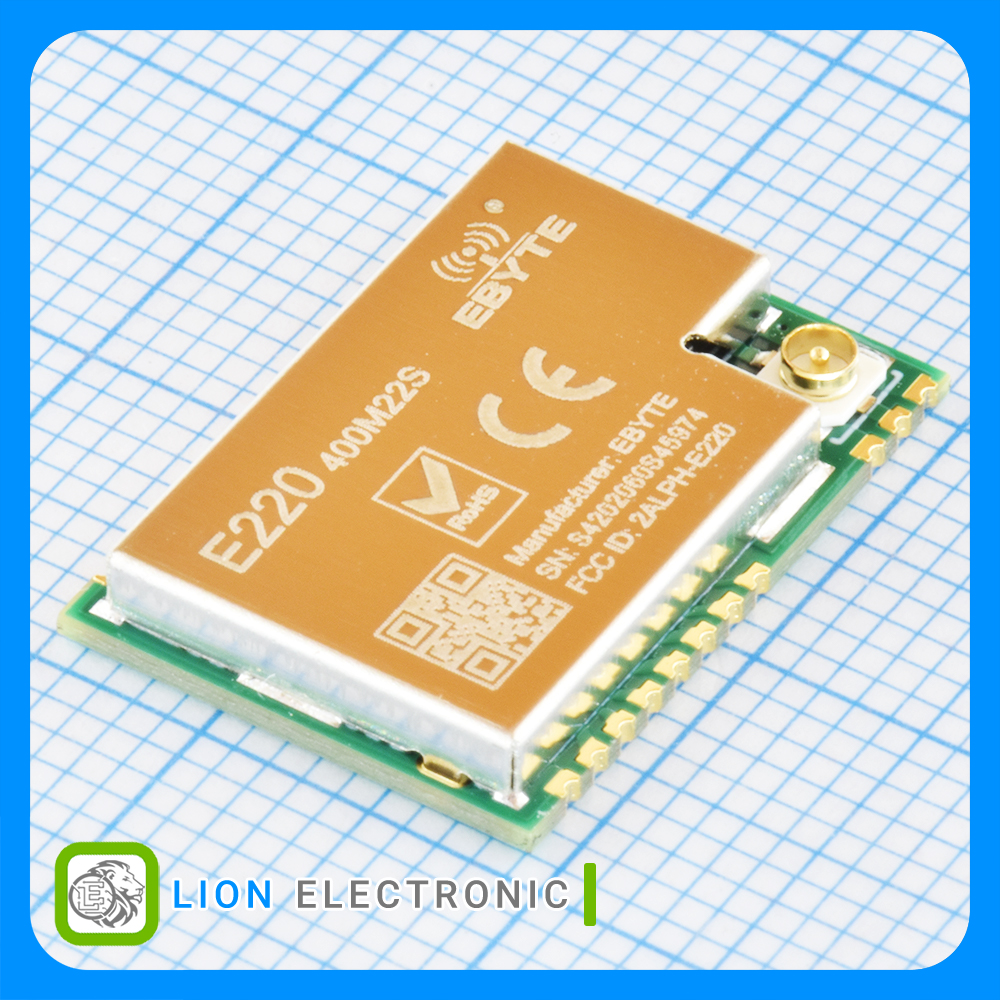

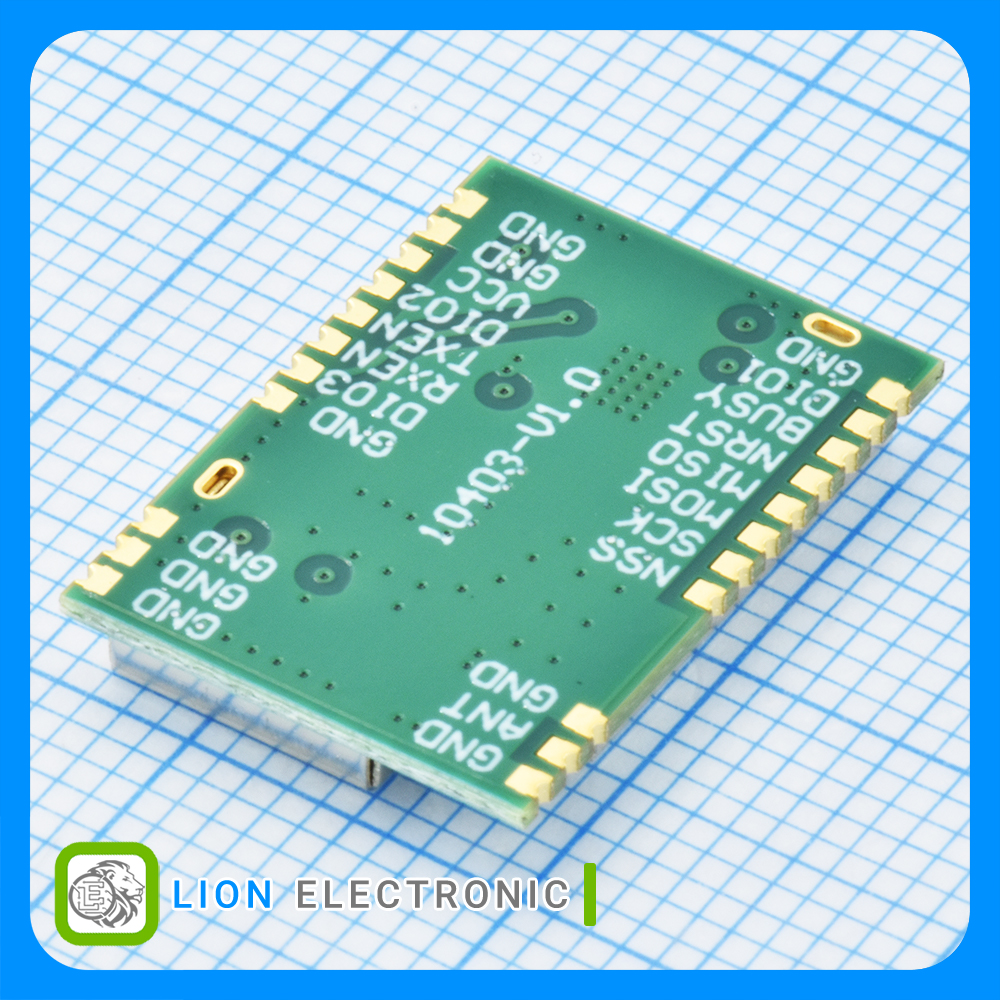

ماژول LoRa با چیپ LLCC68 فرکانس 433/470 مگاهرتز، توان 160 میلیوات، رابط SPI، کانکتور IPEX
LLCC68-based LoRa Module, 433/470MHz, 160mW, SPI Interface, IPEX Antenna Connector
Specifications
- Product: LoRa wireless module
- Interface Type: SPI
- Antenna Connector Type: IPEX
- Frequency: 433/470/490MHz
- Output Power: 160mW
- Operating Supply Voltage: 1.8 - 3.7V
- Supply Current Transmitting: 100mA
- Supply Current Receiving: 6.5mA
- Dimensions: 20mm x 14mm x 2.8mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ماژول وایرلس E220-400M22S

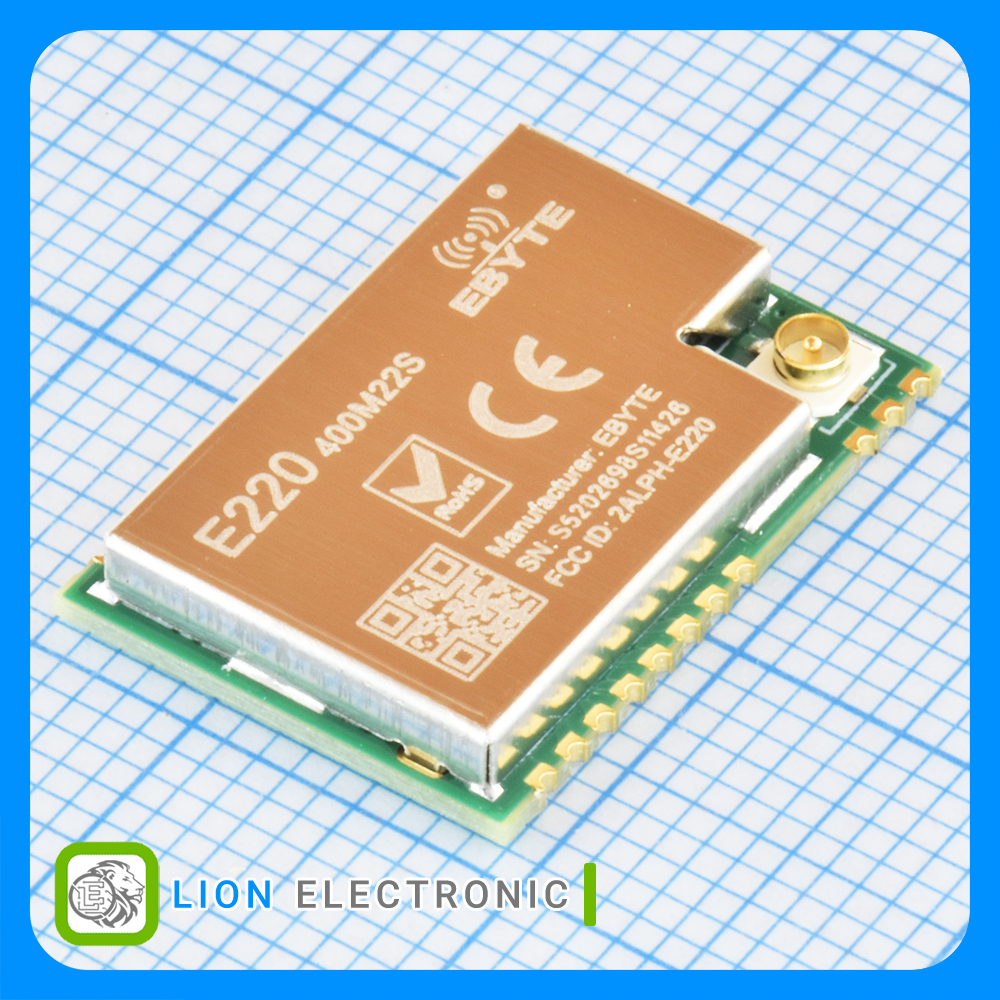

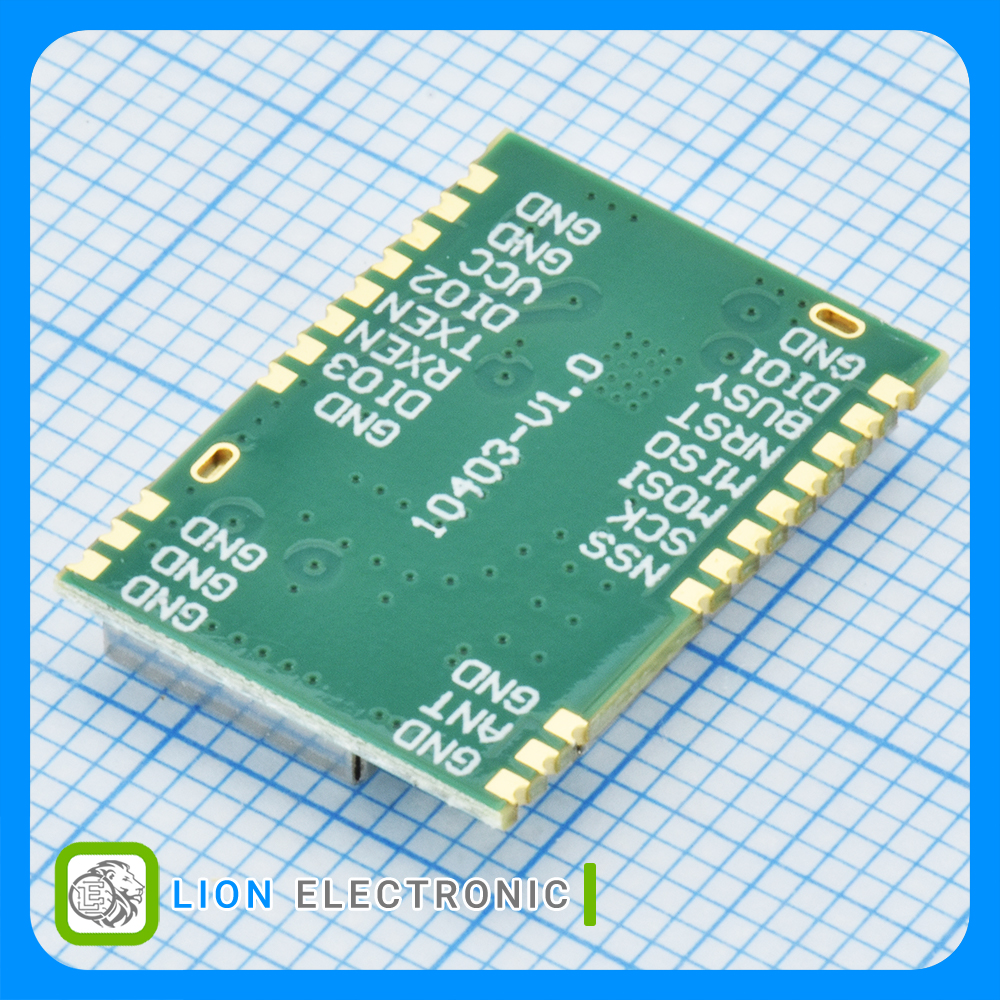

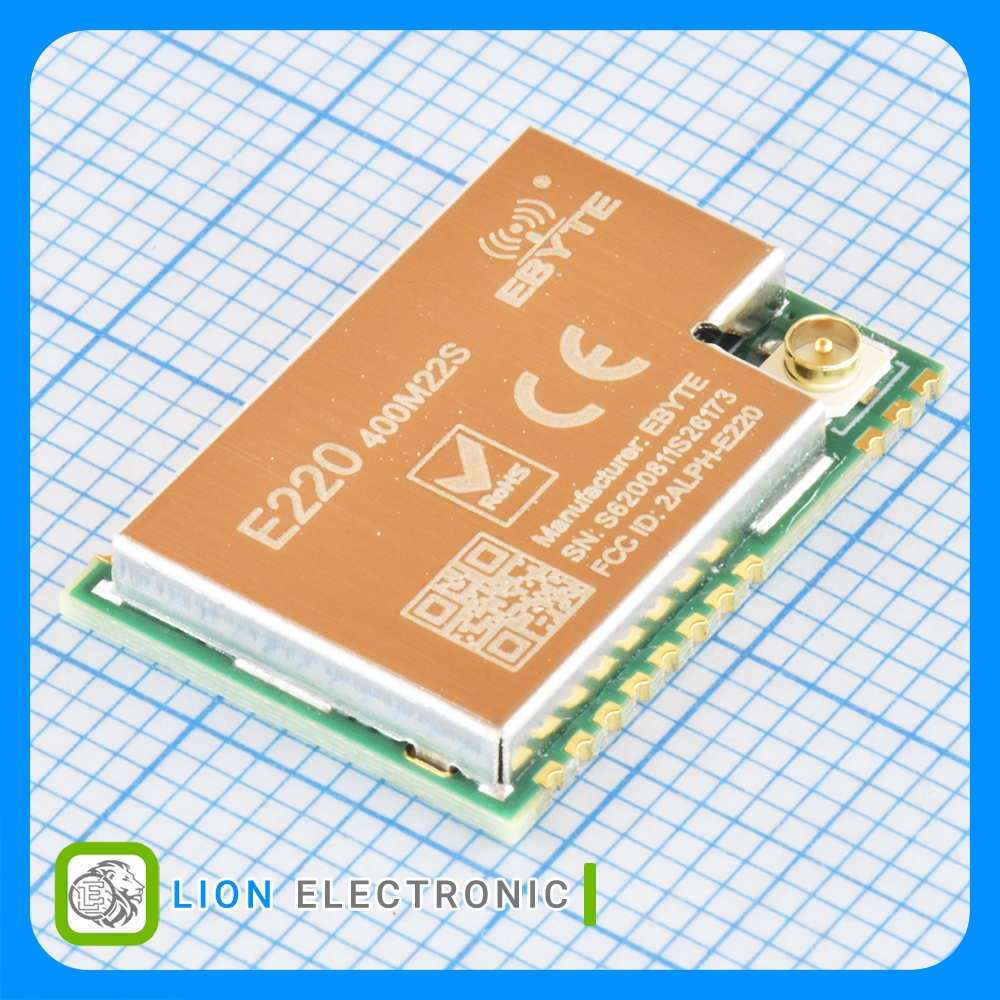

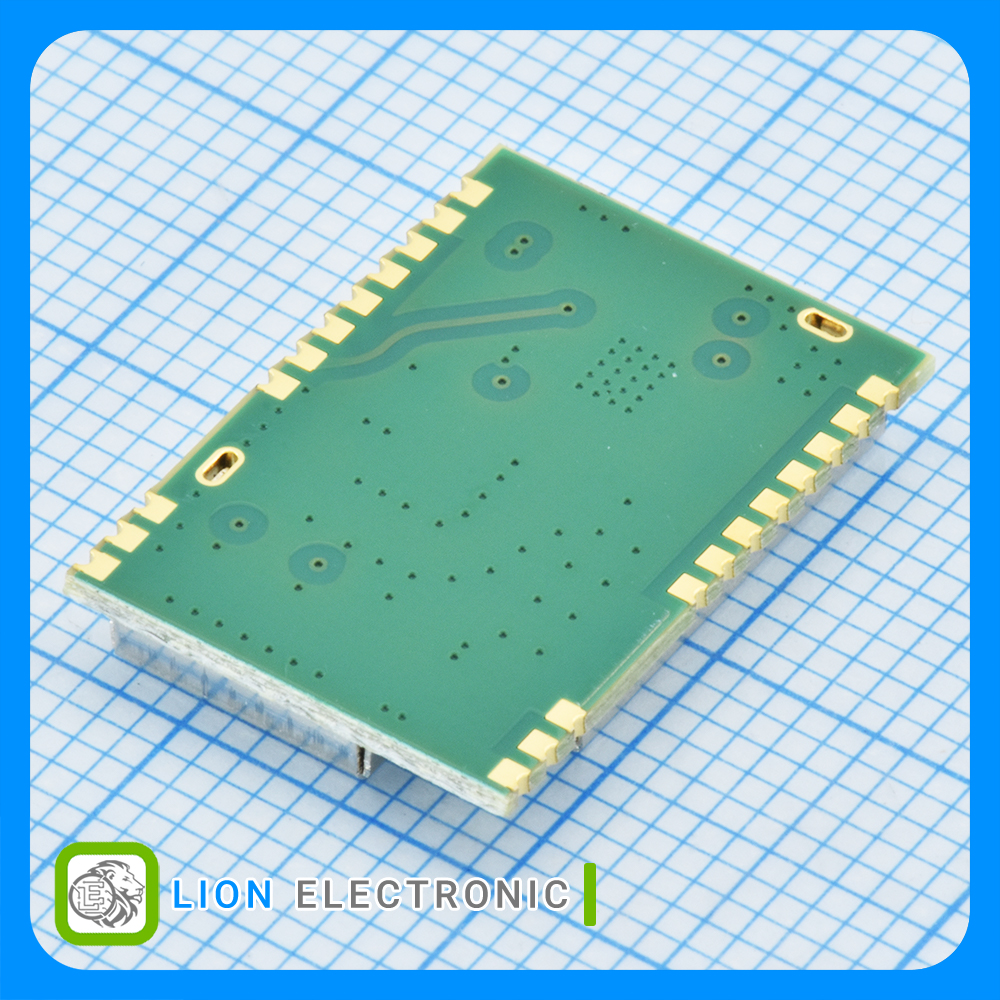

ماژول وایرلس E220-400M22S
Part Number
IPEX
Antenna Connector Type
Reel
Packaging
-40C
Minimum Operating Temperature
6.5mA
Supply Current Receiving
+85C
Maximum Operating Temperature
160mW
Output Power
100mA
Supply Current Transmitting
1.8 - 3.7V
Operating Supply Voltage
433/470/490MHz
Frequency
20mm x 14mm x 2.8mm
Dimensions
LoRa wireless module
Product
SPI
Interface Type
