TOSHIBA
معرفی

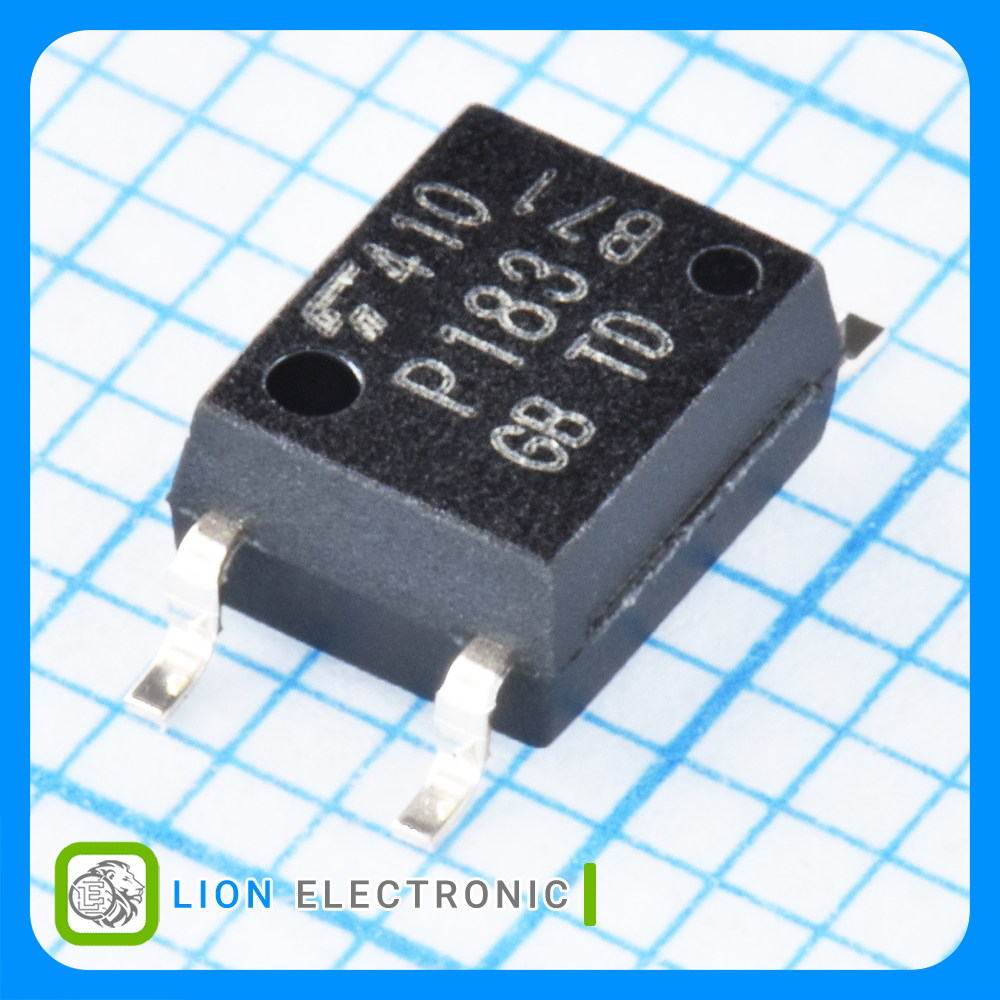

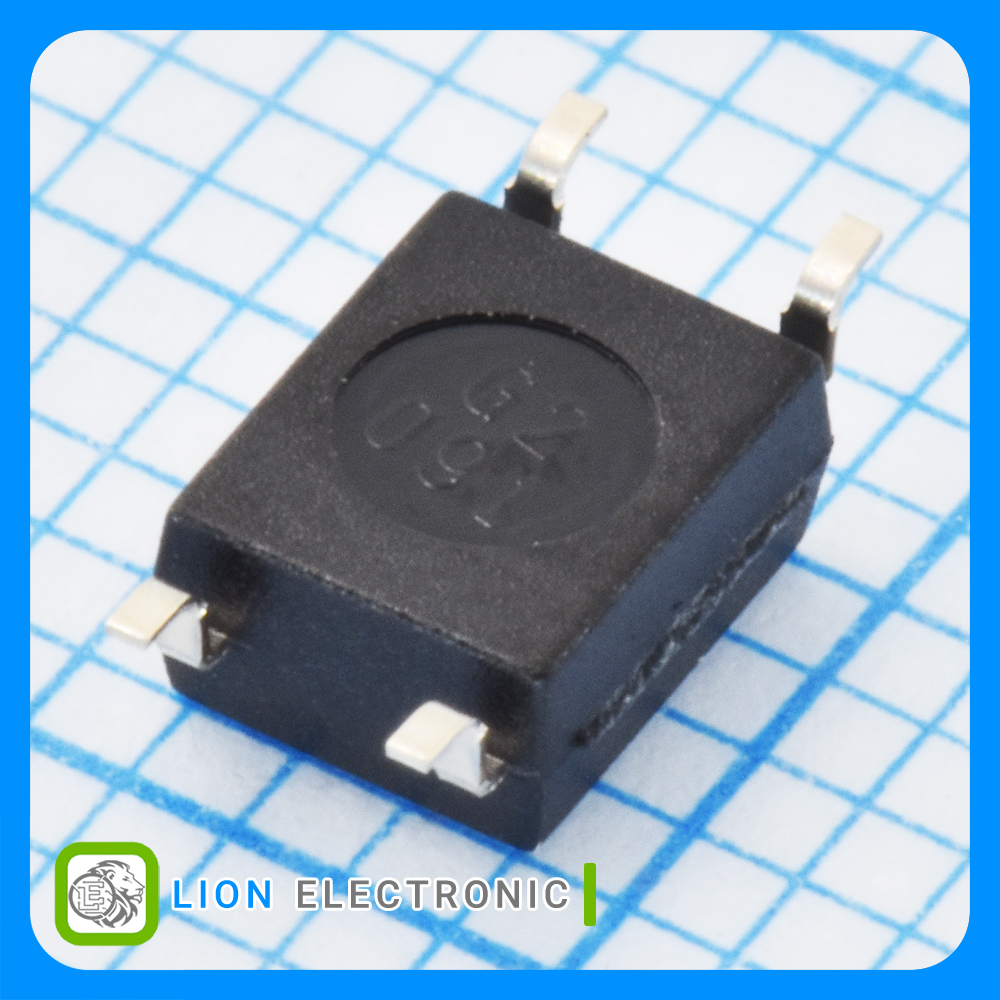

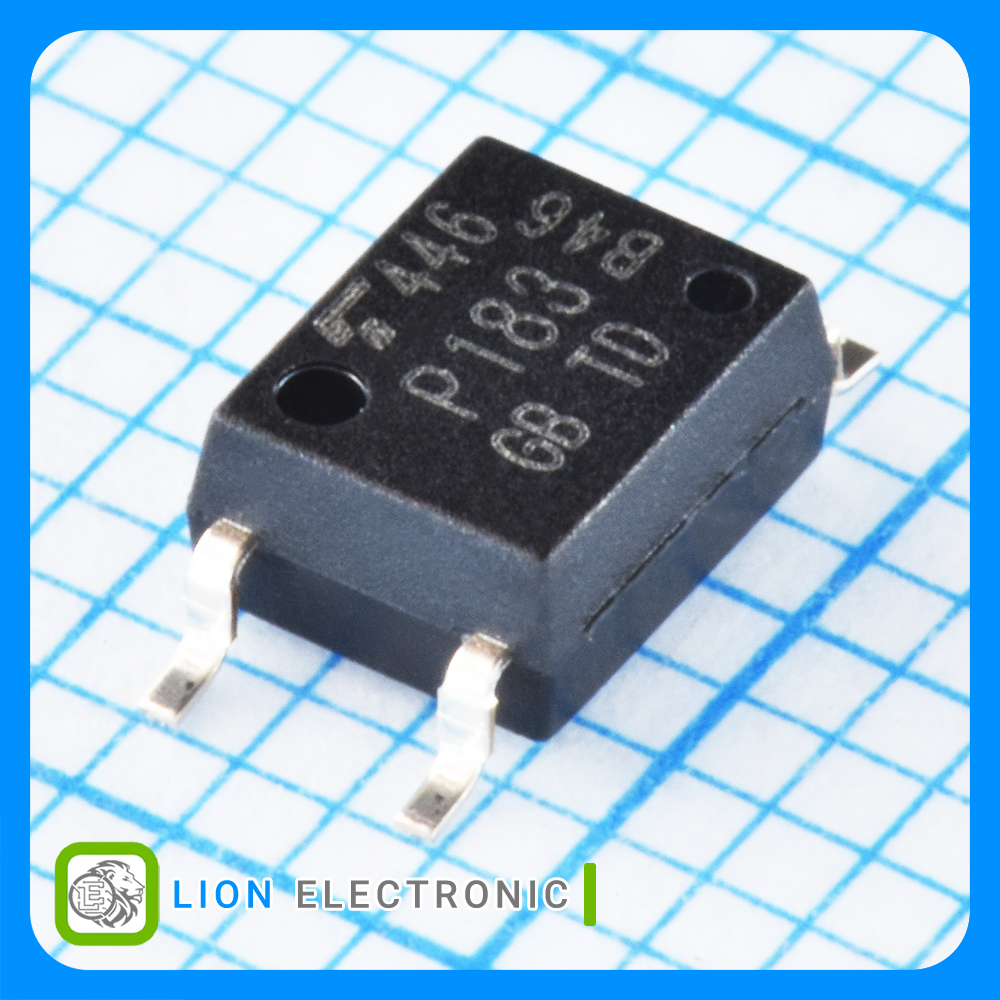

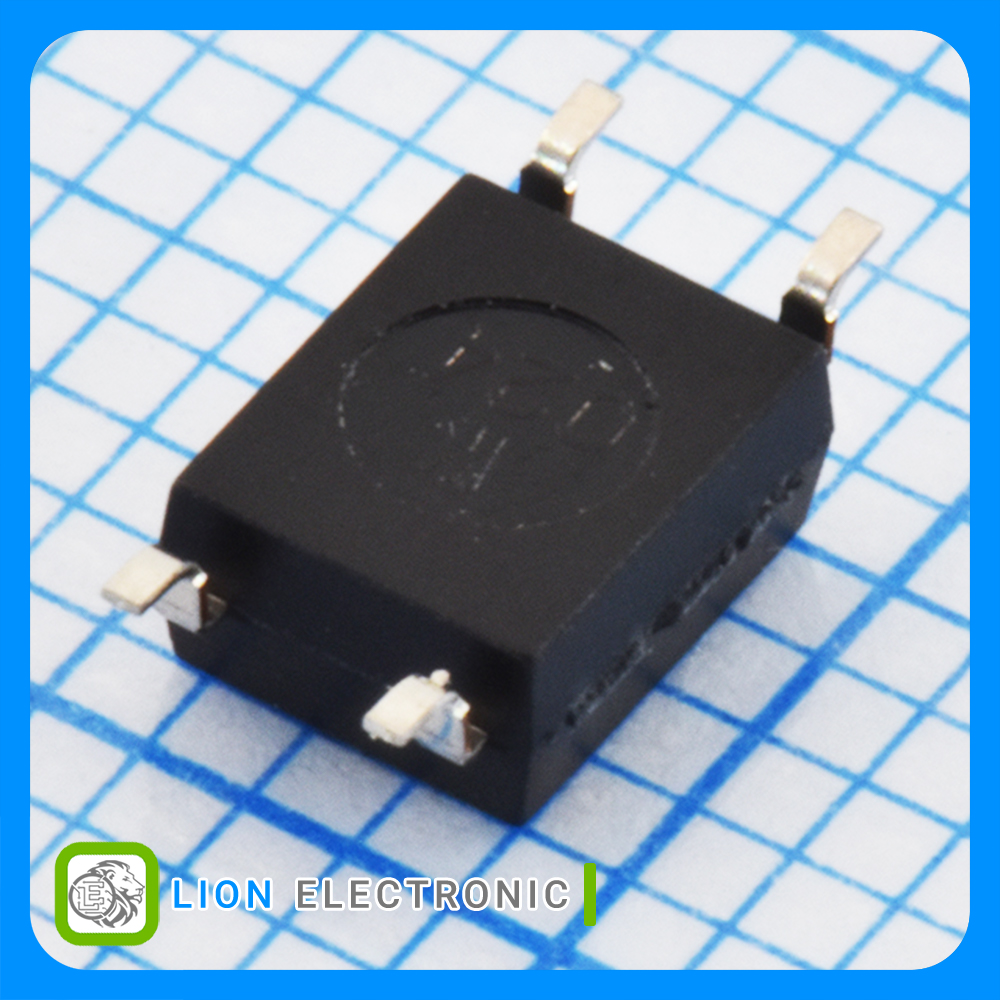

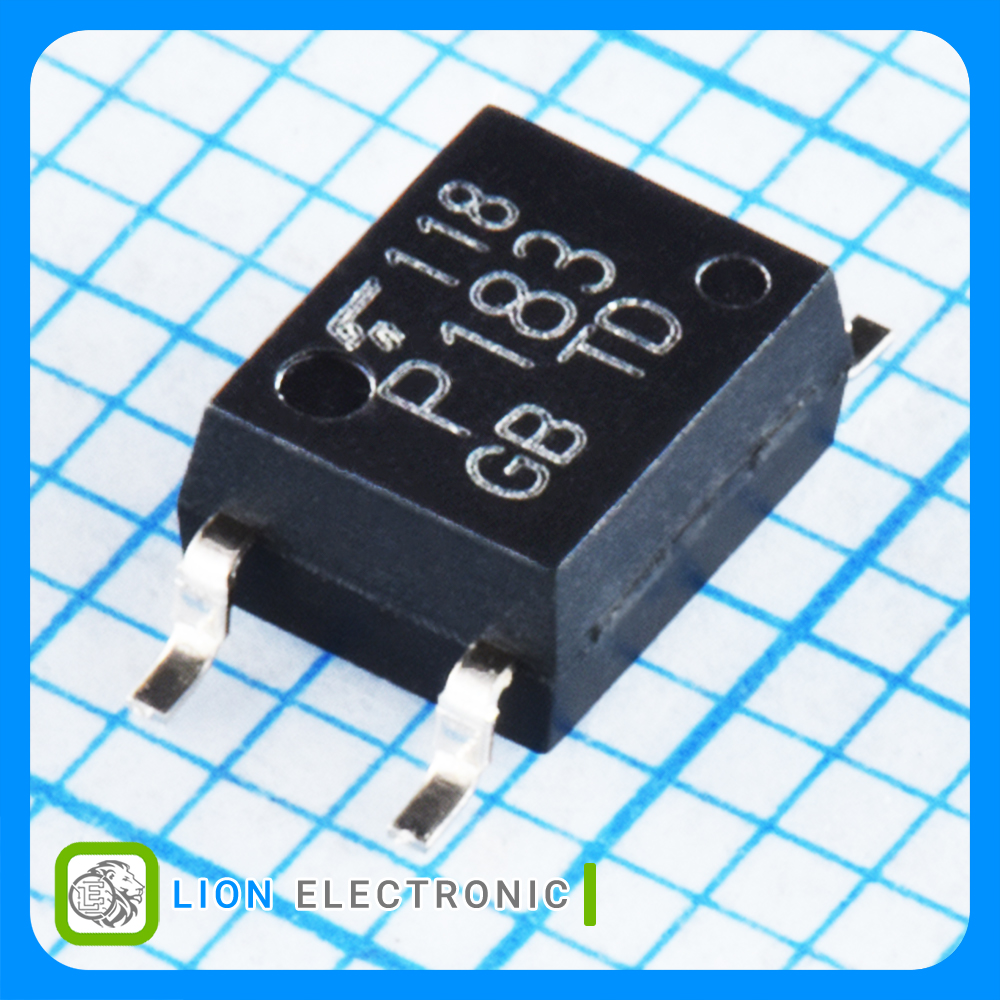

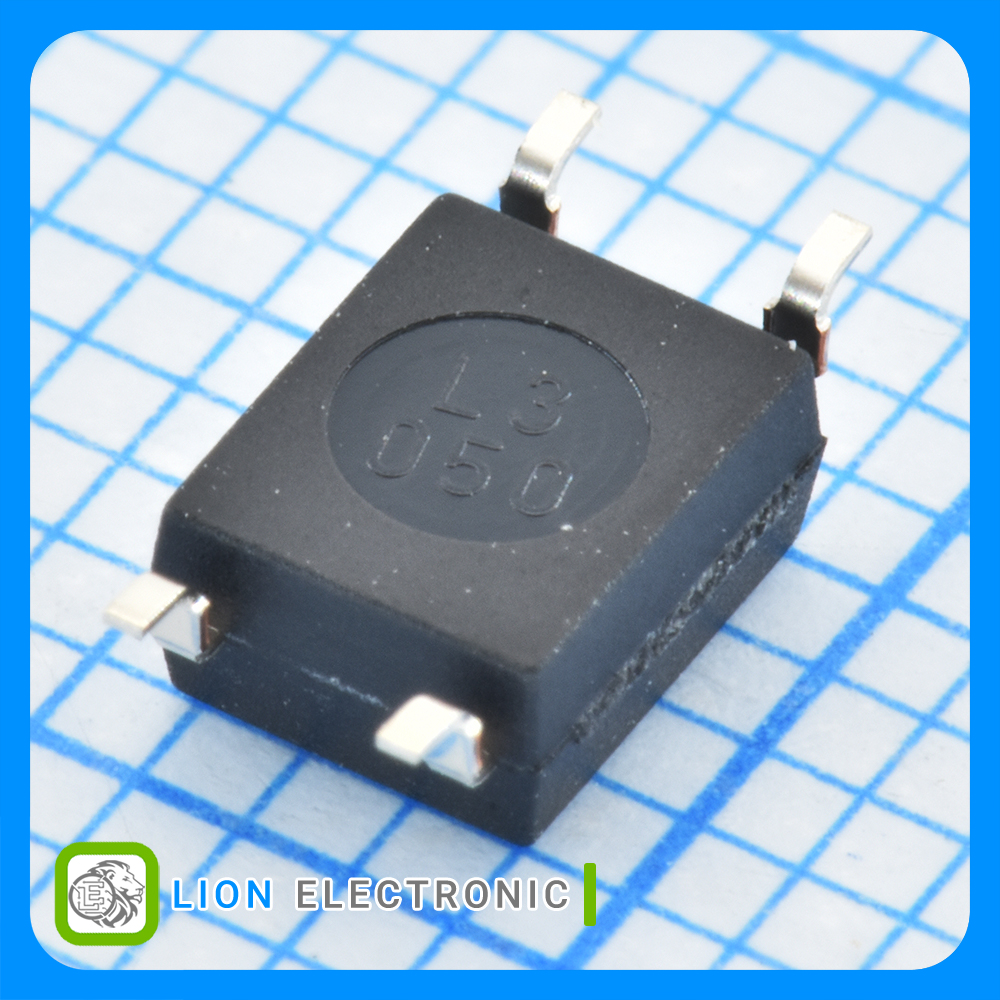

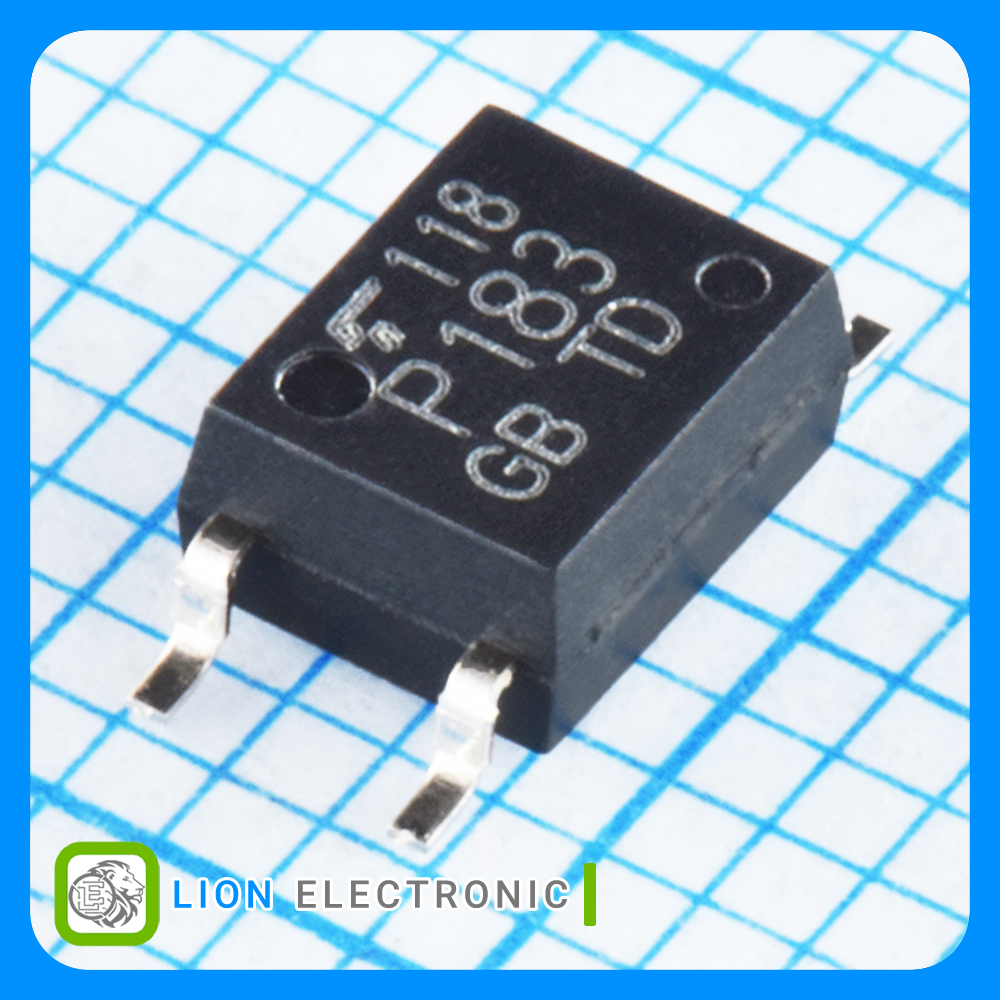

اپتوکوپلر خروجی فوتوترانزیستوری 1 کاناله 80 ولت ایزولاسیون 3.75 کیلوولت RMS با پکیج SOP-4
Low Input Type Phototransistor Output Optocoupler 1 Channel, 80V, 3.75kVrms Isolation with SOP-4 Package
Specifications
- Output Type: Phototransistor
- Number of Channels: 1
- Input Type: DC
- Vf - Forward Voltage: 1.25V
- Maximum CTR: 600%
- If - Forward Current: 50mA
- Pd - Power Dissipation: 100mW
- Collector - Emitter Voltage VCEO Max: 80V
- Isolation Voltage: 3.75kVrms
- Mounting Style: SMD/SMT
- Package/Case: SOP-4
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات اپتوکوپلر TLP183(GB-TPL,E

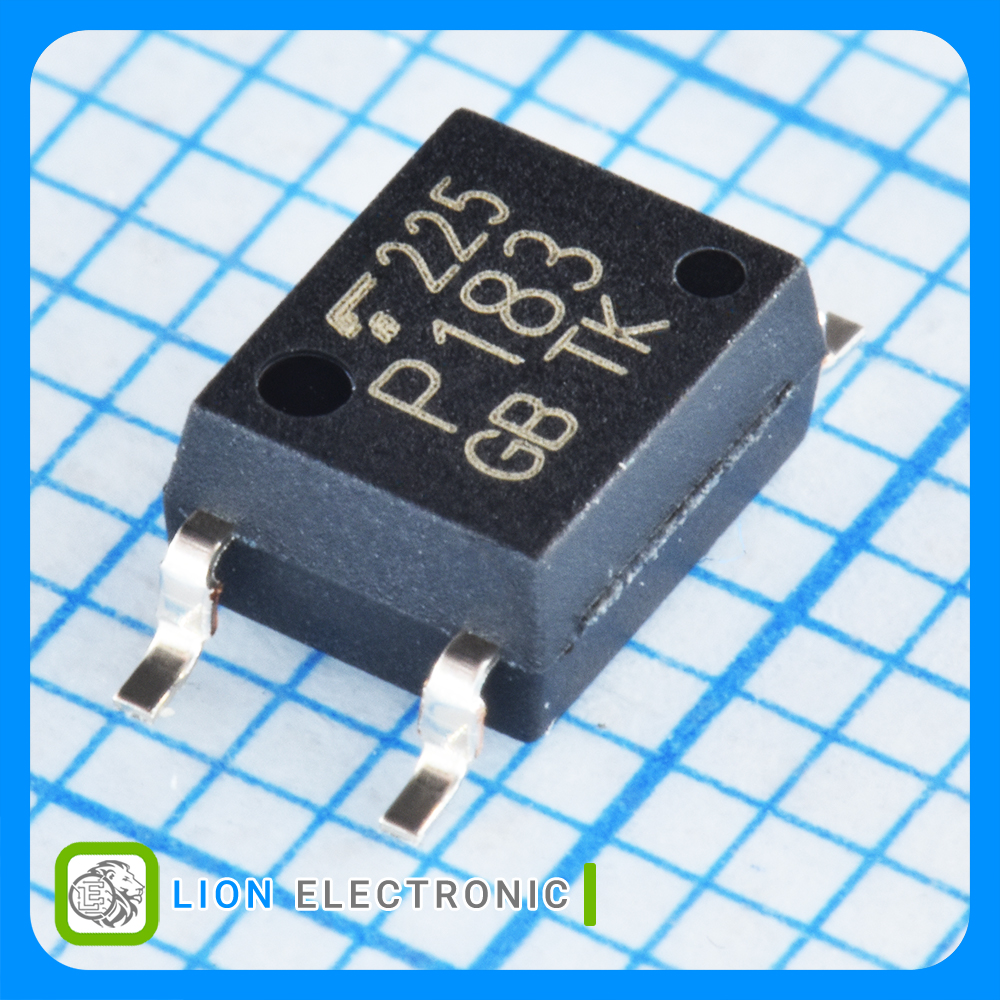

اپتوکوپلر TLP183(GB-TPL,E
Part Number
1
Number of Channels
DC
Input Type
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
600%
Maximum CTR
3.75kVrms
Isolation Voltage
100mW
Pd - Power Dissipation
50mA
If - Forward Current
+125C
Maximum Operating Temperature
80V
Collector - Emitter Voltage VCEO Max
Phototransistor
Output Type
1.25V
Vf - Forward Voltage
SOP-4
Package-Case
