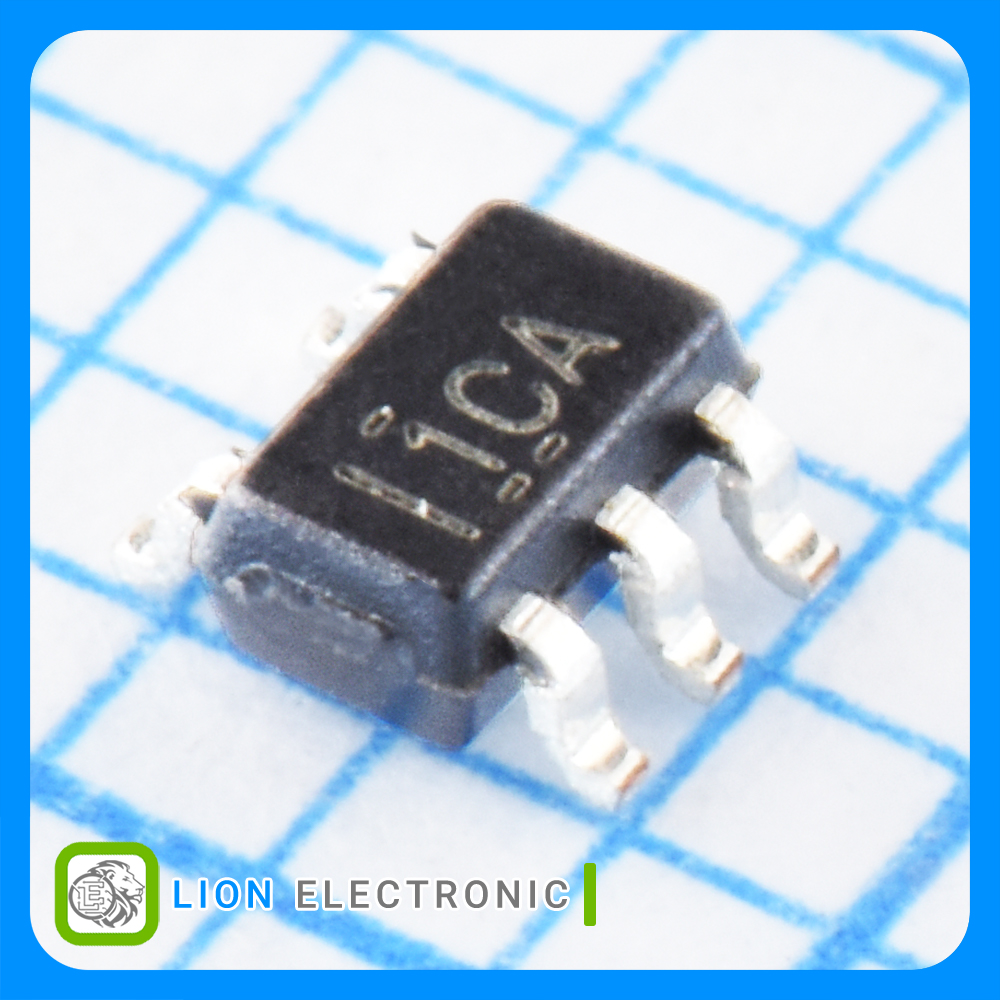

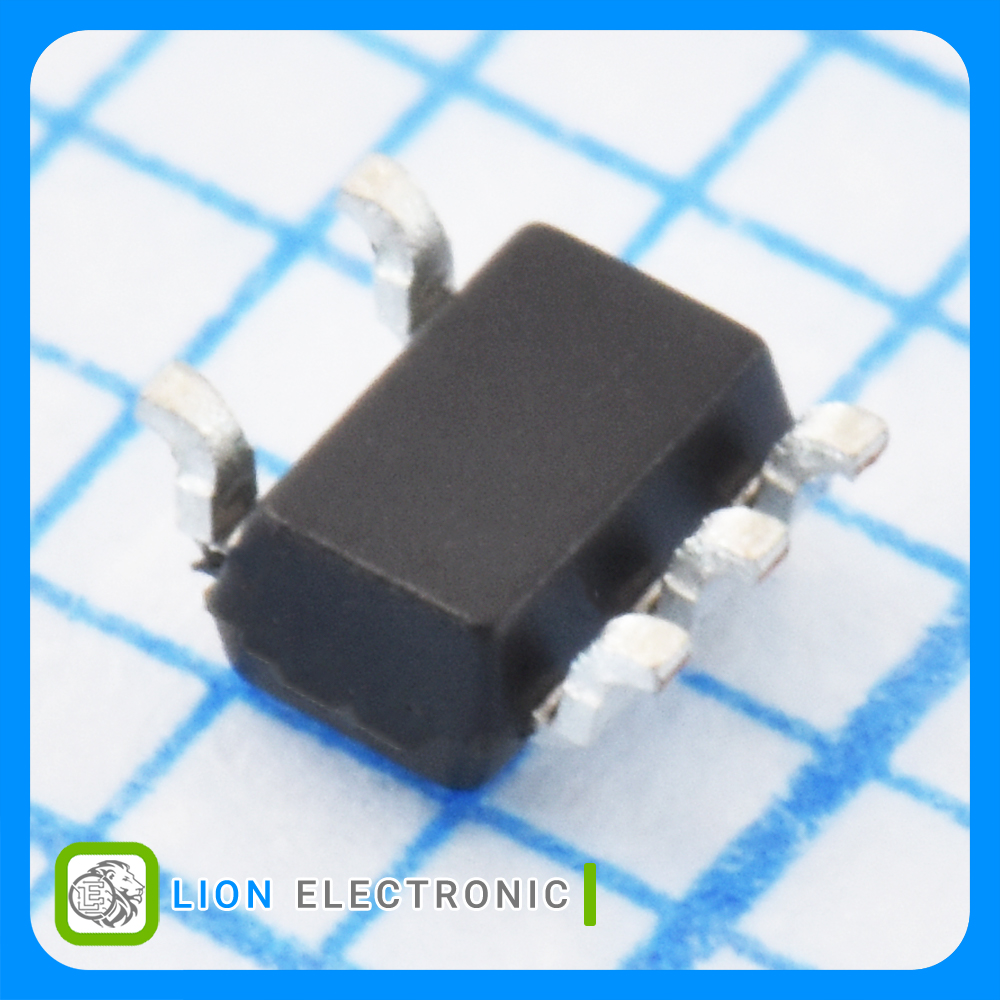

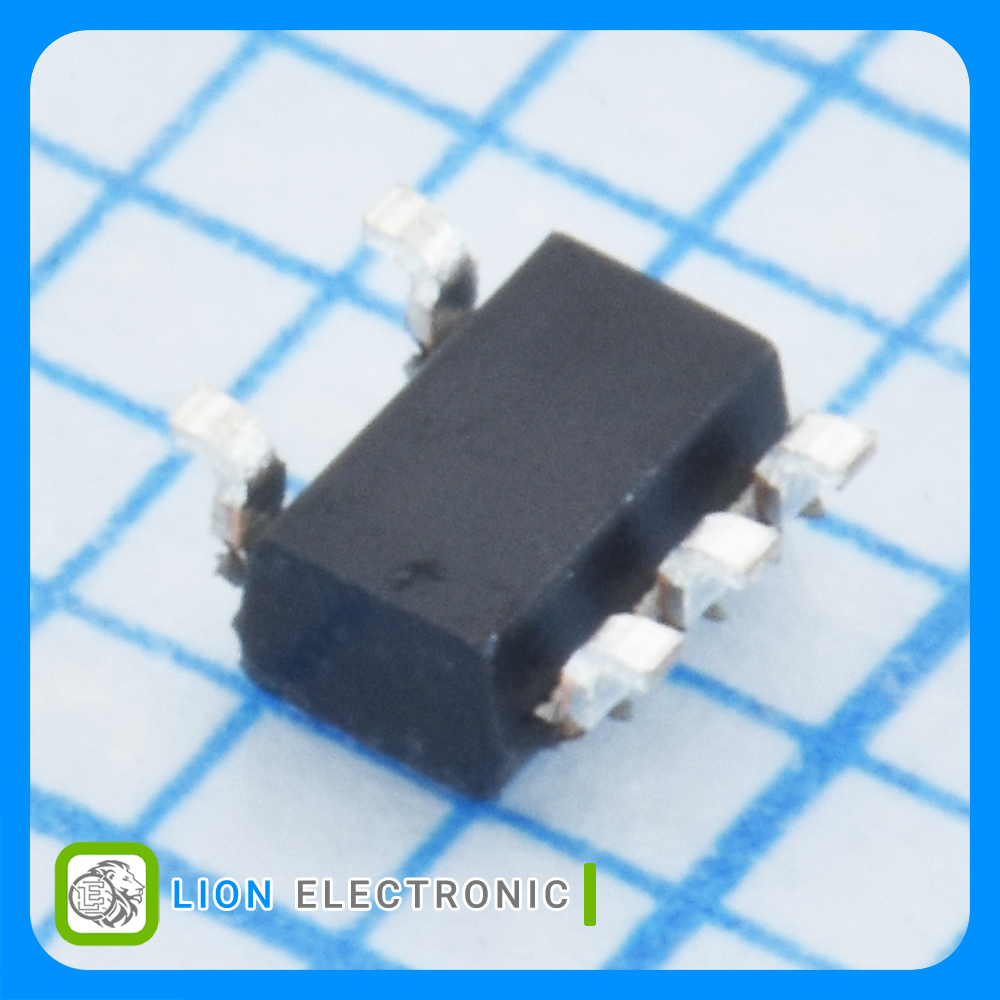

TLV9061IDCKR
TLV9061IDCKR
Part Number
3706
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ (Op-Amp) با 1 کانال با ورودی و خروجی ریل تو ریل (Rail to Rail I/O)، RRIO، پهنای باند 10 مگاهرتز، ولتاژ 1.8 تا 5.5 ولت، دارای فیلتر داخلی RFI و EMI، با پکیج SC70-5
Rail to Rail I/O 1-Channel Op-Amp 10MHz, RRIO, 1.8V-5.5V, with Internal RFI and EMI Filter, with SC70-5 Package
معرفی
آپامپ (Op-Amp) با 1 کانال با ورودی و خروجی ریل تو ریل (Rail to Rail I/O)، RRIO، پهنای باند 10 مگاهرتز، ولتاژ 1.8 تا 5.5 ولت، دارای فیلتر داخلی RFI و EMI، با پکیج SC70-5
Rail to Rail I/O 1-Channel Op-Amp 10MHz, RRIO, 1.8V-5.5V, with Internal RFI and EMI Filter, with SC70-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 50mA
- SR - Slew Rate: 6.5V/us
- GBP - Gain Bandwidth Product: 10MHz
- CMRR - Common Mode Rejection Ratio: 103dB
- Ib - Input Bias Current: 500fA
- Vos - Input Offset Voltage: 300uV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 1.8V
- Operating Supply Current: 538uA
- Mounting Style: SMD/SMT
- Package/Case: SC-70-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ TLV9061IDCKR

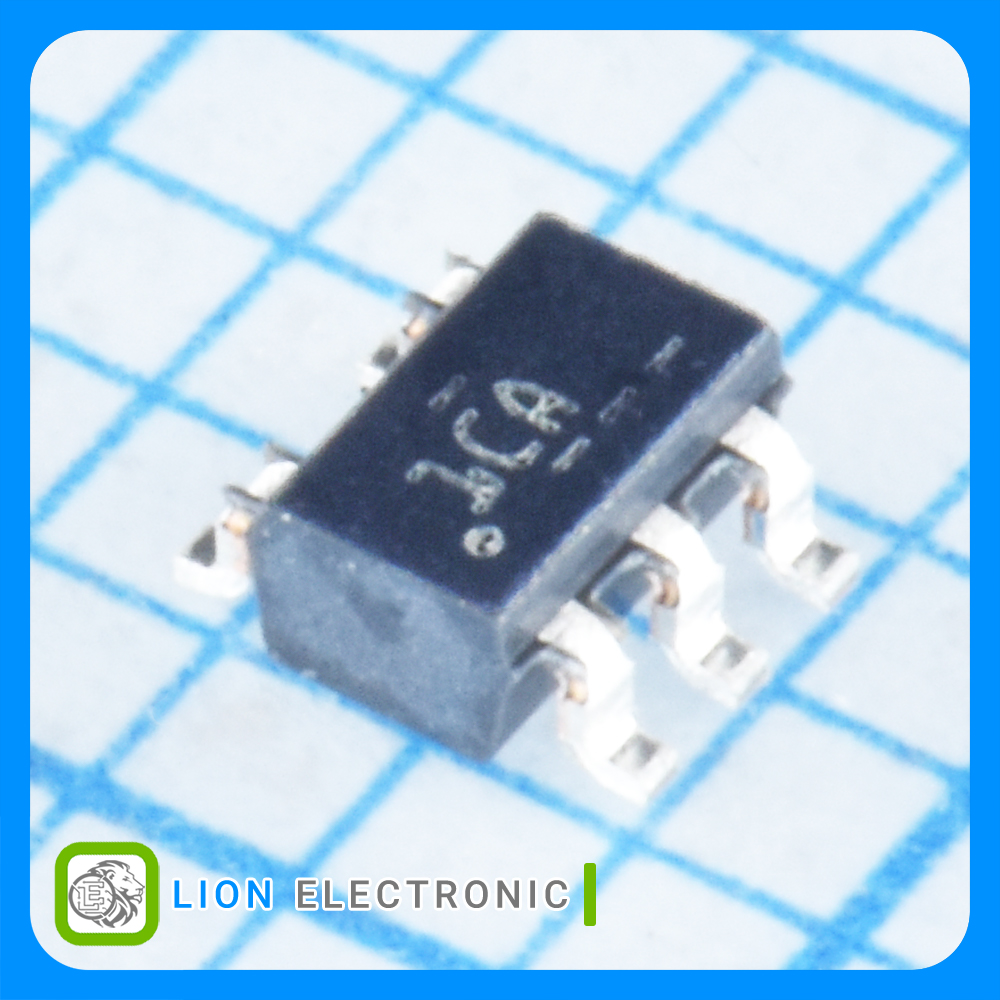

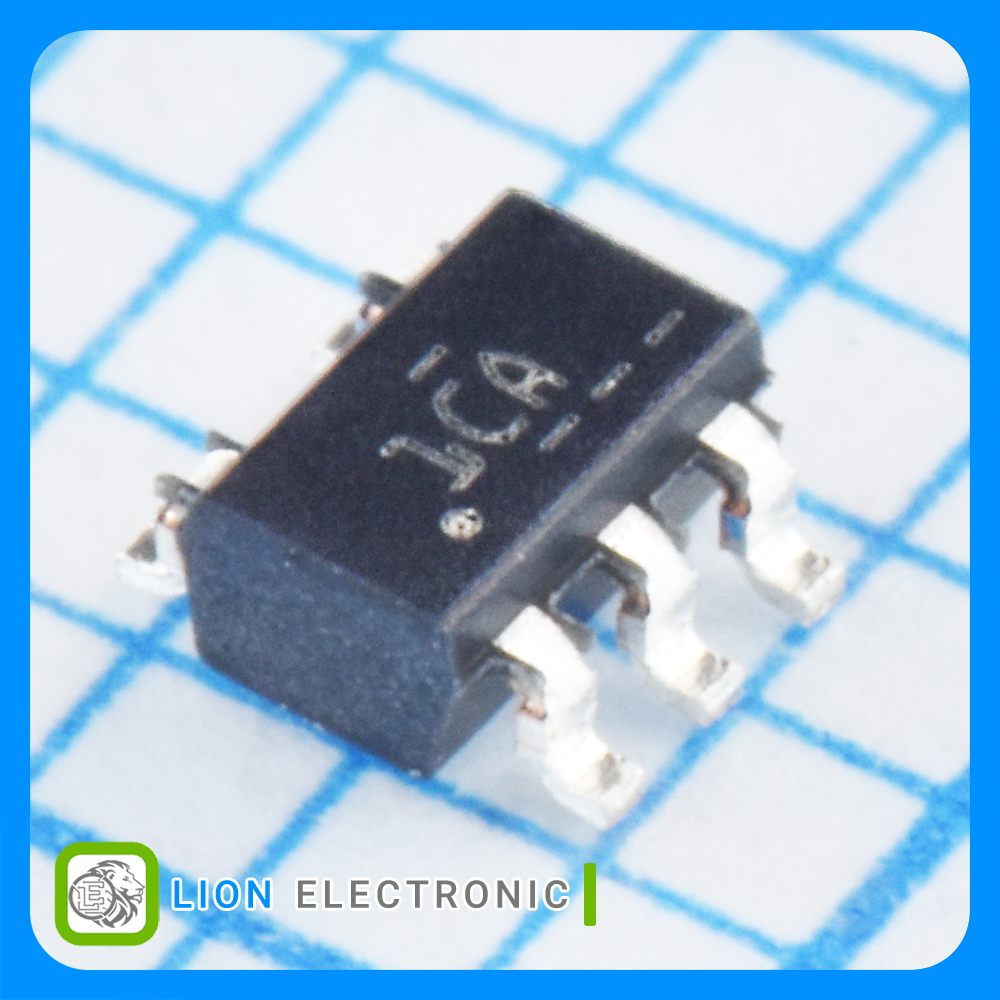

آپ امپ TLV9061IDCKR
Part Number
1
Number of Channels
500fA
Ib - Input Bias Current
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
1.8V
Supply Voltage - Min
5.5V
Supply Voltage - Max
50mA
Output Current per Channel
300uV
Vos - Input Offset Voltage
6.5V/us
SR - Slew Rate
103dB
CMRR - Common Mode Rejection Ratio
10MHz
GBP - Gain Bandwidth Product
538uA
Operating Supply Current
SC-70-5
Package-Case
