Worldsemi
معرفی
ال ای دی RGB کنترل شونده R:620-625-G:515-525-B:465-475nm با جریان 16 میلیآمپر و توان 200 میلیوات با پکیج 3535
LED RGB R:620-625-G:515-525-B:465-475nm, 16mA, 200mW with 3535 Package
Specifications
- Illumination Color: RGB
- Vf - Forward Voltage: 5V
- If - Forward Current: 16mA
- Power Rating: 200mW
- Wavelength/Color Temperature: R:620-625-G:515-525-B:465-475nm
- Luminous Intensity: R:240-G:870-B:220mcd
- Package/Case: 3535
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات RGB ال ای دی WS2813B-MINI-V1

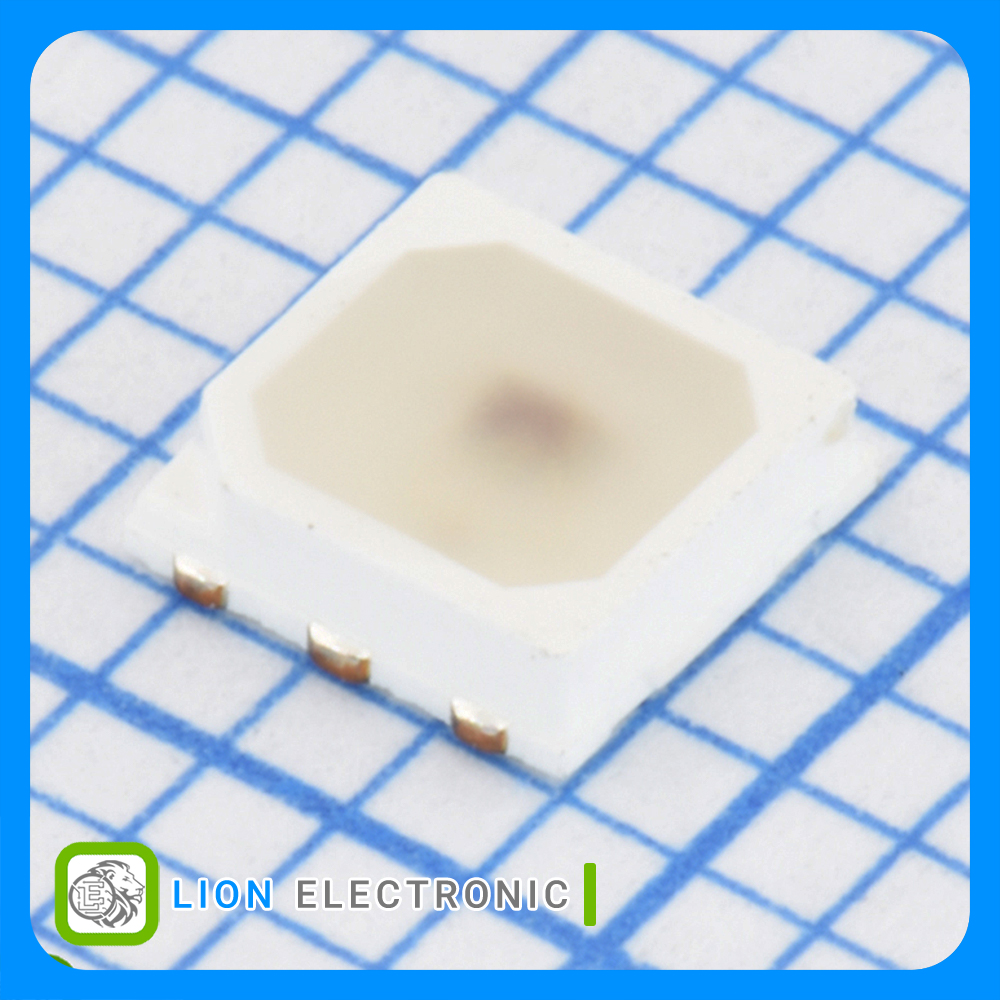

RGB ال ای دی WS2813B-MINI-V1
Part Number
Reel
Packaging
-40C
Minimum Operating Temperature
16mA
If - Forward Current
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
RGB
Illumination Color
200mW
Power Rating
R:620-625-G:515-525-B:465-475nm
Wavelength-Color Temperature
R:240-G:870-B:220mcd
Luminous Intensity
3535
Package-Case
5V
Vf - Forward Voltage
