ال ای دی RGB کنترل شونده R:620-630-G:510-520-B:465-475nm جریان 36 میلیآمپر توان 200 میلیوات با پکیج گرد 5 میلیمتر پایهدار

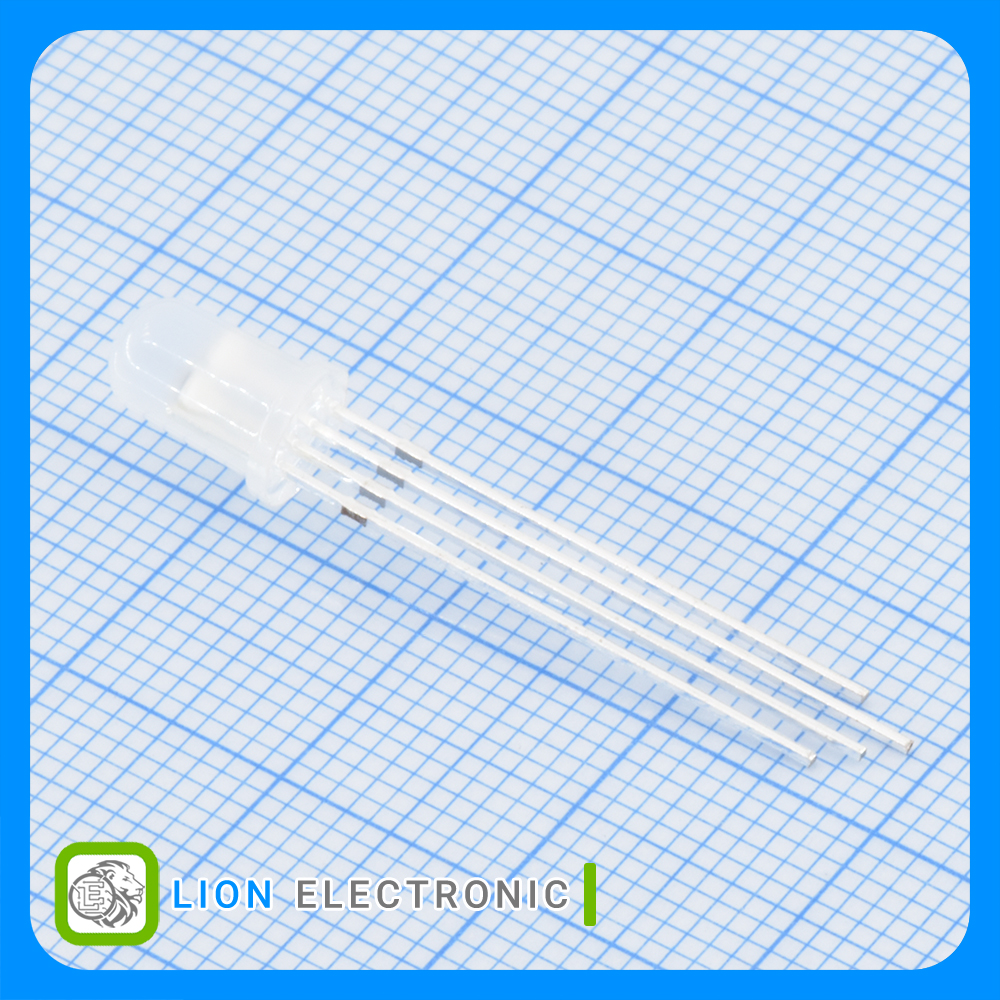

LED RGB R:620-630-G:510-520-B:465-475nm, 36mA, 200mW with 5mm ROUND Package
Specifications
- Illumination Color: RGB
- Vf - Forward Voltage: 3.7-5.3V
- If - Forward Current: 36mA
- Power Rating: 200mW
- Wavelength/Color Temperature: R:620-630-G:510-520-B:465-475nm
- Luminous Intensity: R:250-350-G:500-700-B:80-150mcd
- Package/Case: 5mm ROUND
- Mounting Style: Through Hole
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Bag
مشخصات RGB ال ای دی WS2812D-F5
RGB ال ای دی WS2812D-F5
Part Number
Bag
Packaging
5mm ROUND
Package-Case
-25C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
RGB
Illumination Color
36mA
If - Forward Current
200mW
Power Rating
R:620-630-G:510-520-B:465-475nm
Wavelength-Color Temperature
R:250-350-G:500-700-B:80-150mcd
Luminous Intensity
3.7-5.3V
Vf - Forward Voltage
