WS2812D-F8
WS2812D-F8
Part Number
5851
Lion Part
Datasheet
Worldsemi Manufacture
ال ای دی RGB R:620-625-G:520-525-B:465-470nm با جریان 20 میلیآمپر با پکیج 8mm ROUND، با مدار کنترل داخلی و تراشه RGB یکپارچه در پکیج 8 میلیمتری DIP

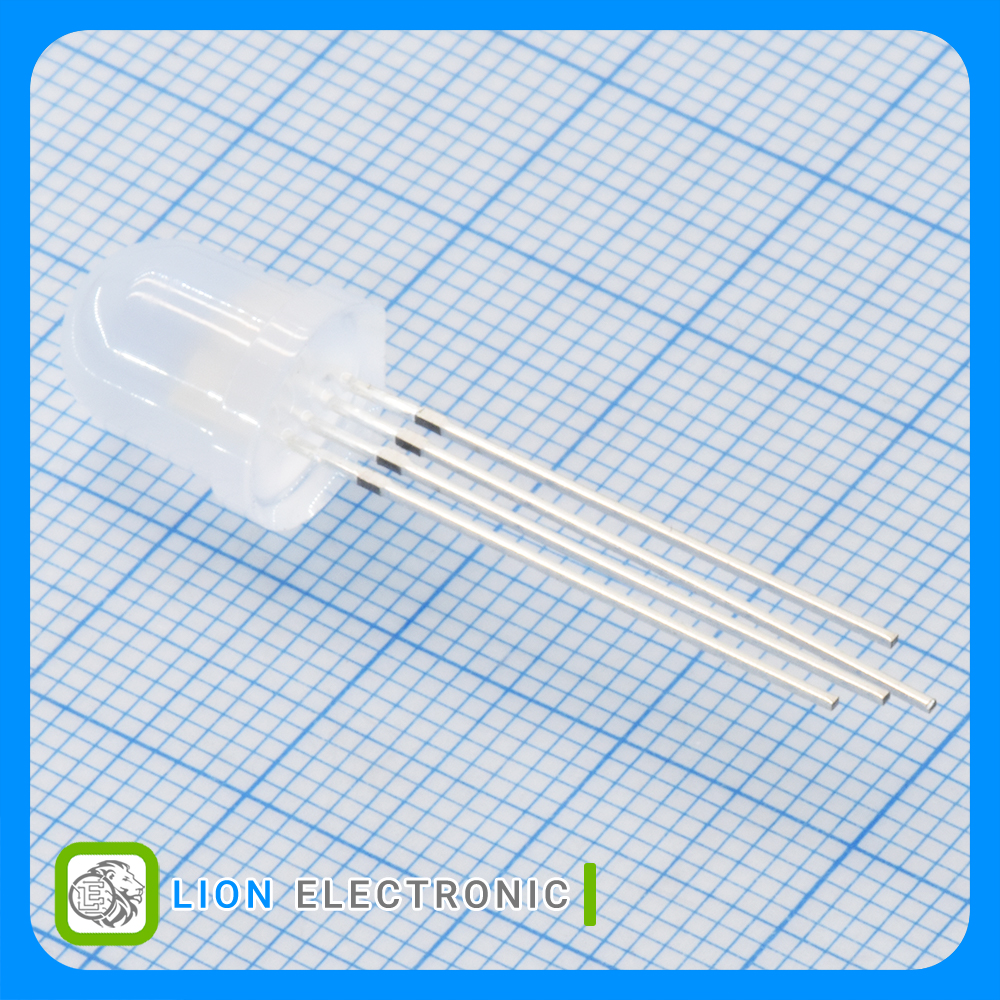

LED RGB R:620-625-G:520-525-B:465-470nm, 20mA with 8mm ROUND Package, Intelligent Control LED Light Source that the Control Circuit and RGB Chip are Integrated in a Package of 8mm THT
معرفی
ال ای دی RGB R:620-625-G:520-525-B:465-470nm با جریان 20 میلیآمپر با پکیج 8mm ROUND، با مدار کنترل داخلی و تراشه RGB یکپارچه در پکیج 8 میلیمتری DIP
LED RGB R:620-625-G:520-525-B:465-470nm, 20mA with 8mm ROUND Package, Intelligent Control LED Light Source that the Control Circuit and RGB Chip are Integrated in a Package of 8mm THT
Specifications
- Illumination Color: RGB
- Vf - Forward Voltage: R:1.8-2.2-G:3.0-3.4-B:3.0-3.4V
- If - Forward Current: 20mA
- Power Rating: 200mW
- Wavelength/Color Temperature: R:620-625-G:520-525-B:465-470nm
- Luminous Intensity: R:2500-3500-G:3500-4500-B:2000-3000mcd
- Package/Case: 8mm ROUND
- Mounting Style: Through Hole
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Bag
مشخصات WS2812D-F8
WS2812D-F8
Part Number
Bag
Packaging
20mA
If - Forward Current
-25C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
RGB
Illumination Color
200mW
Power Rating
8mm ROUND
Package-Case
R:620-625-G:520-525-B:465-470nm
Wavelength-Color Temperature
R:2500-3500-G:3500-4500-B:2000-3000mcd
Luminous Intensity
R:1.8-2.2-G:3.0-3.4-B:3.0-3.4V
Vf - Forward Voltage
