Worldsemi
معرفی
ال ای دی RGB کنترل شونده R:620-630-G:510-520-B:465-475nm با جریان 16 میلیآمپر و توان 200 میلیوات با پکیج 5050
LED RGB R:620-630-G:510-520-B:465-475nm, 16mA, 200mW with 5050 Package
Specifications
- Illumination Color: RGB
- Vf - Forward Voltage: 5V
- If - Forward Current: 16mA
- Power Rating: 200mW
- Wavelength/Color Temperature: R:620-630-G:510-520-B:465-475nm
- Luminous Intensity: R:380-G:1050-B:270mcd
- Package/Case: 5050
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات RGB ال ای دی WS2813B-V5

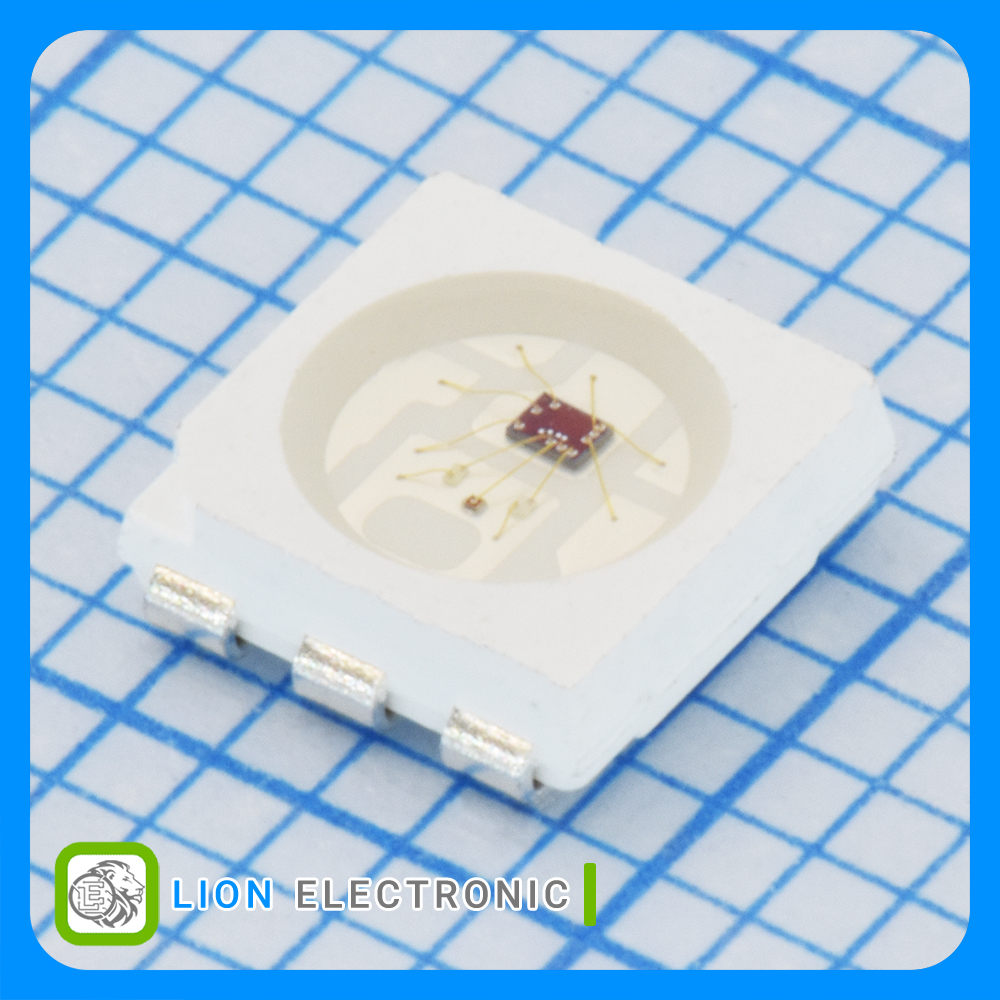

RGB ال ای دی WS2813B-V5
Part Number
---
Operating Supply Current
--- 200mW
Power Rating
--- 5050
Package-Case
--- Reel
Packaging
--- +85C
Maximum Operating Temperature
--- -40C
Minimum Operating Temperature
--- SMD/SMT
Mounting Style
800Kbps
Data Rate
3.7 - 5.3V
Operating Supply Voltage
