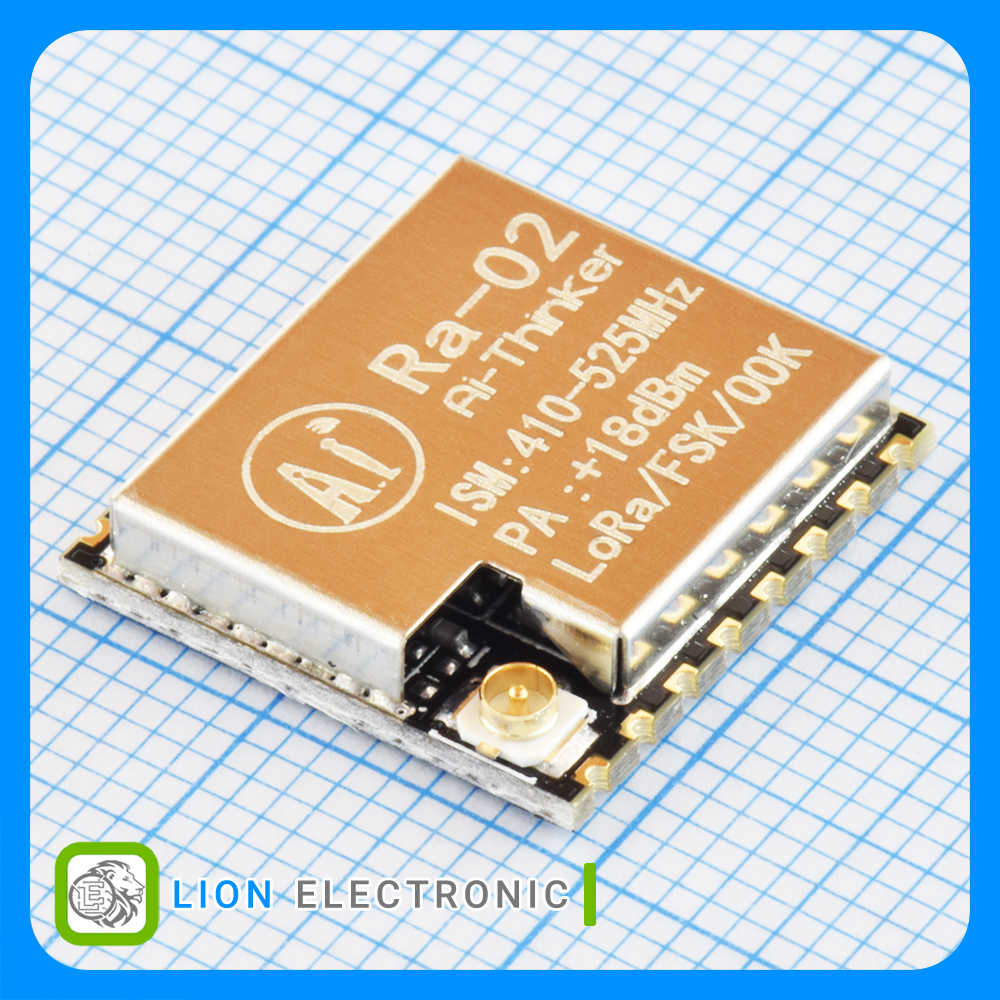

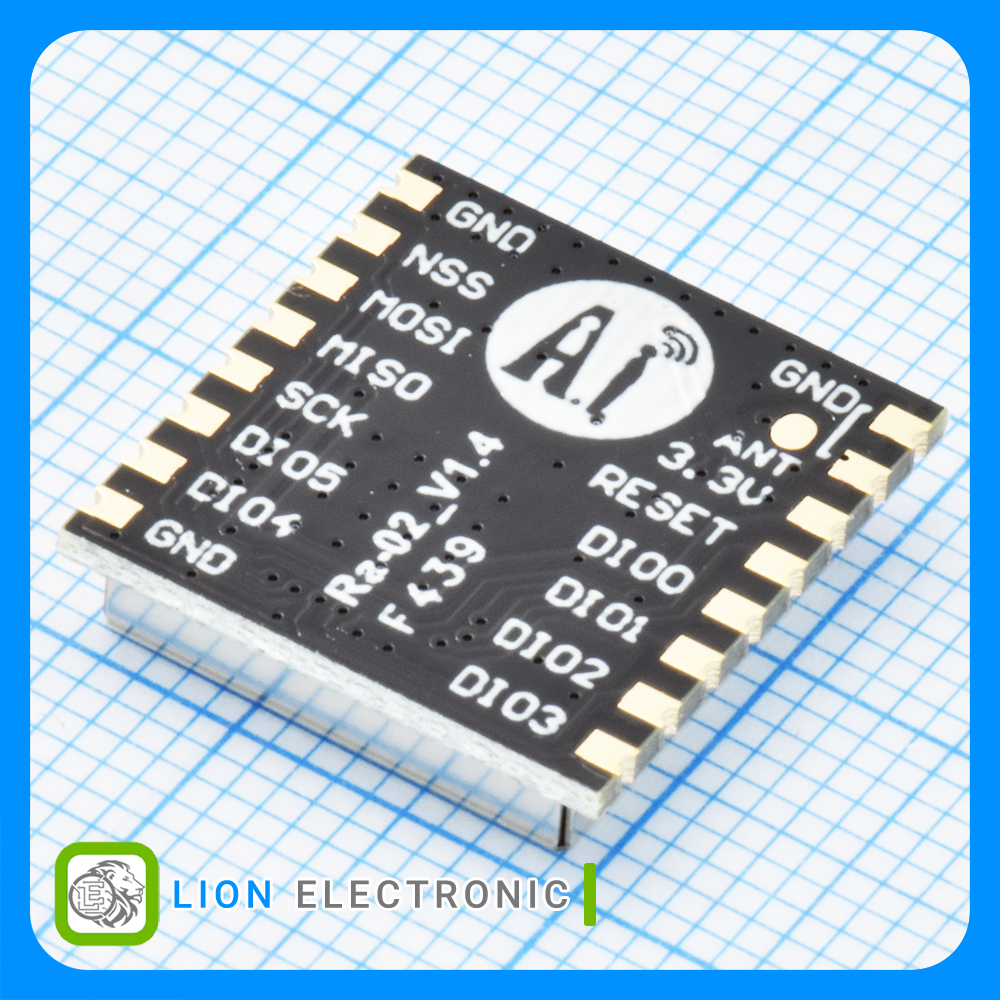

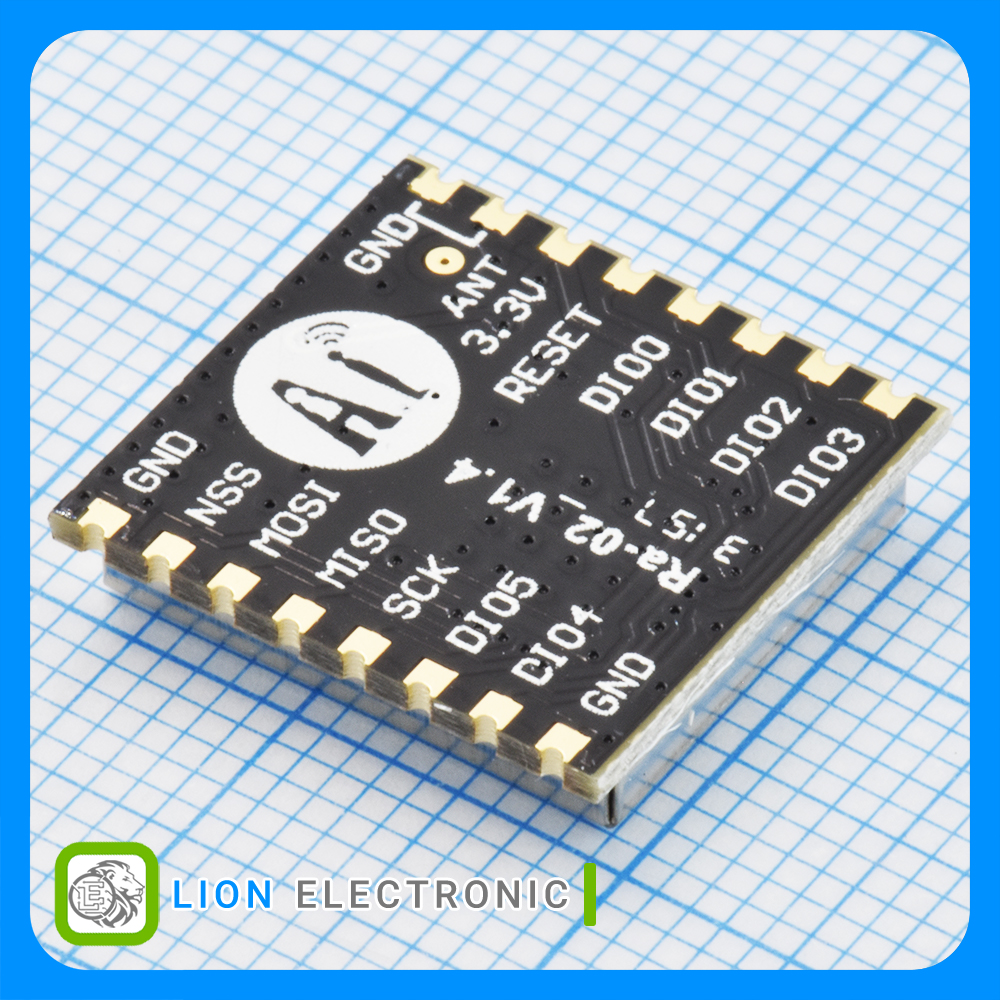

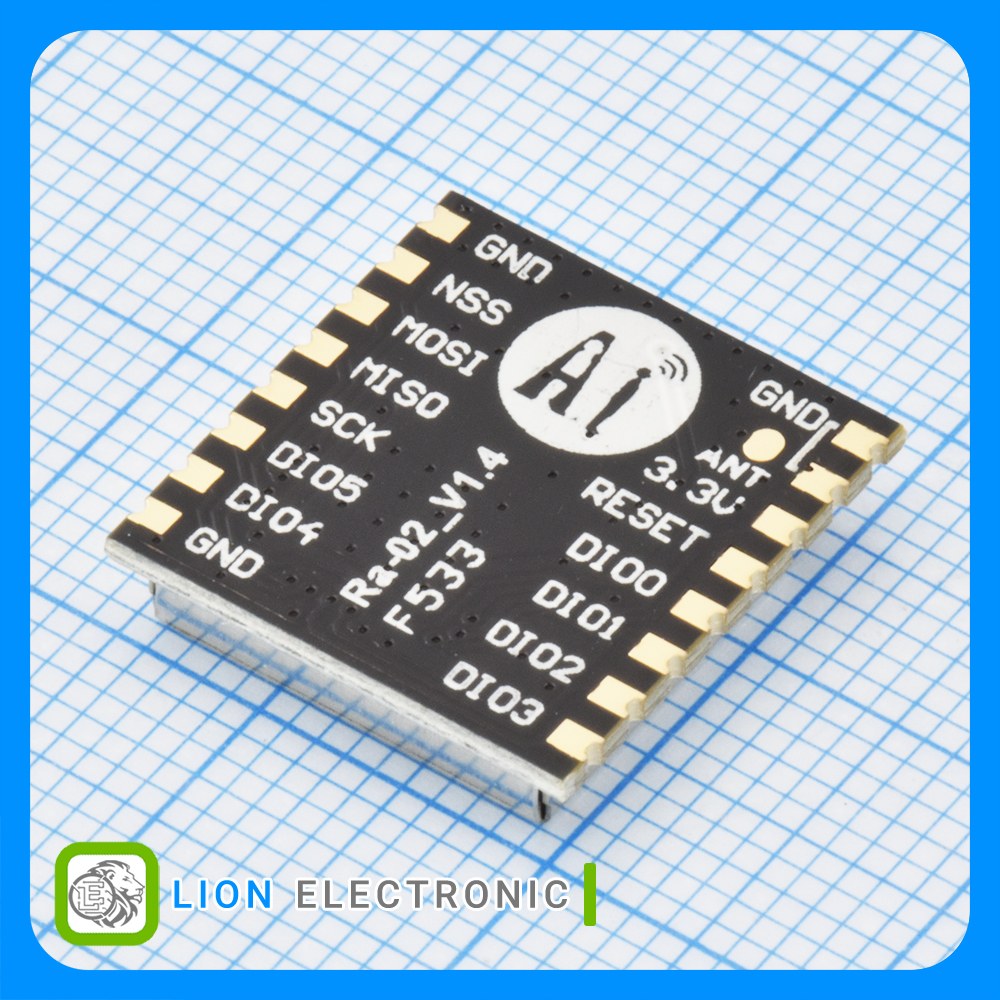

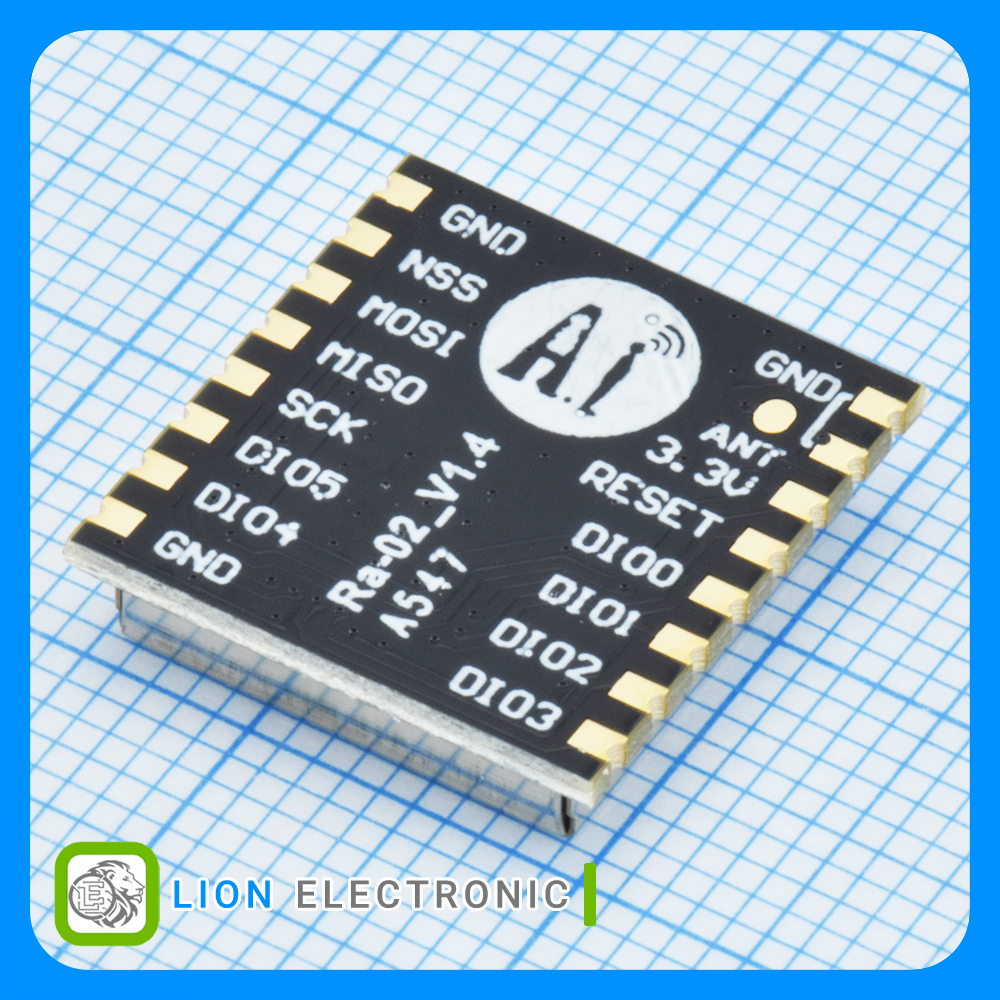

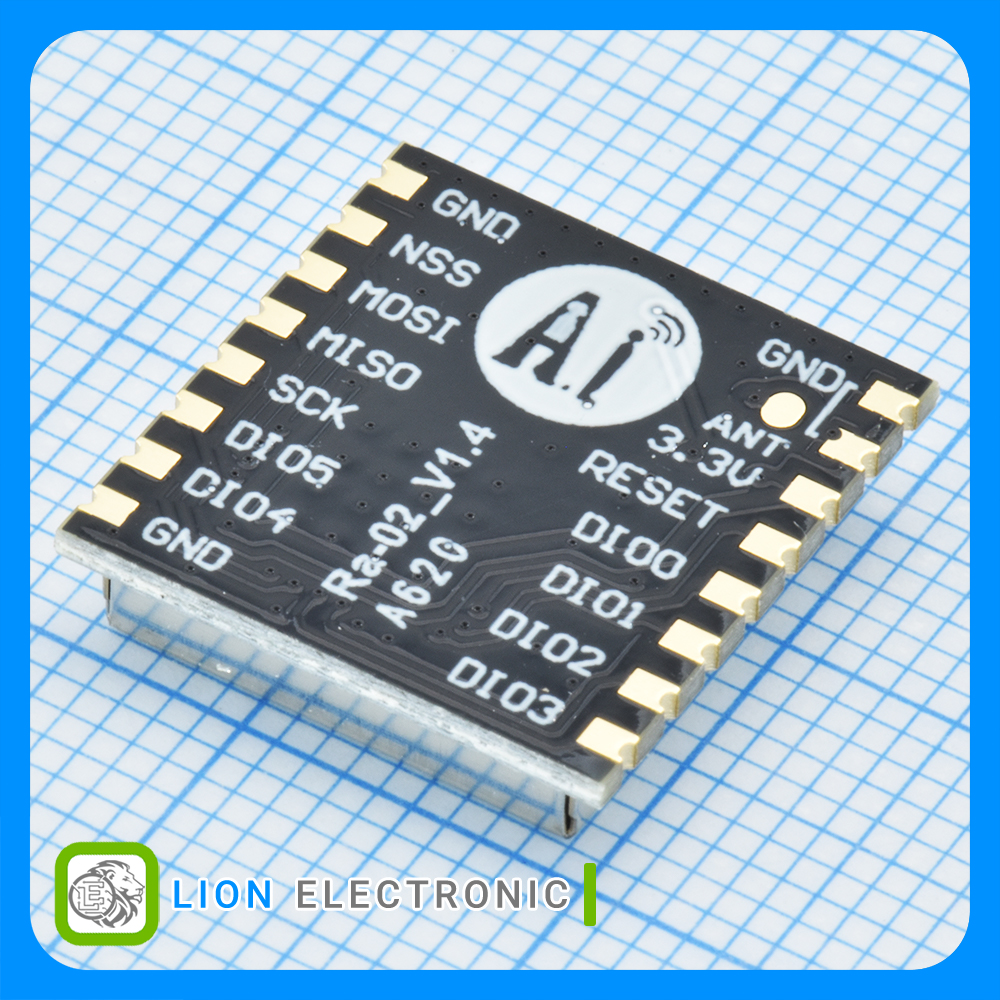

Ra-02
Ra-02
Part Number
3732
Lion Part
Datasheet
Ai-Thinker Manufacture
ماژول LoRa با فرکانس 410 تا 525 مگاهرتز با چیپ SX1278، خروجی 18dBm و رابط SPI با کانکتور IPEX، با 16 پایه
LoRa Module 410-525MHz with SX1278 Chip, 18dBm, SPI with IPEX Connector, SMD-16P
معرفی
ماژول LoRa با فرکانس 410 تا 525 مگاهرتز با چیپ SX1278، خروجی 18dBm و رابط SPI با کانکتور IPEX، با 16 پایه
LoRa Module 410-525MHz with SX1278 Chip, 18dBm, SPI with IPEX Connector, SMD-16P
Specifications
- Product: LoRa wireless module
- Interface Type: SPI
- Antenna Connector Type: IPEX
- Frequency: 410MHz to 525MHz
- Output Power: 18dBm
- Operating Supply Voltage: 2.5 - 3.7V
- Supply Current Transmitting: 93mA, 97mA
- Supply Current Receiving: 12.15mA
- Dimensions: 17mm x 16mm
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ماژول لورا Ra-02

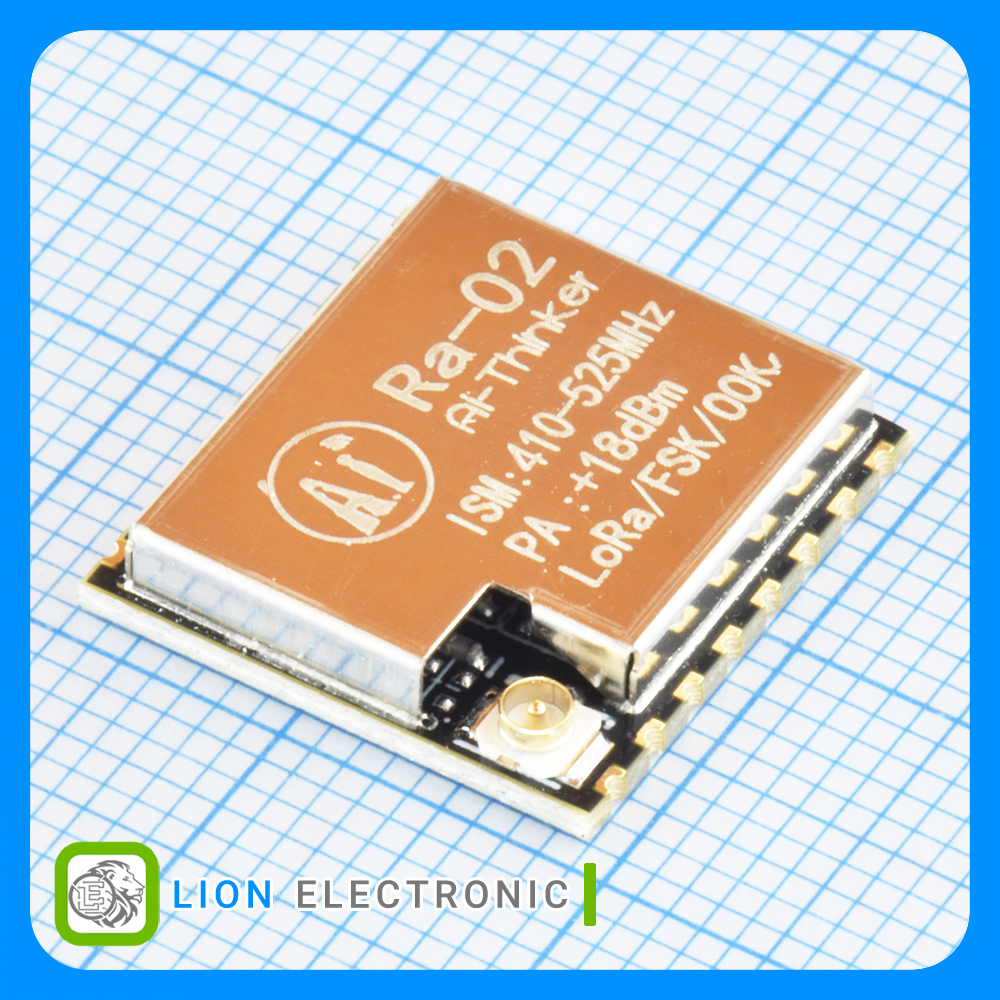

ماژول لورا Ra-02
Part Number
IPEX
Antenna Connector Type
Reel
Packaging
63.1mW
Output Power
-30C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
12.15mA
Supply Current Receiving
93mA, 97mA
Supply Current Transmitting
17mm x 16mm
Dimensions
410MHz to 525MHz
Frequency
LoRa wireless module
Product
2.5 - 3.7V
Operating Supply Voltage
SPI
Interface Type
